Description

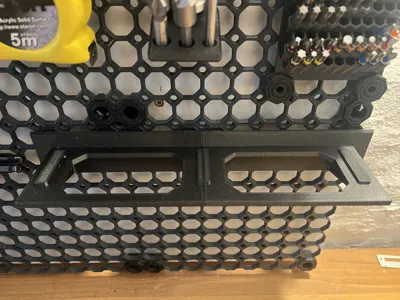

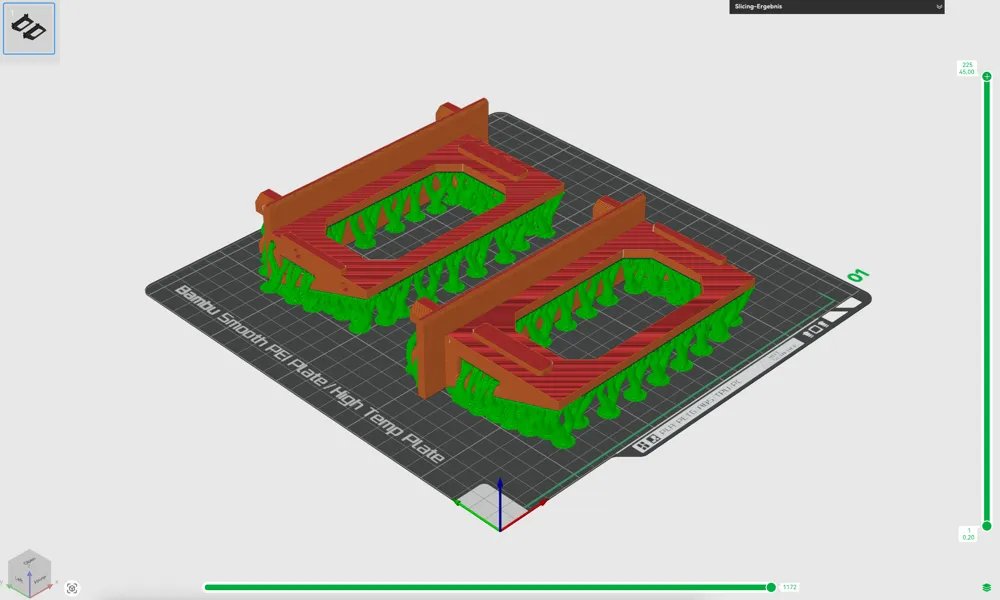

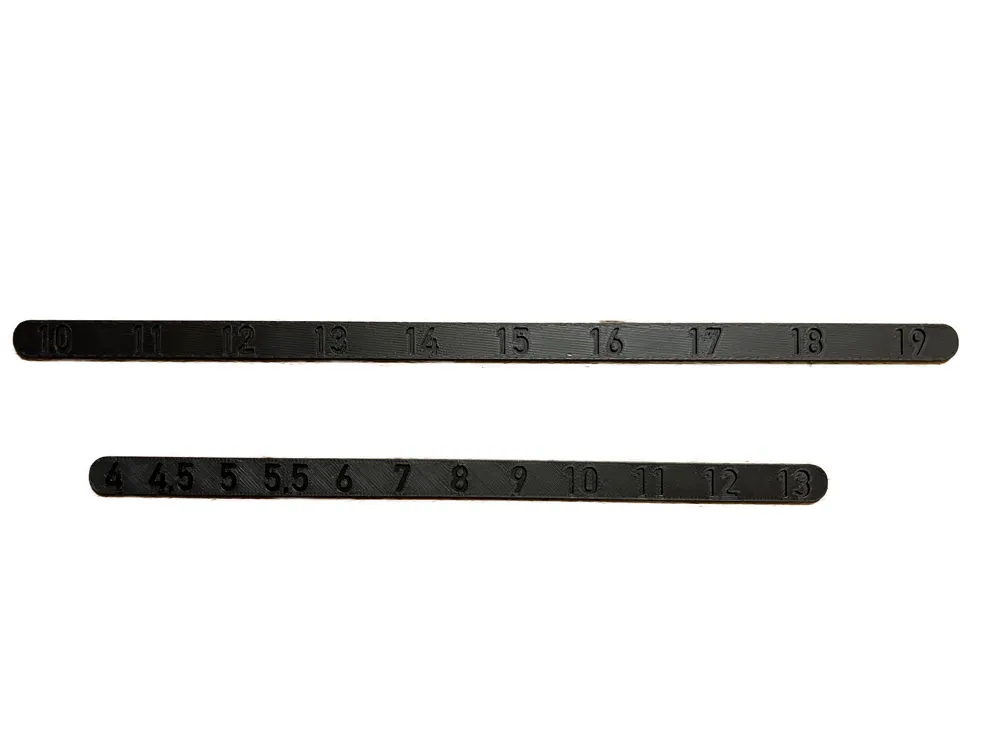

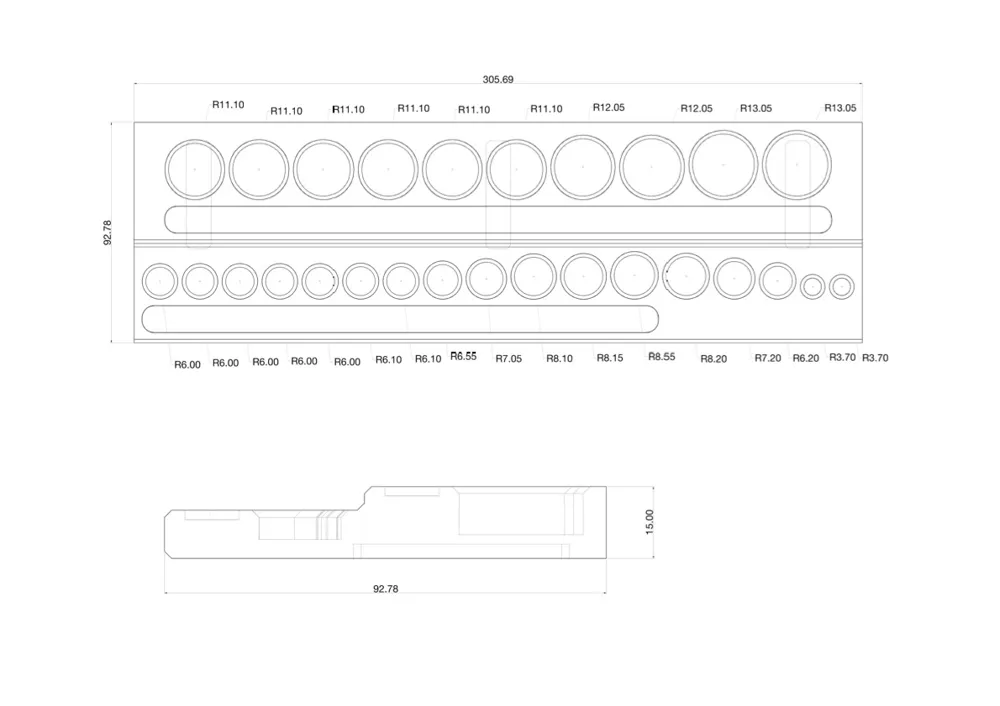

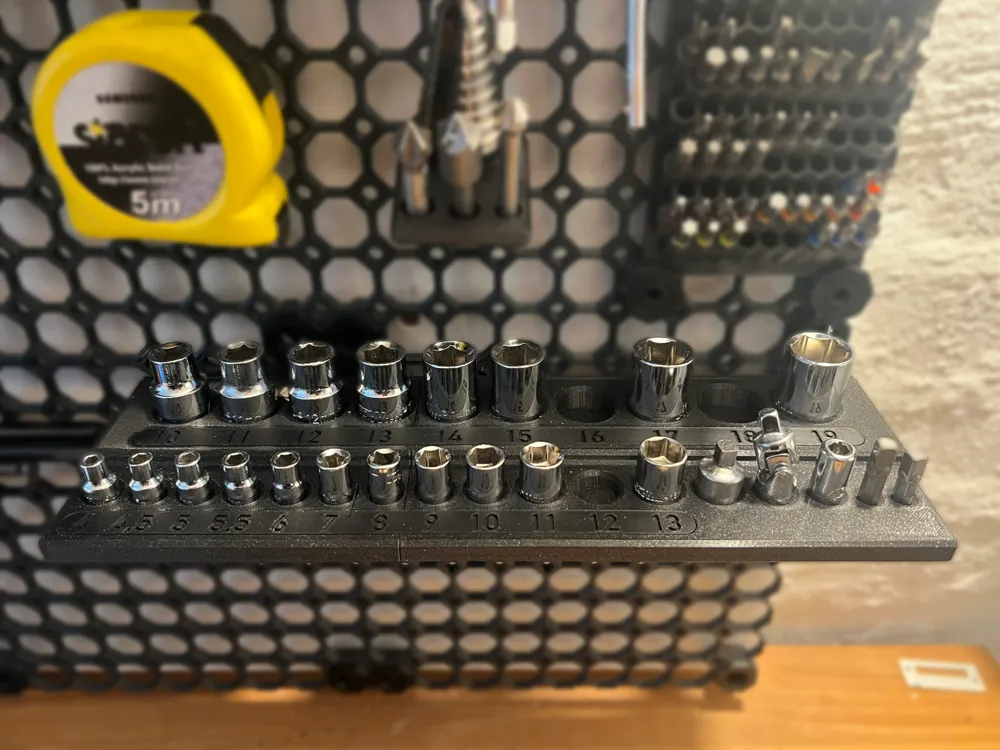

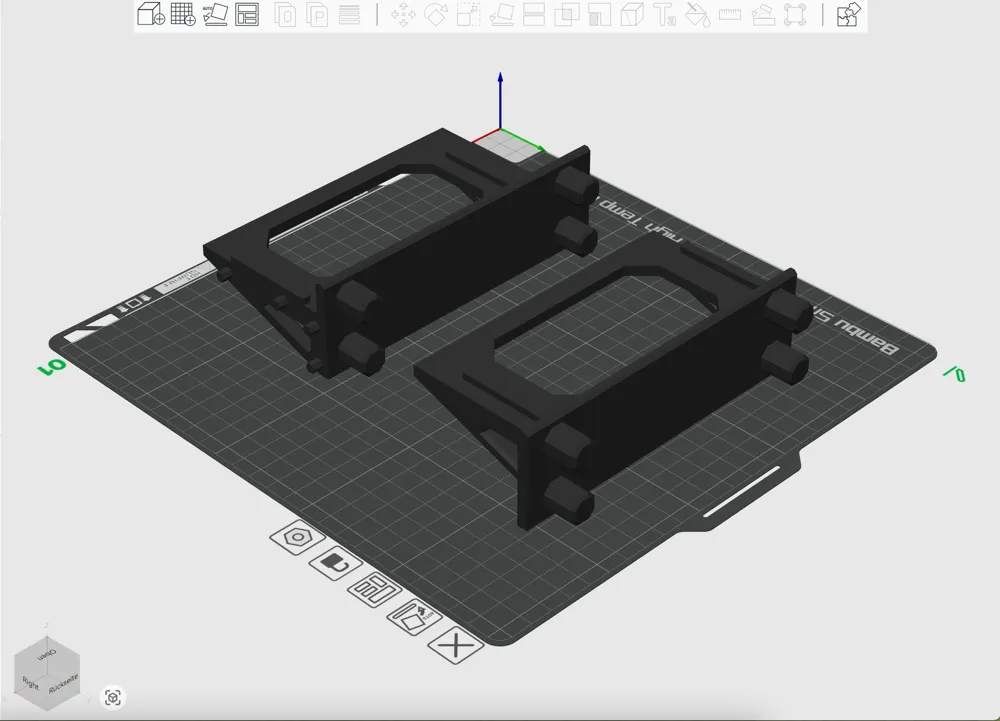

I have designed a tray for the Multiboard system for my socket wrench set. It consists of three parts, a holder for the Multiboard, a tray and size specifications. As this was made to fit my key set, you'll have to see if it fits yours too. See pictures and technical drawing. I printed it with the default settings in Bambulab P1S, it can be printed with PETG or PLA. The holder for the Multiboard needs a support structure and has to be cut in the middle and it is inserted into the Multiboard Bolts. https://www.multiboard.io/parts-library/threads
The tray also needs to be cut as the build space is not big enough. You can find the ratchet wrench holder for multiboard here: https://makerworld.com/en/models/1336221-ratchet-wrench-holder-for-multiboard#profileId-1375533
Have fun with it.
