Stackable Bins - parametric, customizable

This model is obviously inspired by https://www.printables.com/model/1217269-stackable-box-formastudios-box001

However, since the original only comes in one size and I love the sharing culture, I created completely new and parametric boxes with a similar design. I will also provide some variants as STL files. If there are any requests, feel free to let me know.

The model can be freely customized and downloaded via the following OnShape link. Copies and modifications are fully allowed.

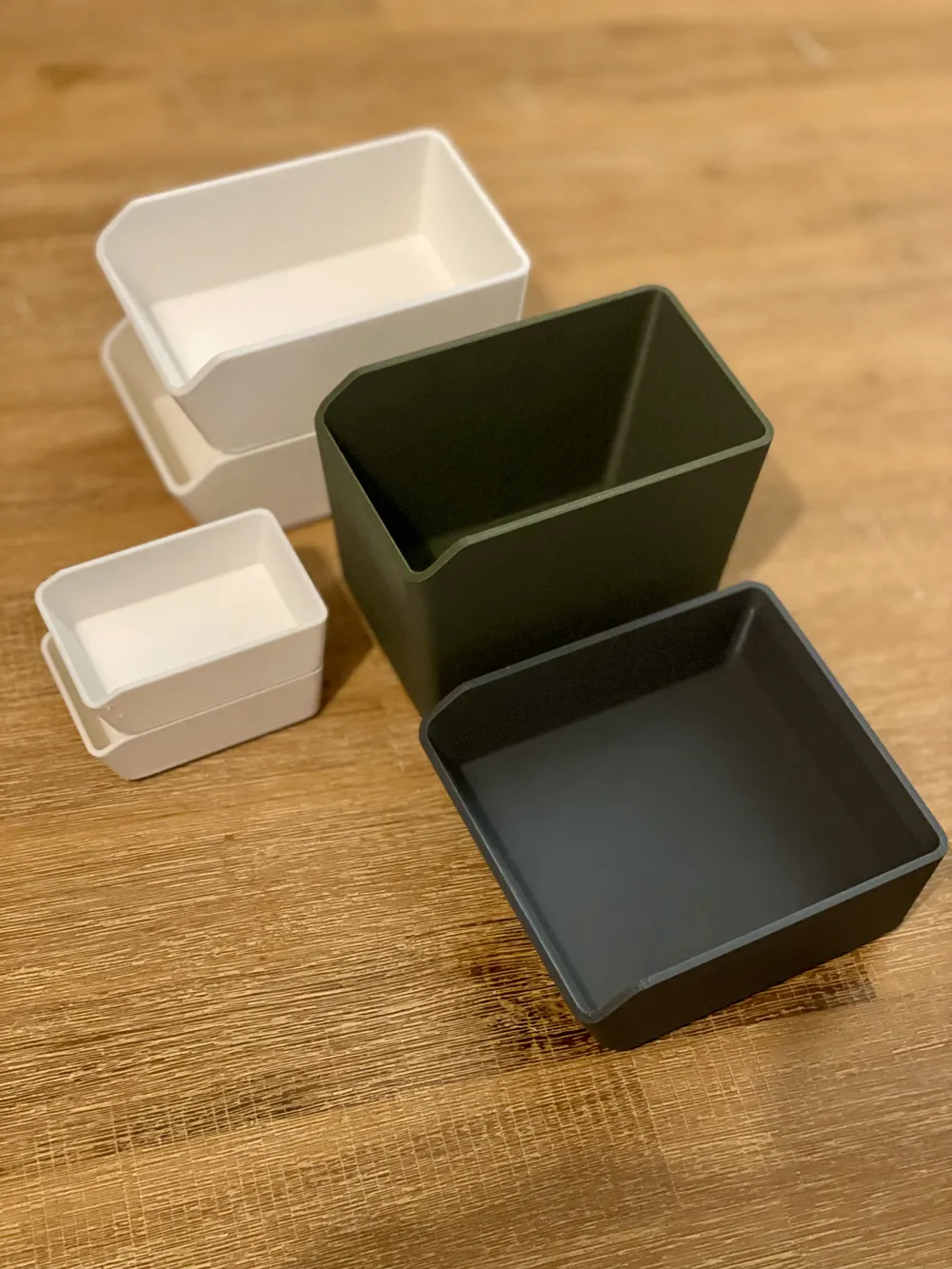

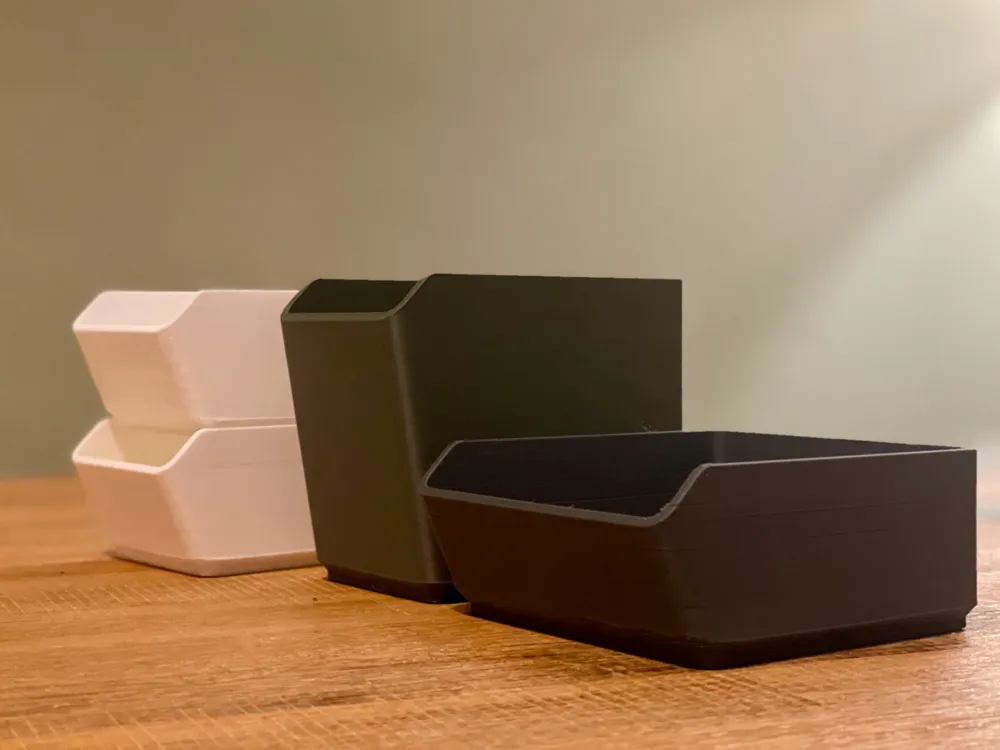

I attached a collection of bins with sizes optimized for Ikea Kallax. Of cause they can be used for any other storage solution.

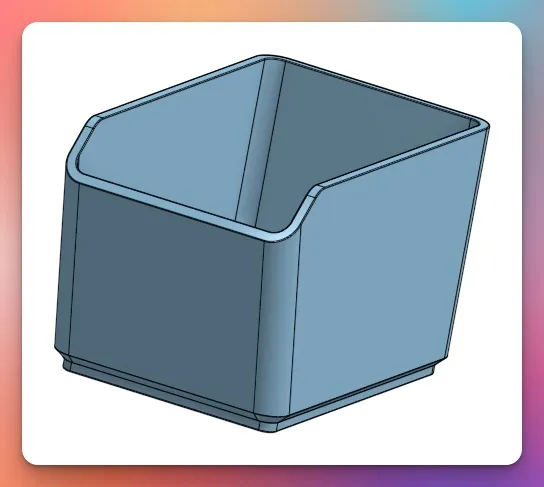

Possible Customizations in the Parametric Model

The following settings can easily be changed using parameters:

• Height, width, and depth of the box
• Wall thickness
• Size of the corner rounding
• Depth of the lip
• Angle of the lip
• Enable/disable stacking floor
• Enable/disable mounts for IKEA Skadis board
• Enable/disable sliding stopper (when stackable base is enabled)

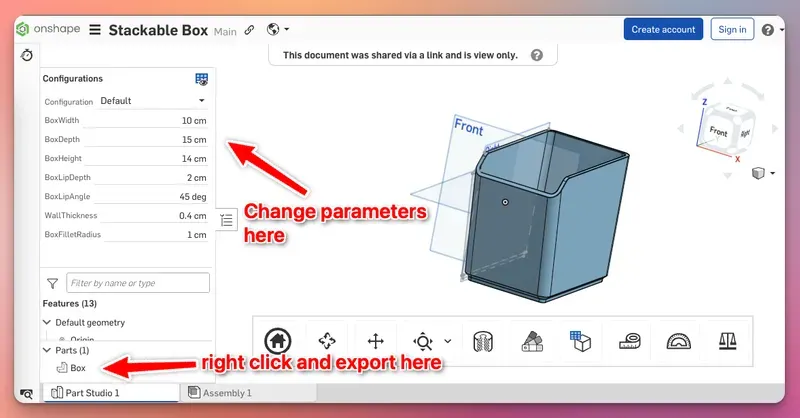

Create your own parametric versions

1. Open the OnShape link
2. edit the parameters on the top left side
3. right click the part on the bottom left side
4. click export
5. choose file name in the dialog and export the stl
