Description
IF YOU LIKE THE PROJECT GIVE IT A LIKE
Button Box for Sim Racing.

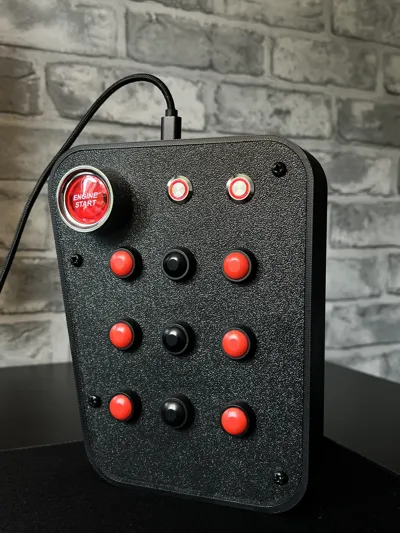

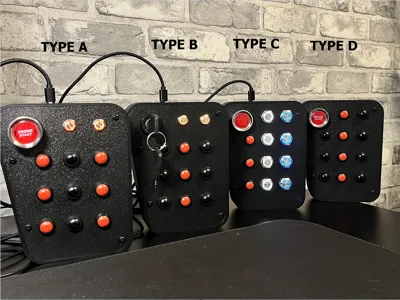

------------Type A--------------
- 9 Buttons (red and black) 12mm
- 2 LED buttons (red) 12mm
- Start Stop

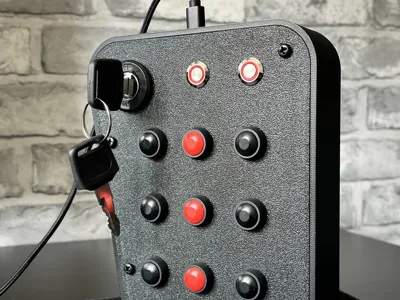

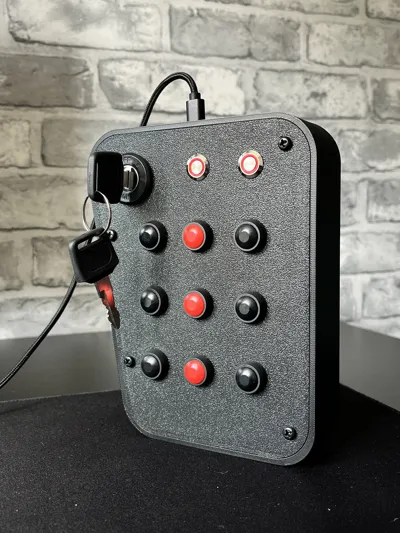

------------Type B--------------
- 9 Buttons (red and black) 12mm
- 2 LED buttons (red) 12mm
- Ignition switch

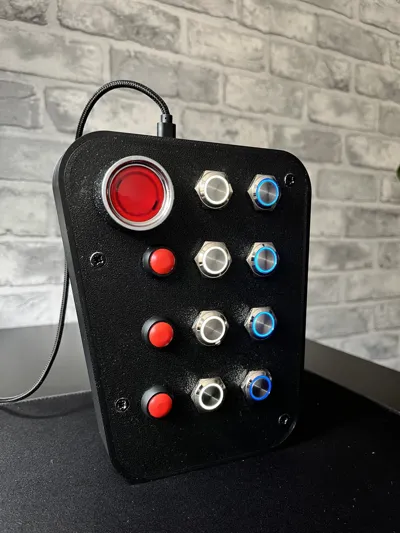

------------Type C--------------
- 3 Buttons (red) 12mm
- 8 LED buttons (white/blue) 16mm
- Start Stop

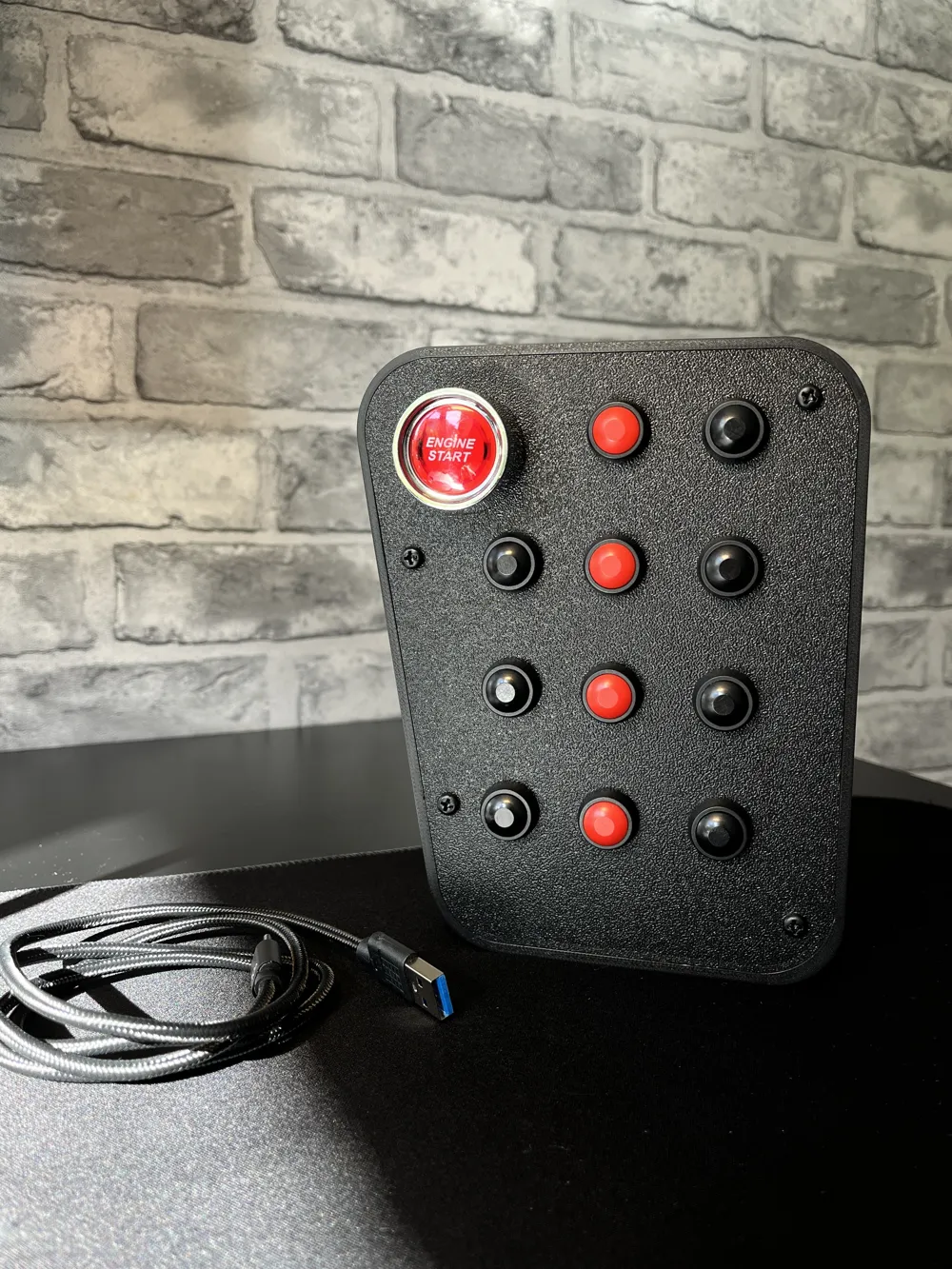

------------Type D--------------
- 11 Buttons (red and black) 12mm
- Start Stop
All button boxes are built on an Arduino Micro or Raspberry Pi Pico RP2040 board.
------------Required components:--------------
- 12mm buttons (red and black)-- https://pl.aliexpress.com/item/1005003302861259.html?spm=a2g0o.productlist.main.11.3bfc130a2nMg9I&algo_pvid=d12d18a7-f7d9-43dd-8516-649c96673a66&algo_exp_id=d12d18a7-f7d9-43dd-8516-649c96673a66-5&pdp_ext_f=%7B"order"%3A"1307"%2C"eval"%3A"1"%7D&pdp_npi=4%40dis%21PLN%2110.39%2110.39%21%21%2119.67%2119.67%21%40211b61bb17449137182424858e832d%2112000035351804945%21sea%21PL%212617205192%21X&curPageLogUid=1iqOiPXR31QD&utparam-url=scene%3Asearch%7Cquery_from%3A
- Start Stop switch-- https://pl.aliexpress.com/item/1005006049477495.html?spm=a2g0o.order_list.order_list_main.22.347a1c24NOZpr8&gatewayAdapt=glo2pol
- Ignition switch-- https://pl.aliexpress.com/item/33012226746.html?spm=a2g0o.order_list.order_list_main.16.53f51c24OQ1AKA&gatewayAdapt=glo2pol
- 12mm LED buttons-- https://pl.aliexpress.com/item/1005006477375437.html?spm=a2g0o.detail.pcDetailTopMoreOtherSeller.7.1566SirnSirnS5&gps-id=pcDetailTopMoreOtherSeller&scm=1007.40196.394660.0&scm_id=1007.40196.394660.0&scm-url=1007.40196.394660.0&pvid=547a12aa-b815-48db-87b2-467256004bad&_t=gps-id:pcDetailTopMoreOtherSeller,scm-url:1007.40196.394660.0,pvid:547a12aa-b815-48db-87b2-467256004bad,tpp_buckets:668%232846%238114%231999&pdp_ext_f=%7B"order"%3A"2371"%2C"eval"%3A"1"%2C"sceneId"%3A"30050"%7D&pdp_npi=4%40dis%21PLN%216.33%215.99%21%21%211.64%211.55%21%402103849717449139142788173e1656%2112000037343711701%21rec%21PL%212617205192%21XZ&utparam-url=scene%3ApcDetailTopMoreOtherSeller%7Cquery_from%3A
- 16mm LED buttons-- the same as 12mm
- Arduino/Raspberry Pi
- Threaded Inserts-- https://pl.aliexpress.com/item/1005005220632314.html?spm=a2g0o.order_list.order_list_main.10.4ef31c24FEAITw&gatewayAdapt=glo2pol
Select M4(OD 5MM)50pcs
