Nine Dragon Pearl - Thor's Sword

Nine Dragon Beads Series(Portal):

Thunder God Sword,Thunder God Bead Non-Luminous Version

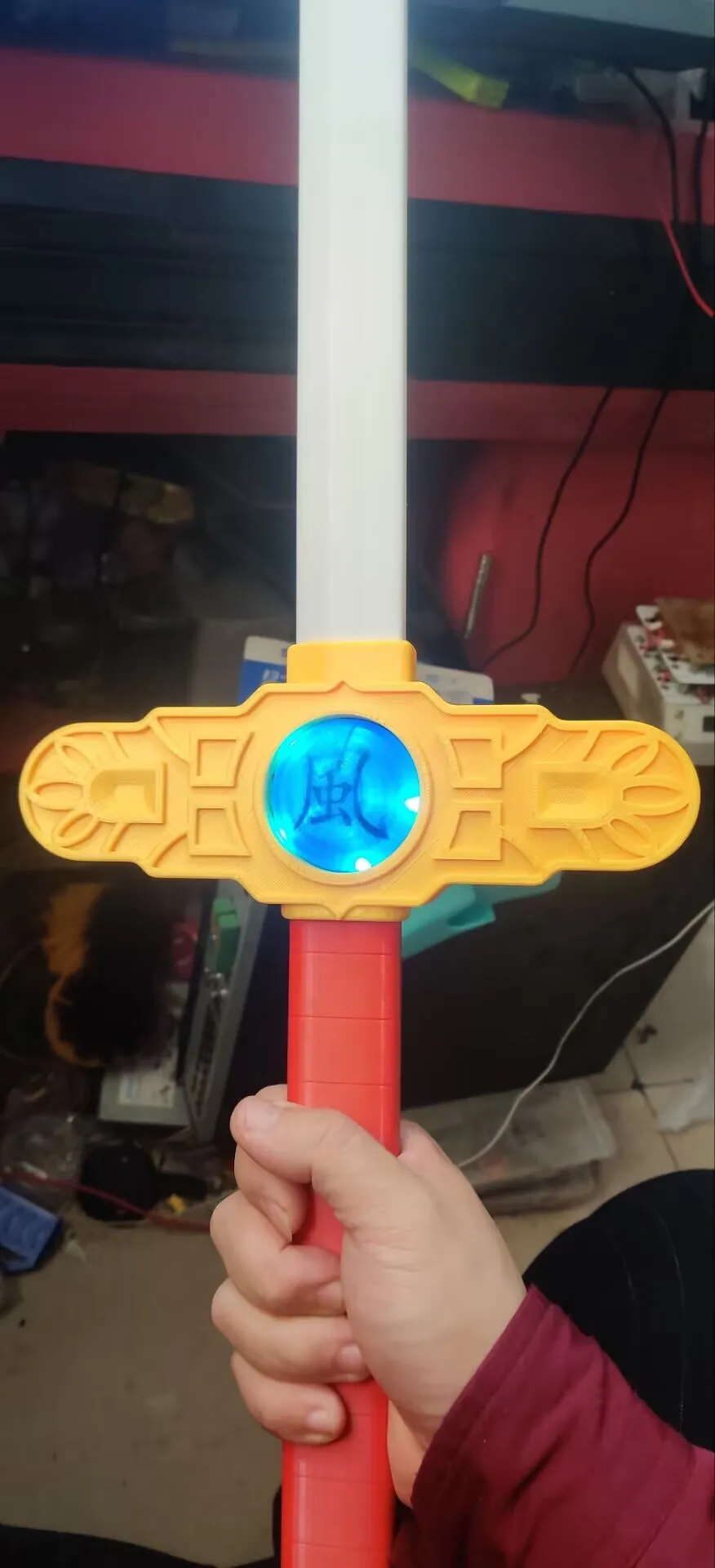

Wind God Sword,Wind God Bead

Dragon God Sword,Dragon God Bead

Color-separated parts 3 walls 5 top and bottom layers 20% infill

Printing plates 1, 4, 5, 6 for the short sword weight 315 grams

Printing plates 1, 2, 3, 4 for the long sword weight 371 grams

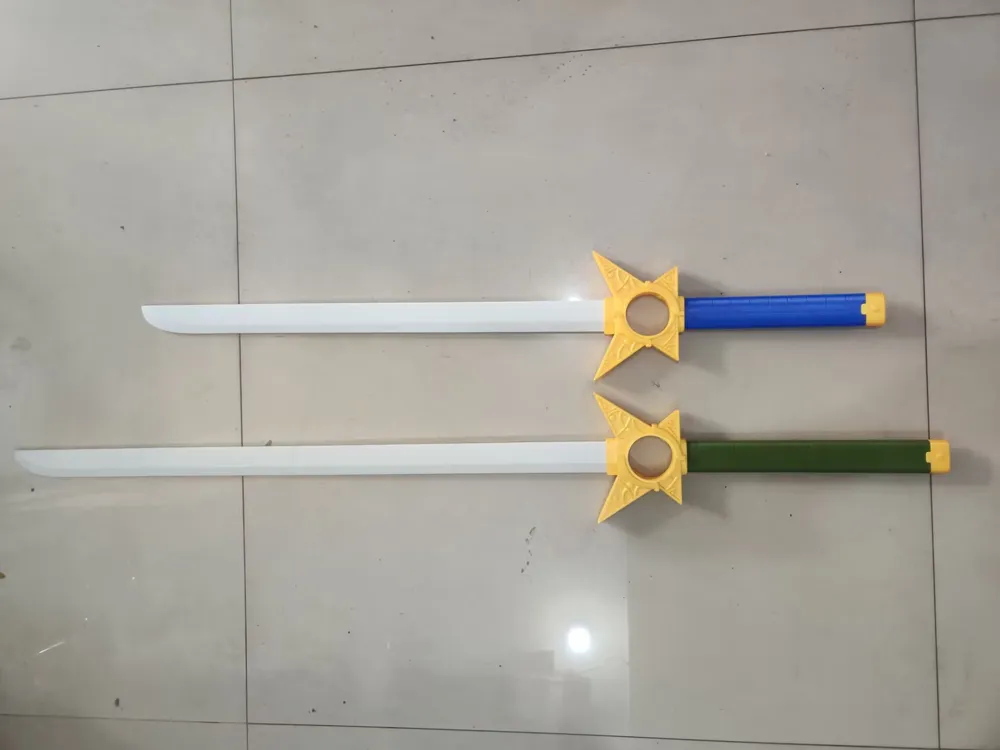

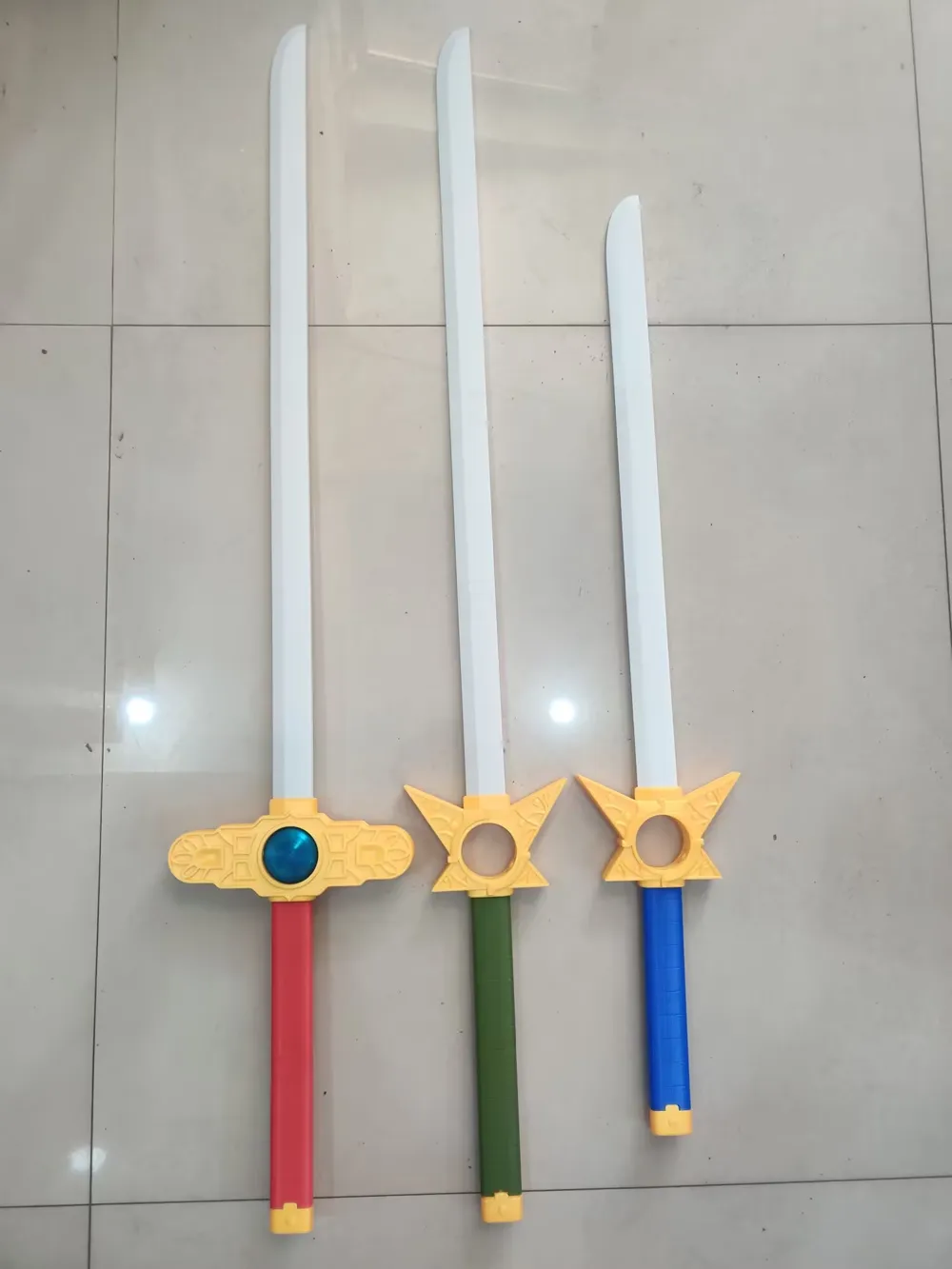

Comparison photos of short and long swords are on the homepage

A brief overview of the modeling process A few days ago I suddenly came across the Kendo Master Yaiba Remake Although only one episode has been updated my dormant memories came flooding back Thunder God Sword Wind God Sword various luminous beads swapped back and forth back and forth back and forth

And then this model was created

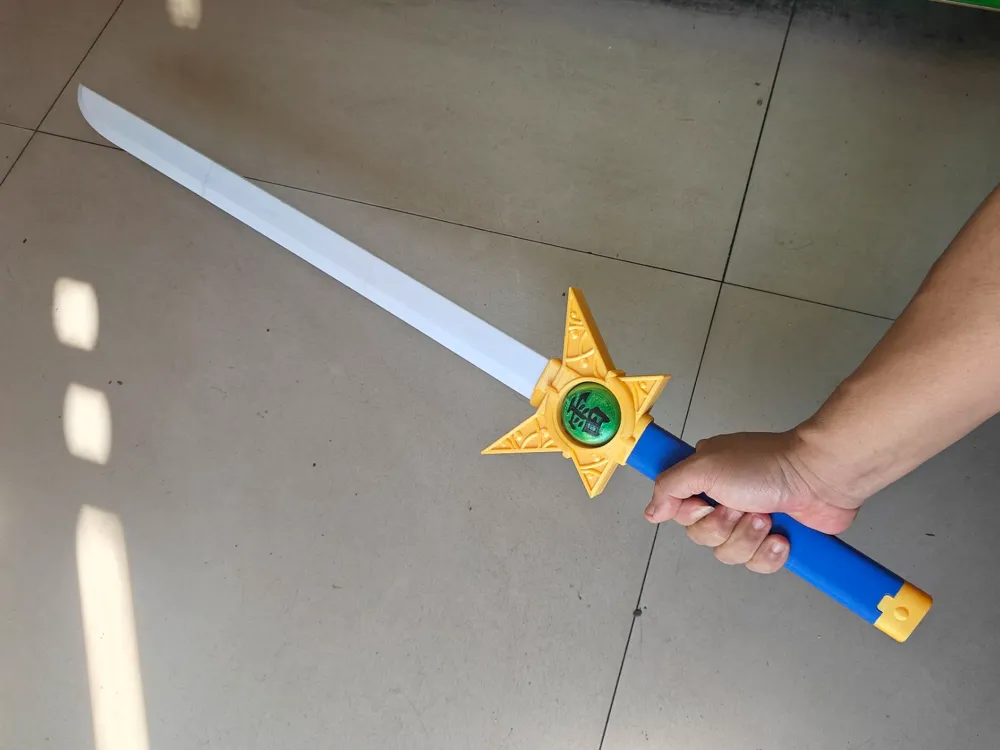

Nine Dragon Beads - Thunder God Sword(Thunder God Sword with replaceable luminous beads)

Short sword hardware components:

1.2*15*15mm spring*2,

1*10*25mm spring*1,

M3*8mm double-pass hex nut*6,

400mm M3 threaded rod*1,

170mm M3 threaded rod*1(160mm also works),

190mm M3 threaded rod*3(If the short sword hilt does not need hardware reinforcement you can buy only 1 rod)

Long sword hardware components:

1.2*15*15mm spring*2,

1*10*25mm spring*1,

M3*8mm double-pass hex nut*6,

400mm M3 threaded rod*1,

350mm M3 threaded rod*1(340mm also works),

250mm M3 threaded rod*3

The hardware components are for reinforcing the model you can choose not to use them but it is highly recommended to use them!!!

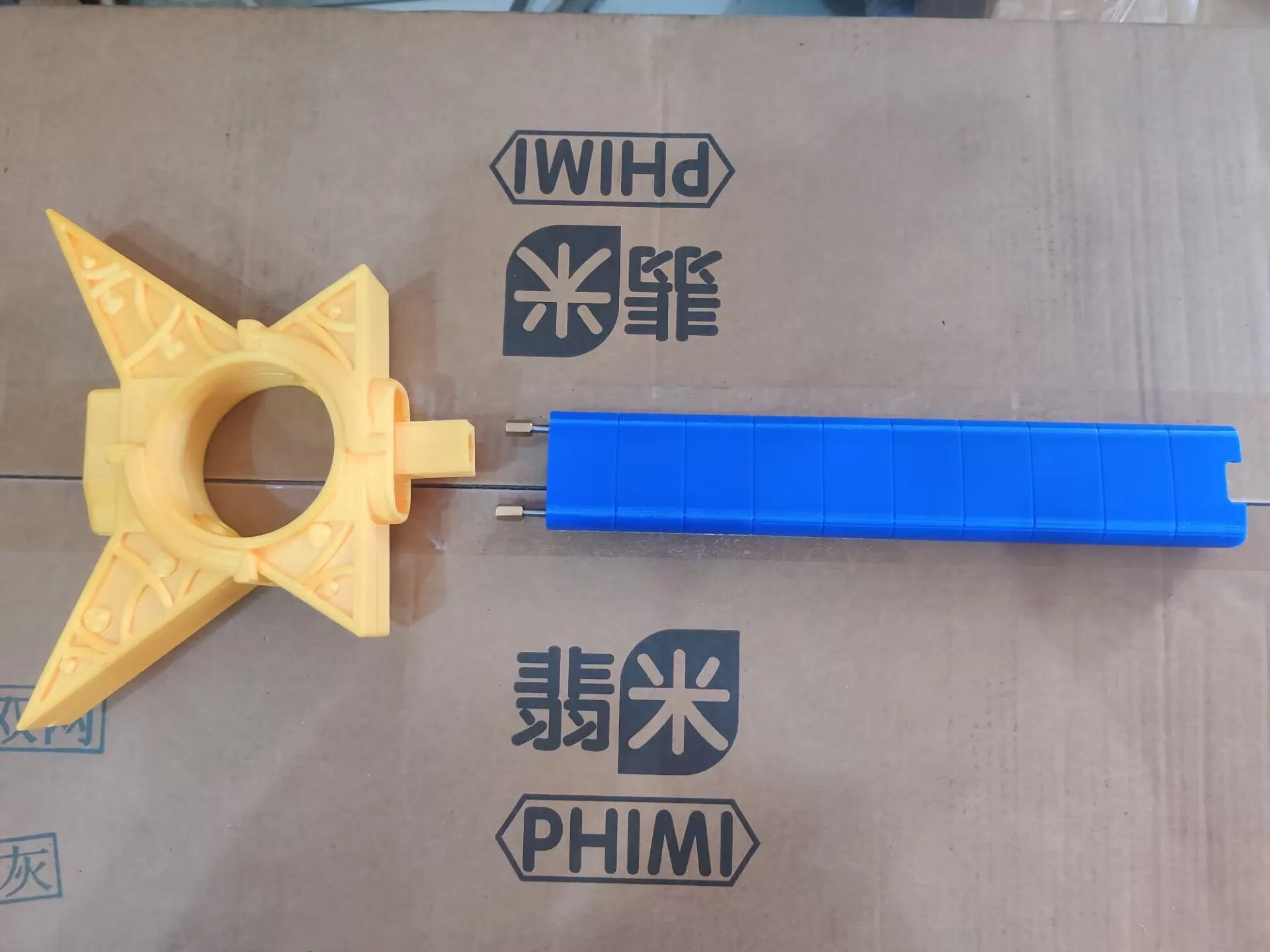

1 Handguard Assembly

Model Handguard Handguard Locator Buckle

Hardware 2 1.2*15*15mm springs

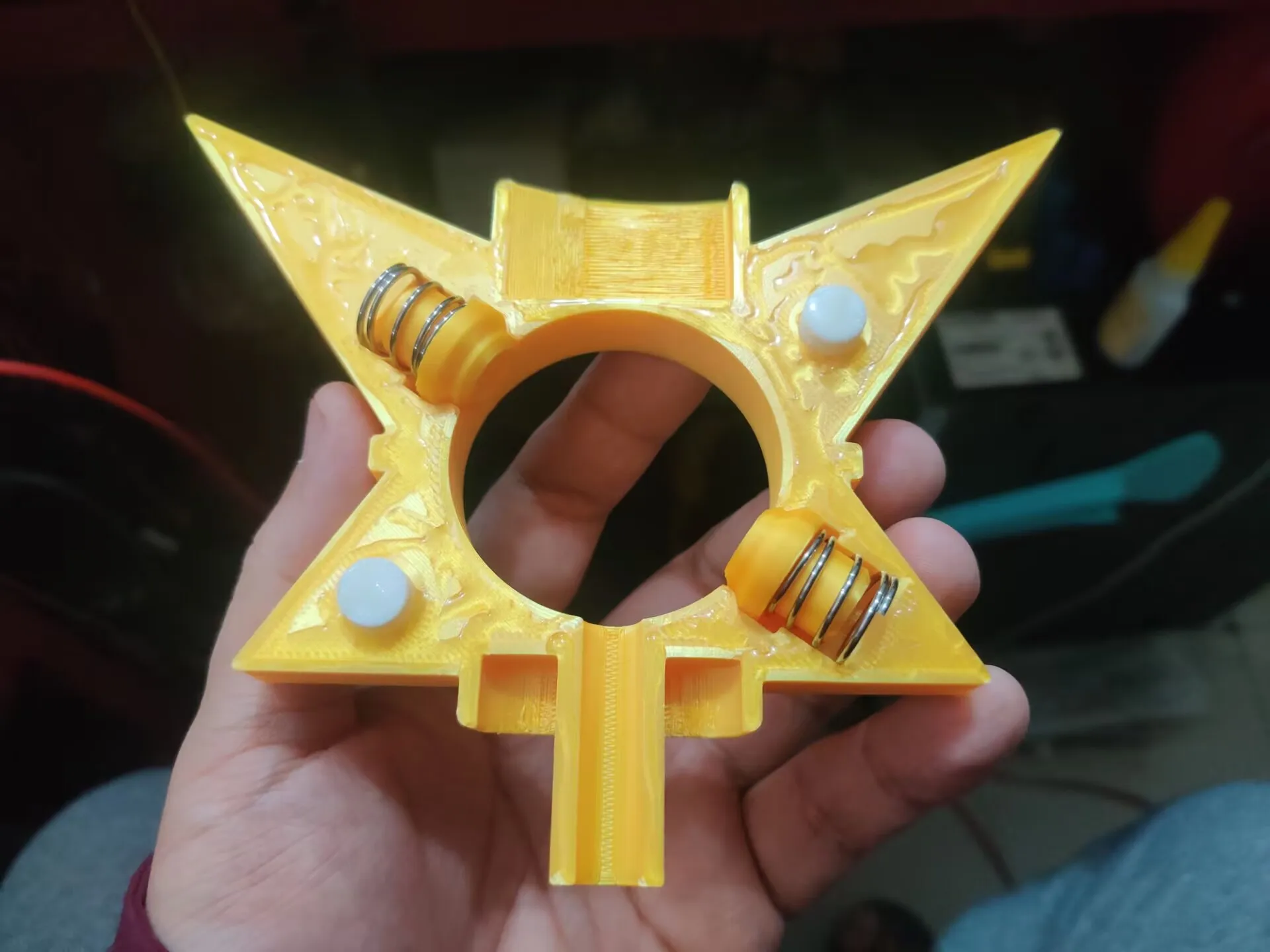

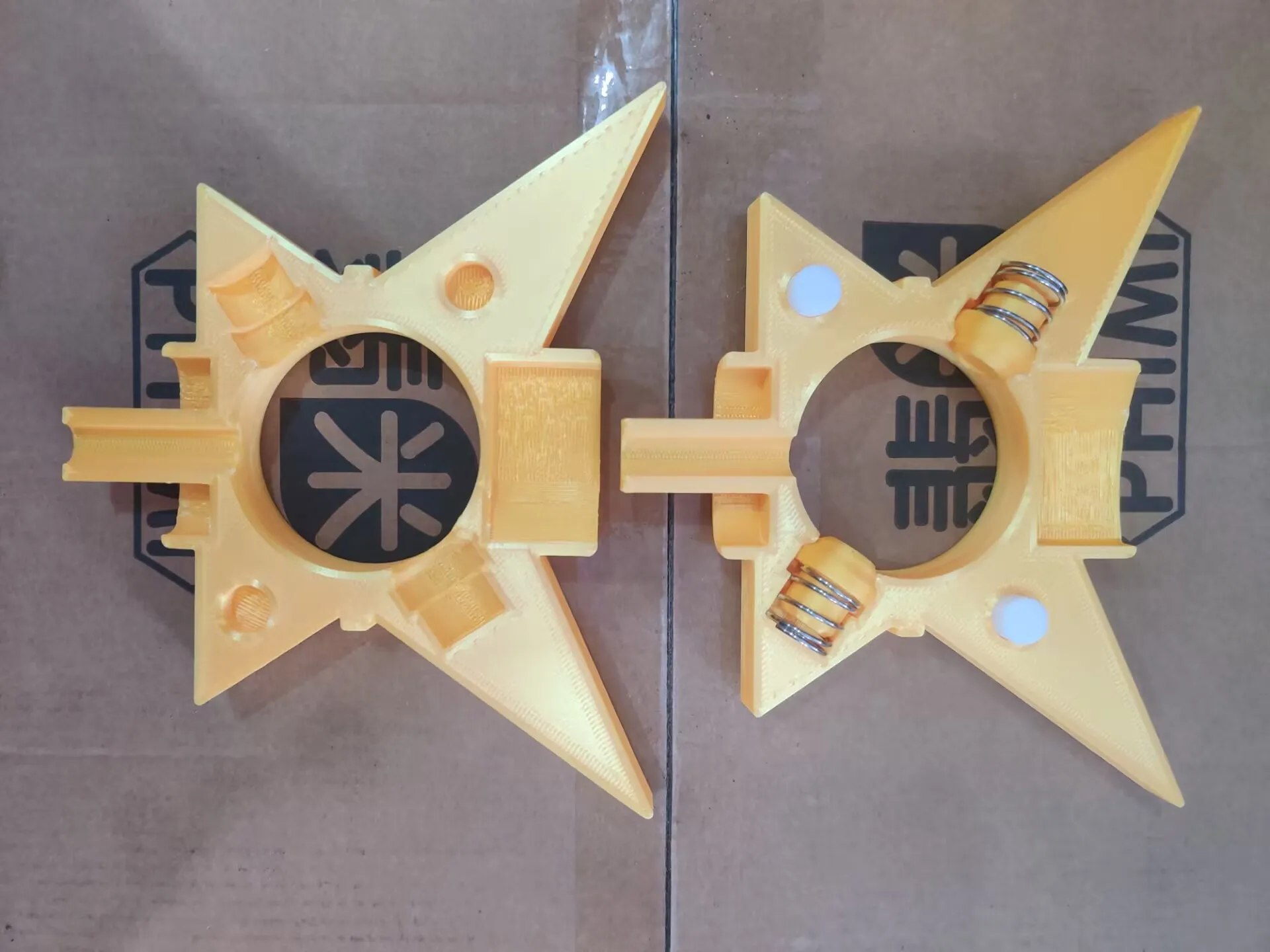

Apply glue to the handguard insert it into the locator and the buckle with the spring attached Then glue the two handguard pieces togetherBe careful not to glue the spring-loaded buckle!!!

2 Blade Assembly (Example 60CM Blade)(For 78CM blade use a 350mm long second threaded rod)

Model Blade Universal 1 Blade Universal 2 Blade Universal 1 Locator 12 60CM Blade

Hardware 400mm M3 threaded rod 170mm M3 threaded rod(160mm also works) 2 M3*8mm double-pass hex nuts

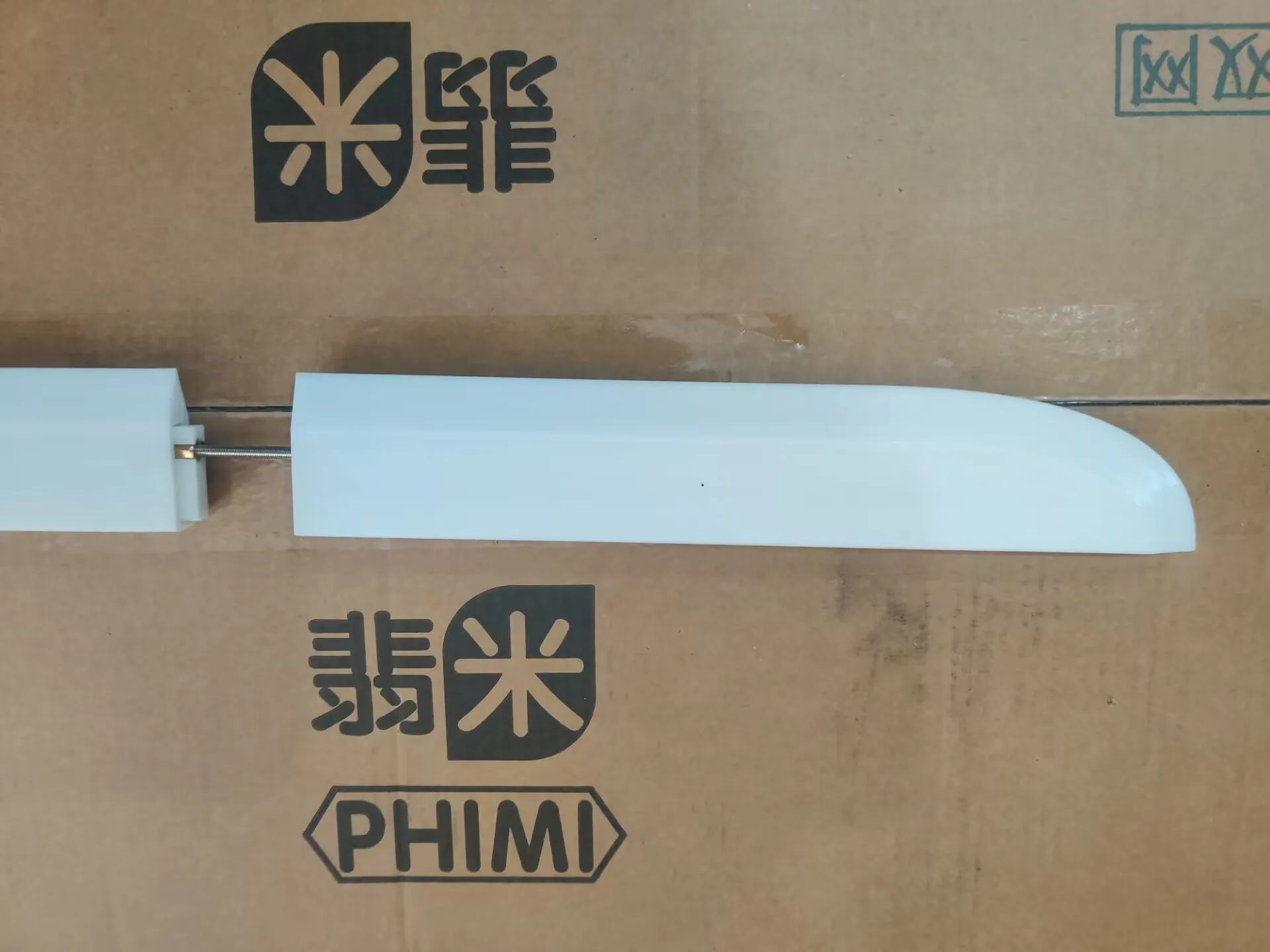

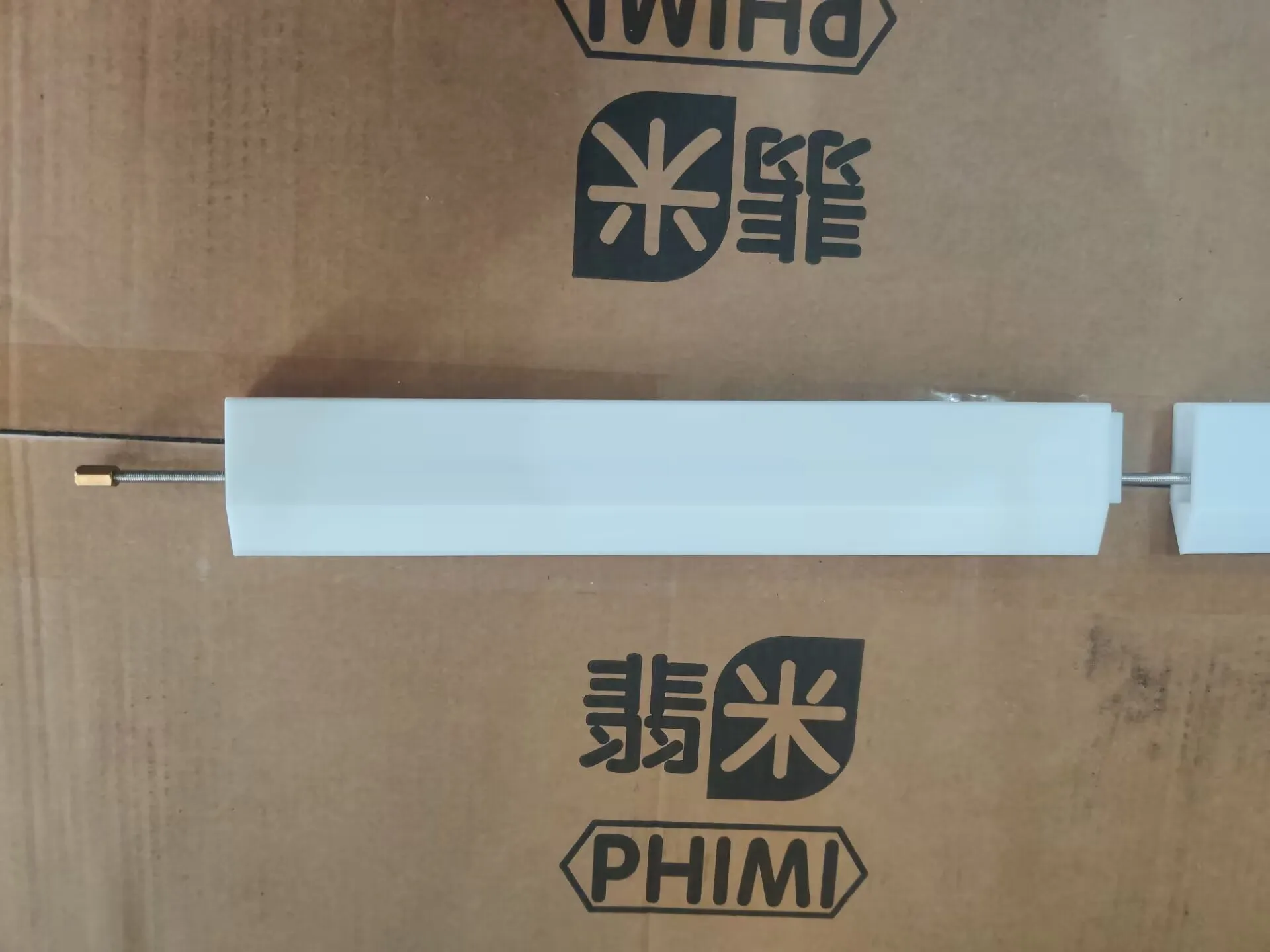

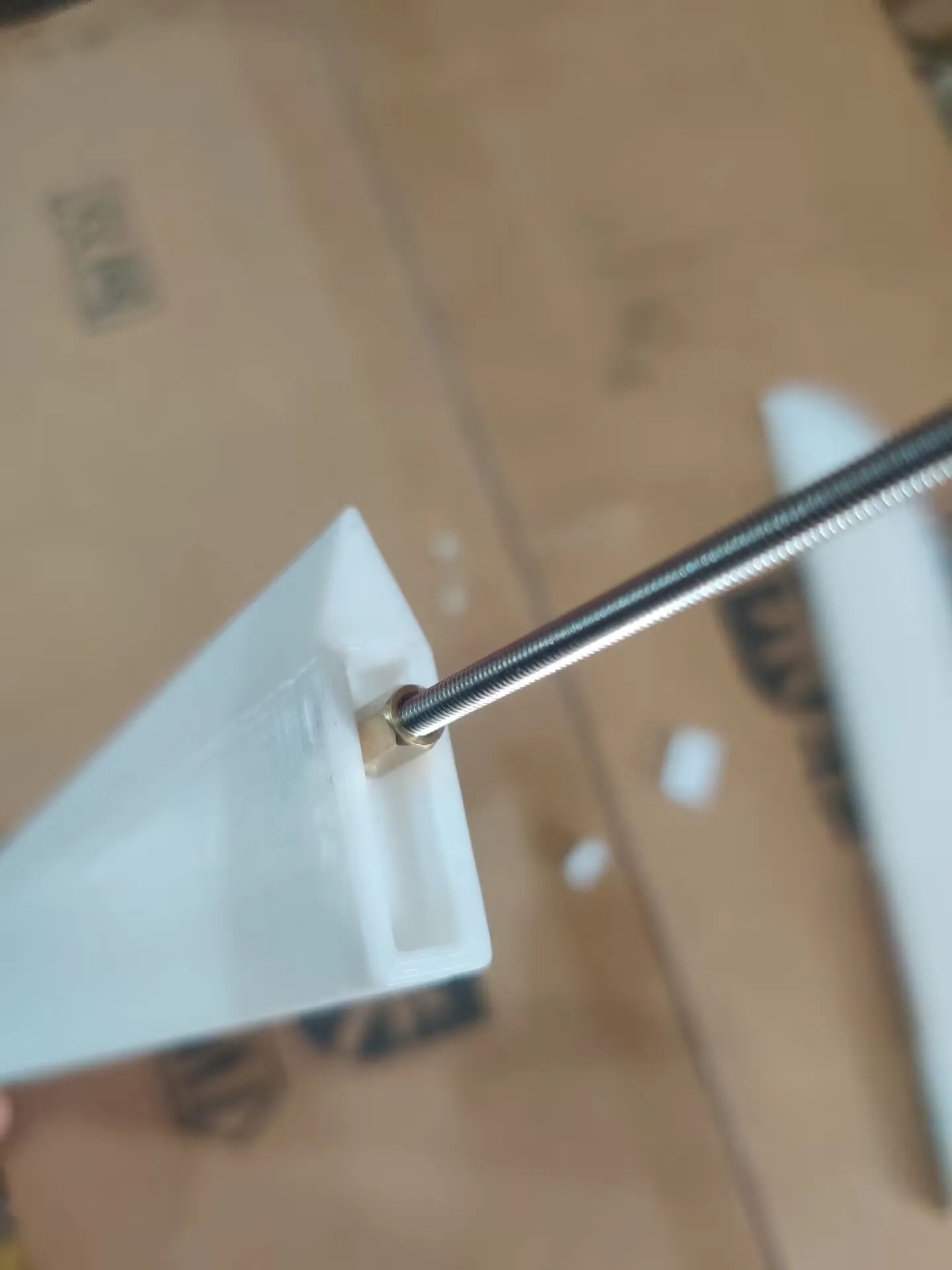

Screw a nut onto the 400mm threaded rod and insert it into Blade Universal 2 The nut should be fully seated in the hex slot Then apply glue to the bottom of Blade Universal 1 and also insert it onto the threaded rod Tighten with a nut Then glue Blade Universal 1 Locator 12 to the nut and groove Continue by screwing on the 170mm threaded rod apply glue and insert the 60CM blade

3 Hilt Assembly (Example 22CM Hilt)

Model 22CM Hilt

Hardware 2 190mm M3 threaded rods 4 M3*8mm double-pass hex nuts

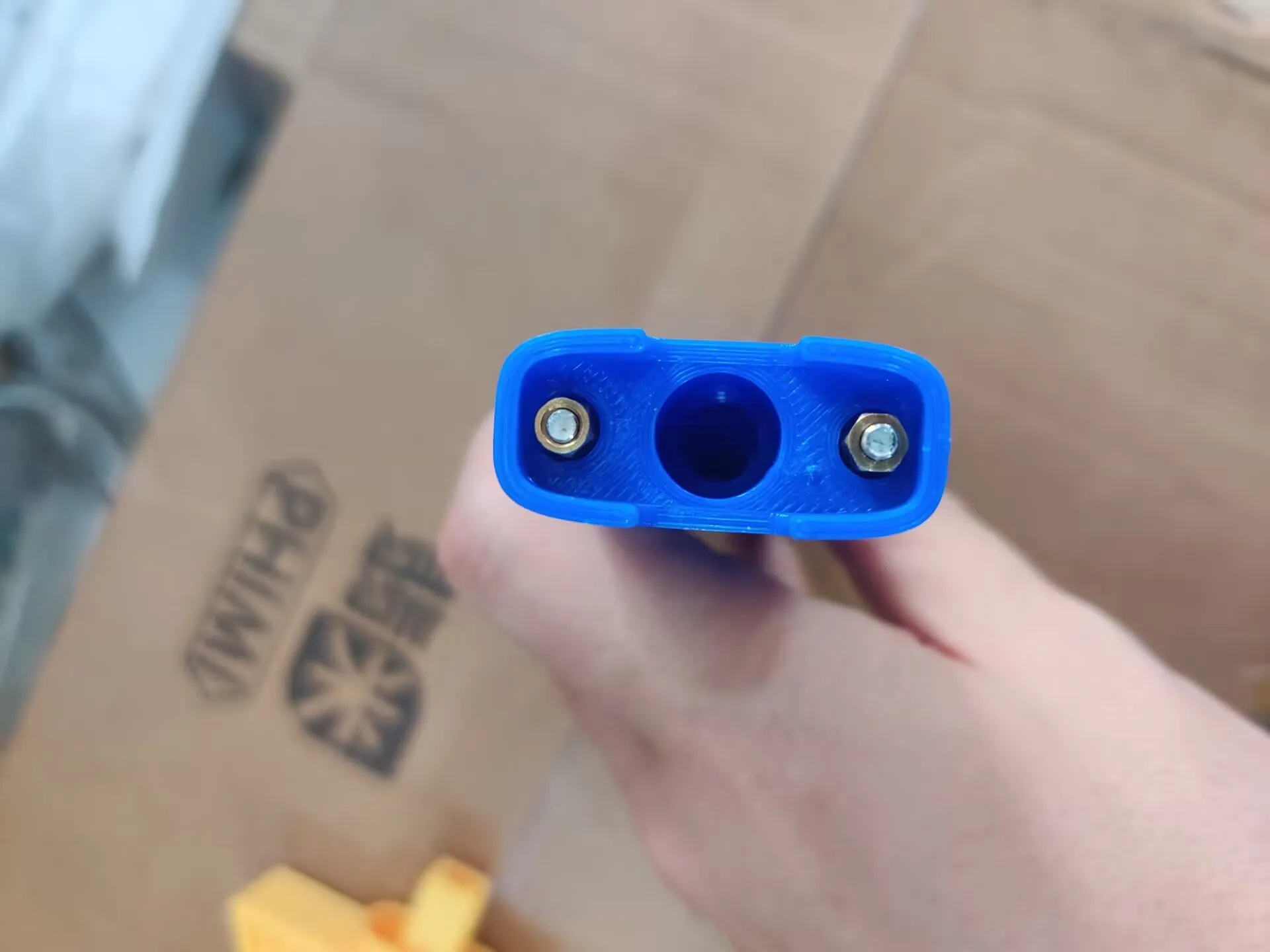

The steps are similar to the blade Screw the threaded rod onto the thread and insert it into the hilt Then tighten with the remaining nuts(When assembling the 28CM hilt apply glue at the joint)

4 Overall Assembly

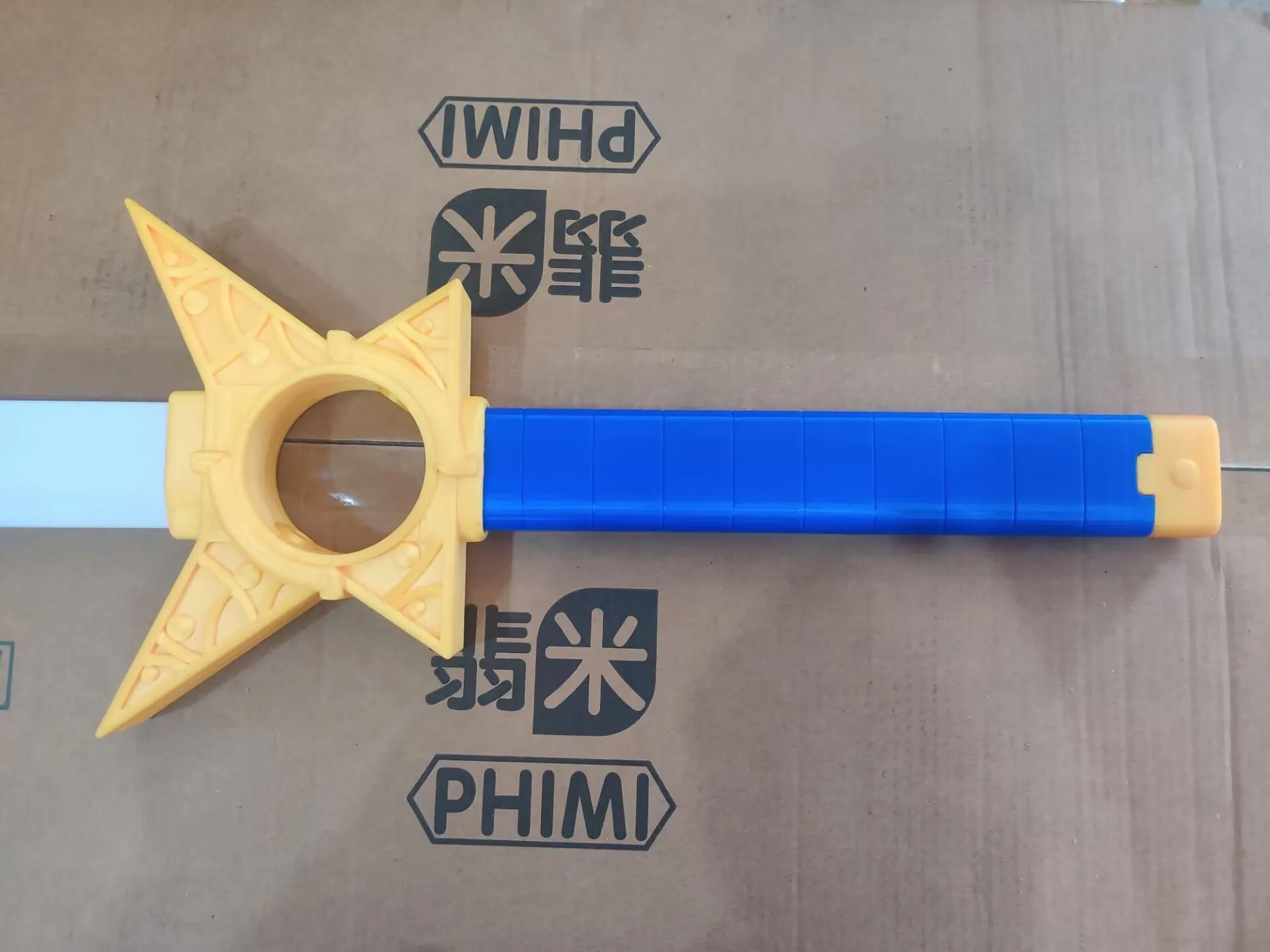

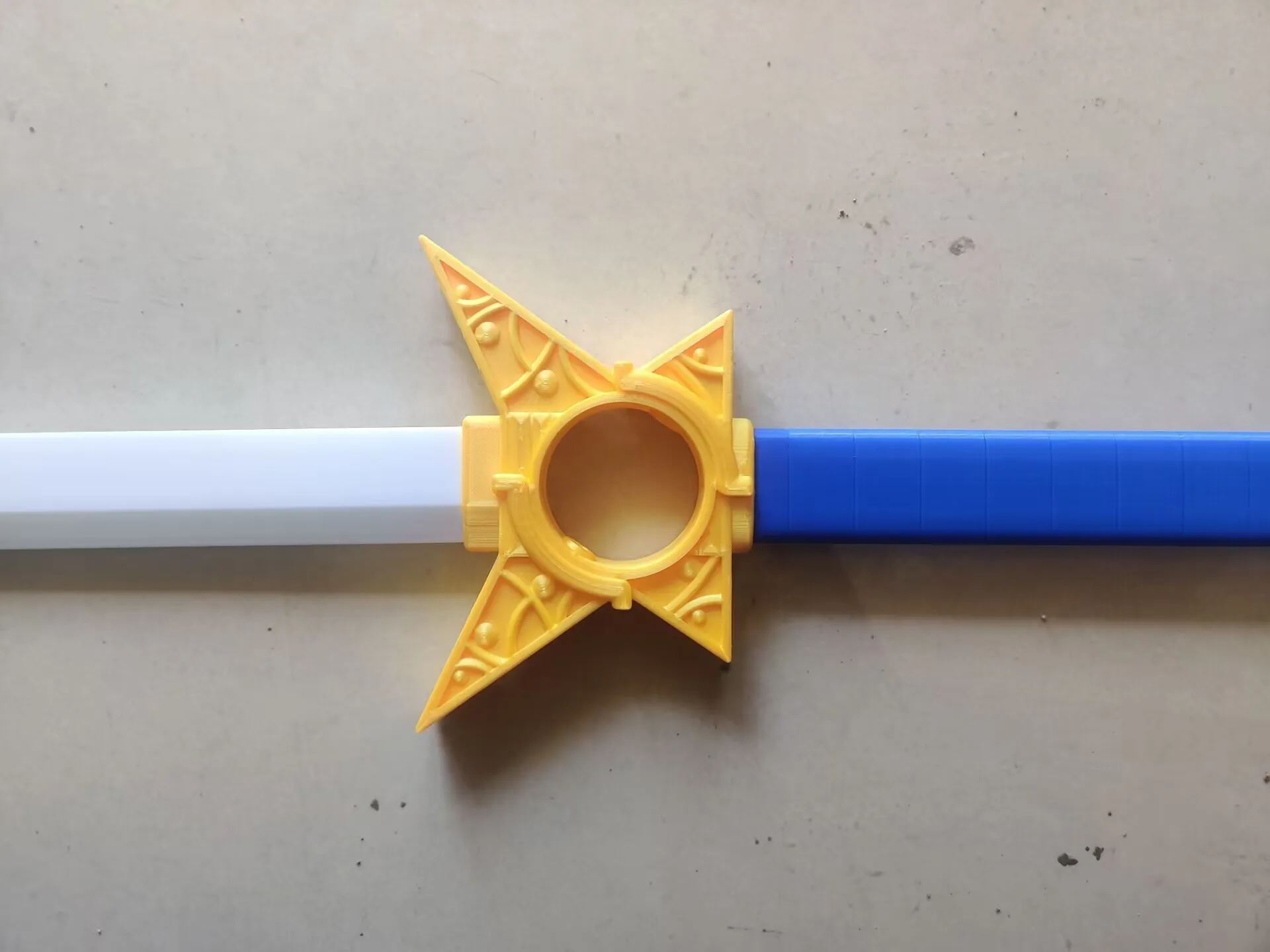

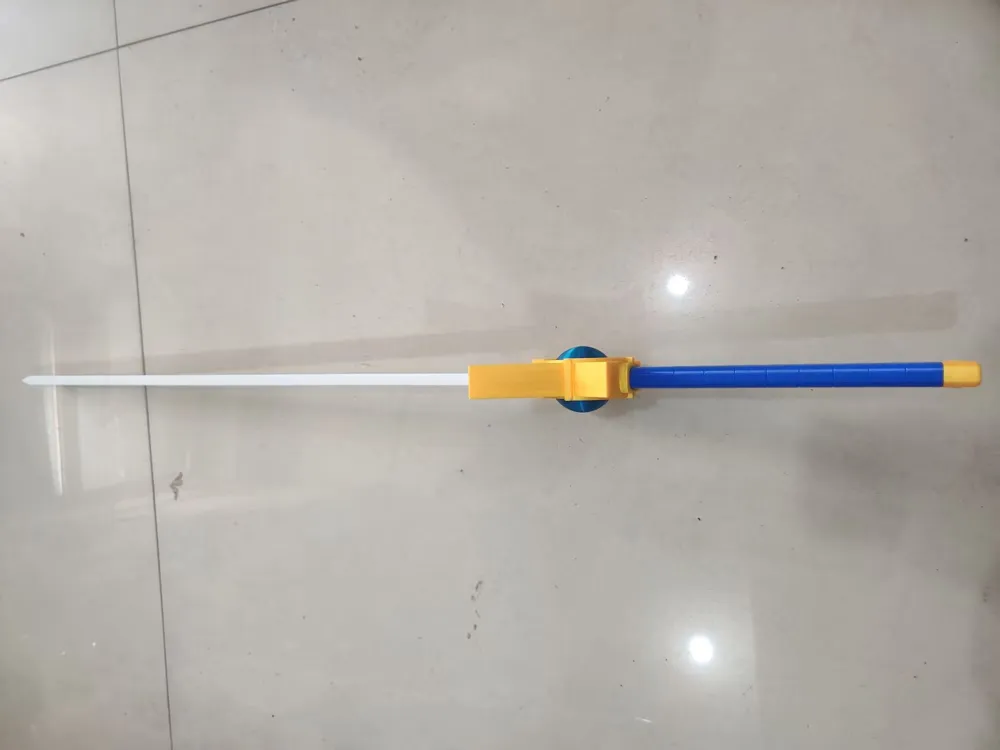

Glue the blade handguard and hilt together (it is recommended to use plenty of glue)

5 Switch Assembly

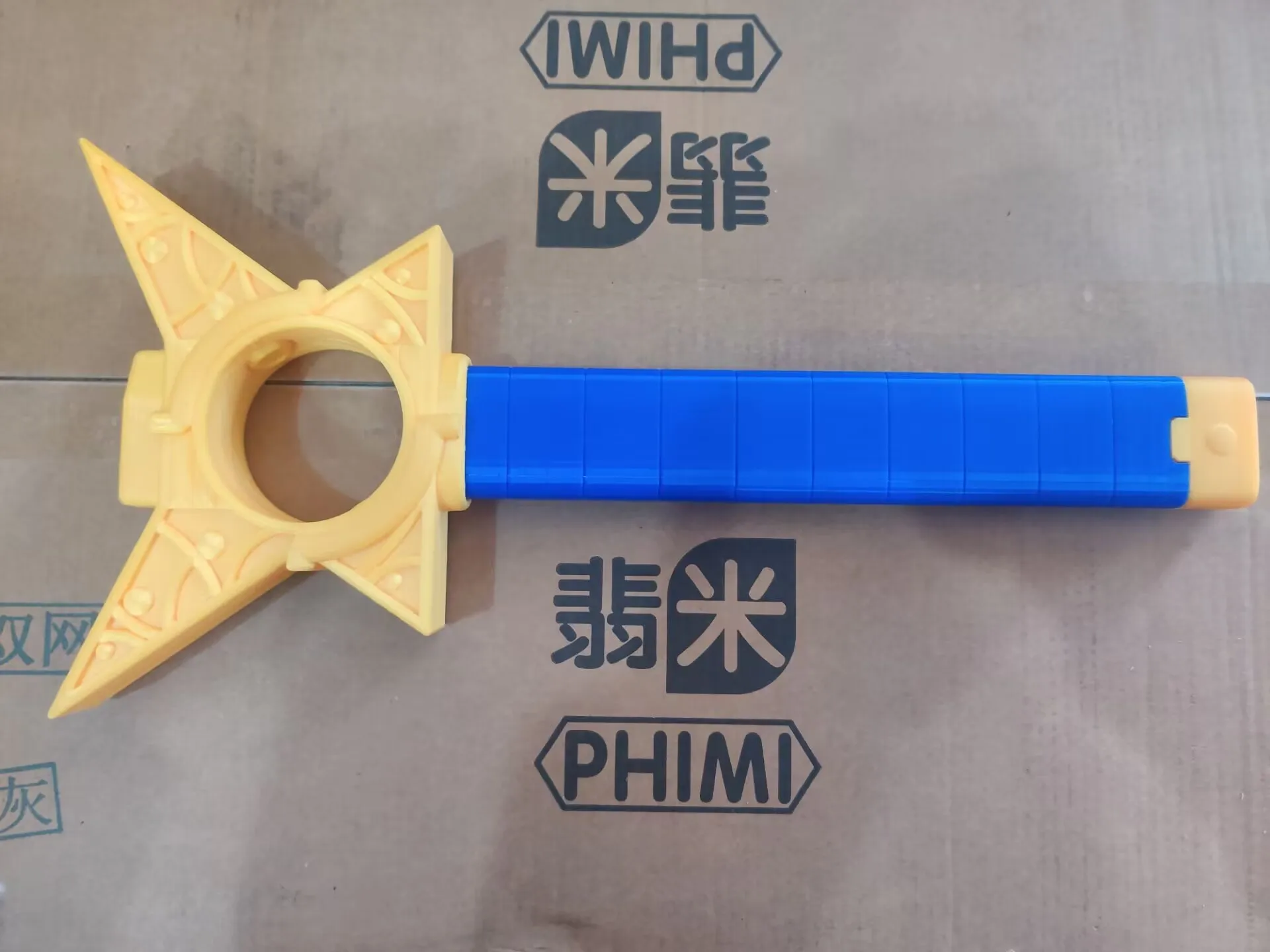

Model Hilt 3 Hilt 4

Hardware 1 1*10*25mm spring 1 190mm M3 threaded rod

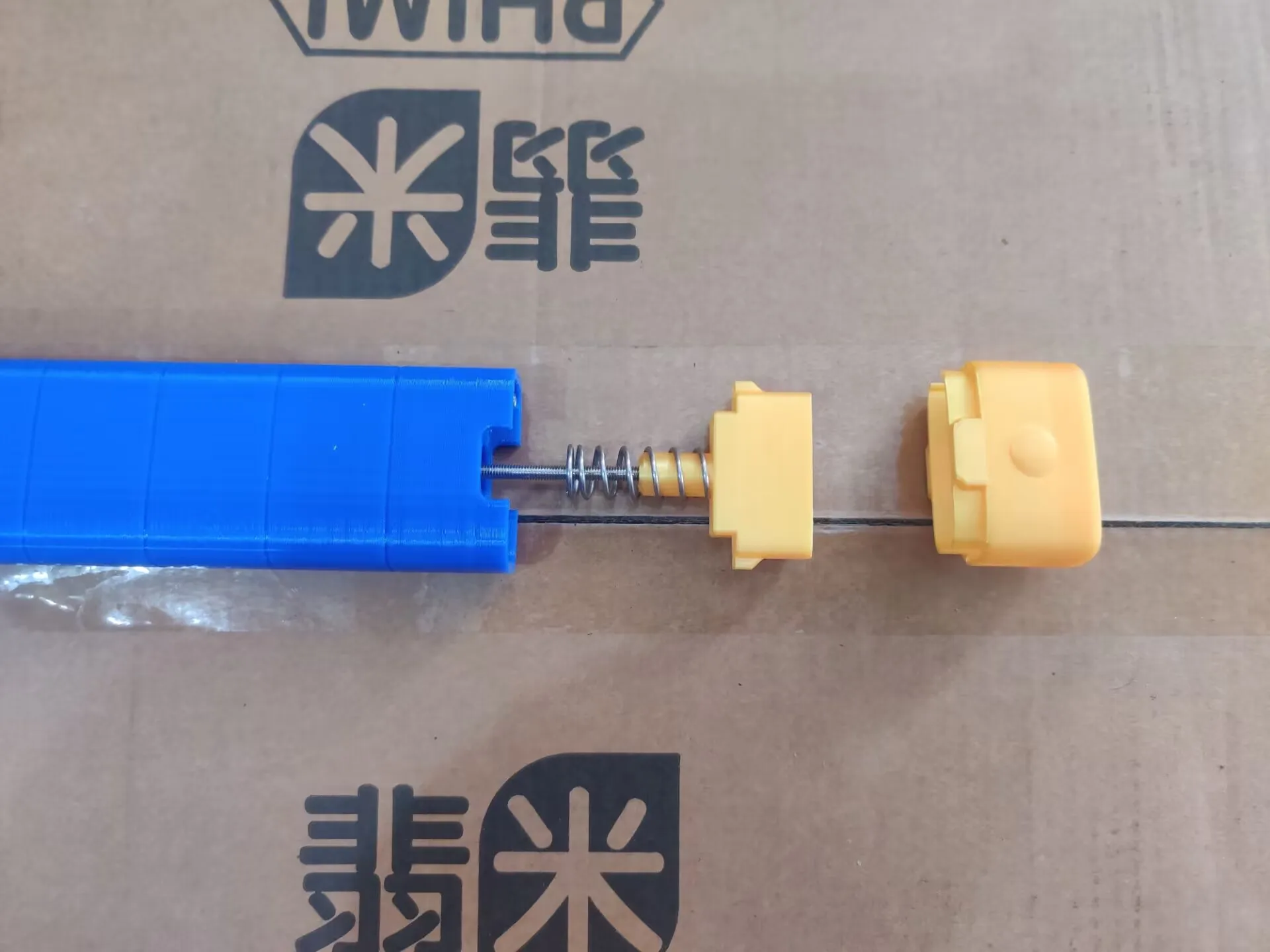

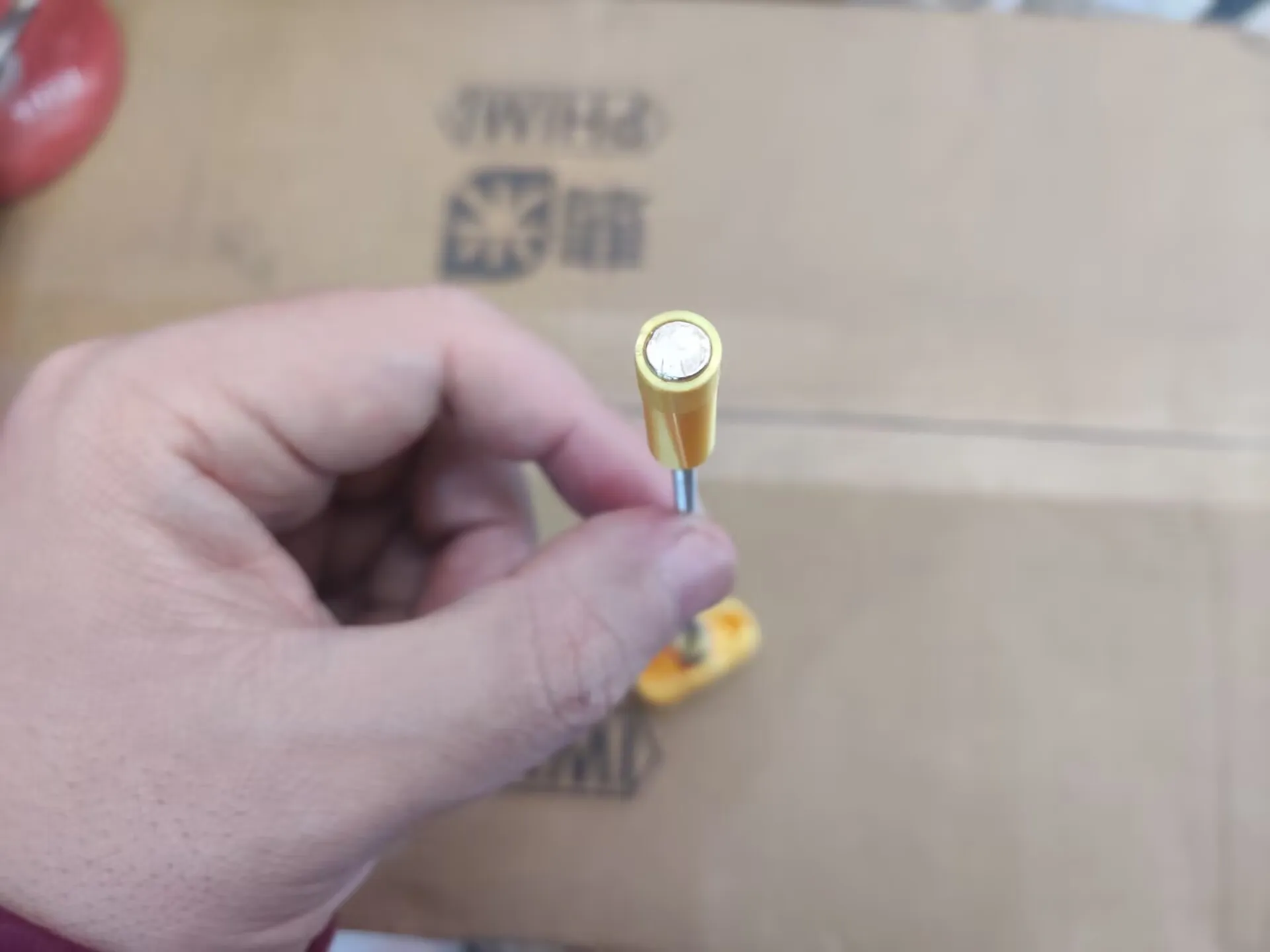

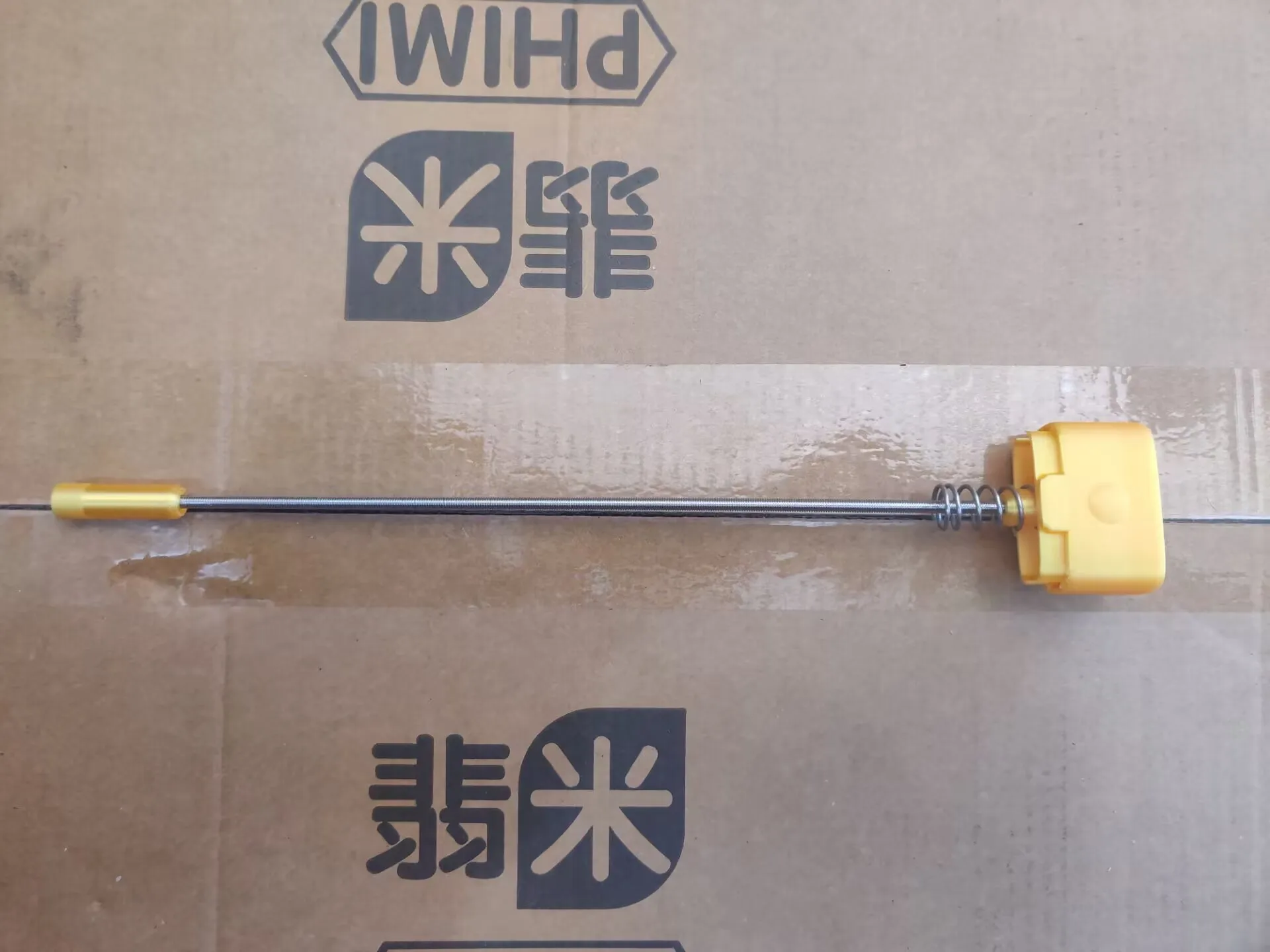

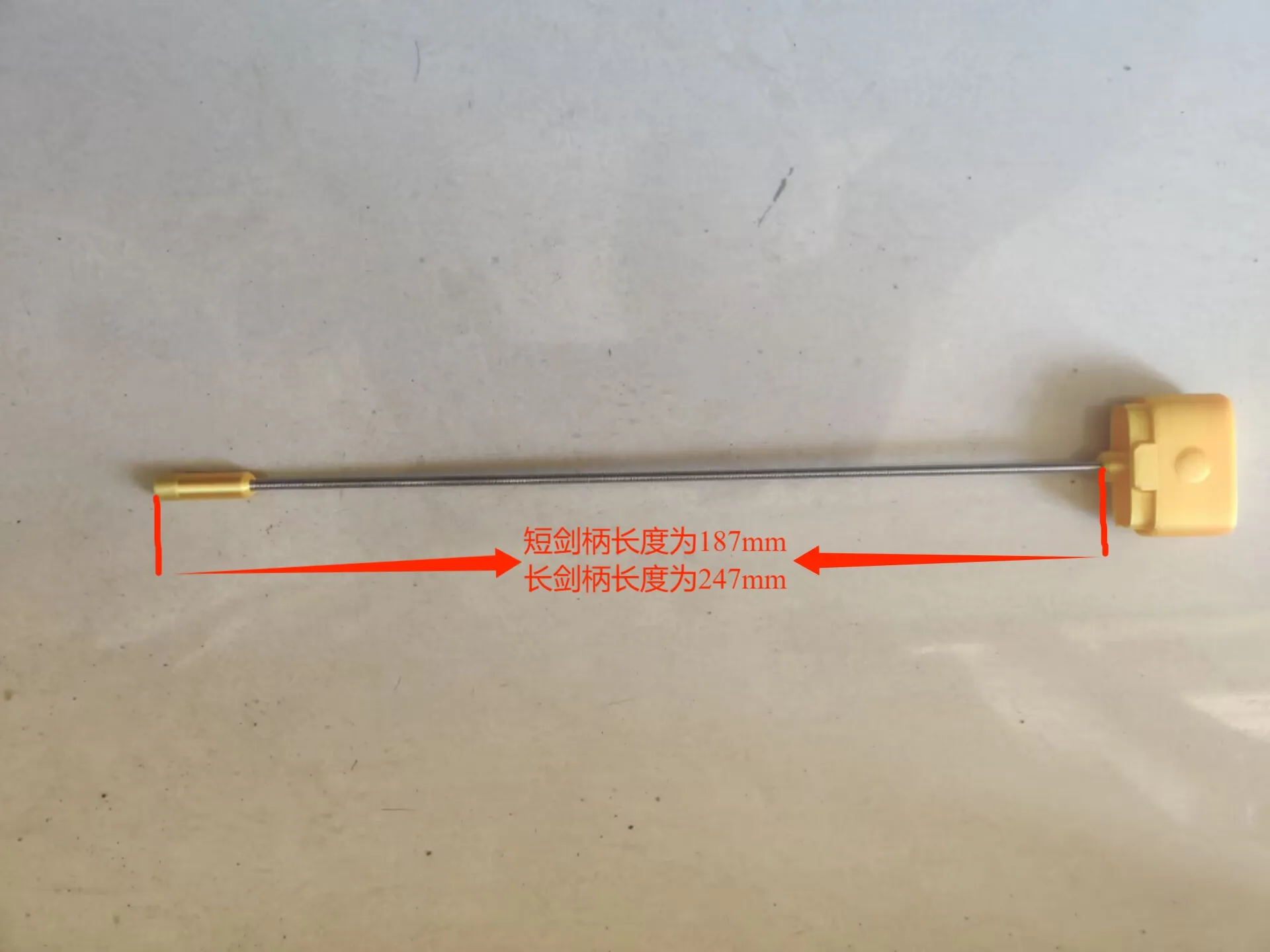

Insert two 3*6 neodymium magnets into the 3-6 magnet model mount them on the threaded rod and then insert into Hilt 4 Adjust the length as shown in the figure and then glue it firmly(Because the magnetic force of magnets on Taobao is inconsistent you can adjust the length appropriately according to the magnetic force lengthen for weaker magnetism shorten for stronger magnetism) Finally install the spring and Hilt 3 Test that the Thunder God Bead can be lit then glue firmly

4 Overall Assembly

Glue the blade handguard and hilt together (it is recommended to use plenty of glue)
