Bean Overlord

0.2mm layer, 2 walls, 15% infill

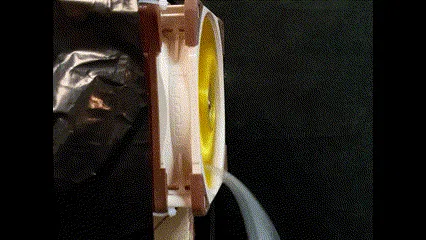

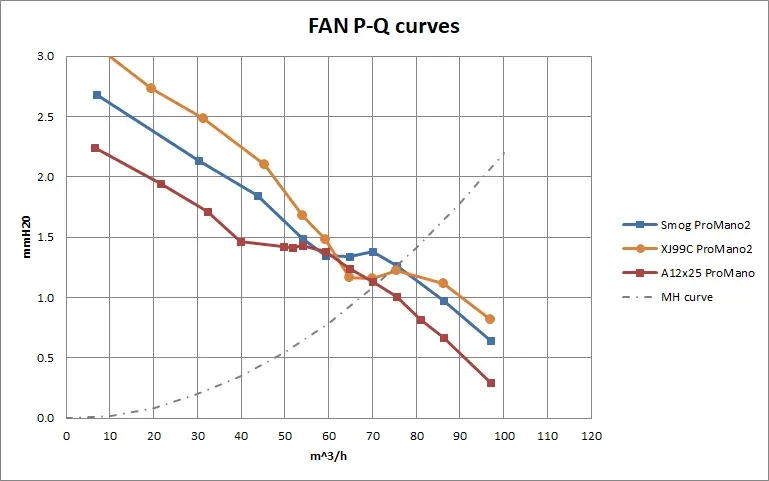

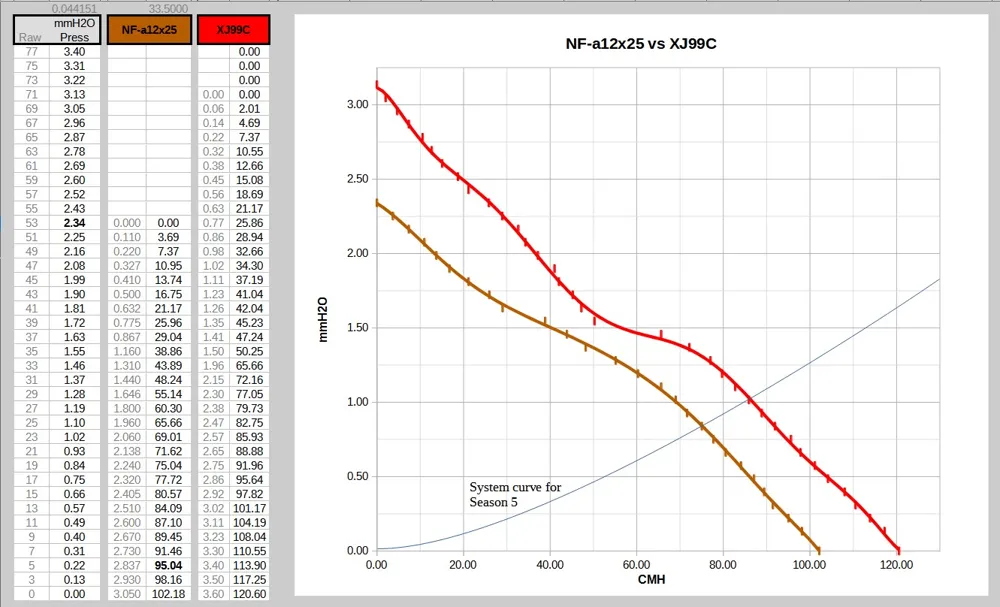

<figure class="image image-style-align-right image_resized" style="width:50%;"><img src="https://makerworld.bblmw.com/makerworld/user/898869326/draft/2023-08-15_6lrxkkb0pix4.gif"></figure>This is my best fan design, to date.Recommend 0.15mm layers or smaller, any filament, should print without support but might need a brim.The tail might improve flow ~10%, the intake only about ~2%. Graph shows a rough system curve for Season 5, fan showdown.Did some DIY testing, runs around 1950RPM, 49dB, 3.10mmH2O static pressure, 120cmh.&nbsp;Some independent testing, <a href="https://www.reddit.com/r/FanShowdown/comments/15f1thq/upgrades_to_test_bench/" rel="nofollow">https://www.reddit.com/r/FanShowdown/comments/15f1thq/upgrades_to_test_bench/</a> <figure class="image"><img src="https://makerworld.bblmw.com/makerworld/user/898869326/draft/2023-08-15_x2rigidvjlz4.webp"></figure>&nbsp;<figure class="media"></figure>

XJ99C Noctua NF-A12x25 Mod
