I got the bambu levitating magnet a few weeks ago but i wasnt been able to make it work.. Finally a week ago i learned how to use the bambu kit levitating magnet.. took me a couple of hours since it cant be used when it overheats.. so it took several takes for hours to get it to work..

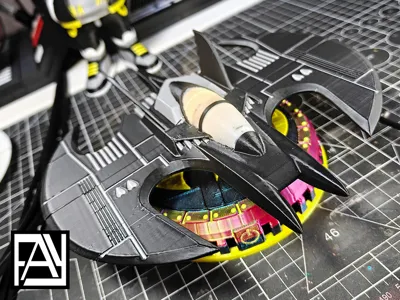

And since i got it to work.. the first project i'm making with the levitating magnet kit is the batwing..

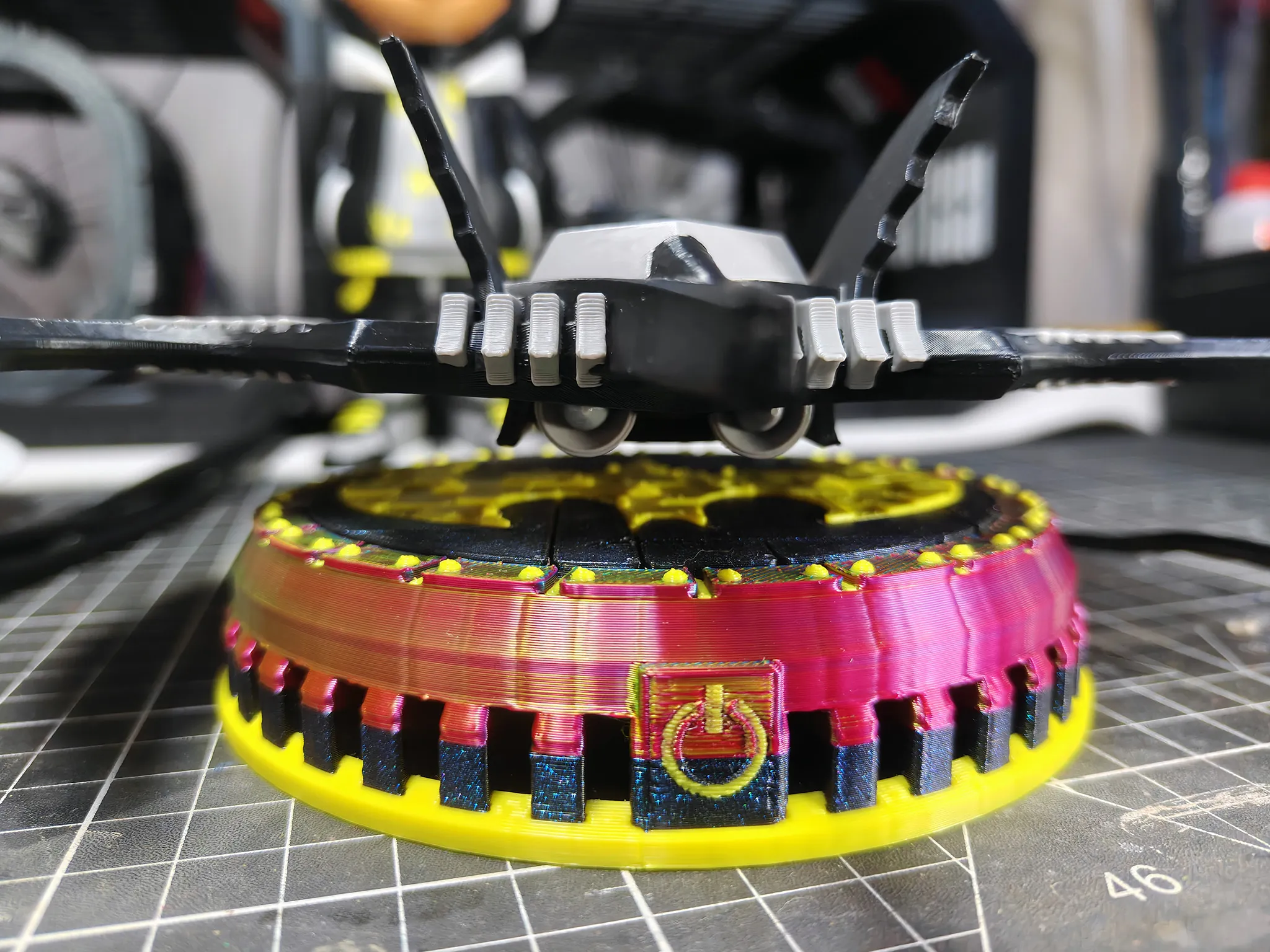

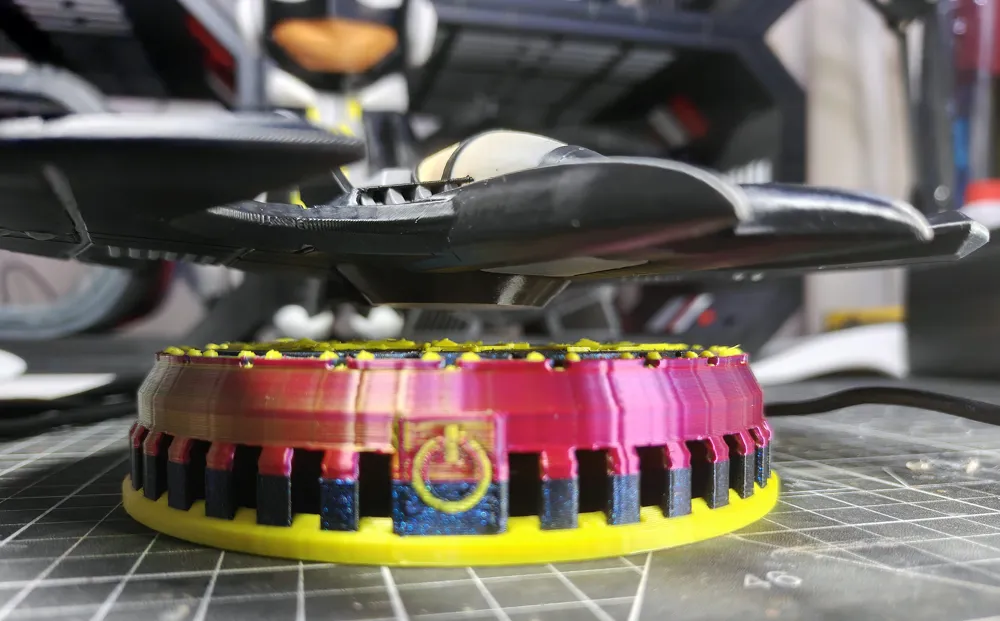

The batwing has the magnet that levitates in the bottom of the aircraft.. you'll need to print the housing for the magnet and the batwing itself.. all parts needs to be glued together..

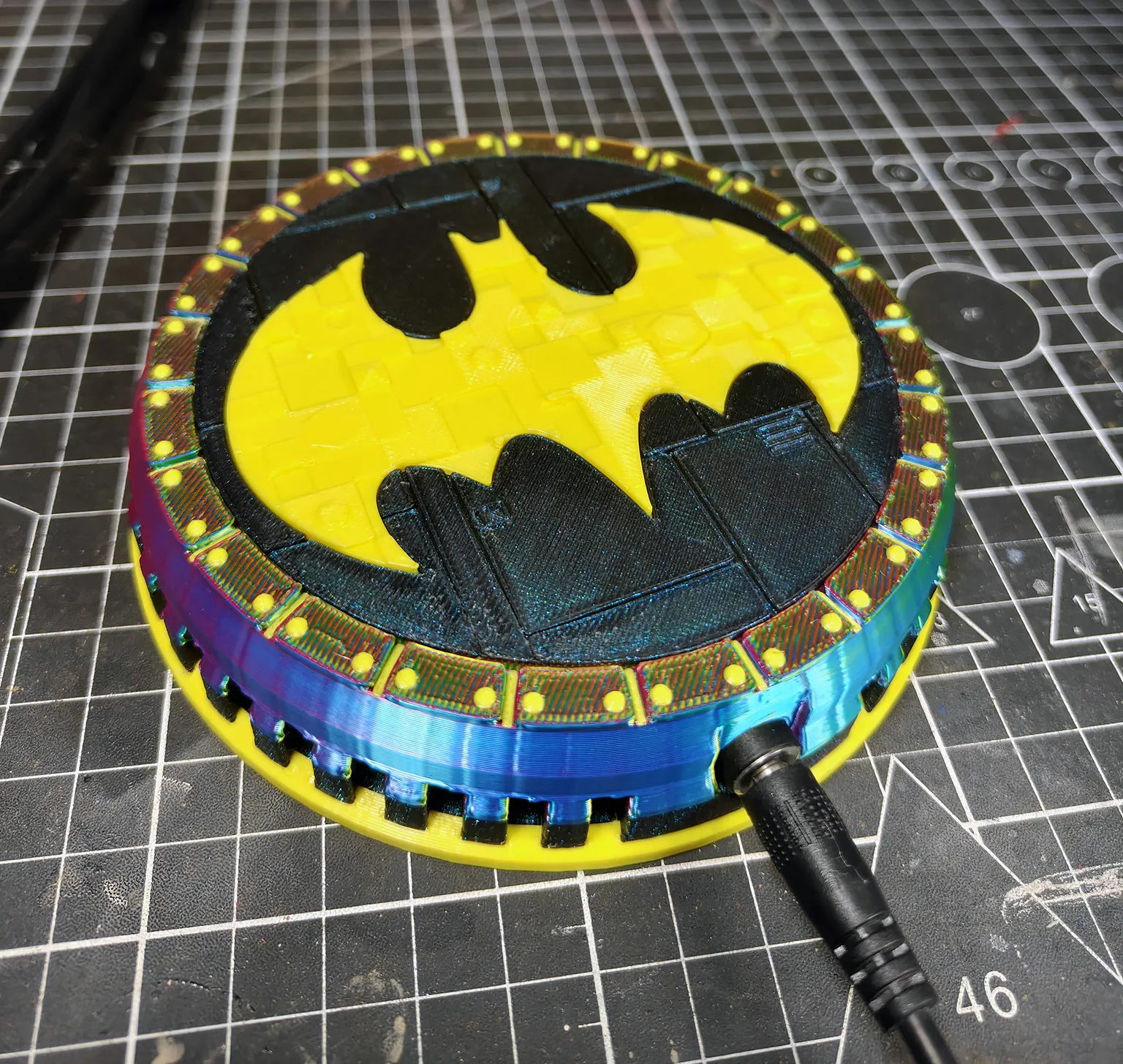

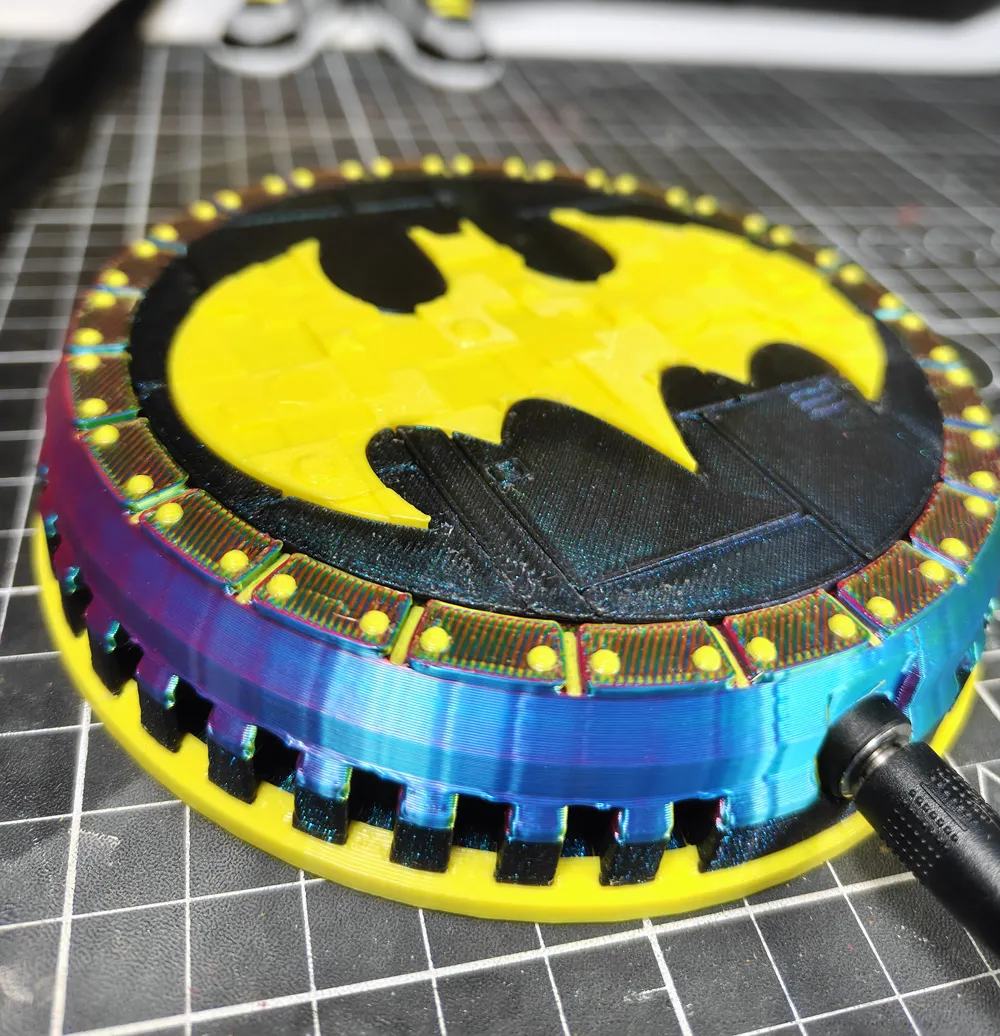

The base of the batwing is design to look like the batsignal.. but since i printed it using leftover dual color filament.. it looks quite cartoony..

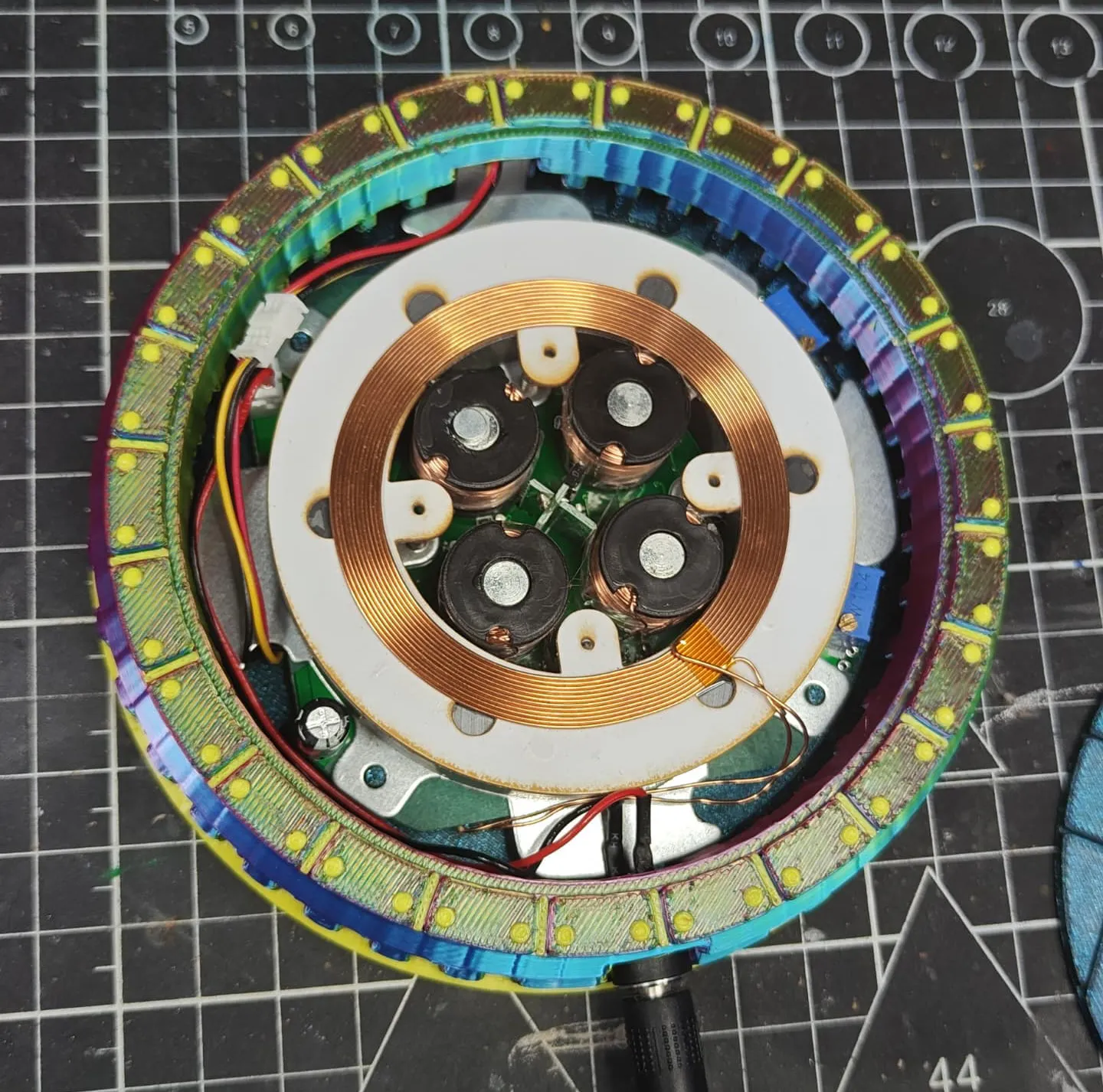

There is a cube nub to push the sensor button that controls the lights on the levitating magnet.. the nub should hold the sensor in place while you insert the levitating base.. The base is easy to install.. just align the 4 pegs to the levitating kit to install.. it is a tight fit but everything shoud fit..

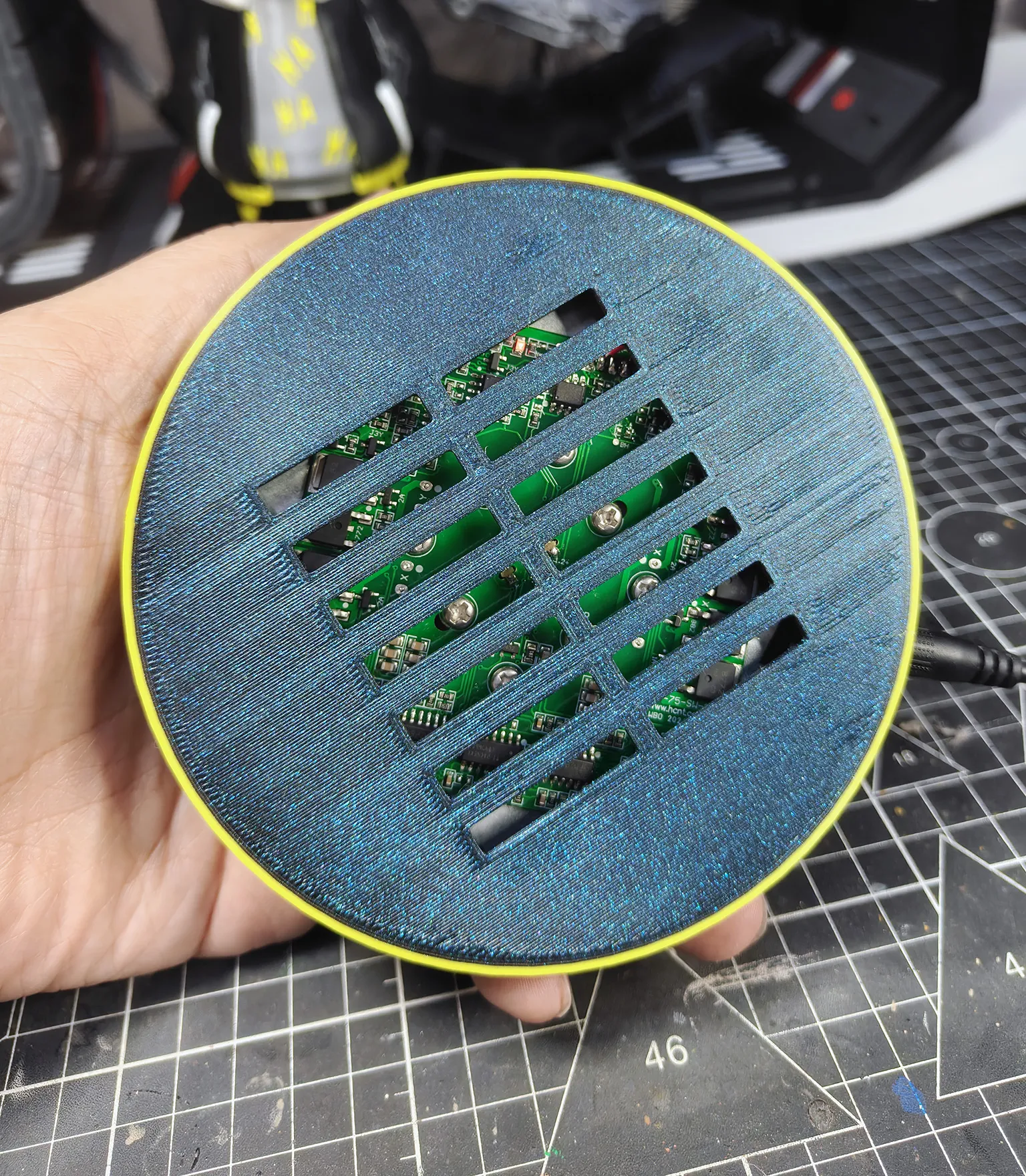

I also made a lot of air vents to keep the levitating kit base cool.. including the bottom side of the base too.. but you'll need to add some rubber feet..

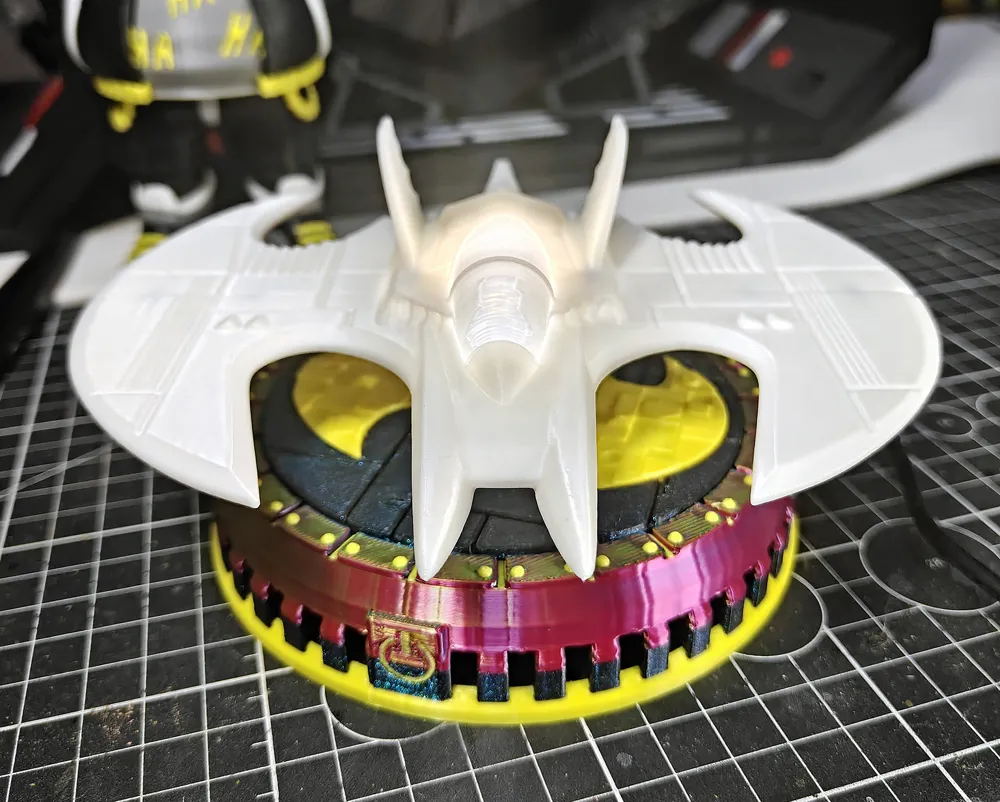

I made 2 sizes for the Batwing.. one 20cm and the other smaller one 16cm..

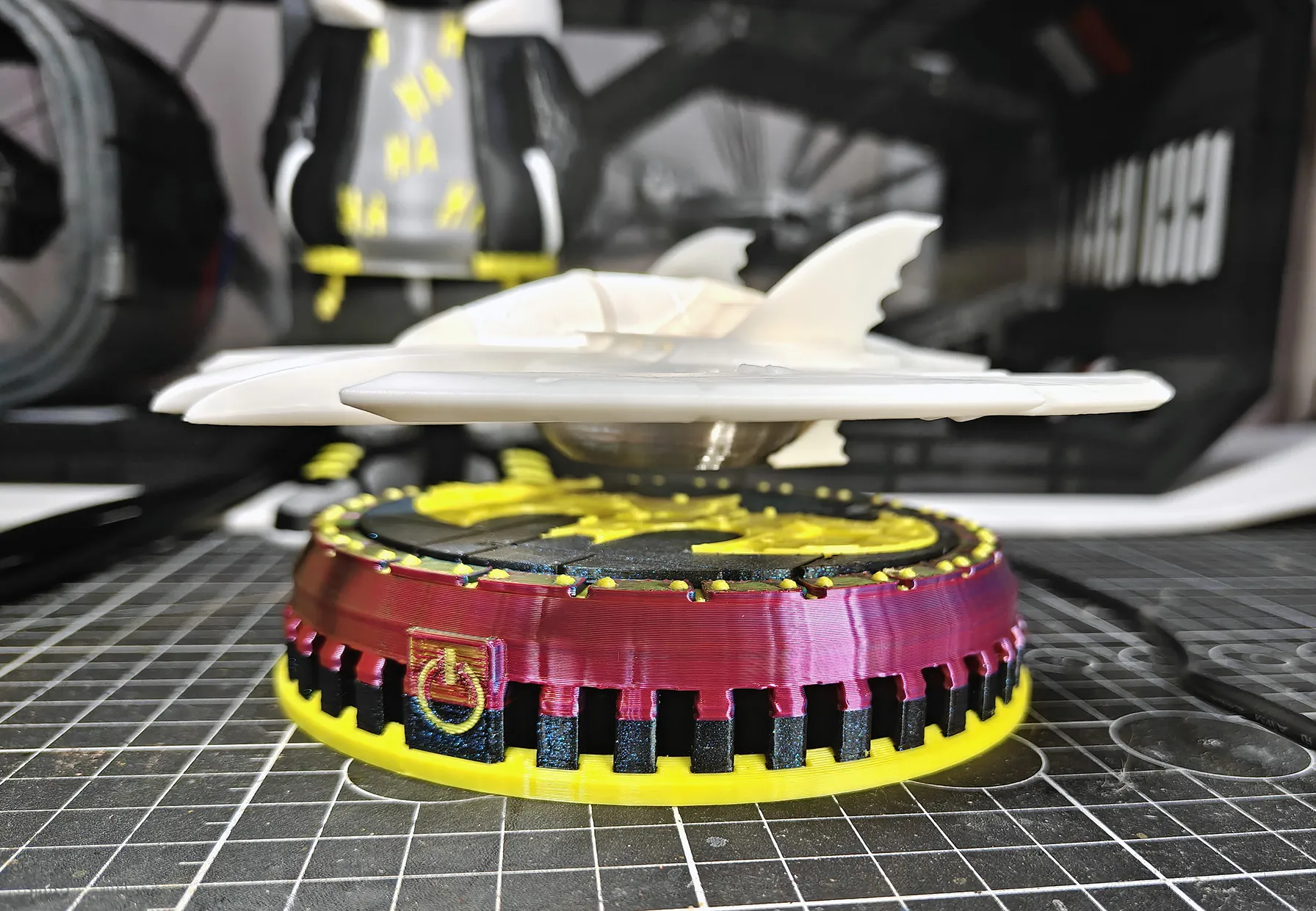

The larger 20cm doesnt look like its levitating high enough due to the size and weight of the aircraft.. So i printed another batwing 16cm wide.. the smaller one looks better proportionate with the base.. and it levitate slightly higher too..

It was pretty cool to see it levitating too.. I think i'm going to make a few more of these levitating magnet project using models that i already have.. like the Delorean from Back to the Future.. or Millenium Falcon and star destroyer.. even maybe several version of the tie fighters too..
