Dremel Bracket
IP Report
Print Profile(1)
0.2mm layer, 6 walls, 25% infill
Designer
2.2 h
1 plate
Open in Bambu Studio
Boost
63
182
19
2
110
62
Released
Description

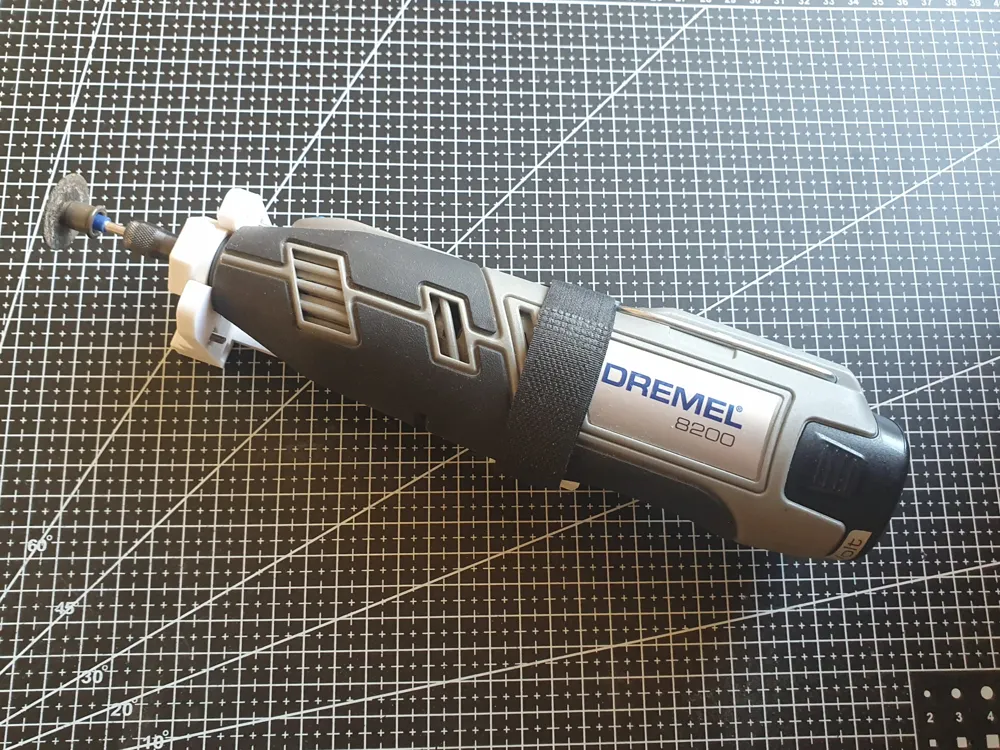

I have designed this bracket for my Dremel 8200, but it will likely fit other models as well.
Improvement ideas are welcome.
Features:

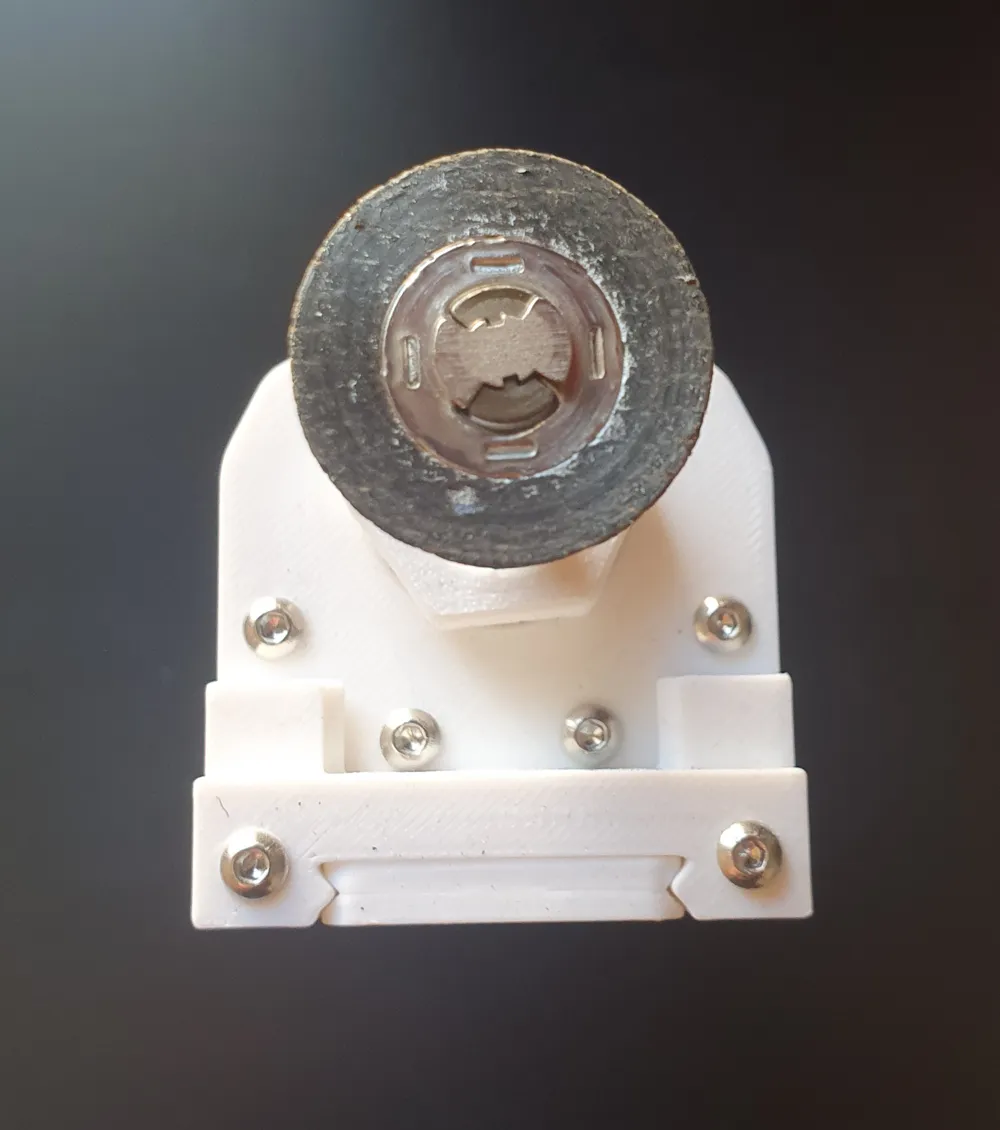

- uses the nose cap to hold the Dremel in place
- nose cap fits a 24mm wrench for removal assistance (do not use the wrench to tighten - you may damage plastic parts

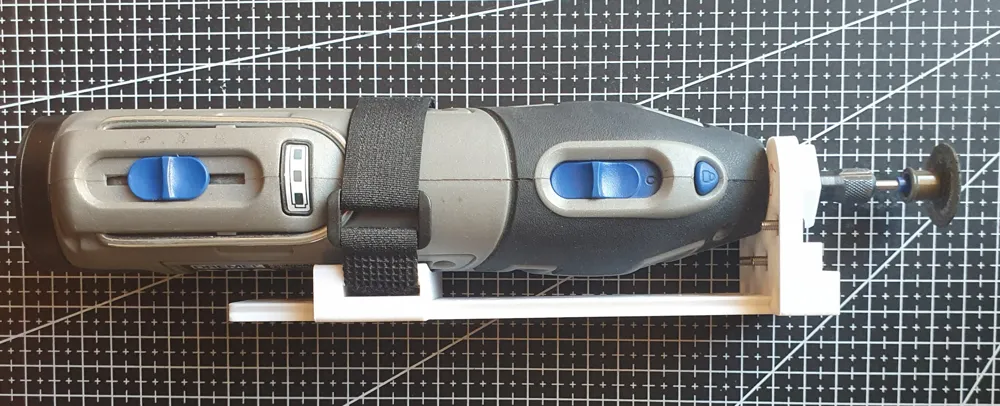

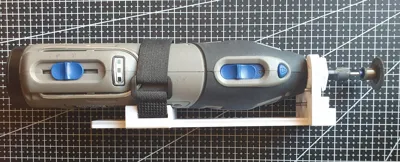

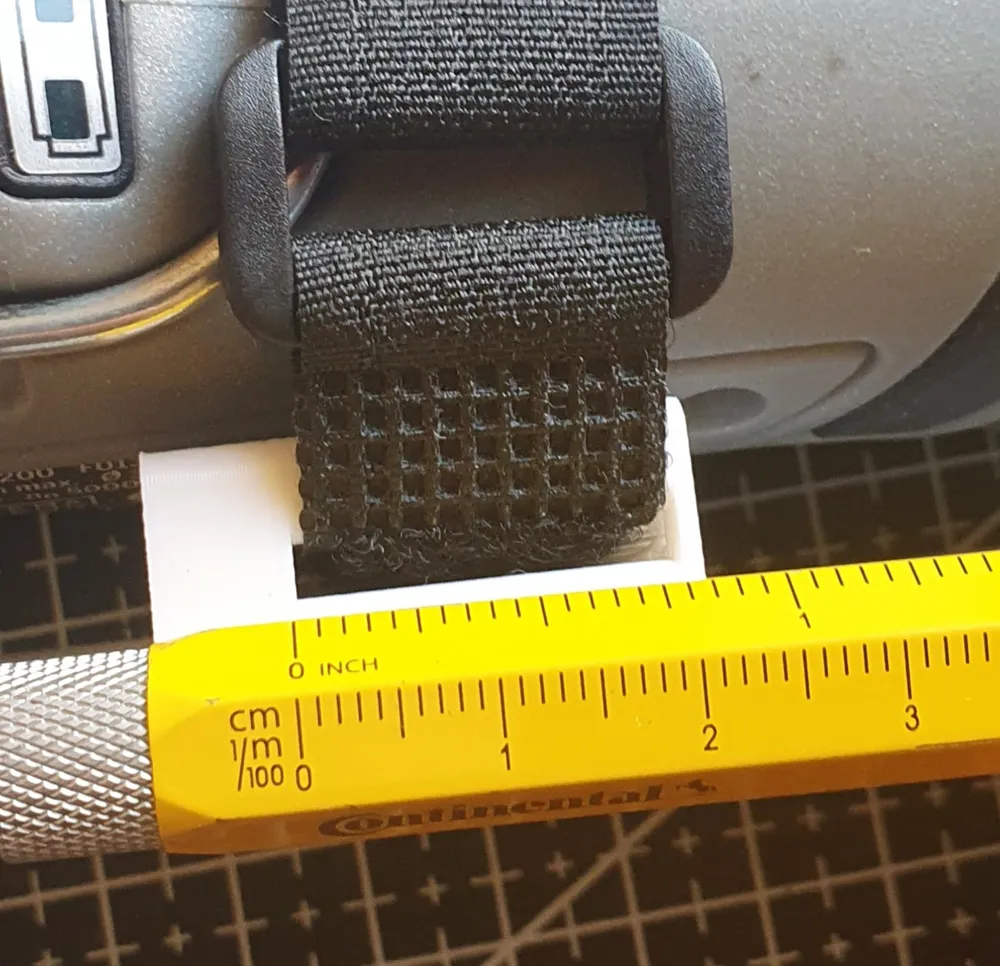

- additional fixation using 20mm hook-and-loop strap (Velcro),
- easy removal from the bracket without removing the tool-tip from the Multi-Tool

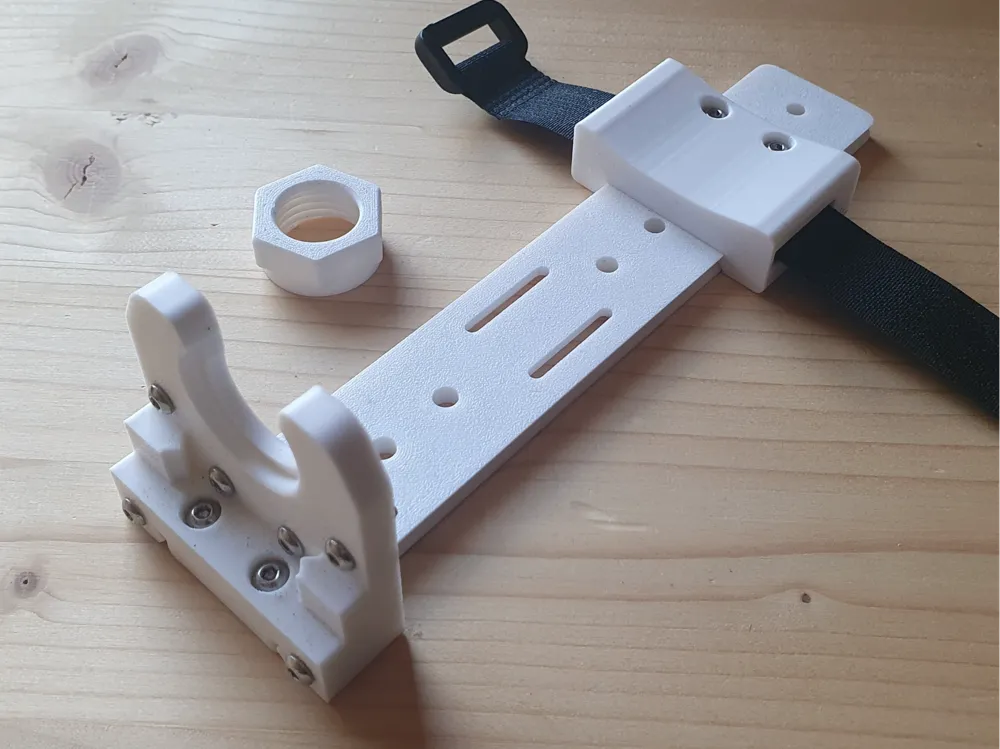

- “slide-on” assembly without screws for quick disassembly and compact storage

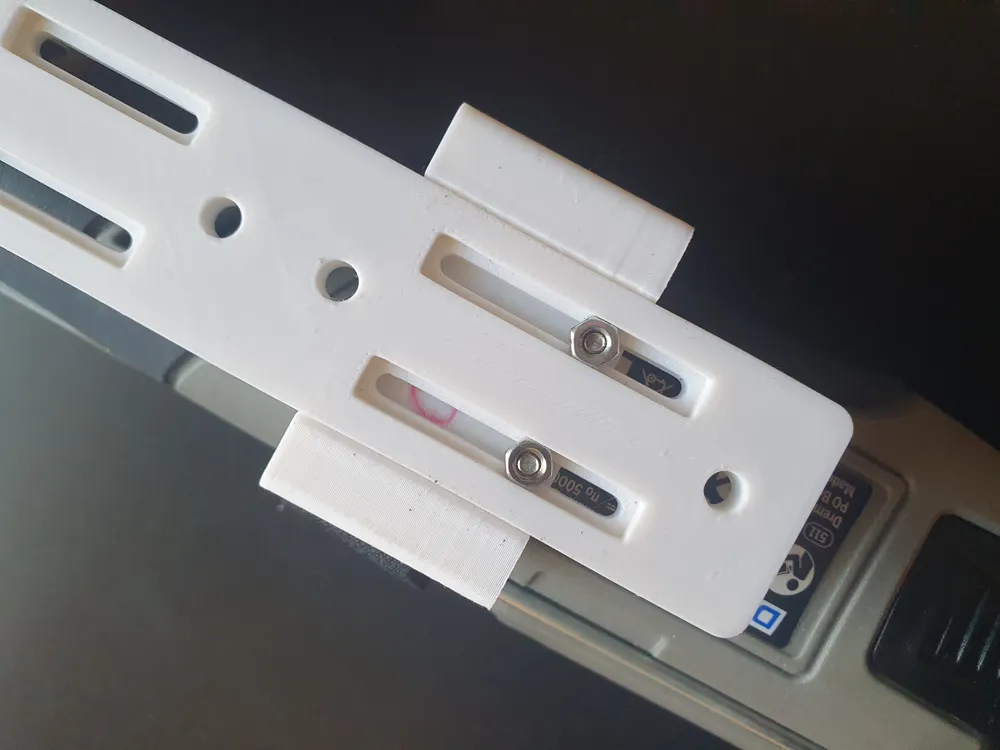

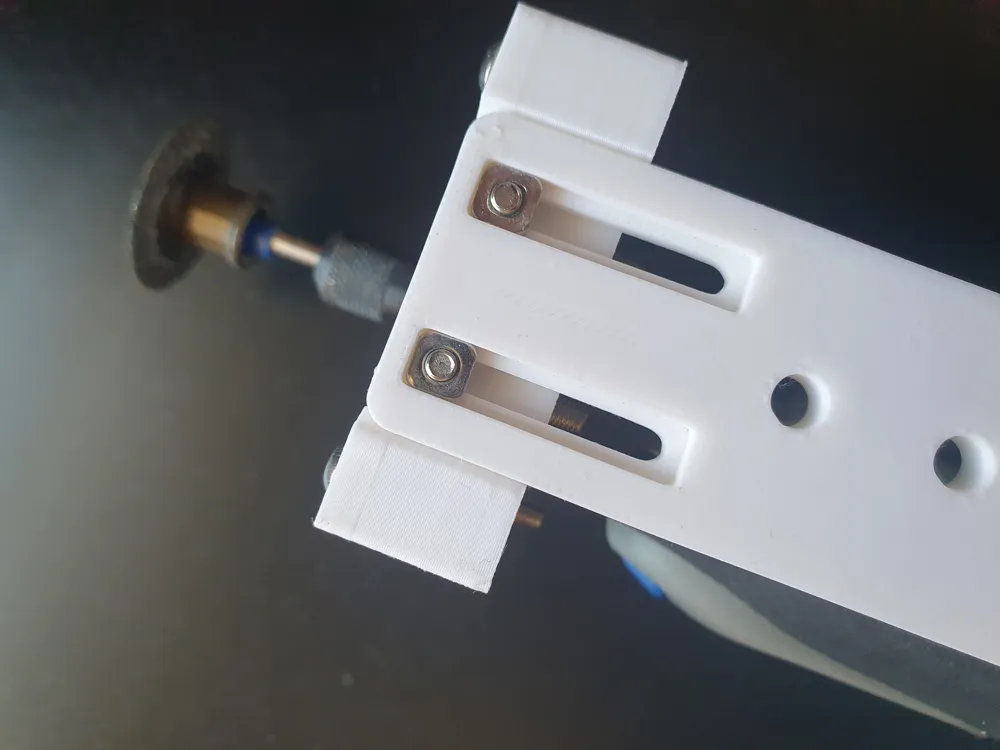

- assembly with screws and nuts (M3/10mm) for increased stability and vertical mounting
- 6 front side screw holes and nut pockets for attaching other custom accessories
- 5 M4 screw holes on the base plate for attaching the bracket to the table or vertical mounting
