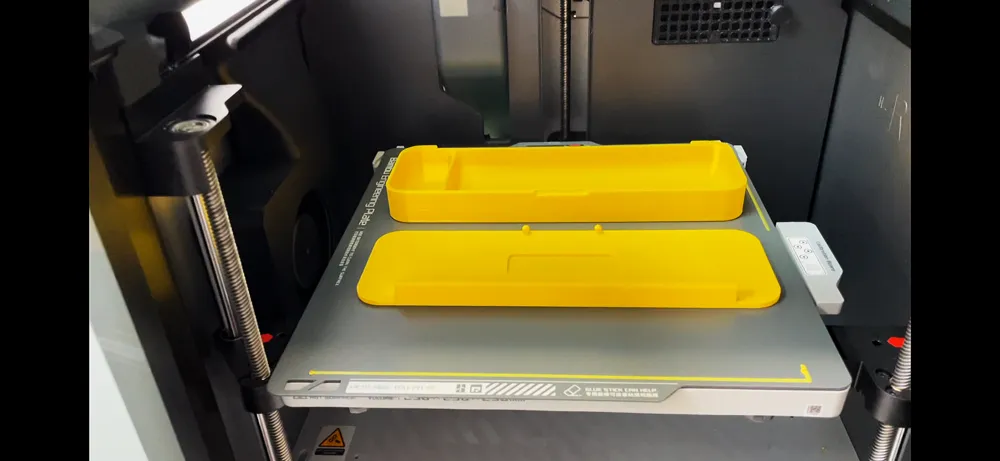

0.2mm layer, 5 walls, 15% infill
0.2mm layer, 5 walls, 15% infill
3.7 h
1 plate
5.0(1)

a1 mini compatible 0.16mm layer, 2 walls, 15% infill
a1 mini compatible 0.16mm layer, 2 walls, 15% infill
2.4 h
1 plate

Boost
47
129
13
0
394
56
Released

Description

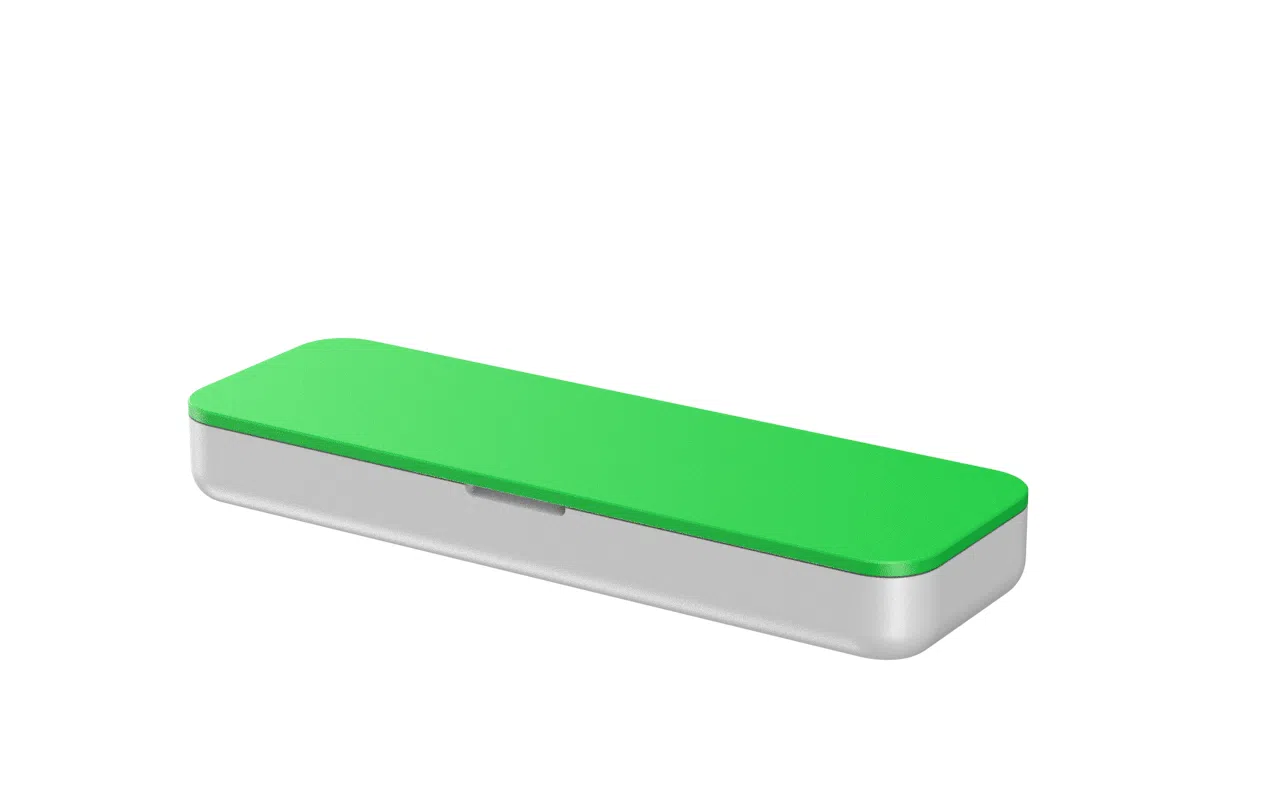

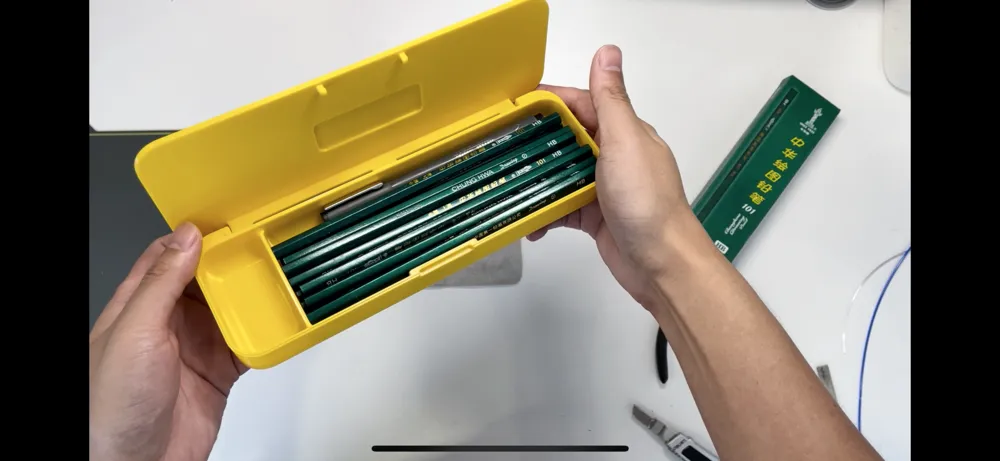

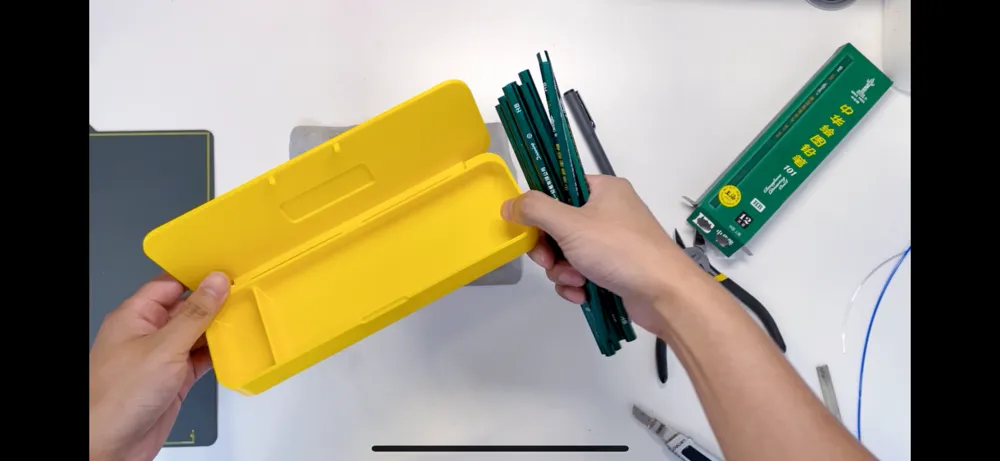

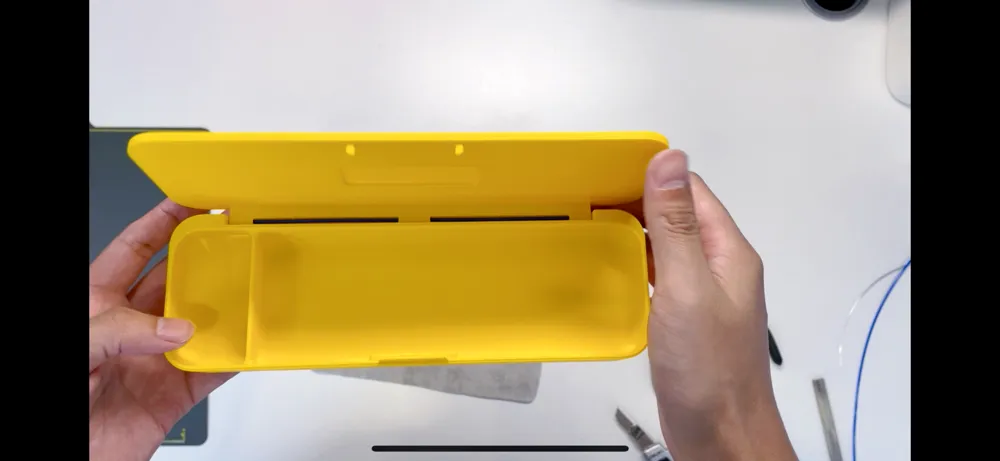

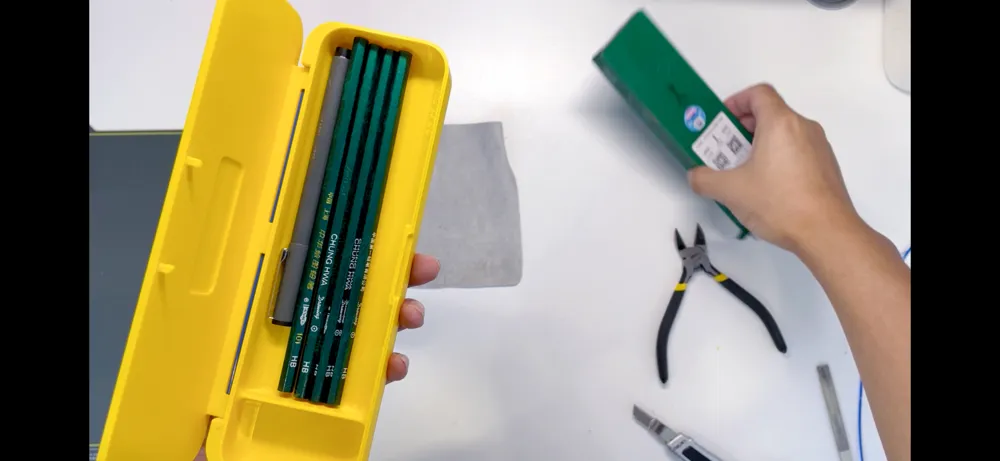

家里小朋友马上要上小学,老师要求要铅笔盒要普通简单,所以网上买了一个无印良品的半透明盒子,但是拿到手一个感觉品质不大好,作为小朋友不方便打开,在加上木铅笔居然放不下,所以就自己设计了一款,目的尽可能弱化存在感,简单纯粹的铅笔盒,橡皮隔离放置,以免被铅笔头污染,角落以后有灰尘要好清理,所以设计了大圆角。

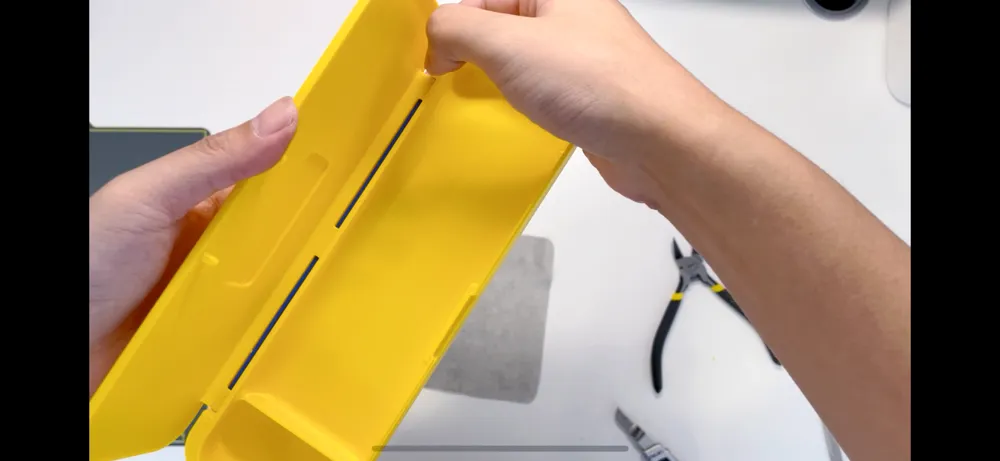

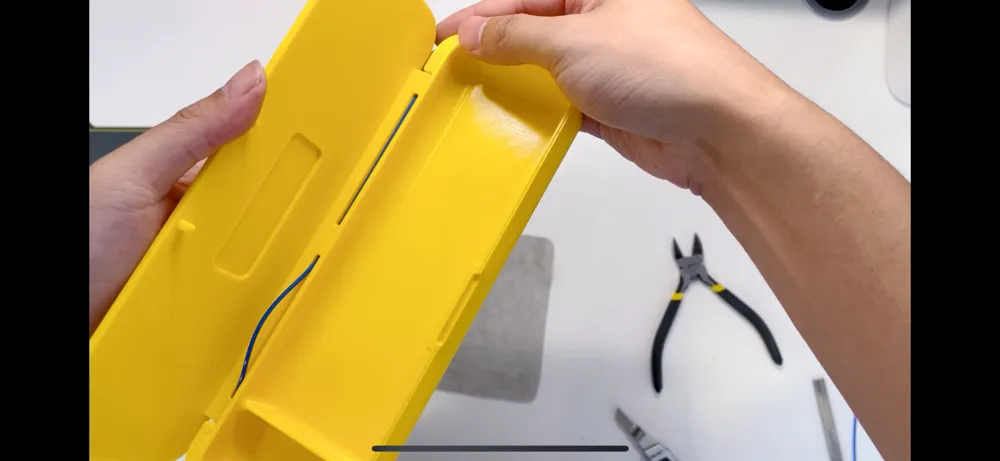

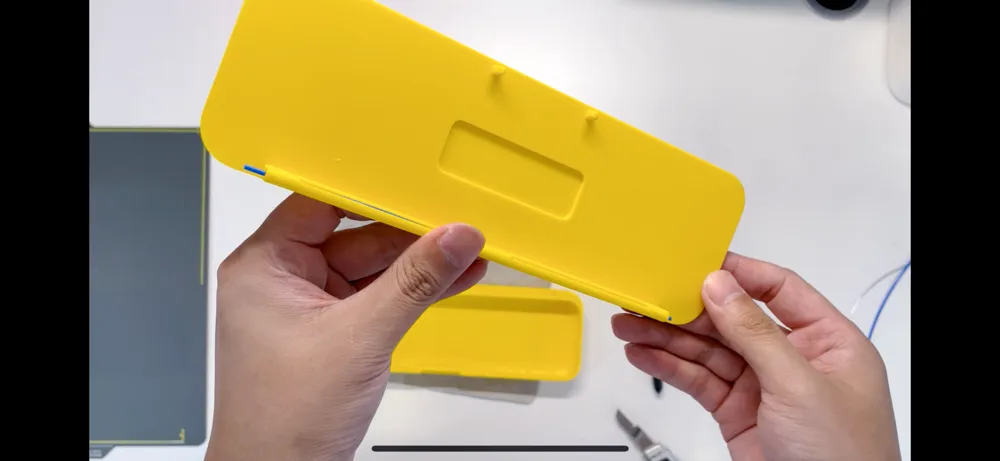

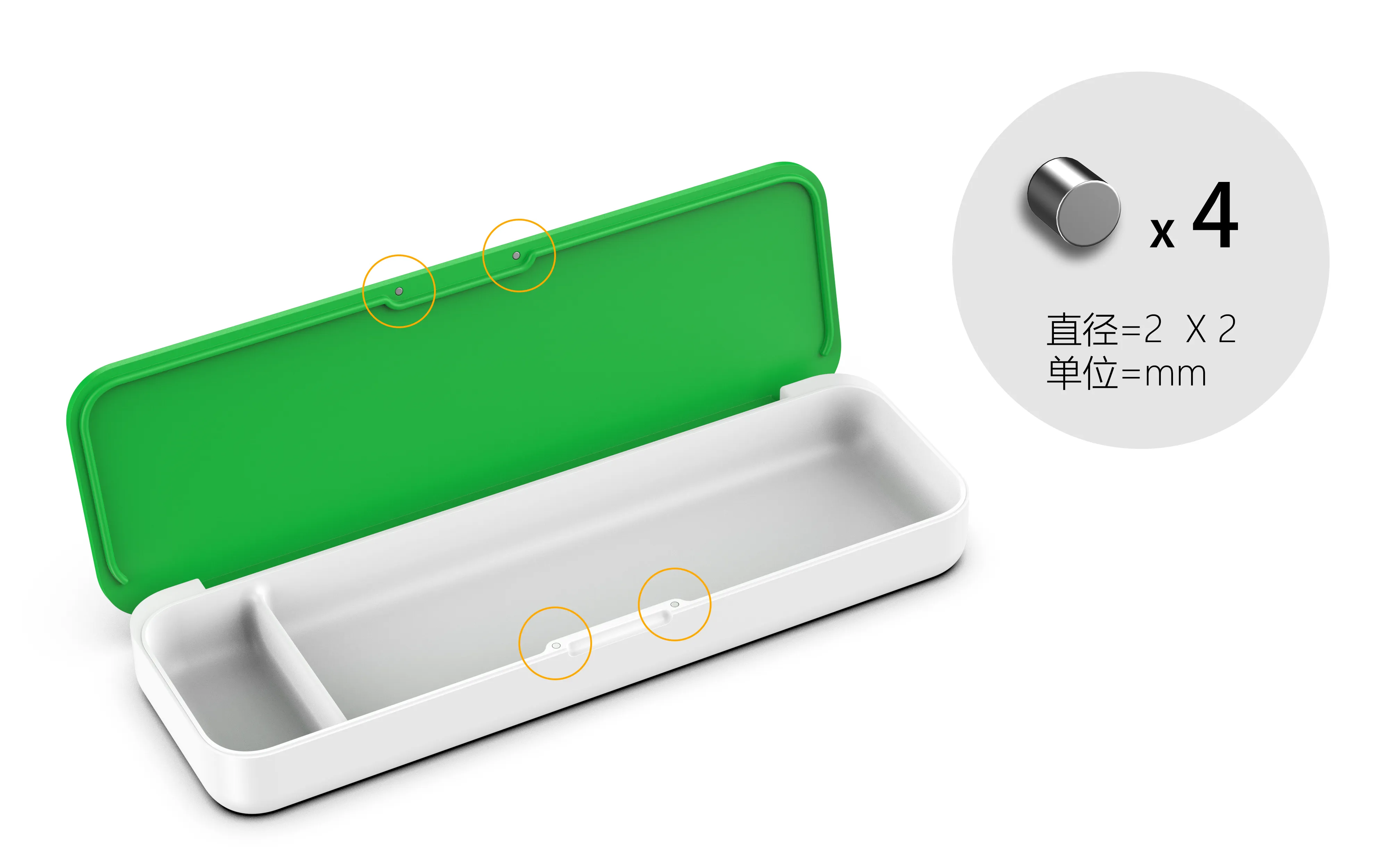

组装只需要一根耗材丝,做了两个版本,一个磁吸版本(需要6颗直径2mmx厚度2mm的N52磁铁),另一个卡扣版本(如图片)。

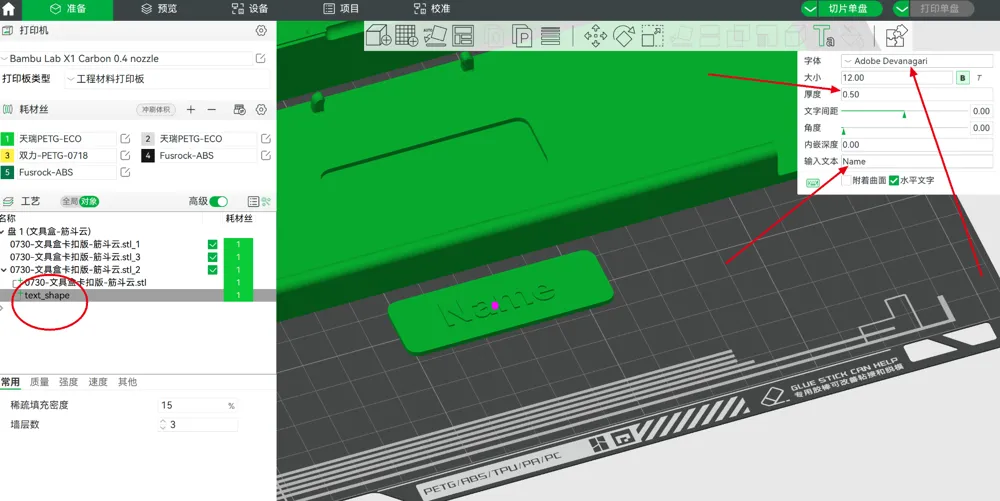

需要注意:小的铭牌是用于自行更改姓名(name),已经设置好了text编辑。



0731更新:新增【0731-铅笔盒卡口版本-去除名字板-筋斗云.stl】

Comment & Rating (13)

Please fill in your opinion
(0/5000)

The box doesn't work. It is missing the pins on the hinges so it doesn't function.
The designer has replied
0
Reply

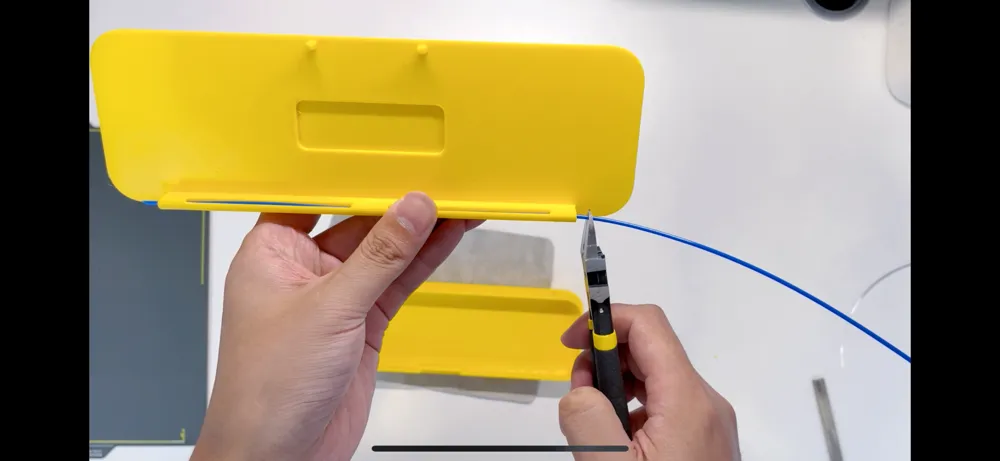

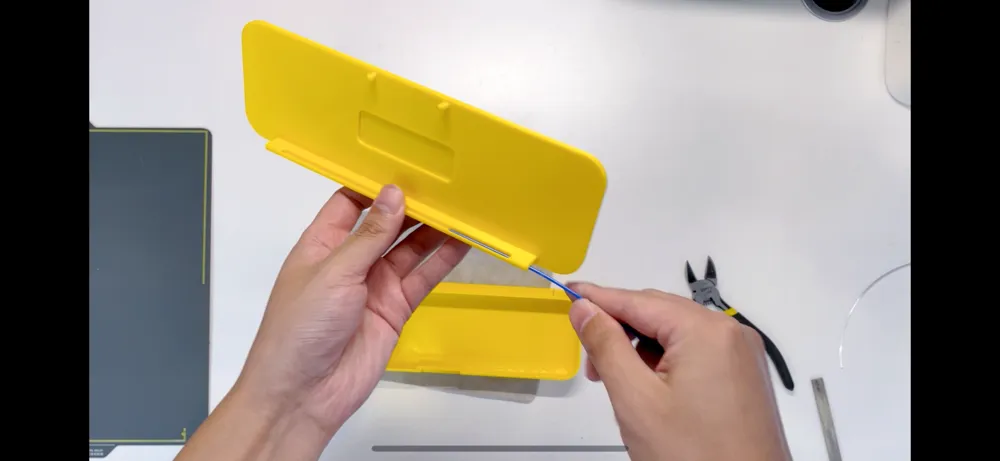

设计是直接使用耗材线,1.75mm Designed for direct use with consumable wire, 1.75mm
0
Reply
Replying to @user_68898811 :
yes I realize this now. I’m an idiot.
0
Reply
Replying to @user_1820531700 :
是我没写清楚,我原本在bilibili视频里有演示,我应该写得更清楚一些, 你打印的真不错,非常细腻 I didn't write it clearly, I originally had a demo in the bilibili video, I should have written it more clearly, the You printed it really well, it's very detailed
0
Reply
很好的设计,如果能去掉logo那就更好了
2
Reply
Print Profile
pencil box-petg
very nice design. sturdy box and lid construction. smart use of filament
0
Reply
卡扣最容易断了
0
Reply
磁吸版本呢? 没看到文件!
0
Reply
哪个是磁吸版本啊?
0
Reply
简约好看,卡扣比较紧,有磁性版本的吗
0
Reply
Print Profile
pencil box-petg
1
Reply
Print Profile
pencil box-petg
1
Reply
Print Profile
0.2mm layer, 5 walls, 15% infill
0
Reply
