Mini Pocket Pen - Dual Color Double Ring

Designer

1.9 h

1 plate

4.7(38)

Mini Pocket Pen - Single Color

Designer

1.7 h

1 plate

4.8(24)

Mini Pocket Pen - with Key-Ring Cap

Designer

1.8 h

1 plate

4.7(14)

Open in Bambu Studio

Boost

728

1973

106

1.3 k

844

Released

Bill of Materials

Bambu Filaments

Select all

Description

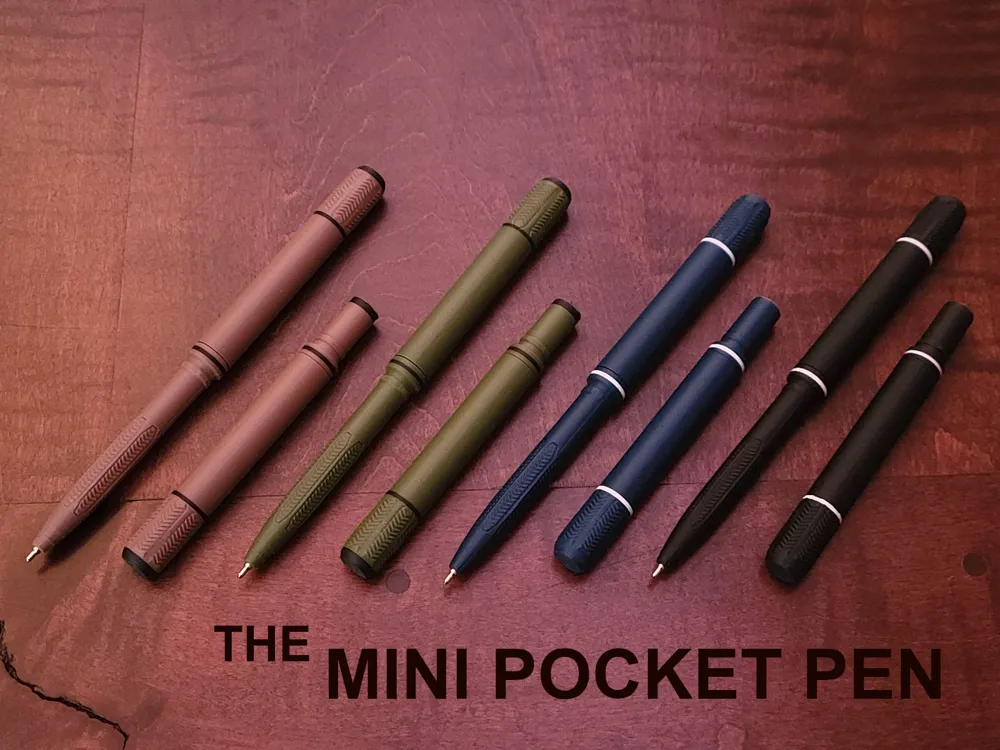

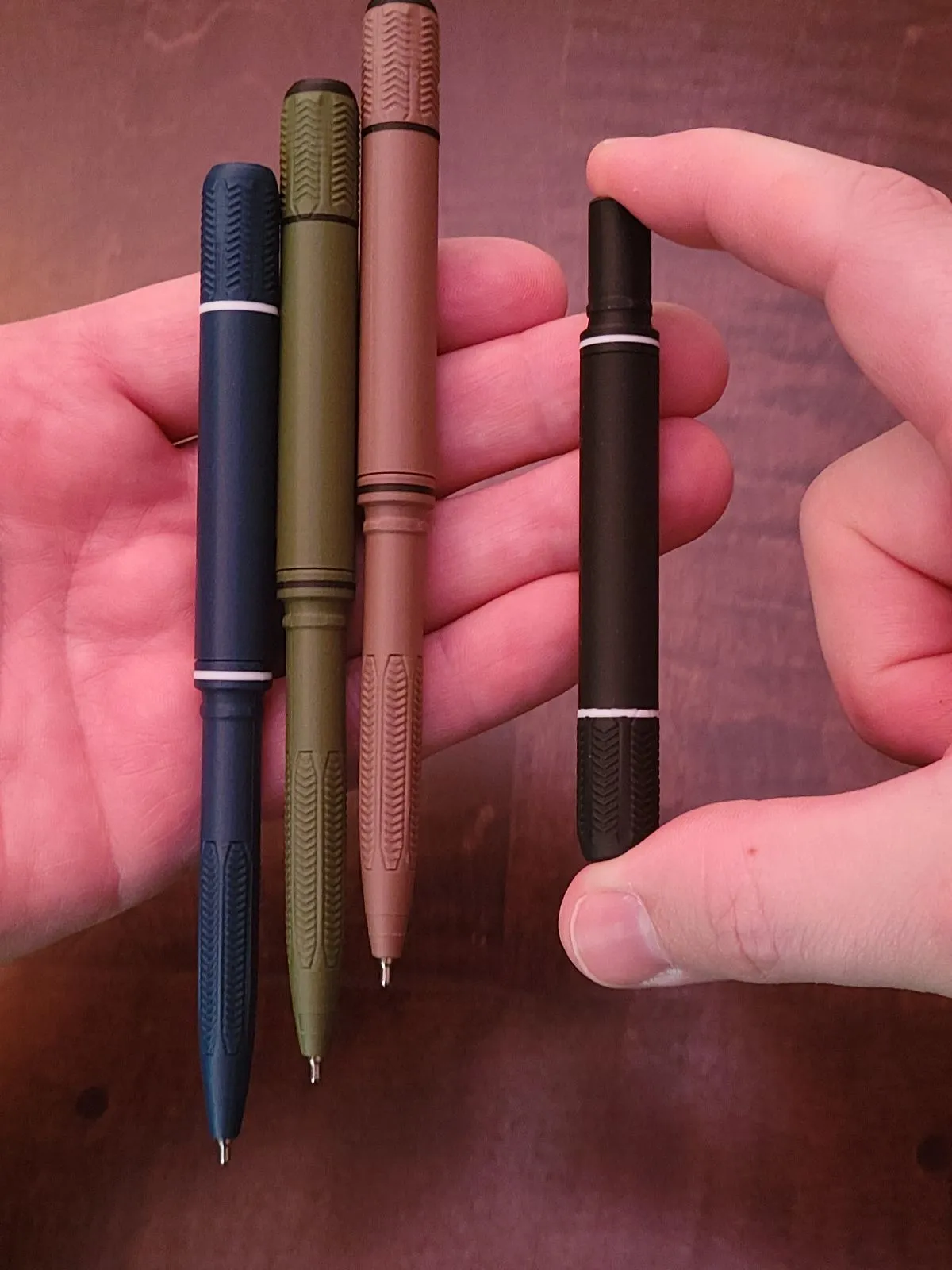

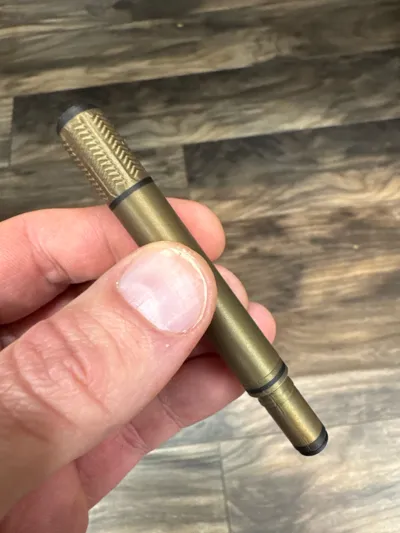

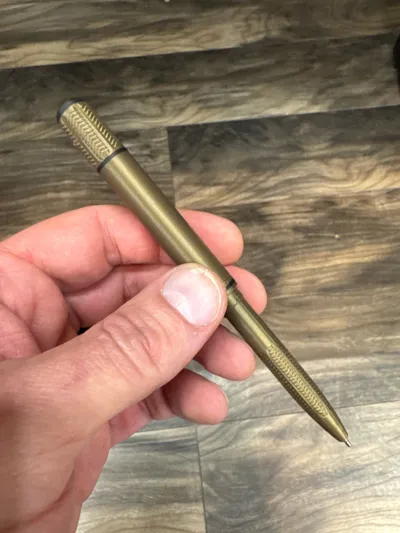

An original pen design that quickly transforms from comfortable pocket-sized to full-sized by removing the cap and stowing it on the rear of the pen.

Features

Pocket-sized length of 97mm (3.81")

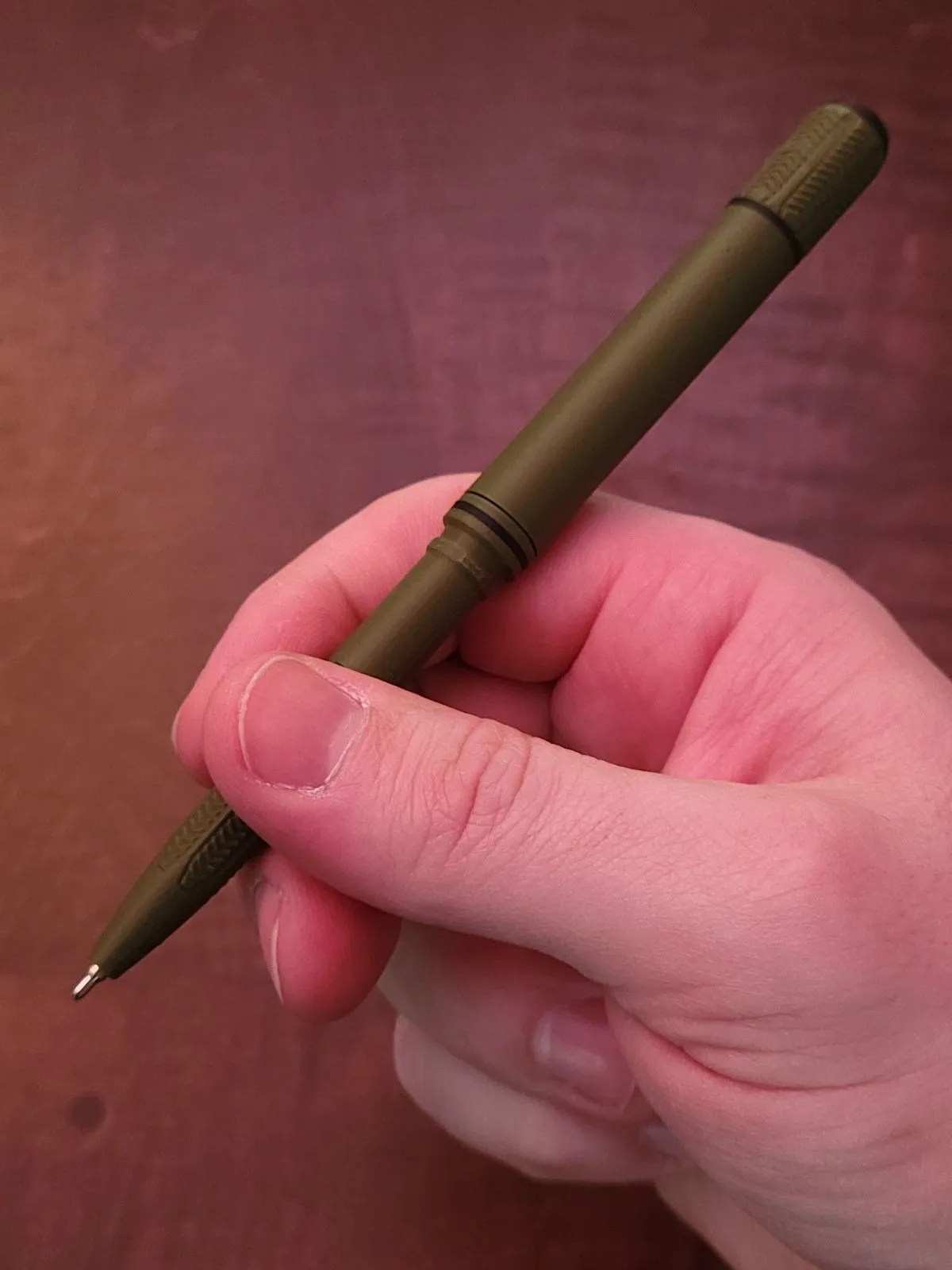

Full-sized writing length of 146mm (5.75")
Cap firmly snaps closed onto both ends of the pen.
Accepts common ink refills from multiple brands. Just insert and cut to length!
Basic customization with 2 different print profiles:
- Single color (no AMS)
- Dual color with double ring (AMS required)

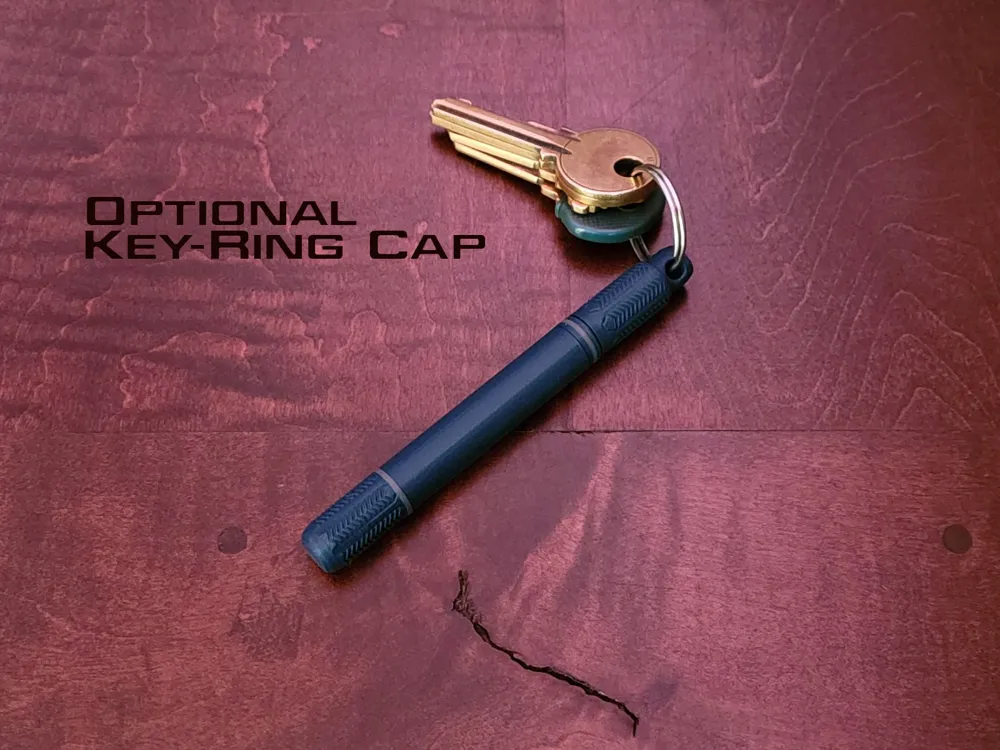

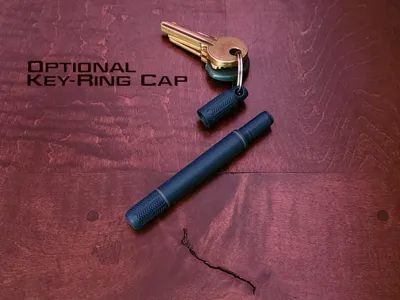

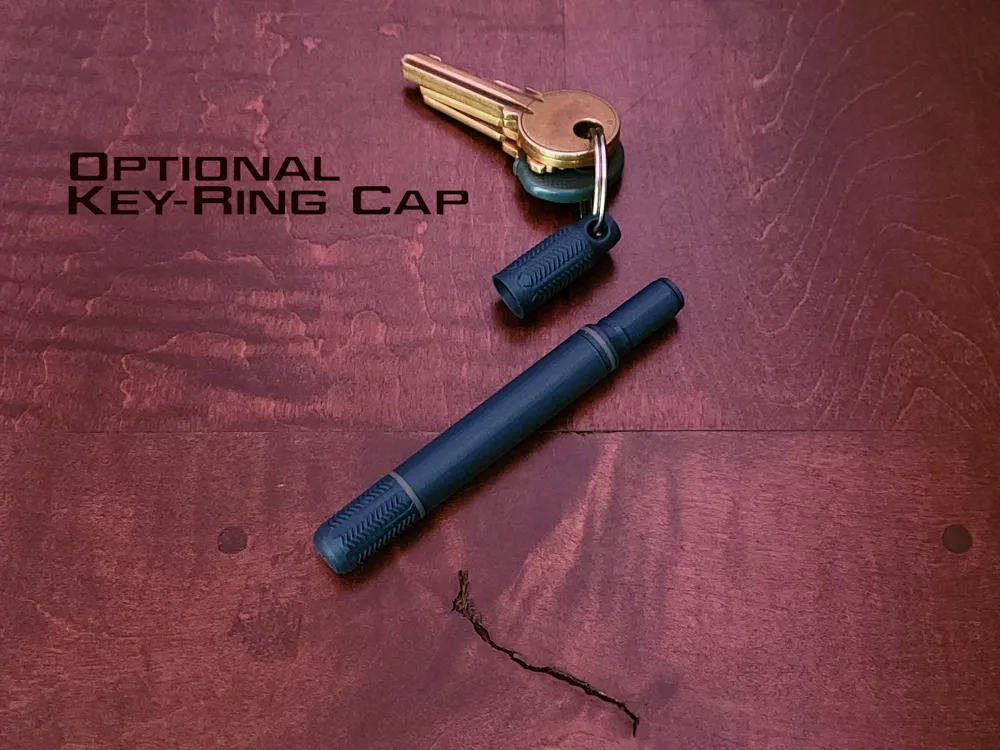

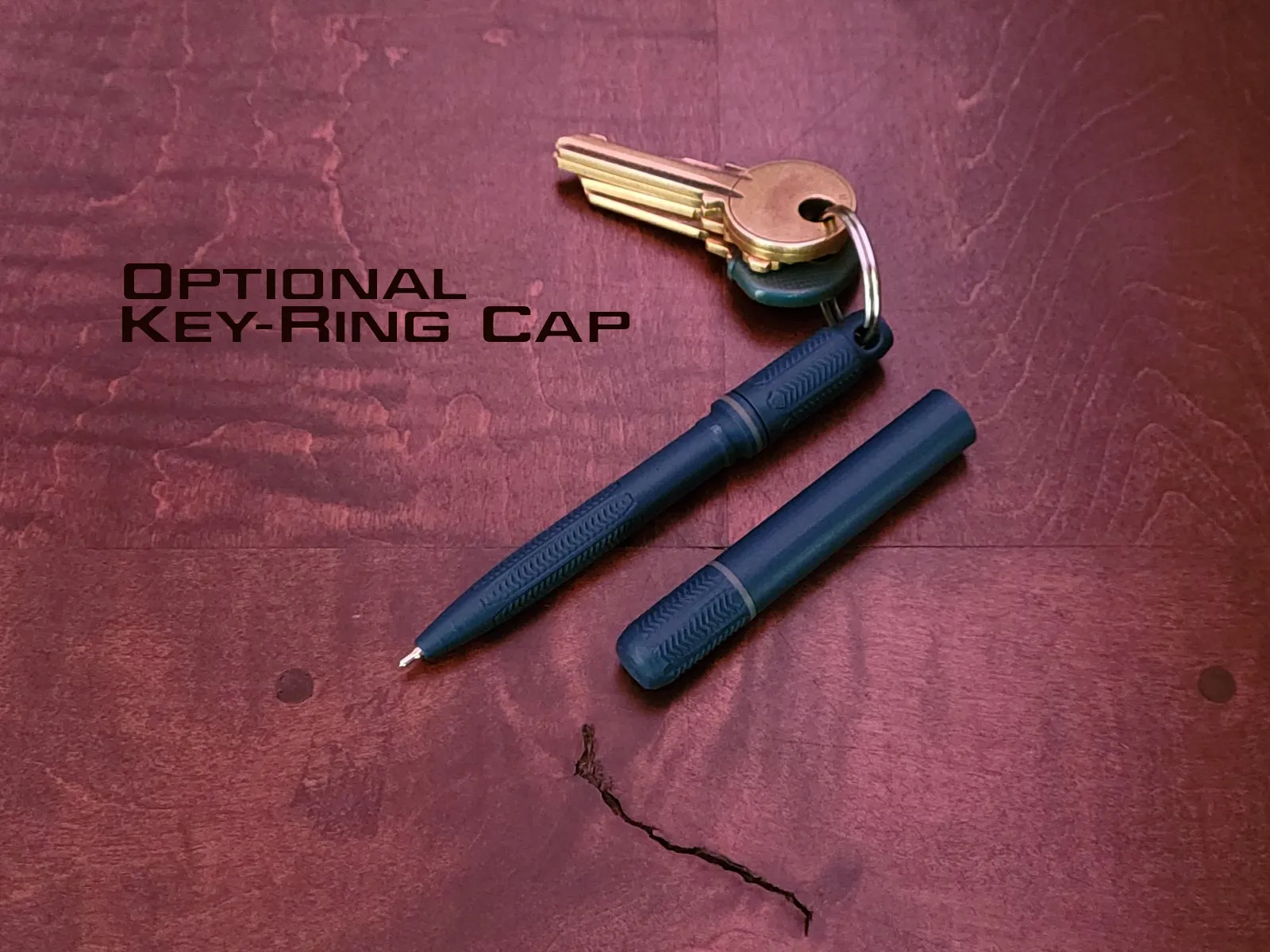

Optional cap for use with a key-ring

Boost Me (for free)

If you like my work and want to see more, feel free to give me a Boost!

Printing Tips

Always clean your build plate with water and mild soap.
No Supports - All parts are designed to print without supports.
Brim - A brim is required for the body of the pen.
Recommended Material - PLA Basic and PLA Matte filaments

Assembly

Remove the brim from the pen body and carefully deburr.

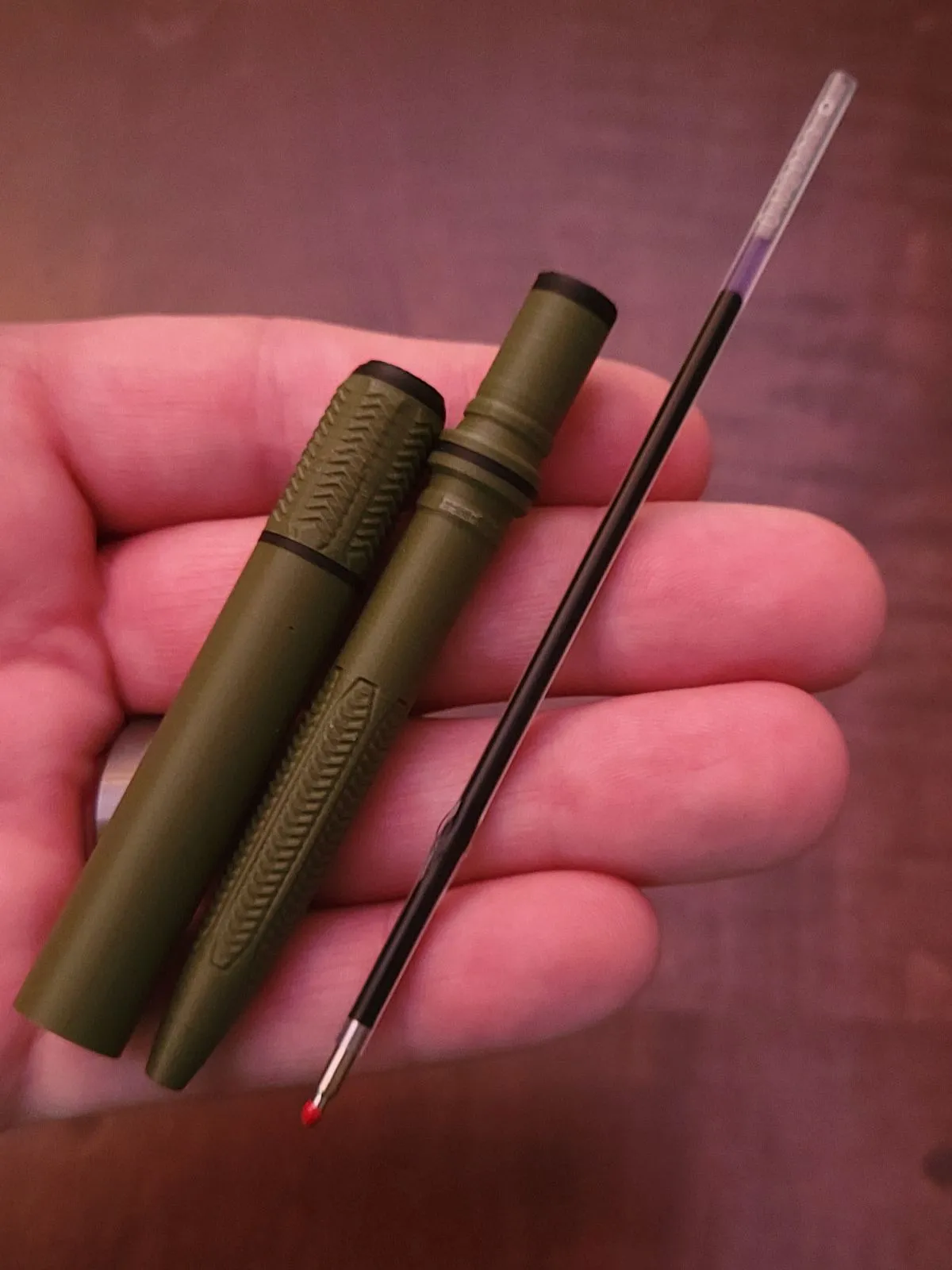

Use an ink refill that is longer than 92.8mm (3.65"). Shorter ink refills will require custom ink caps, such as the S-7S ink refill.

Insert the ink refill into the pen. It should be a light to moderate press fit. Do not remove once inserted.

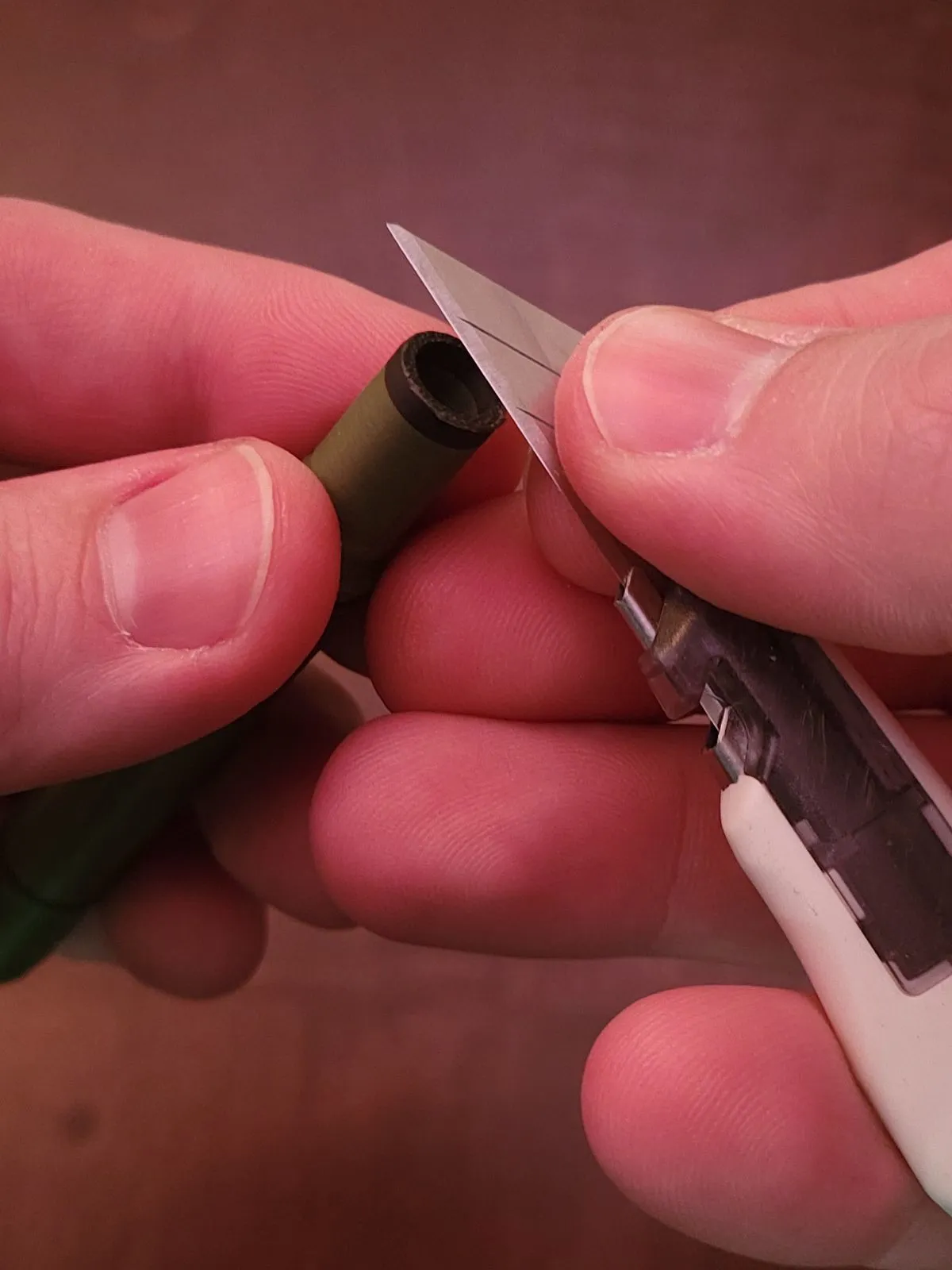

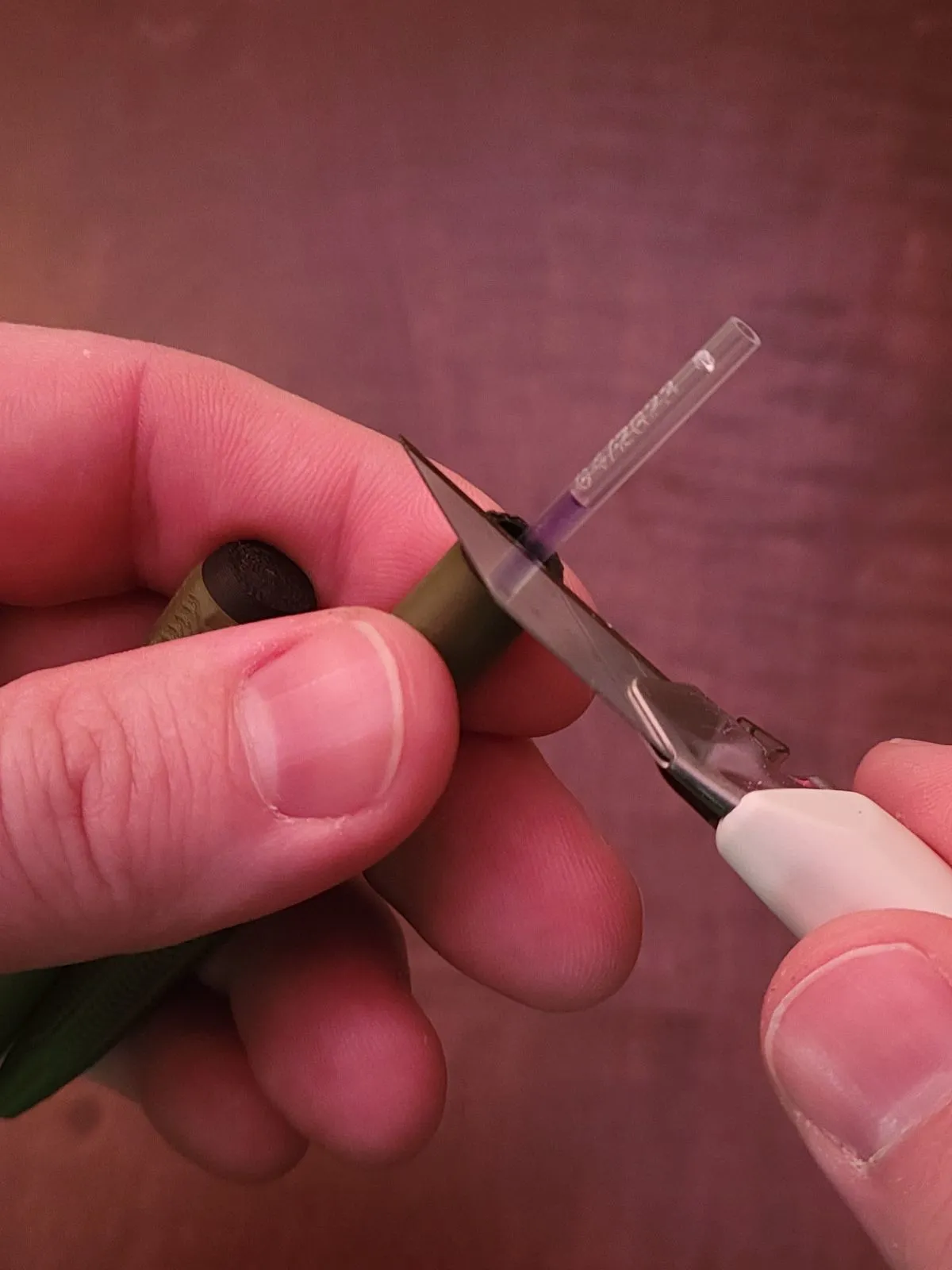

Use a utility knife to score the perimeter of the ink refill flush to the rear of the pen body.

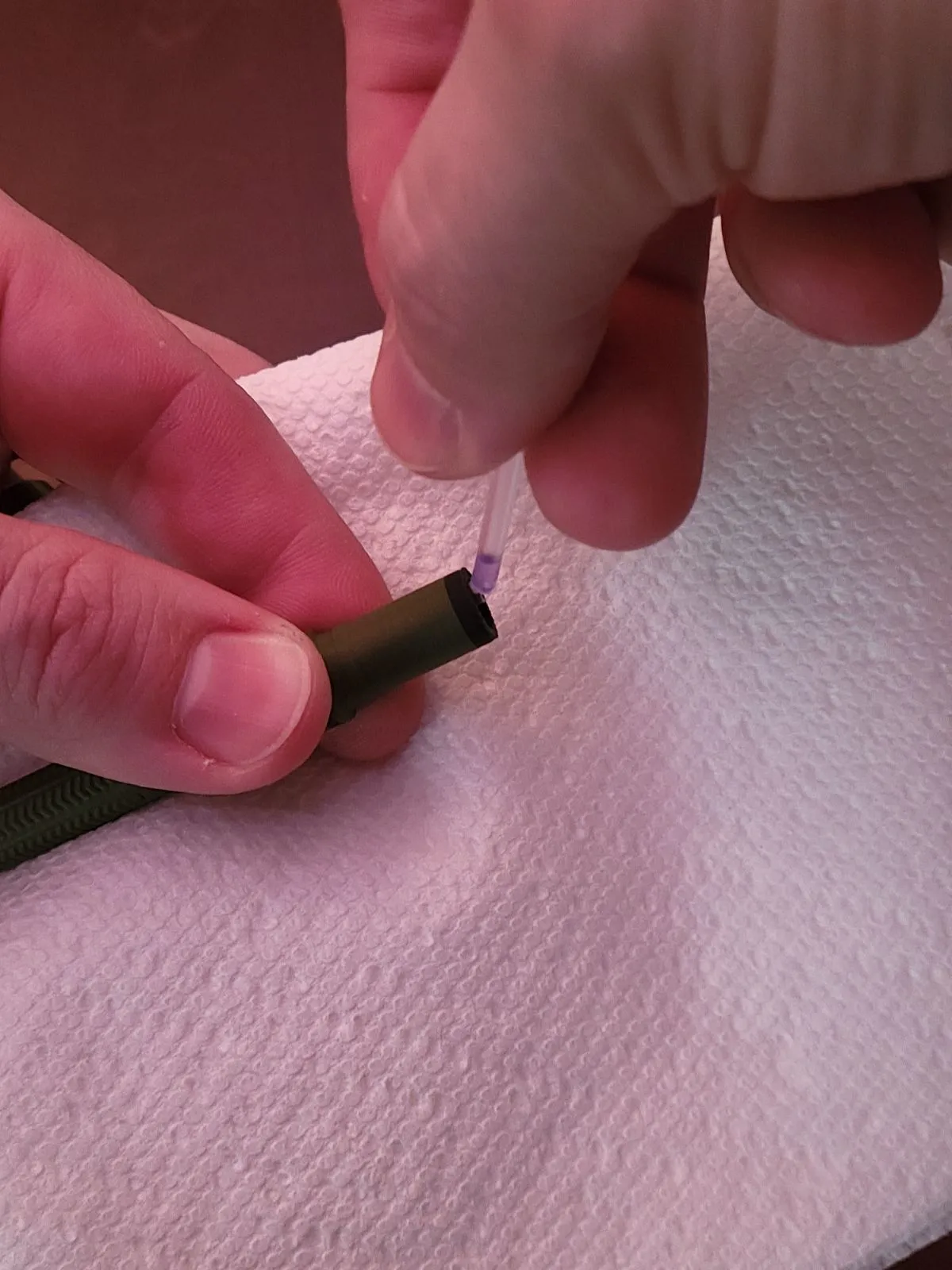

Snap the ink refill pointing away from your face and over a paper towel.

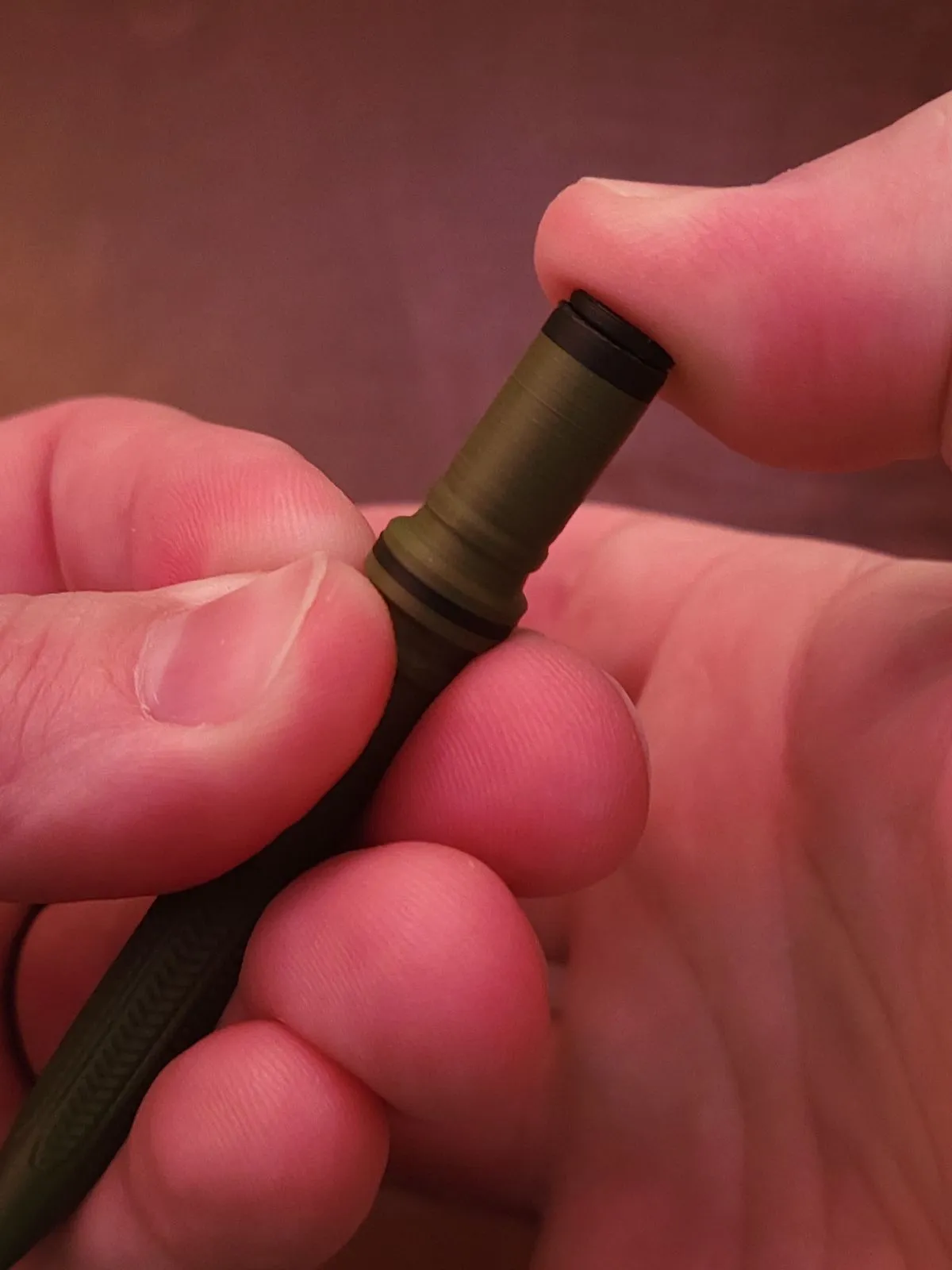

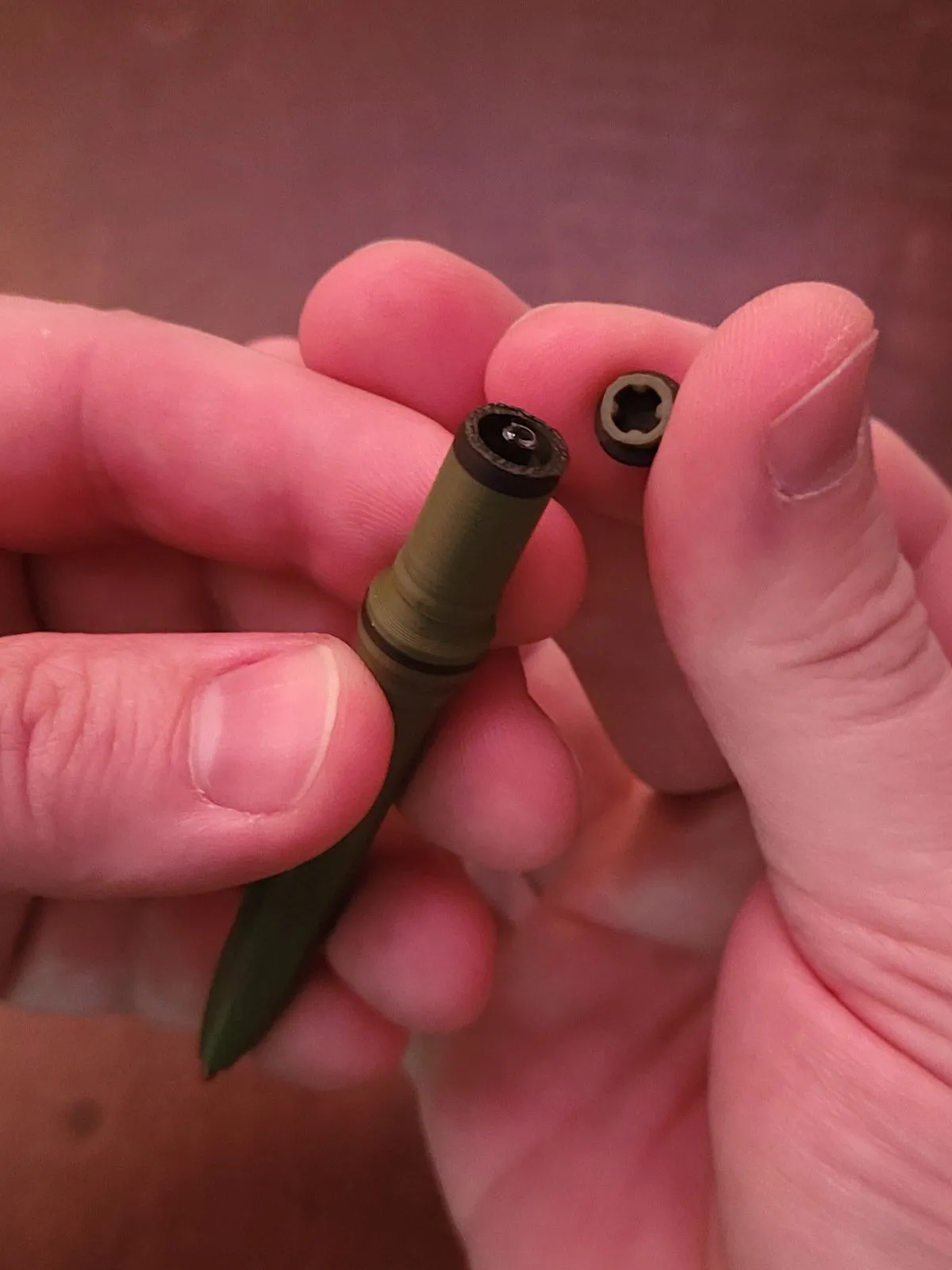

Slide the ink cap over the rear of the ink refill and into the rear of the pen body.

Snap the pen's cap into place and it is ready to use.

Non-Affiliate Links

Ballpoint pen refills https://a.co/d/7Q3lAtH
S-7S oil-based ballpoint ink refills https://tokyopenshop.com/products/limex-refill-s-7s?_pos=1&_sid=9acbe3fd3&_ss=r
S-7S oil-based ballpoint ink refills https://a.co/d/hBBrw1F

Membership

Commercial Licensing for the Mini Pocket Pen is available for members.

Join

Revision History

2025-4-06 v1.0 Released.

2025-7-23 v1.1 Added model and print profile for an optional key-ring cap.

Comment & Rating (106)

@melissaday

Boosted

Print Profile

Mini Pocket Pen - Single Color

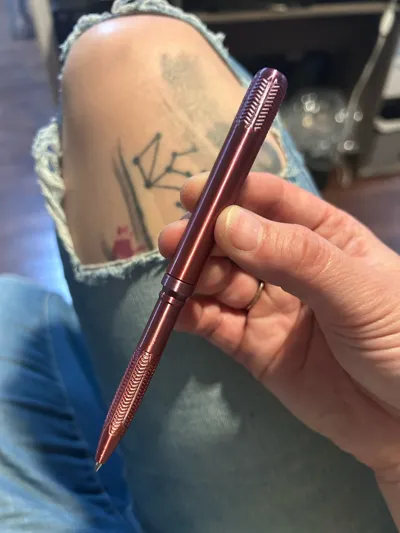

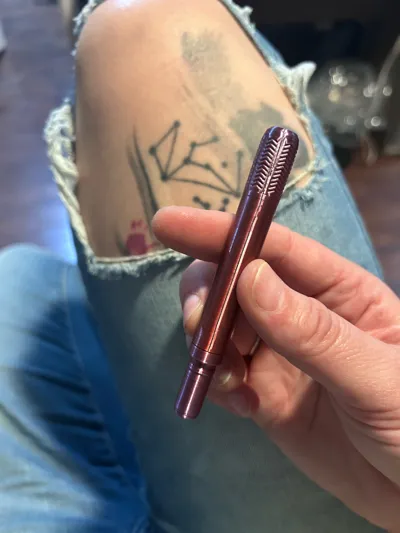

printed perfectly! followed your assembly instructions and had zero issues. thanks!

The profile uploader has replied

@Runswithscssors

Wow - that looks amazing in that filament! Thanks so much for boosting and sharing the photos!

@Penny218

Boosted

Print Profile

Mini Pocket Pen - Dual Color Double Ring

love it

The profile uploader has replied

@Runswithscssors

Thank you so much for the support =)

@inakarmacoma

in case anyone is curious to compare the dimensions of the pocket size and telescope size of this model, a pilot G2 is approximately 142mm or 5.6" in.

@user_1932376379

Print Profile

Mini Pocket Pen - Dual Color Double Ring

Nice print

@notcloud

Print Profile

Mini Pocket Pen - Dual Color Double Ring

Prints and works like a charm Wouldnt recommend PLA matte though, too much stringing

@Sinta

Boosted

I was looking for a pen that I could always have on me at work, and this model came to the rescue and I've been using it ever since (even printed one for my boss!), thanks for you for the instructions and attention to detail and for sharing it with us!

(Edited)

@goonerni14

Excellent little pen pocket handy 👌

@reeksypie

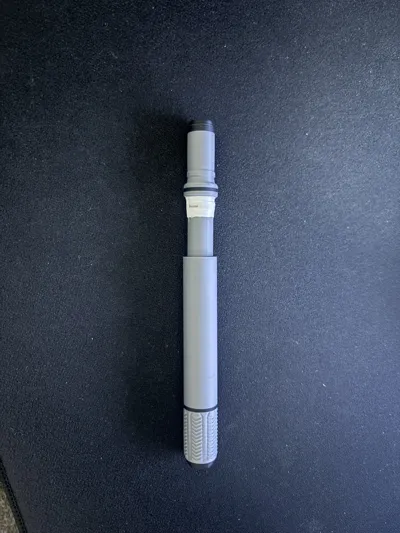

Few wraps of thread tape to take up the slack. Now it feels a bit more secure. Printed in PLA Matte

@stae_one

Excellent design

@Arubinu

Print Profile

Mini Pocket Pen - Single Color

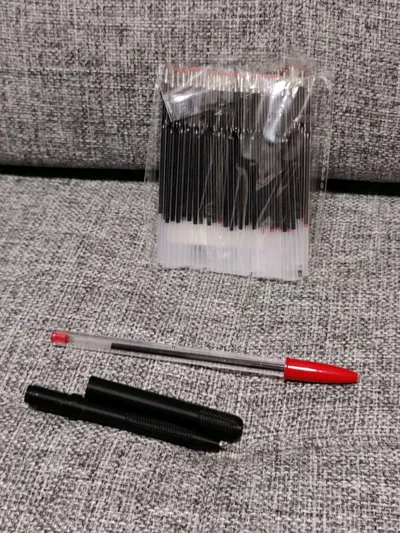

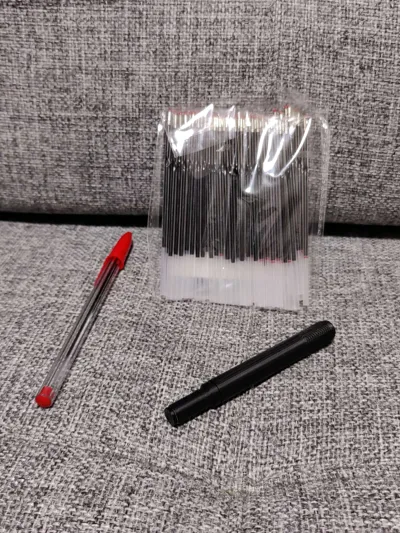

Much more compact 👍 I had printed another version with small circular openings that was stylish, but it ended up breaking in my work environment
