Toy Pistol

Summary

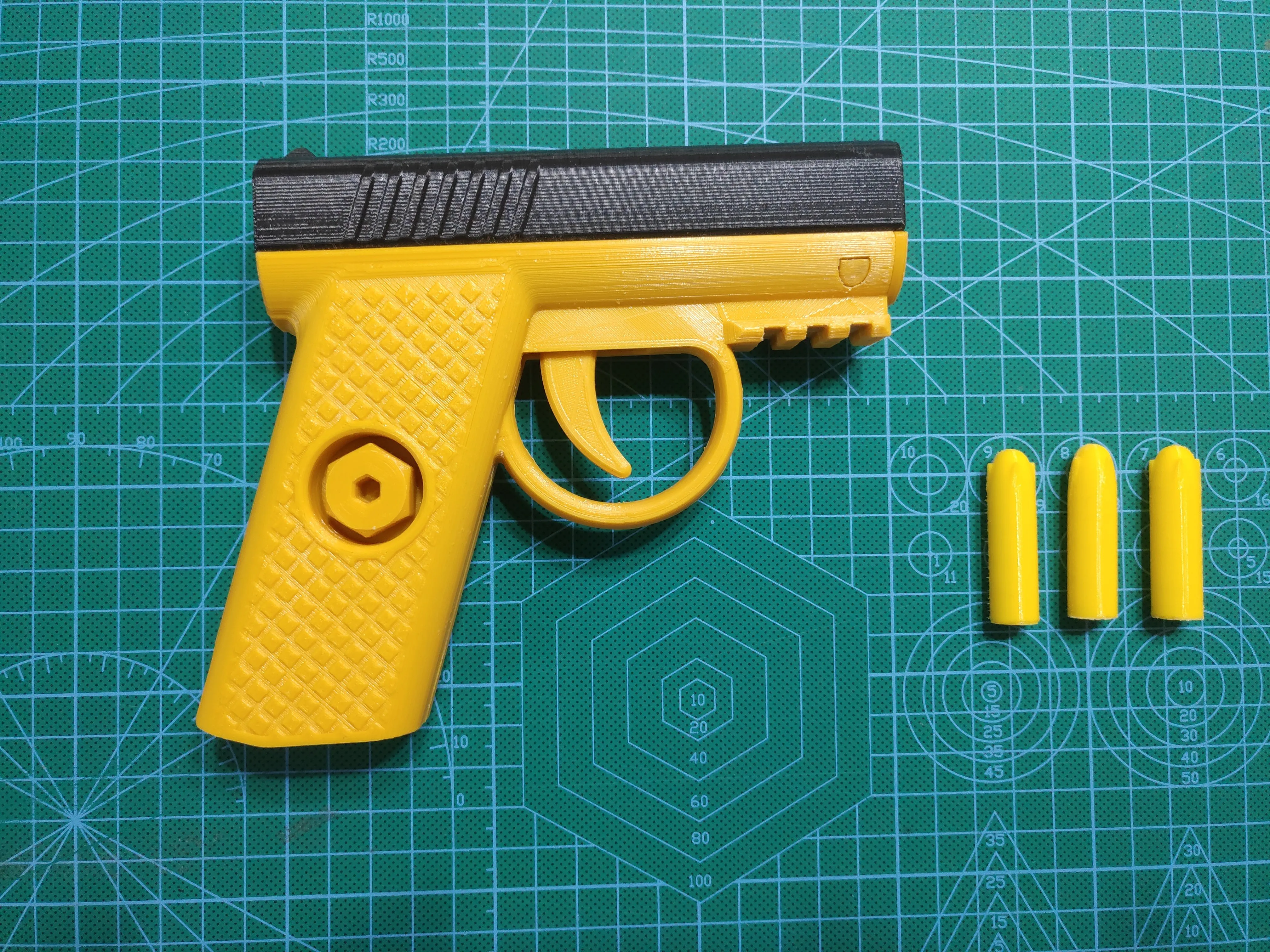

This is a toy pistol designed for kids play, it can be take apart easily by a small tool hide in the pistol grip, have fun in assembling and disassembling, and also you can shoot if you put suitable springs in it.

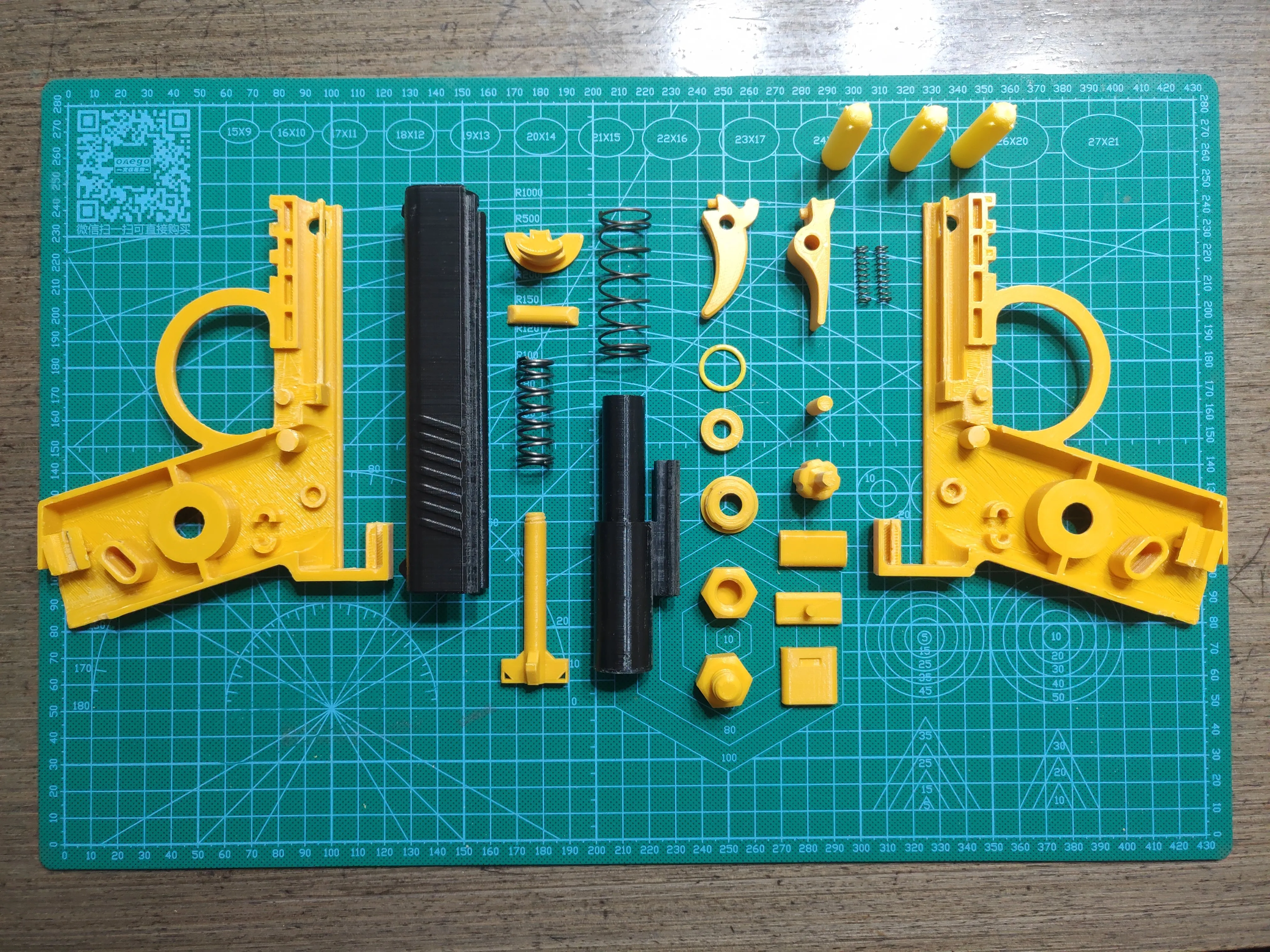

The material setting and springs' size is on the image, also the assembly instruction, look it backward:)

All parts could be printed in PLA&TPU, besides 4 springs. some parts need sanding to make it function well.

The barrel's diameter is 13 mm to compatible with NERF's bullets, I'm not sure because I don't have a NERF's bullet :)

enjoy it!

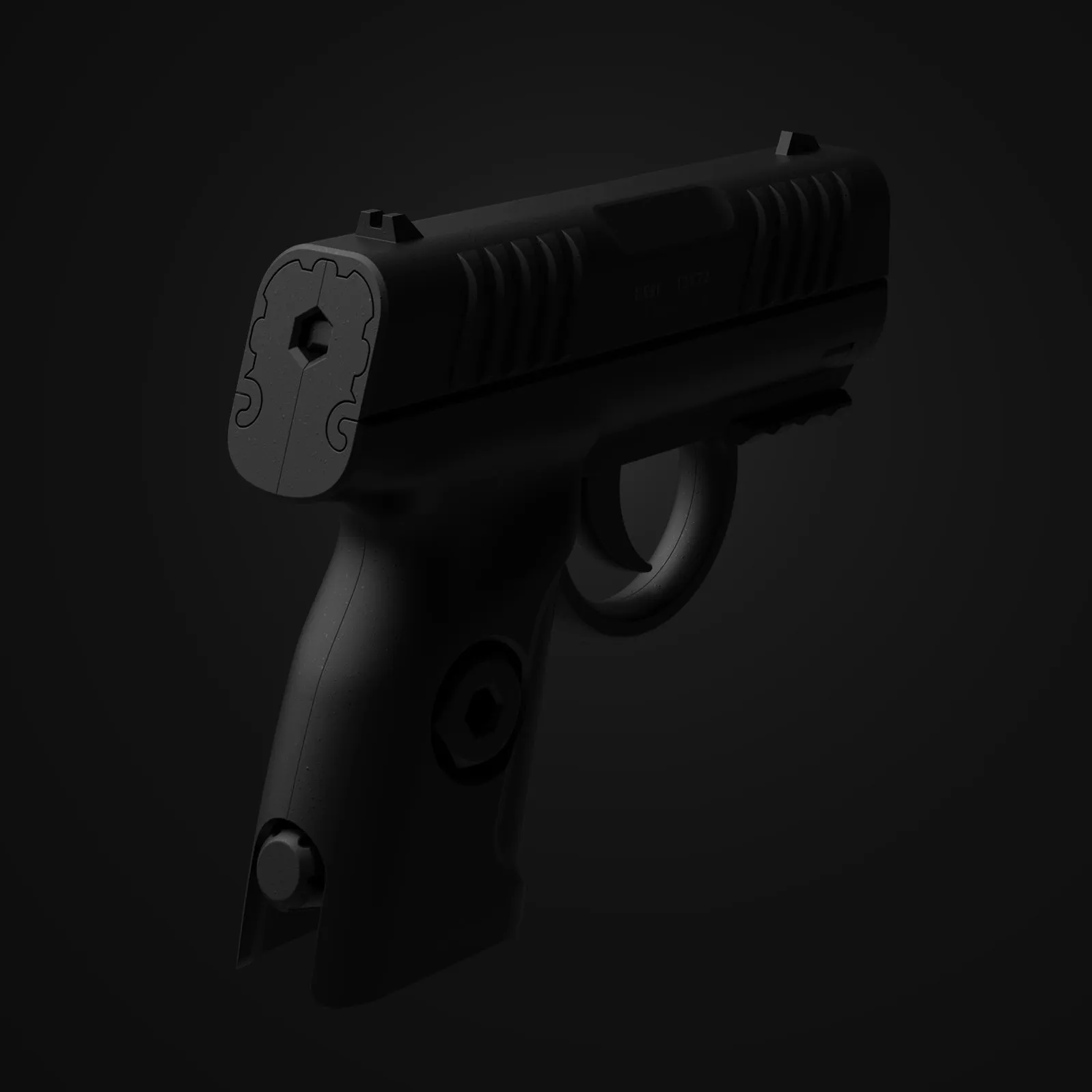

I update a new version of this toy pistol, it takes me a long time and huge energy to improve it, if you like it, you could buy it at:
https://www.myminifactory.com/object/3d-print-toy-pistol-191639

My other designs:
https://makerworld.com/en/u/2112721175

Thanks!

Print Settings

Printer:

anycubic

Rafts:

No

Supports:

Yes

Resolution:

0.2

Infill:

Cylinder rod 80%, TPU 10-15%, Others 30%

Filament: ESUN body - PLA, Seal and Bullets - TPU doesn't matter

How I Designed This

I have wanted a pistol of my own since I was a little boy. Now I have a 3D print machine and experience in product design to help me to make it successfully.

You can also design accessories based on the picatinny rail to make it more fun.
