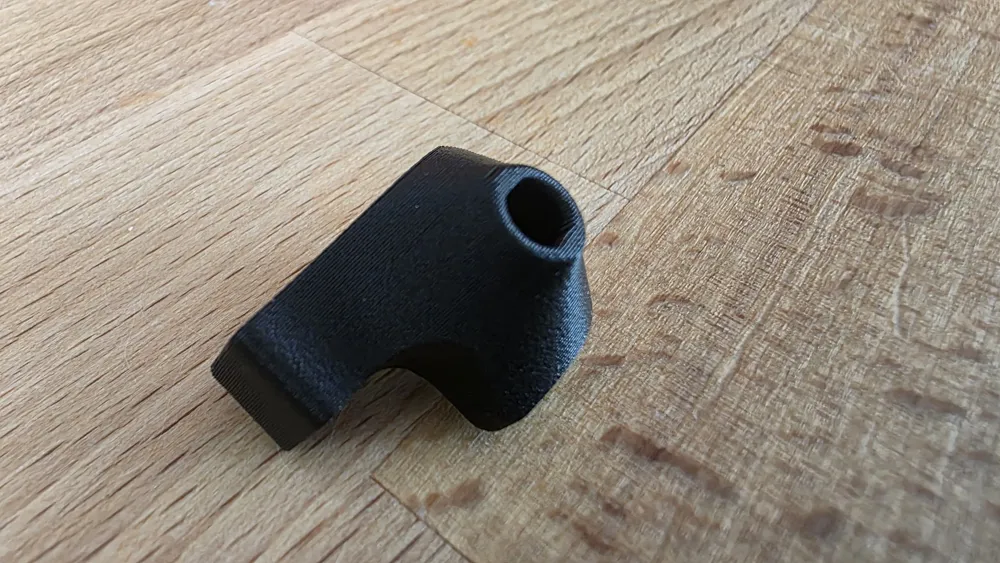

I would like to introduce you to my H2D PTFE TUBE HOLDER.

After I got tired of taking the tube out of the buffer and pushing it through the back again, I decided to add an additional PTFE tube to the H2D print head.

I also didn't want the extra PTFE tube to clip onto the prehands as they move when changing filament and I didn't want it to interfere.

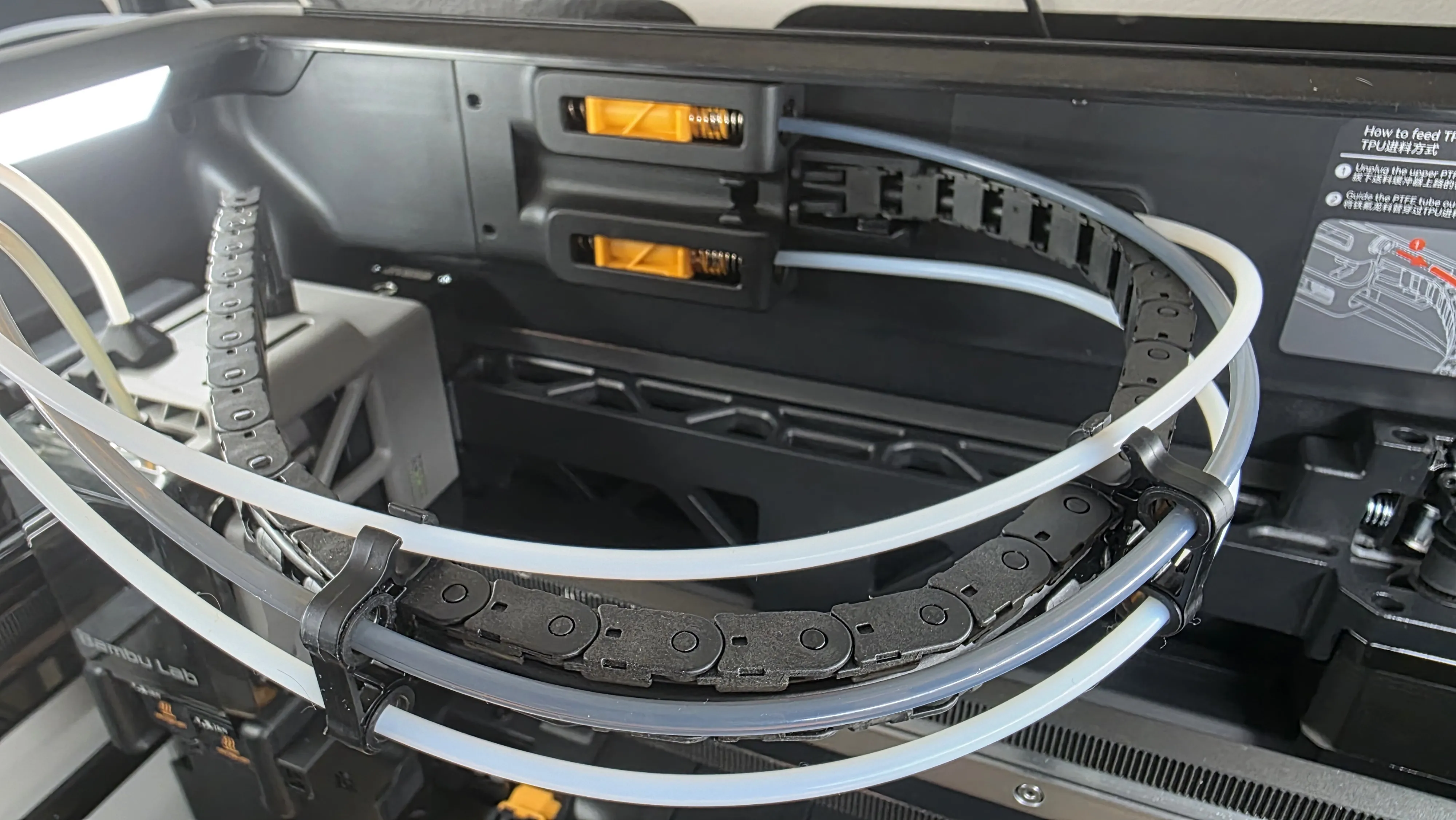

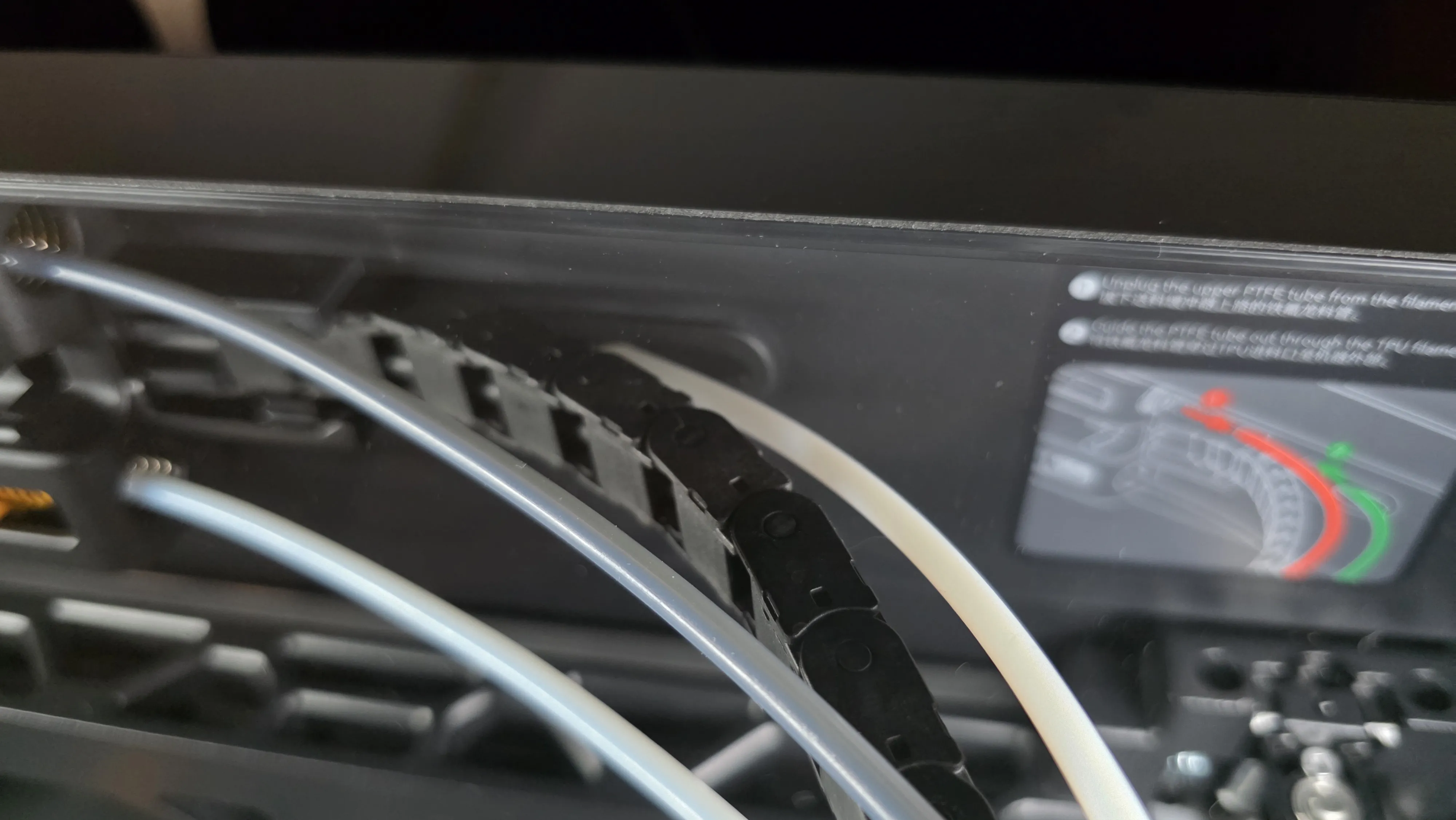

It also ensures that the holder does not restrict the cable routing during print head movements.

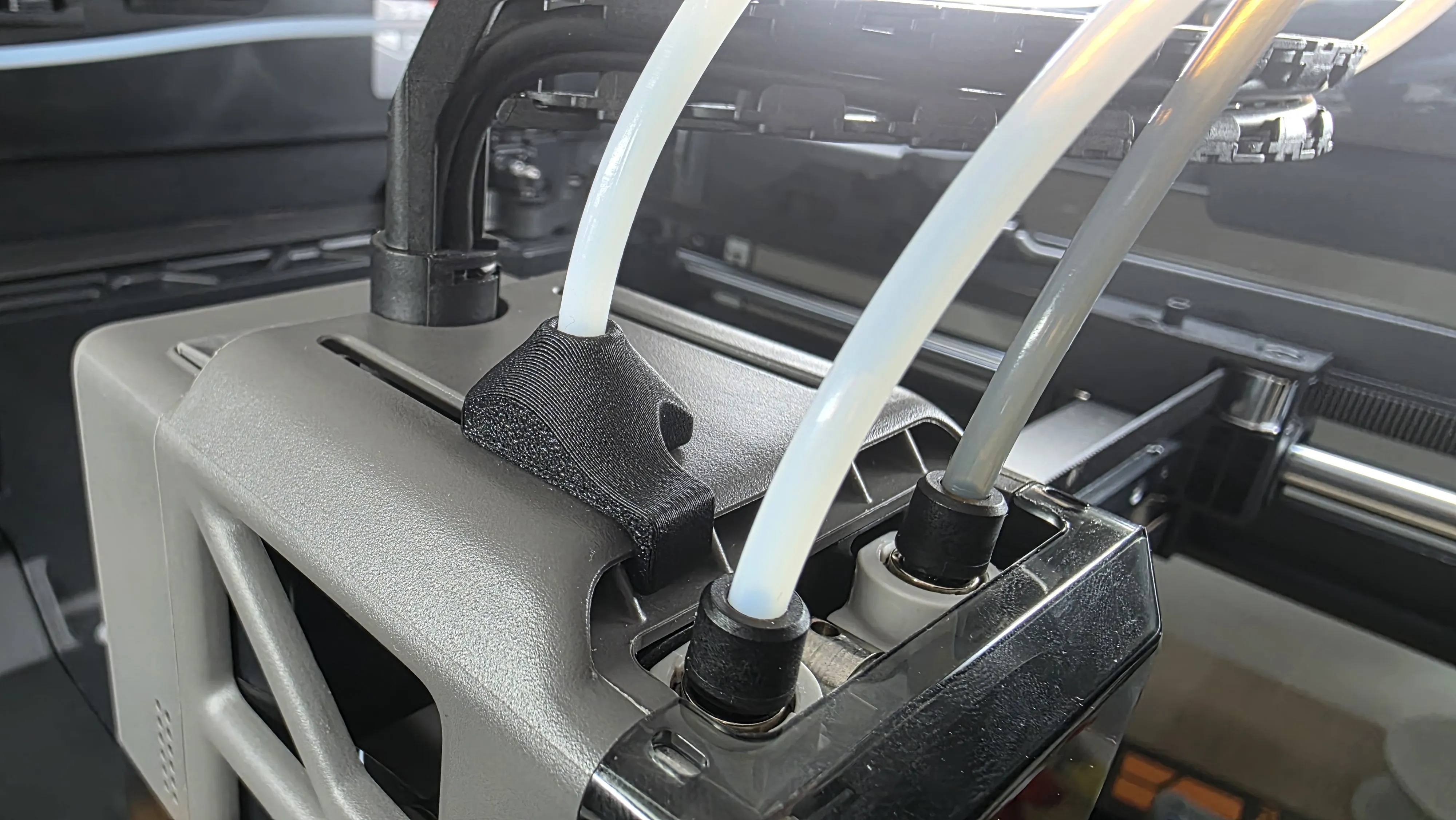

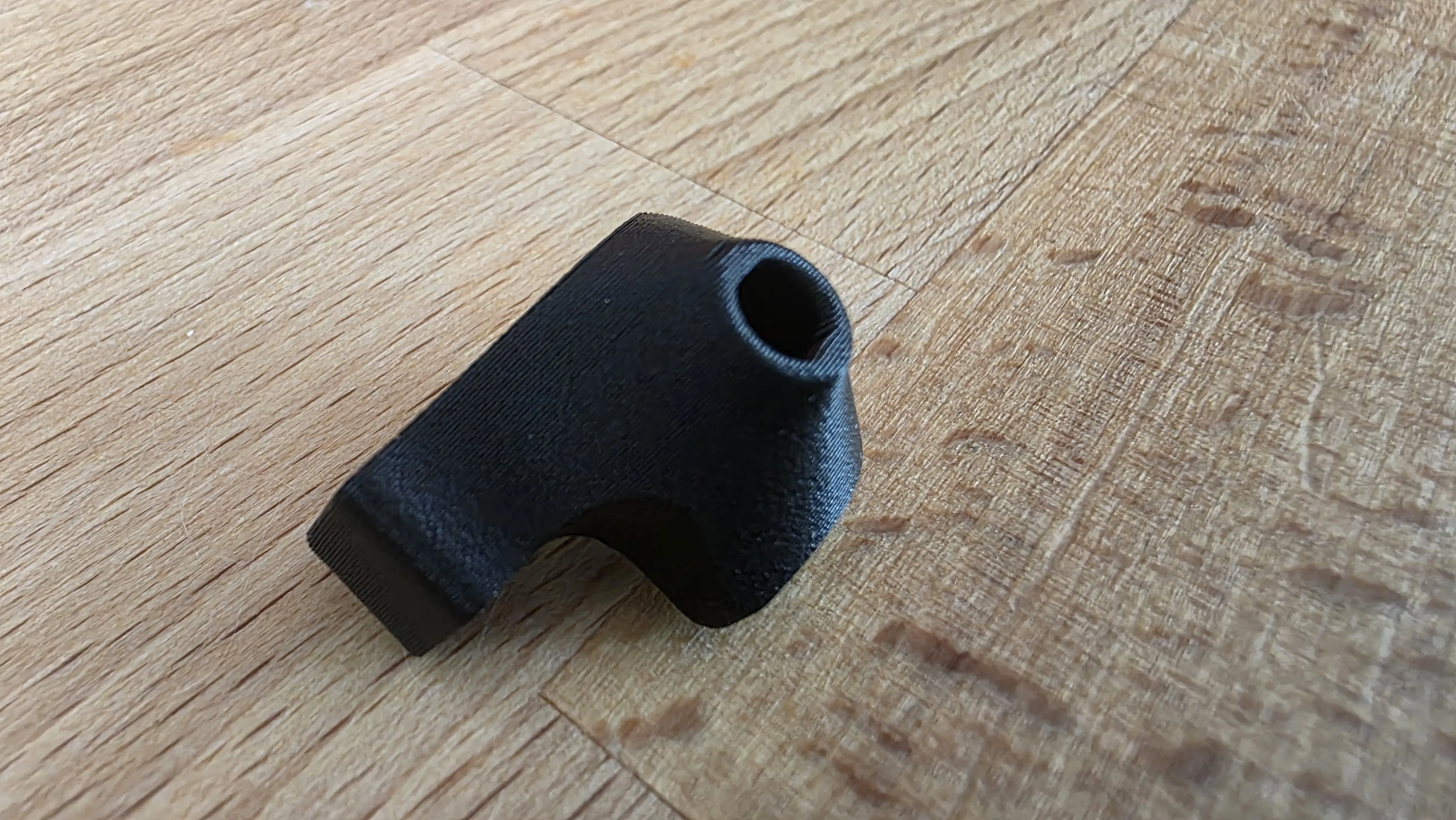

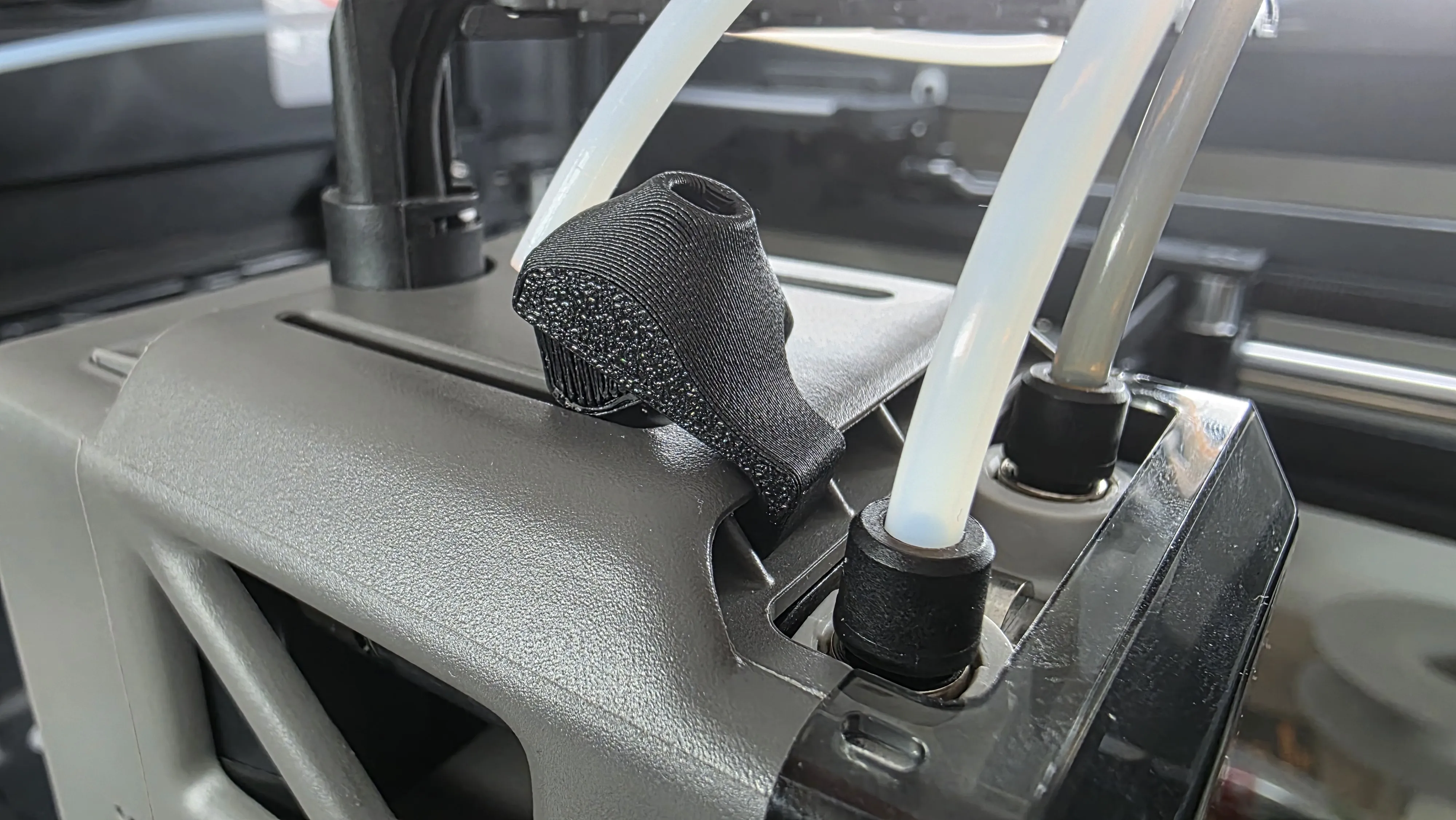

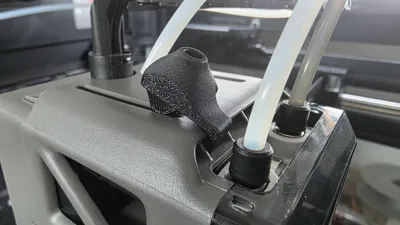

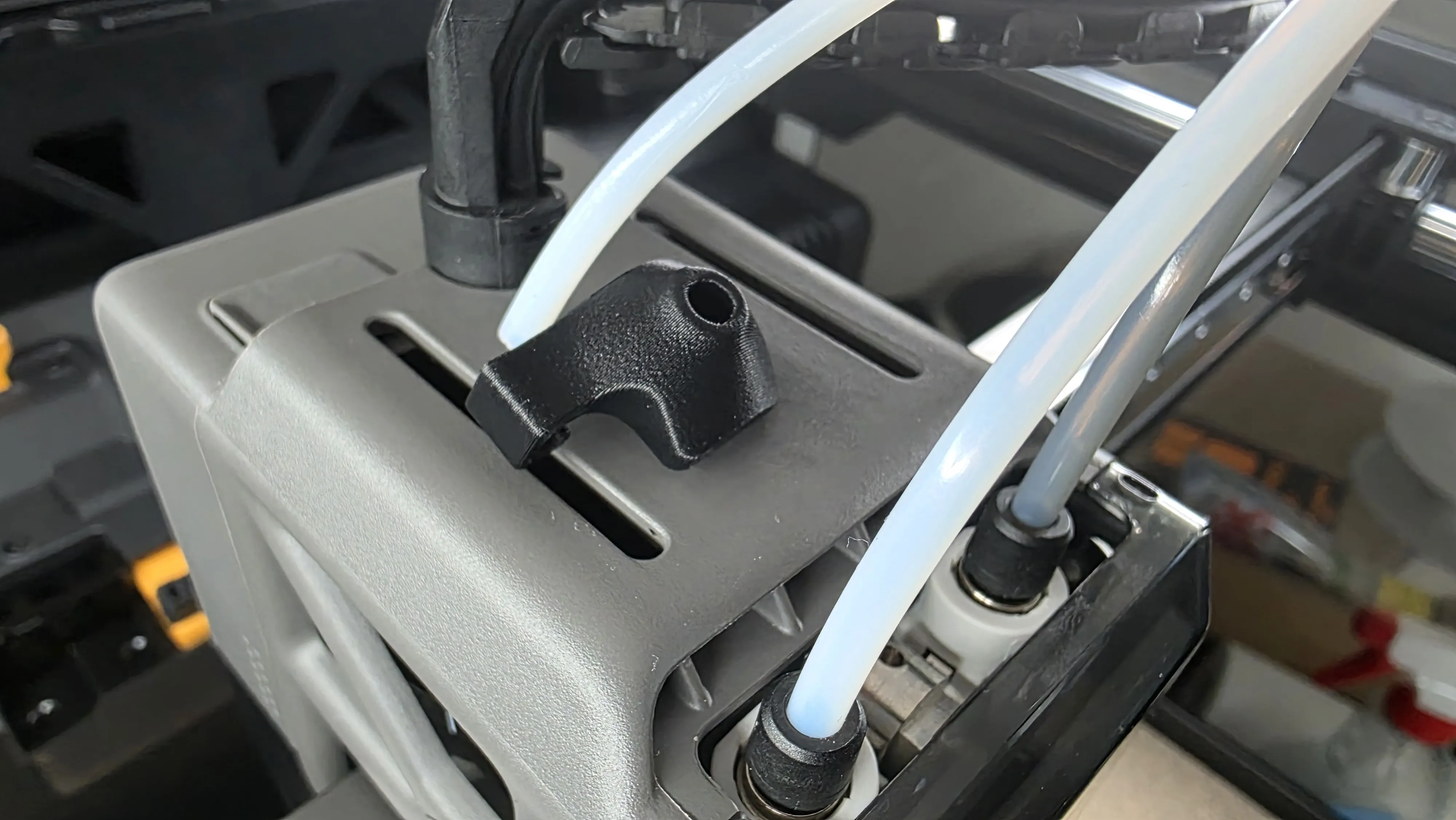

I printed mine with PLA-CF. And it fits perfectly, not too loose and not too tight either. The holder is mounted by simply pressing it into place, as illustrated in the attached pictures. An additional space on one side allows for optional fixing using a small piece of double-sided adhesive tape.

I am always open to and grateful for constructive suggestions for improvement.

I hope you enjoy using it.

Boost Me (for free)

If you like it - Boost it

Membership

Commercial Membership Link

Join

If you like my work/project consider supporting me with these options:

leave a like
leave a comment
download the file
or buy me a Coffee
check out my Patreon Page!

This article/post/text or the print profile as well as the finished print may not be used for commercial purposes.

If you wish to sell the physical 3D prints of my designs commercially

or use the LICENSE here on MAKER WORLD

• Obtain a Commercial Licence

Have fun printing

TBG

Comment & Rating (103)

@lauretiu

any chance you will do a remix of this so we can install this ptfe tube connector (PTFE ECAS04 https://www.amazon.com/dp/B0CSK5KNJM ) that would hold the ptfe tube? i tried the current one and after a few prints with it the tube starts coming off

@AdamRubie

I printed one of these for the buffer connection that works well. that one’s a pain without it.

@Grooperdude.

Print Profile

0.2mm layer, 2 walls, 15% infill

holds perfectly!! just took a little force to get it to snap in place :)

@mrhomiec

Print Profile

0.2mm layer, 2 walls, 15% infill

printed with Sunlu PETG. thanks for this!

@jjjonesjr33

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed this PTFE tube holder for my H2C. Easy to install and keeps the tube supported and organized—simple, functional, and works perfectly.

(Edited)

Other Issues:Update 1/30/2026: Sadly, there’s a major issue where the tube comes out of the holder while the printer is running. If there were a PTFE tube locking mechanism in place, it would improve this design a lot.

@db77x1

Print Profile

0.2mm layer, 2 walls, 15% infill

TOP on H2C 👍

@3D_Dreamer

Print Profile

0.2mm layer, 2 walls, 15% infill

Printed out perfectly without problem. It fits well on the print head too. Thank you for sharing the model.

@jowenx1c

Print Profile

0.2mm layer, 2 walls, 15% infill

thank you so much

@p666buc

Print Profile

0.2mm layer, 2 walls, 15% infill

printed great

@Alpineskyline

Print Profile

0.2mm layer, 2 walls, 15% infill

Perfect fit. Made out of ABS.

@zamboni68

Print Profile

0.2mm layer, 2 walls, 15% infill

printed quickly. easily installed. nice holder for PTFE tubing when not in use for PLA.
