Elevator Panel Toy
Print Profile(1)
Description

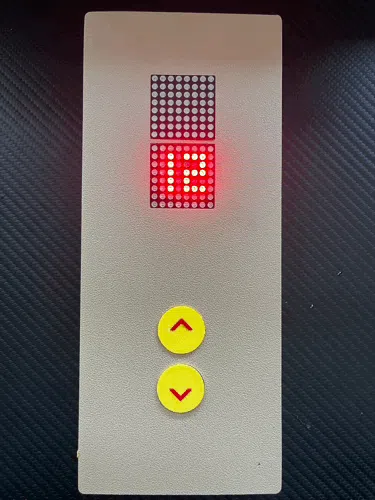

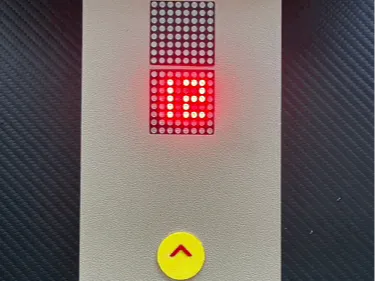

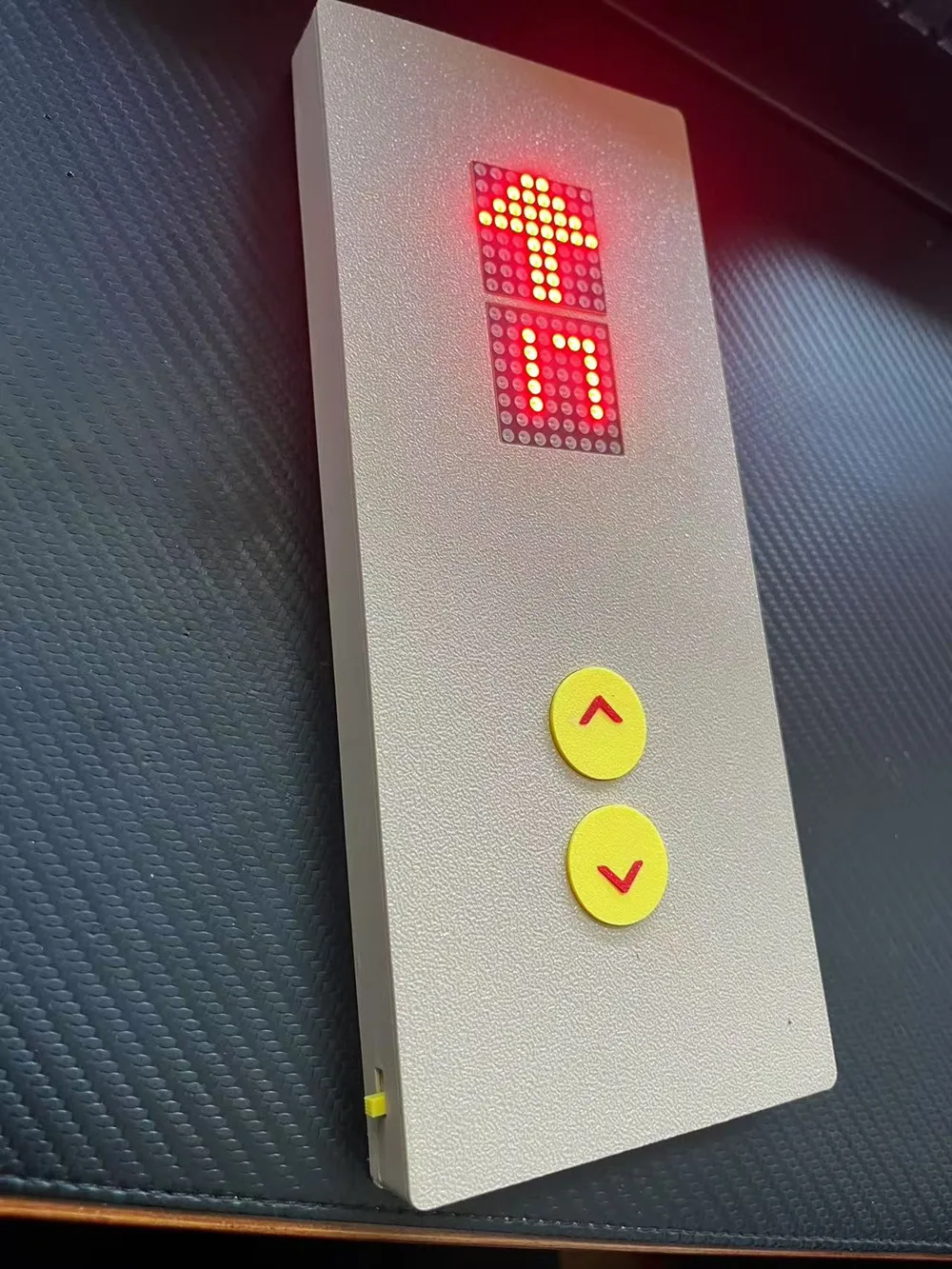

This model is a 3D-printed elevator panel toy. The hardware also includes two MAX7219s, an STC51 microcontroller, two push buttons, a toggle switch, and a 5V lithium battery.
Bill of Materials:
1. STC89C52RC Development Board, STC51 Core Board, Minimum System Board with CH340 Serial Port
2. MAX7219 Dot Matrix Module, Microcontroller Digital Tube Display Module, 4-in-1 Common Cathode LED (2 required)
3. Zhong Shun Xin 5V Constant Voltage Lithium Ion Battery
4. Push Buttons (2 required)
5. Toggle Switch
Commonly purchased Taobao stores (you can search yourself): Homepage - Zave Flagship Store - Tmall.com
Wiring: Refer to the program's pin definitions; you will need to solder using jumper wires yourself
