Modular Wire Spools (Multiple Size Options)
Print Profile(1)
Description

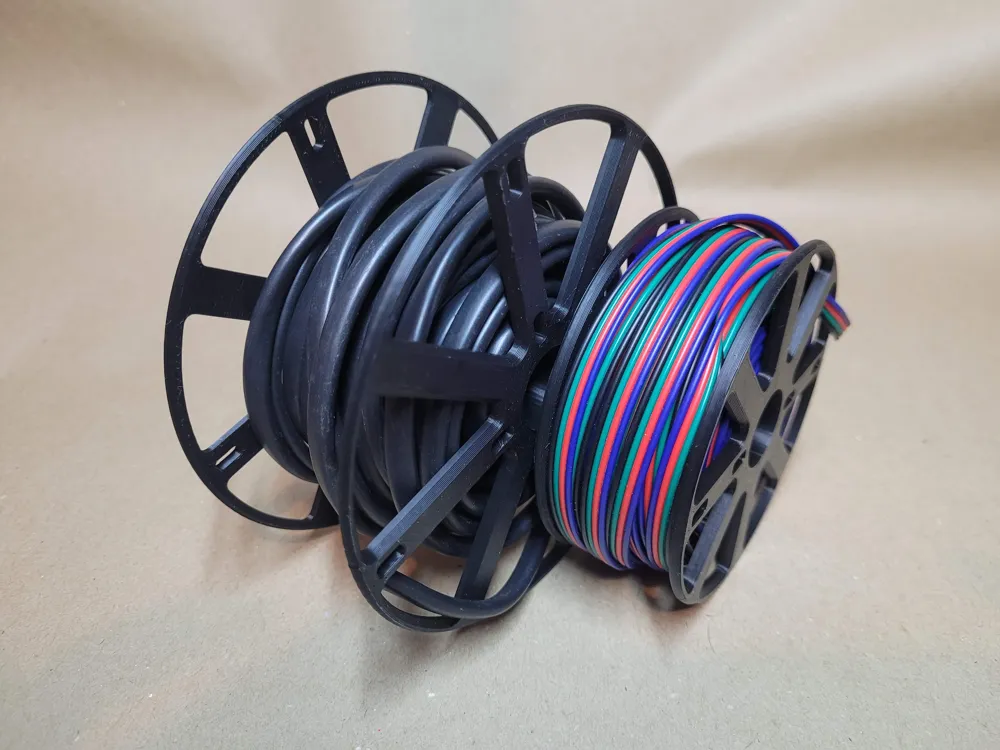

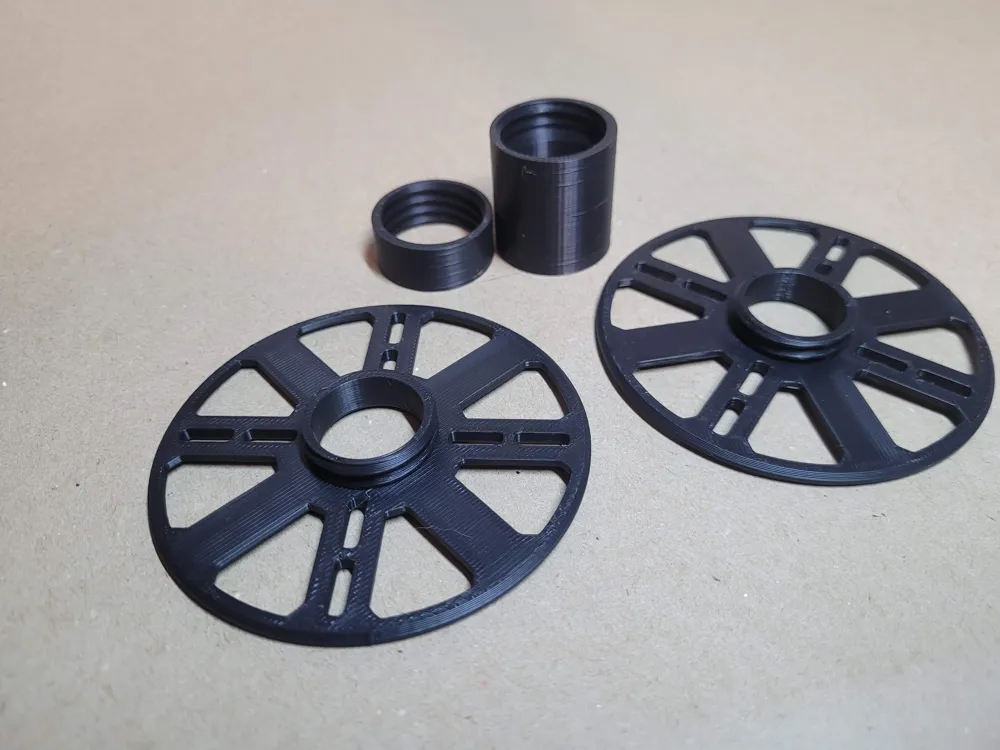

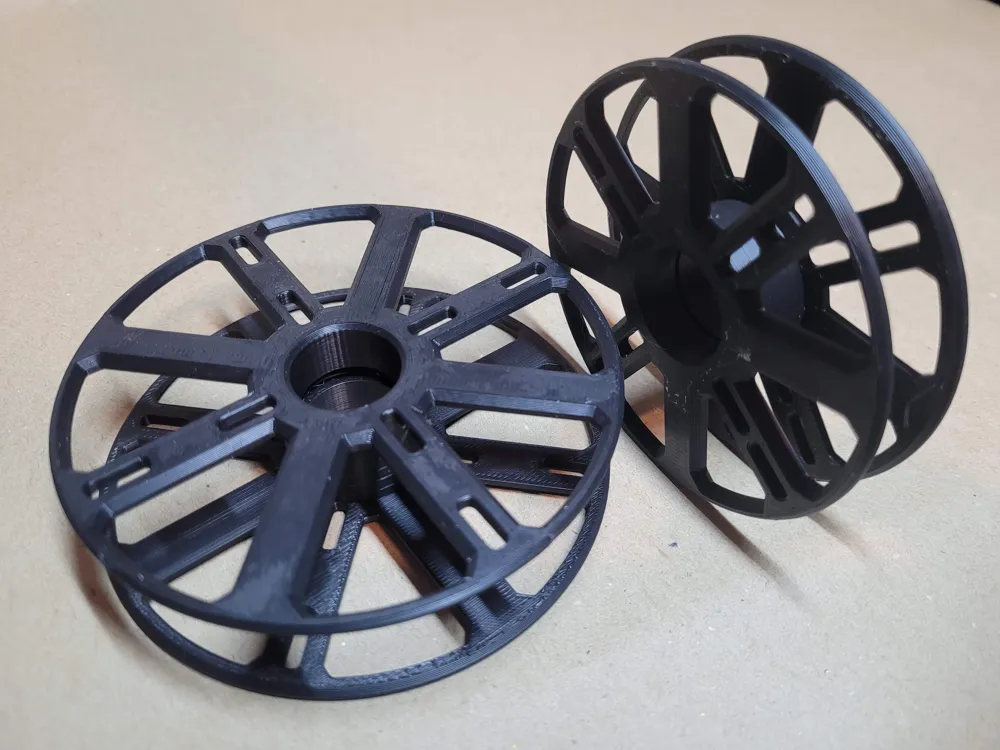

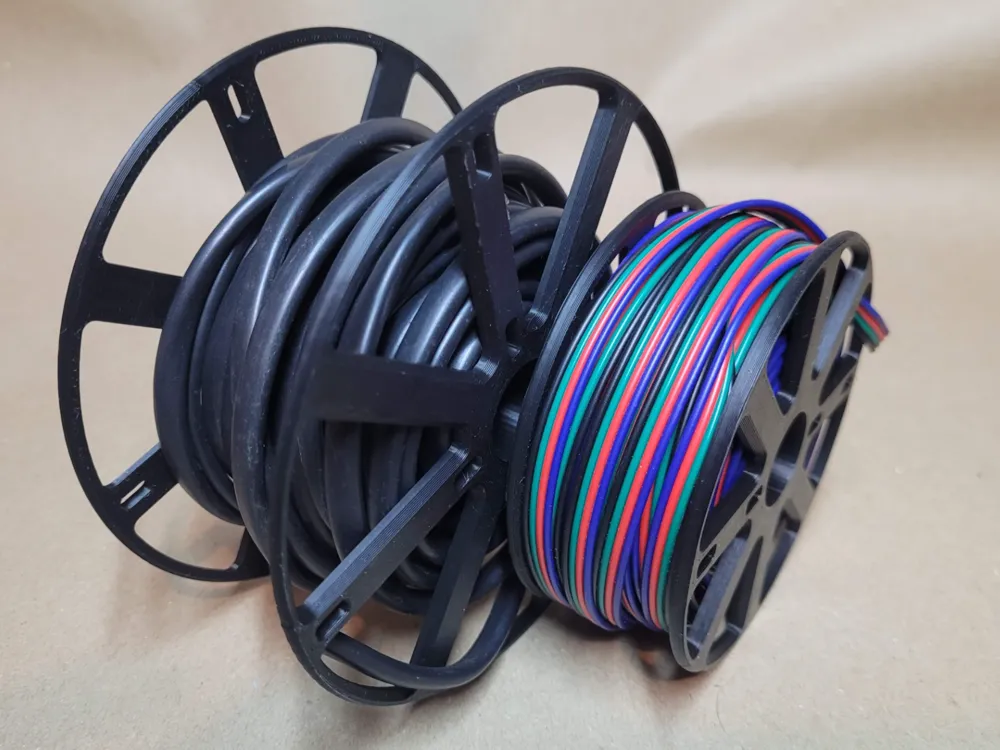

This 3D model is a modular reel designed for holding wire, cable, or other similar materials. The reel consists of two side plates that screw securely into a central axle, forming a sturdy spool. Both the sides and axle are fully interchangeable allowing for easy customization based on the desired spool width or diameter. The print profile contains a number of more common combinations however any axle will work with any sides and can be customized to your hearts content.
¼ Hex tool

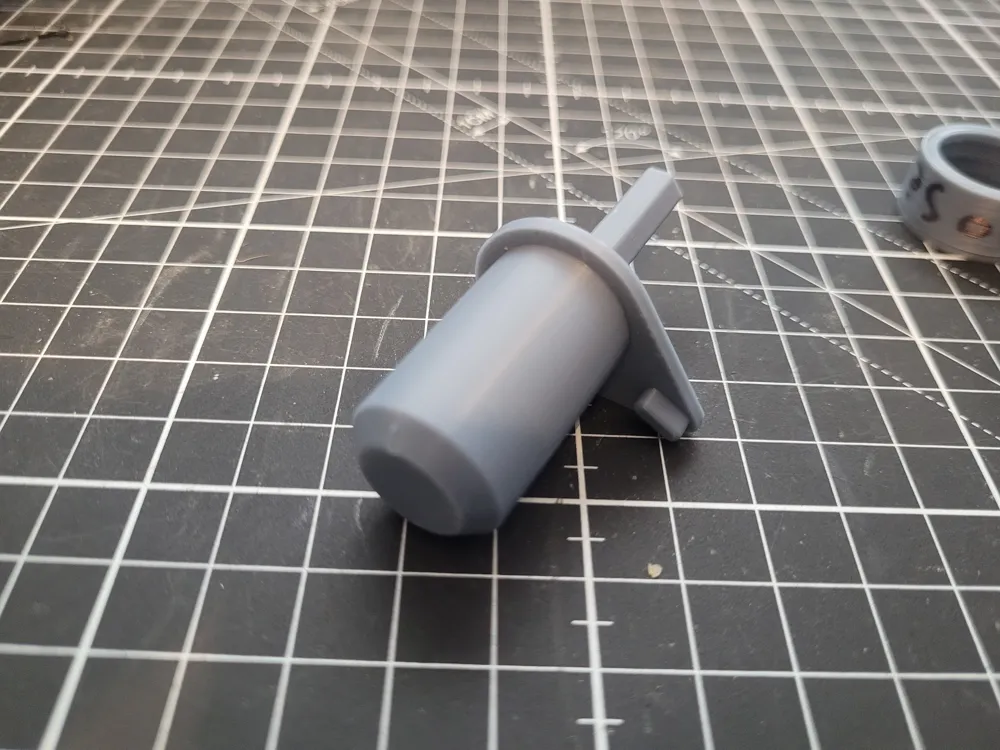

Also included in the print profile is a ¼ hex adaptor to allow a spool to be mounted to tools such as a drill to make respooling easer.
Dimensions

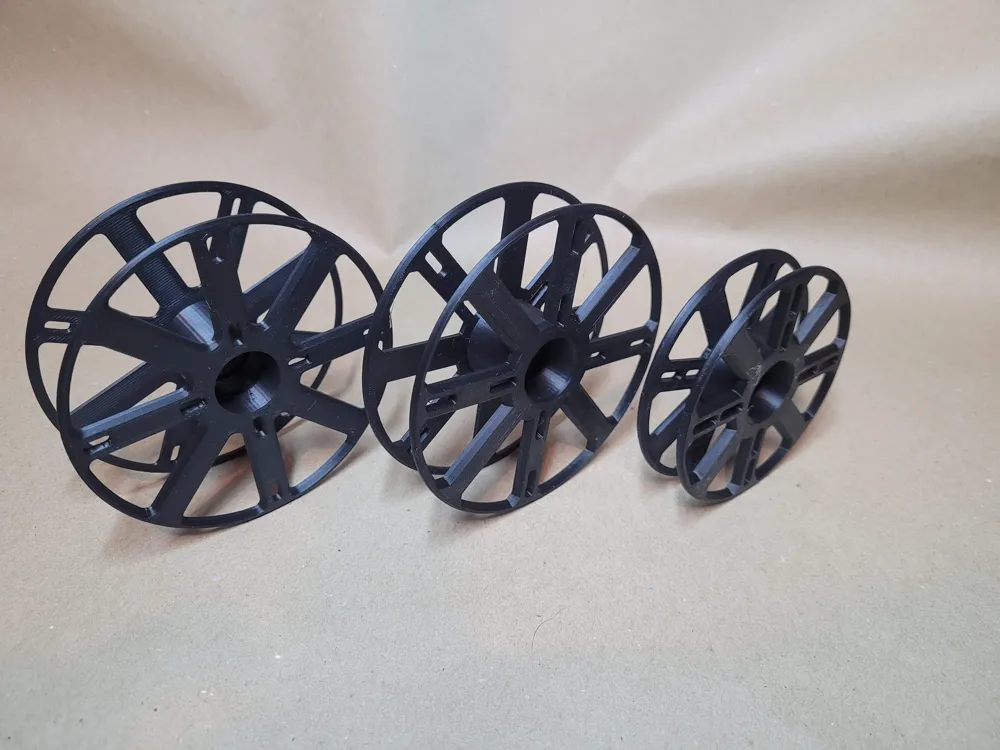

| Diameter | 70/80/100/120/140mm |
| Axle Diameter | 28mm |
| Axle Internal Diameter | 19mm |
| Internal Width | 12/20/30/50/70mm |
| side thickness | 3mm |
