Hueforge Frame
Print Profile(1)
Description

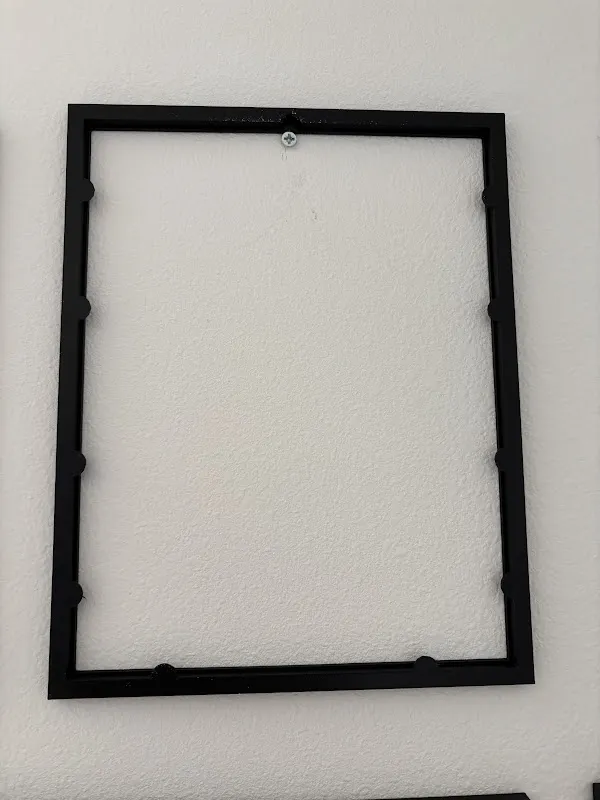

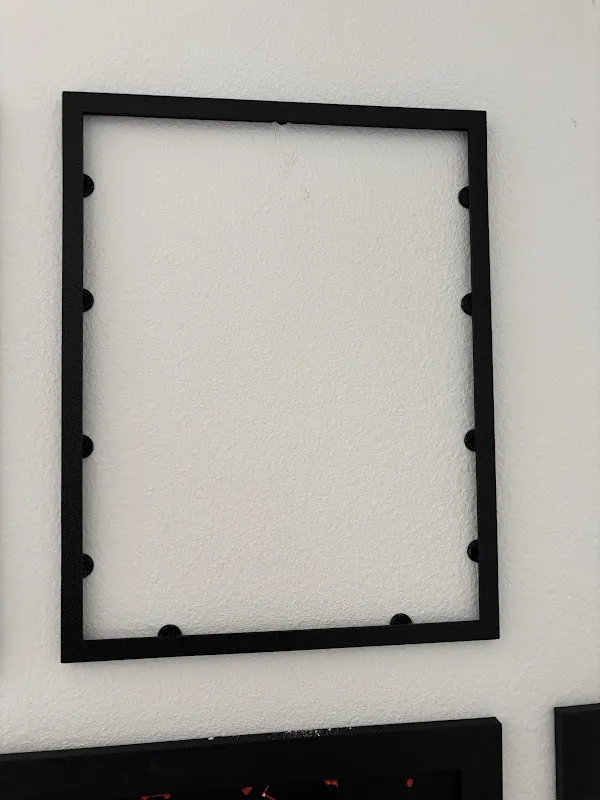

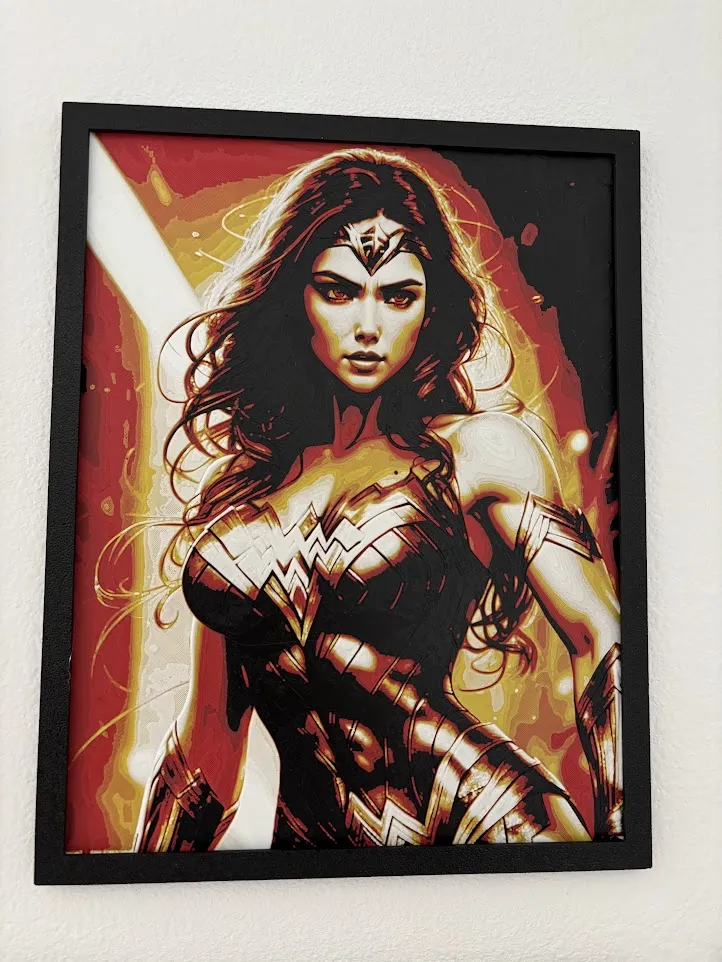

This is a picture frame that can be easily customized with parameters in Onshape. The picture is inserted from the top. The current version is designed for a picture with dimensions 220mm x 166mm.

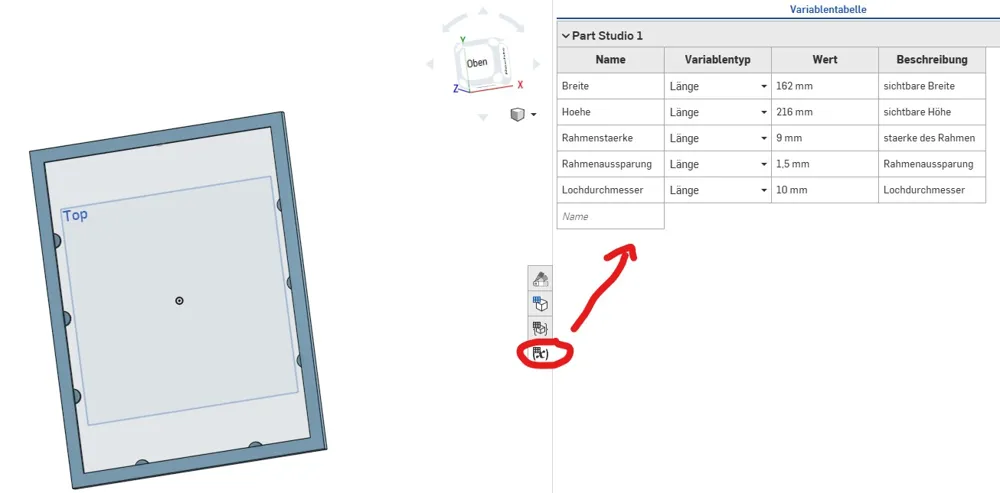

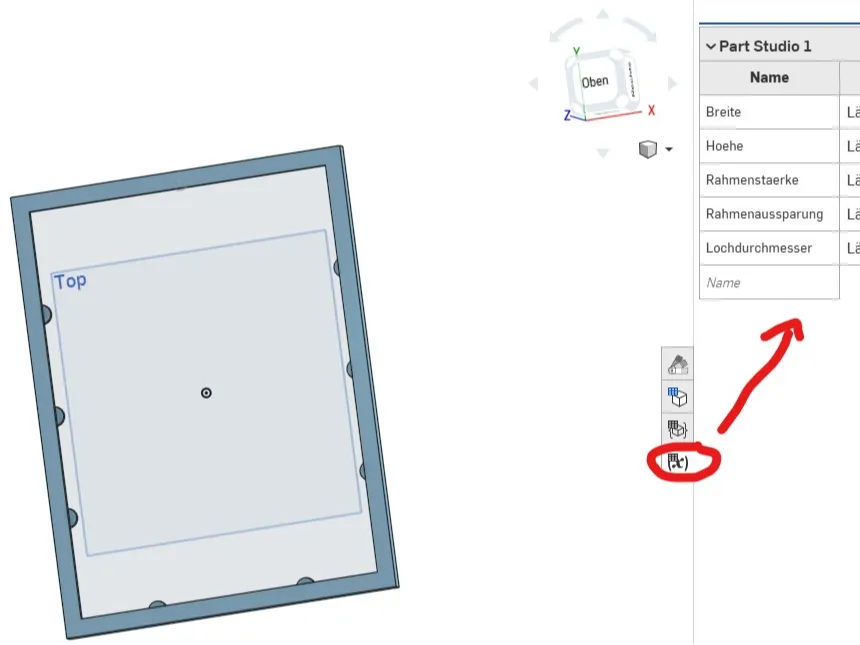

The following dimensions can be easily adjusted:
Frame width
Frame height
Thickness of the frame
How many mm should be covered by the frame
Screw hole diameter for hanging the picture on the wall
If the picture is thinner or thicker than 2 mm, the linear extrusion of sketch 3 (mounts on the back) can also be adjusted.
