Sim Racing Button Box

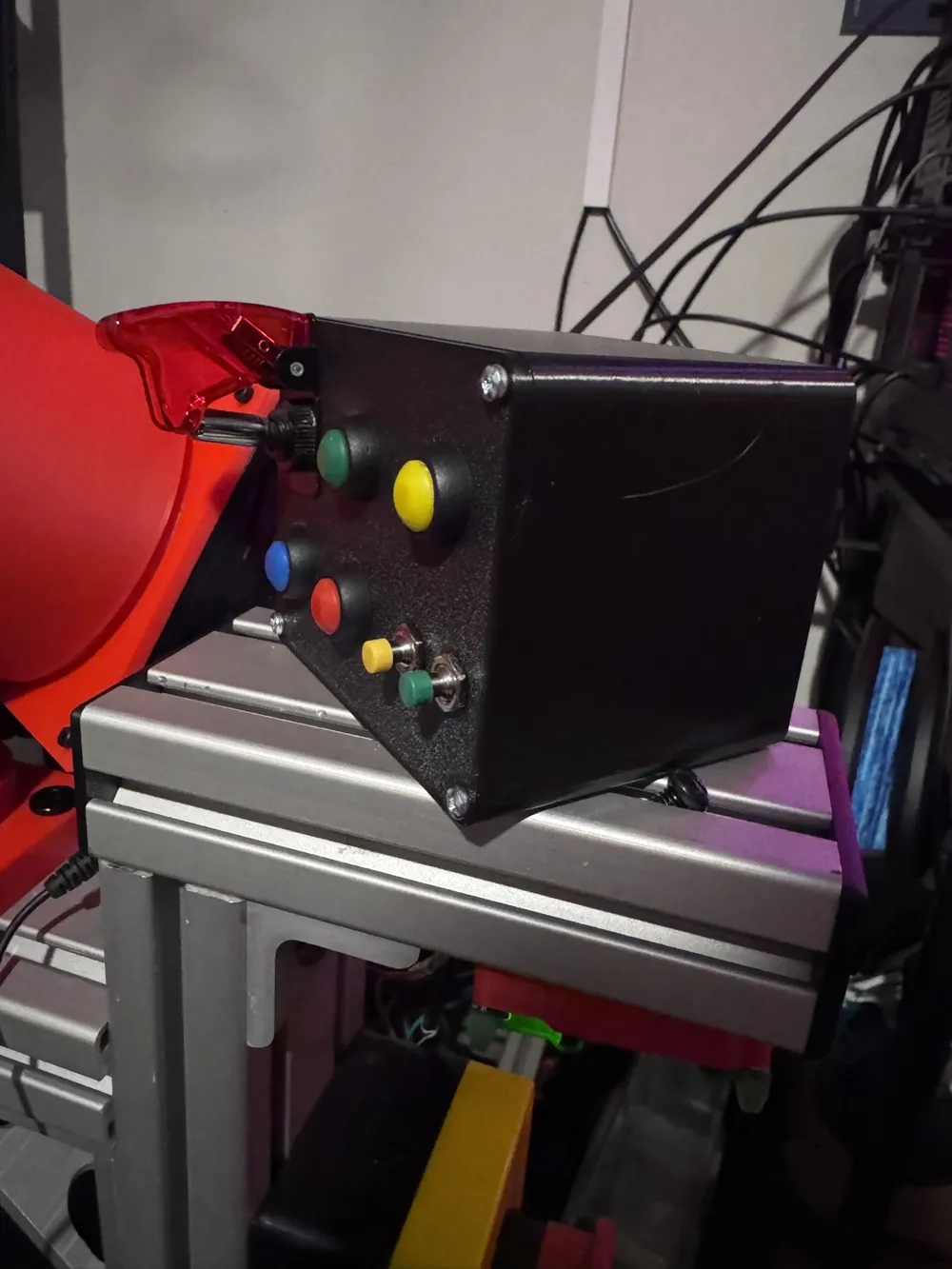

Quick and simple DIY Button Box for PC sim racing that requires NO soldering at all!

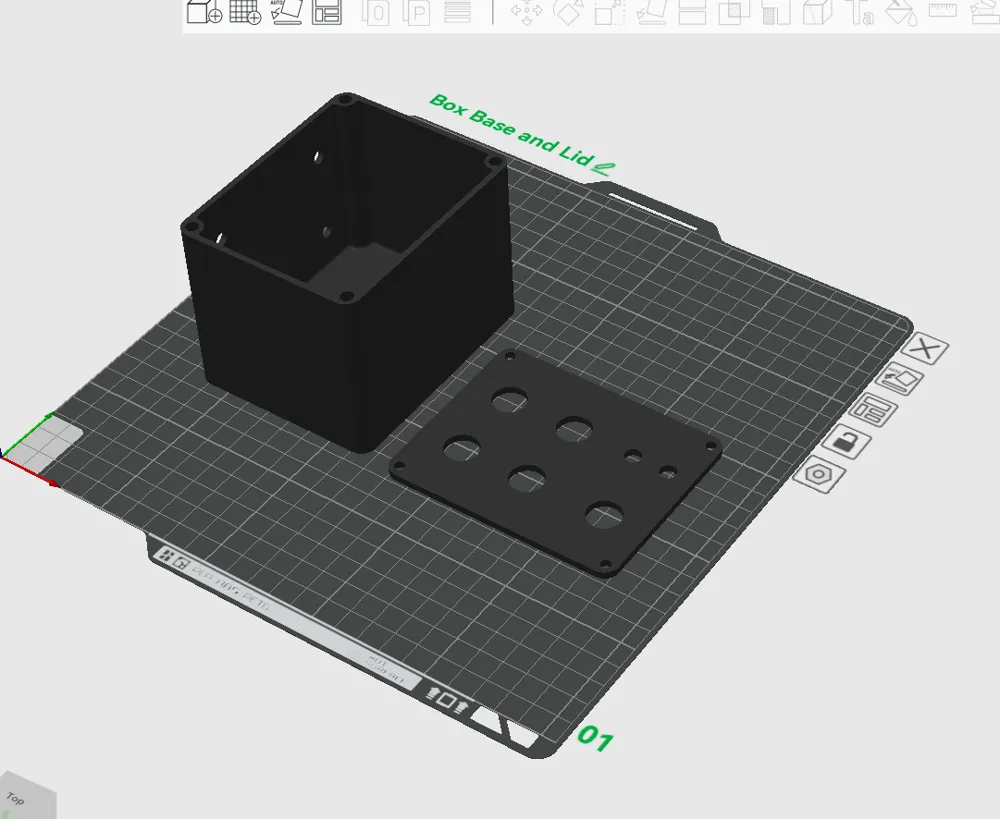

Model files included for adjustments to your specific rig if left hand USB layout is not suitable for you. Number of buttons can be increased from 7 to maximum of 16 supported by the encoder

ELECTRONICS

1x USB ENCODER PC to Joystick *Reyann Zero Delay for the specific one I used from amazon

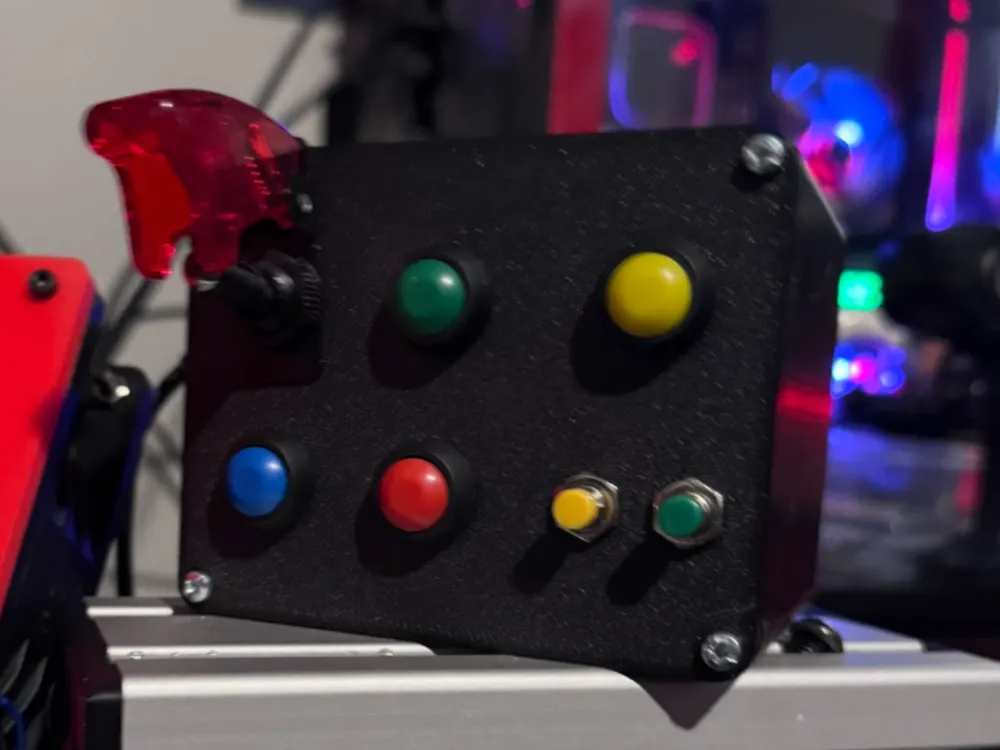

4x 14mm momentary push buttons

2x 8mm momentary push buttons

1x SPST N.O. Toggle Switch

HARDWARE

4x Pan Head Machine Head Screw M3 x 16 (for face plate)

4x Heat Press Insert M3 x 10 x 5 (for face plate)

4x Pan Head Machine Head Screw M3 x 6 (for USB encoder)

4x Heat Press Insert M3 x 6 x 5 (for USB encoder)

2x-4x Pan Head Socket Screw M6x16

2x-4x M6 T-Nuts

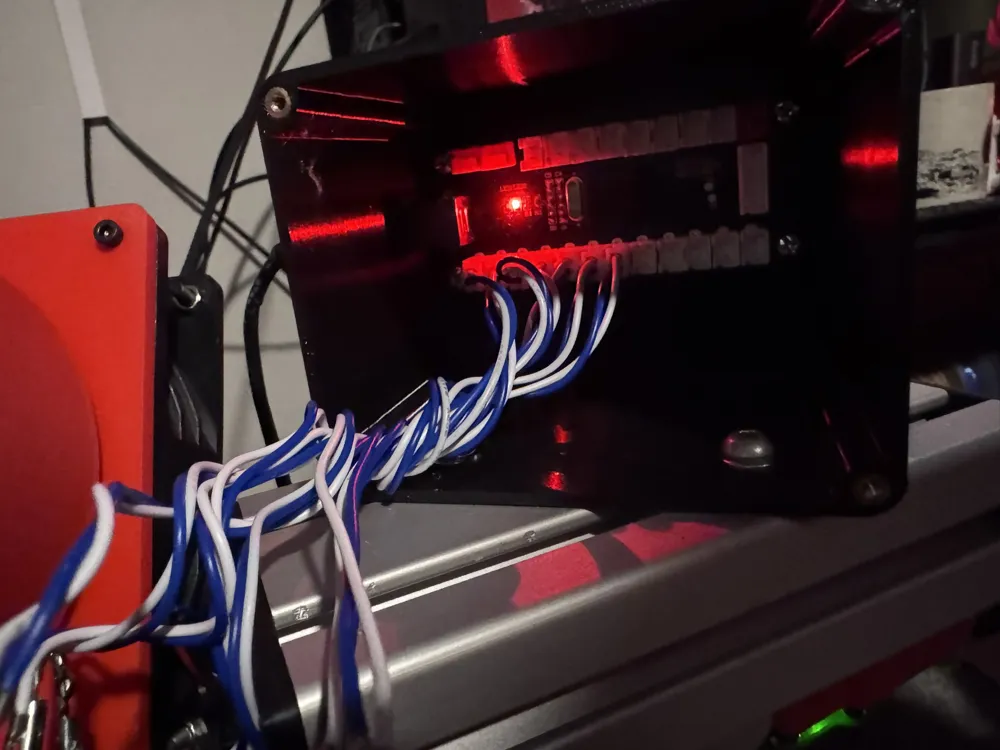

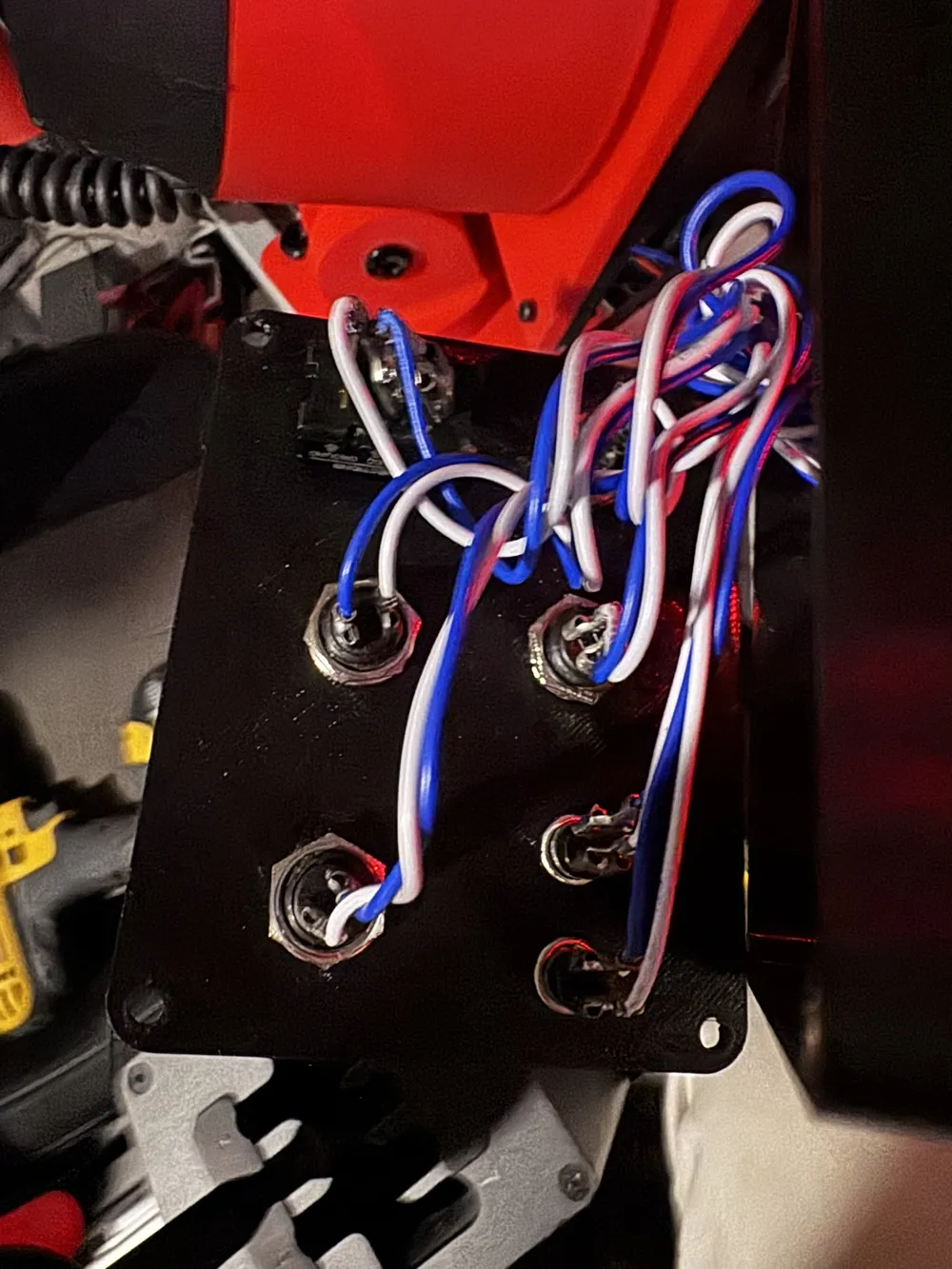

Wiring layout does not matter as games such as iRacing, ACC, LMU will recognize this as a peripheral game pad and each button can be mapped to a specific action.
