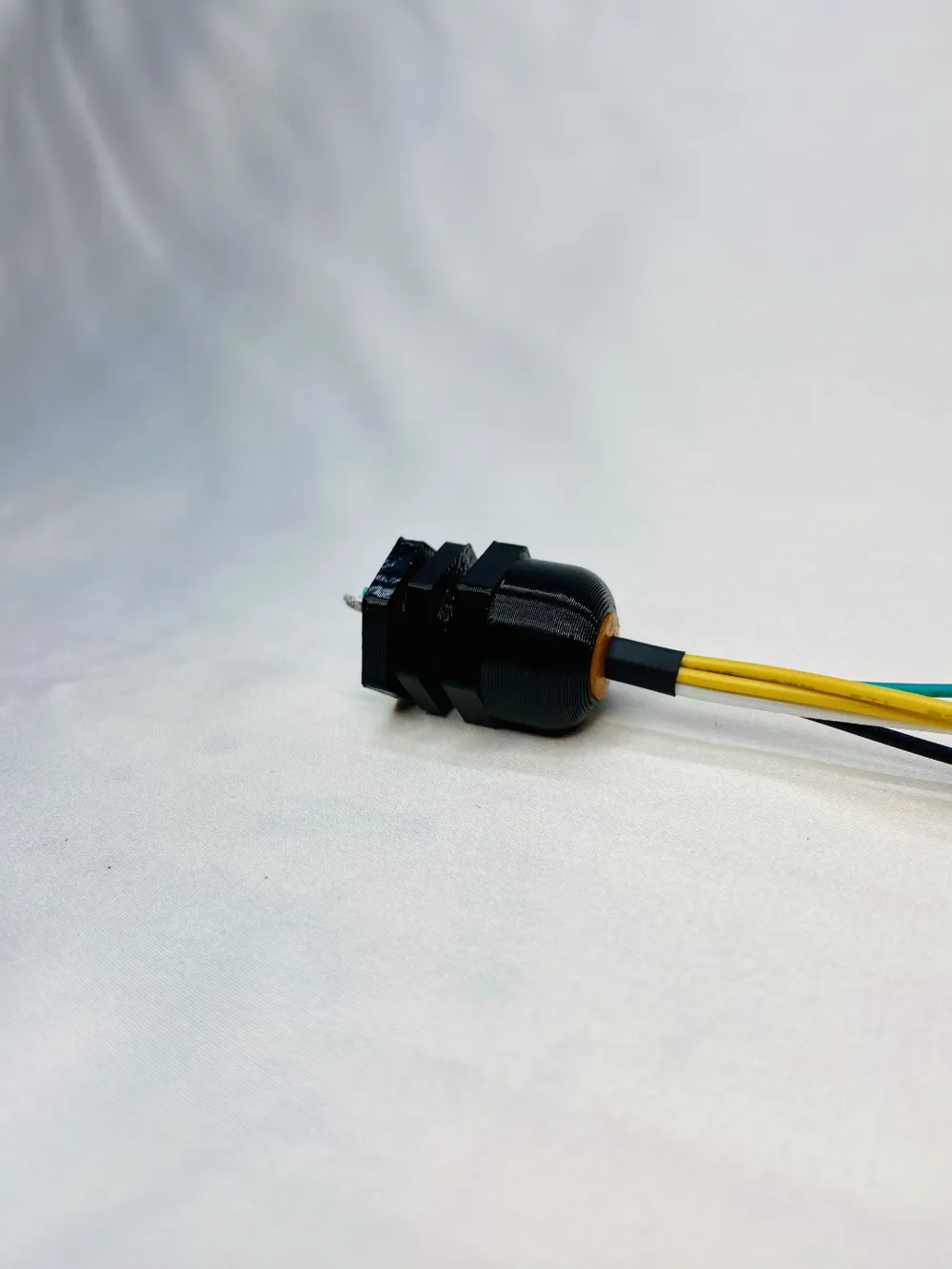

Cable Gland - Perfect Insulation for 3.5 to 5.5mm Cables

This 3D-printable cable gland is your ally for securing and insulating your cables like a pro, while maintaining a cool DIY vibe! Designed for cables from 3.5 mm to 5.5 mm, it adapts to your projects with style and simplicity. From 5 mm, a little grease or lubricant, and voilà, the cable slides like on rails!

COMPOSITION:

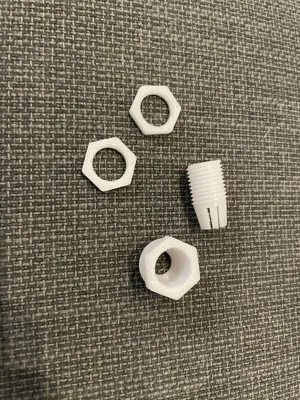

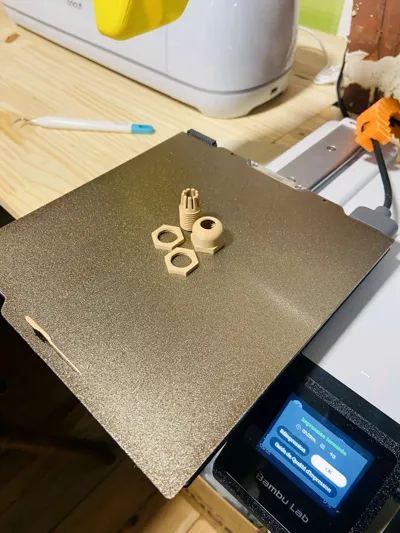

✅Compression nut: Tightens the seal for a top-notch seal.
✅Two wall mounting nuts: They keep everything securely in place on either side of the wall.
✅Main body: The heart of the system, robust and reliable.
✅TPU gasket (second print profile): Flexible, effective, and printed separately for nickel insulation.

SPECIFICATIONS:
🔧Passes through a 14 to 16 mm hole in a wall – measure carefully, and you're ready to go!
⚡Perfect for electrical cables or others, with guaranteed insulation for small diameters.
💡Tip: For cables of 5 mm and more, a little lubricant facilitates passage!

Ideal for makers, DIY enthusiasts or personal projects, this cable gland is easy to print and assemble. A must-have to keep your cables dry and safe!

If you download this model – leave a little comment, some stars or a boost if you like, it's always appreciated!

Boost Me (for free)

If you want to support me, the best way is here, thank you 😊

Comment & Rating (52)

@tntodor

Print Profile

PETG model with 2 complete nuts

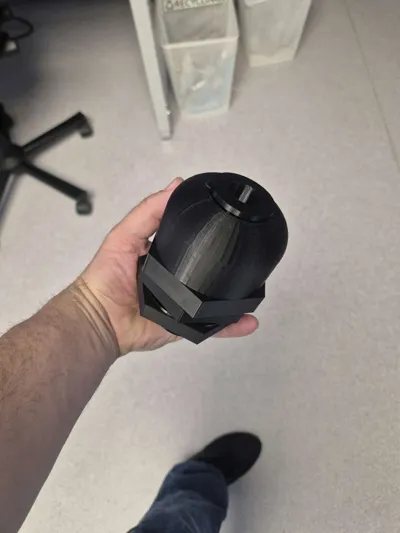

I needed a big cable strain relief, so I scaled it up and it printed perfectly. The only issue was, that the thread was too tight. I have scaled it down with 1% and it worked like a charm! Thank you!

The profile uploader has replied

@Moidabor

wtf!😂indeed it's a thick cable… Glad the model could be useful to you.👍

Show original

@danbi

Printed perfectly in PETG on the first try. I have one suggestion: permanently attach one of the wall mounting nuts to the end of the screw. It will print just fine, the assembly will be from inside out, but tightening will be much easier.

The designer has replied

@Moidabor

Thank you for your comment, I had imagined this configuration to allow more freedom in installation but I could offer another print profile with your suggestion. 👍

Show original

@bust4rhymes

Print Profile

PETG model with 2 complete nuts

I had issue at the first print because i used the default profile for PETG and the thread did not worked. After i switched to my PETG profile everything fits like a glove! Thanks :)

@Freggel.

Print Profile

PETG model with 2 complete nuts

super

@user_542142034

Print Profile

PETG model with 2 complete nuts

Perfect, no issues on the A1 mini with PLA

Show original

@birger.petersen

Print Profile

PETG model with 2 complete nuts

The print is satisfactory, but where can I obtain the screws? They should have been included in the file

The profile uploader has replied

Show original

@Moidabor

Indeed, that was my mistake, thank you for letting me know, I am correcting the file immediately You will be able to download them shortly

(Edited)

Show original

@Moidabor

Modified profile to add the two missing elements and another profile added for you, so you don't have to print everything My apologies if I haven't met your expectations, please reconsider your rating, it's very important to me 🙌

(Edited)

Show original

@7Costanza

Print Profile

PETG model with 2 complete nuts

great print. the tines are too thinck though and easily break off

The profile uploader has replied

@Moidabor

with PLA? PETG? Thank you for your comment 👍

Show original

@7Costanza

petg

@lewgin

Print Profile

PETG model with 2 complete nuts

Worked perfectly

The profile uploader has replied

@Moidabor

Delighted to hear that, thank you for your comment

Show original

@lewgin

No problem

@PaladinIV

Boosted

I found this extremely useful for securing 6mm PT 1000 thermal sensors in a PVC pipe. Unfortunately, the PETG adhesion was so strong that I broke a few of the movable clamps during removal. I think 9 pieces are unnecessary; 5 or 6 would likely suffice. They would be wider and less prone to breakage! Consider tapering the clamps upwards to increase the spacing at the top. Alternatively, it would be interesting if the lower nut and the thread were a single piece. Thank you for sharing the model!

The designer has replied

Show original

@Moidabor

Thank you for this very constructive comment, I will follow your advice and update the model once I have validated these modifications 👍 Thank you for the boost🙏

(Edited)

Show original

@user_1159654655

Hello, what are the thread sizes? M14 and M16?

The designer has replied

Show original

@Moidabor

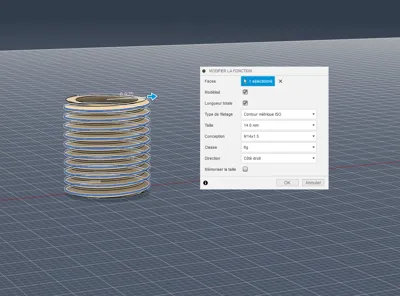

Hello, this is a reworked M14x1.5 thread with some play If you have any further questions I am here
