<p>Printed in black/white PLA.</p><p>Some parts require support.</p><p>The sign is optional, purely aesthetic, and can be printed in multiple colors, as shown in my example.</p>

0.16mm layer, 2 walls, 15% infill

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost me for future improvements! Thank you really much!</boostcontent></boostme><h3><strong>SiroSync – Der smarte Sirup-Mix-Roboter mit OLED-Display </strong></h3><p>Willkommen bei <strong>SiroSync</strong>!<br>SiroSync ist ein innovativer Roboter, der automatisch die perfekte Menge Sirup in dein Glas Wasser mischt – für ein Getränk mit genau dem richtigen Geschmack, egal ob du nur einen Schluck oder ein volles Glas möchtest. Der Roboter wiegt das Glas, berechnet die benötigte Sirupmenge und dosiert präzise mit Hilfe von Peristaltikpumpen. Mit einem OLED-Display, einem Encoder zur Navigation, einem WS2812B LED-Ring für visuelles Feedback und RFID für das Service-Modus ist SiroSync ein High-Tech-Projekt für Maker, die Elektronik, Programmierung und Automatisierung lieben!</p><p>Schau dir meine TikTok-Videos an, um SiroSync in Aktion zu sehen: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.tiktok.com/@theprojecthub42">TikTok @theprojecthub42</a>.</p><p>&nbsp;</p><p><strong><u>Teileliste:</u></strong><br> </p><figure class="table" style="width: 74.32%"><table class="ck-table-resized"><colgroup><col><col><col></colgroup><thead><tr><th><strong>Teil</strong></th><th><strong>Anzahl</strong></th><th><strong>Beschreibung</strong></th></tr></thead><tbody><tr><td>Arduino Mega 2560 R3 Board mit USB-Kabel</td><td>1</td><td>Mikrocontroller für die Steuerung</td></tr><tr><td>Load Cell mit HX711 Modul (1 kg)</td><td>1</td><td>Für die Gewichtsmessung</td></tr><tr><td>Rotary Encoder Modul KY-040</td><td>1</td><td>Für die Menü-Navigation</td></tr><tr><td>WS2812B RGB LED-Ring (12 LEDs)</td><td>1</td><td>Für visuelles Feedback</td></tr><tr><td>1.3 Zoll OLED-Display (128x64, I2C)</td><td>1</td><td>Für die Benutzeroberfläche</td></tr><tr><td>L298N Dual H-Bridge Motor Controller Modul</td><td>1</td><td>Steuerung der Peristaltikpumpen</td></tr><tr><td>12V DC Peristaltikpumpe</td><td>2</td><td>Für die Sirup-Dosierung</td></tr><tr><td>DC-DC Buck Converter (12V auf 5V)</td><td>1</td><td>Spannungsregler für den Arduino</td></tr><tr><td>MFRC522 RFID Reader/Writer Modul mit Karte</td><td>1</td><td>Für den Service-Modus</td></tr><tr><td>Mini Breadboard</td><td>1</td><td>Für die Verkabelung</td></tr><tr><td>Dupont Jumper Wires</td><td>1 Set</td><td>Für die Verkabelung</td></tr><tr><td>12V DC Netzteil (z. B. 2A, 5.5x2.1mm)</td><td>1</td><td>Stromversorgung</td></tr><tr><td>Lebensmittelechter Silikonschlauch</td><td>1</td><td>Für die Sirup-Zufuhr</td></tr></tbody></table></figure><p><br> <br><br><br> </p><p>&nbsp;</p>

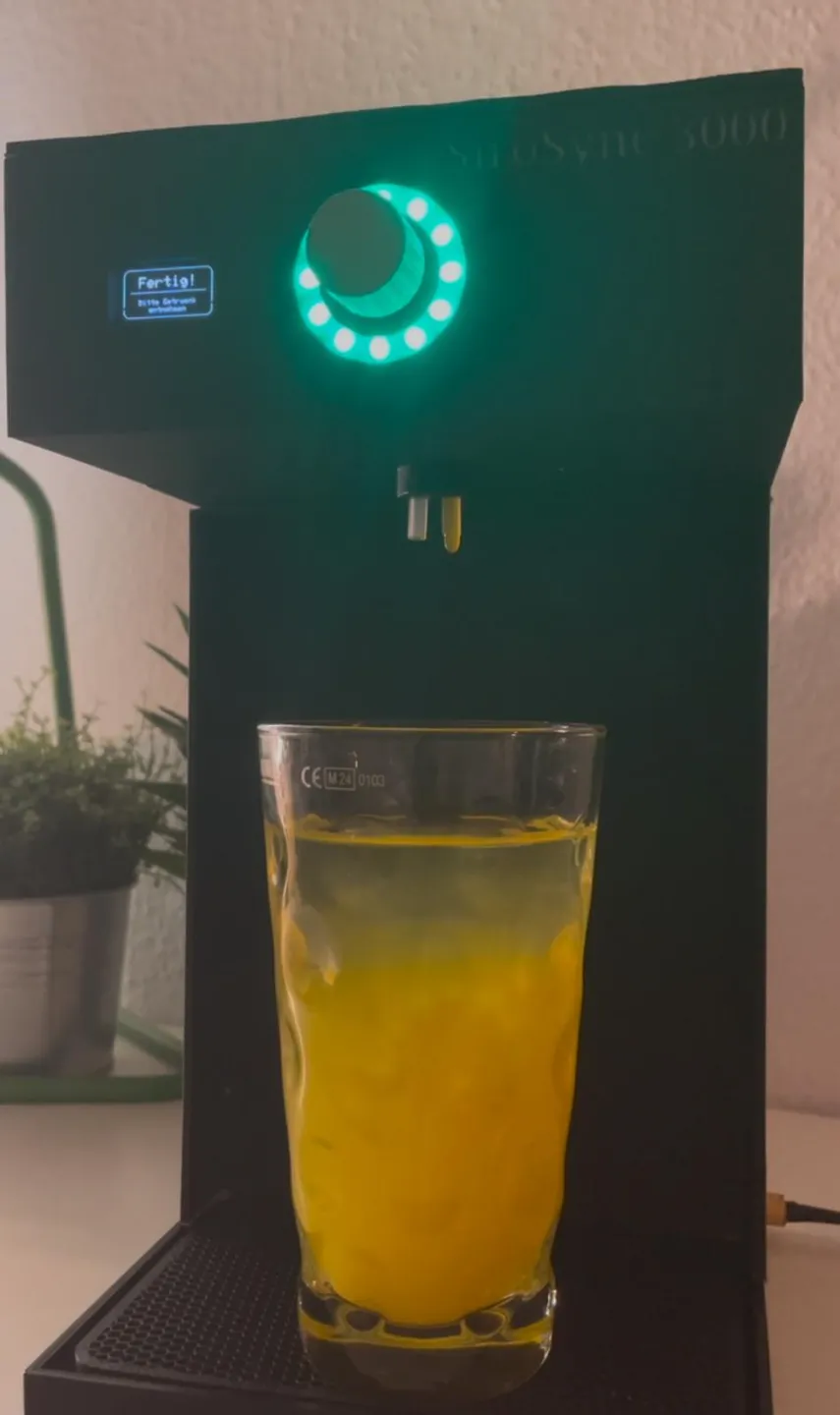

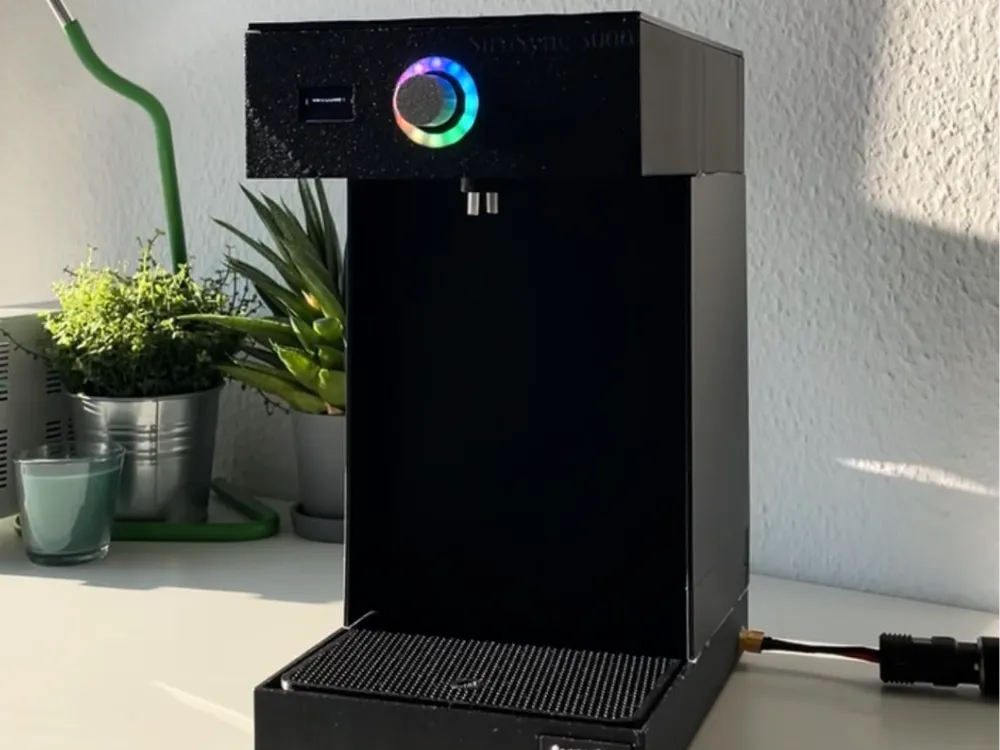

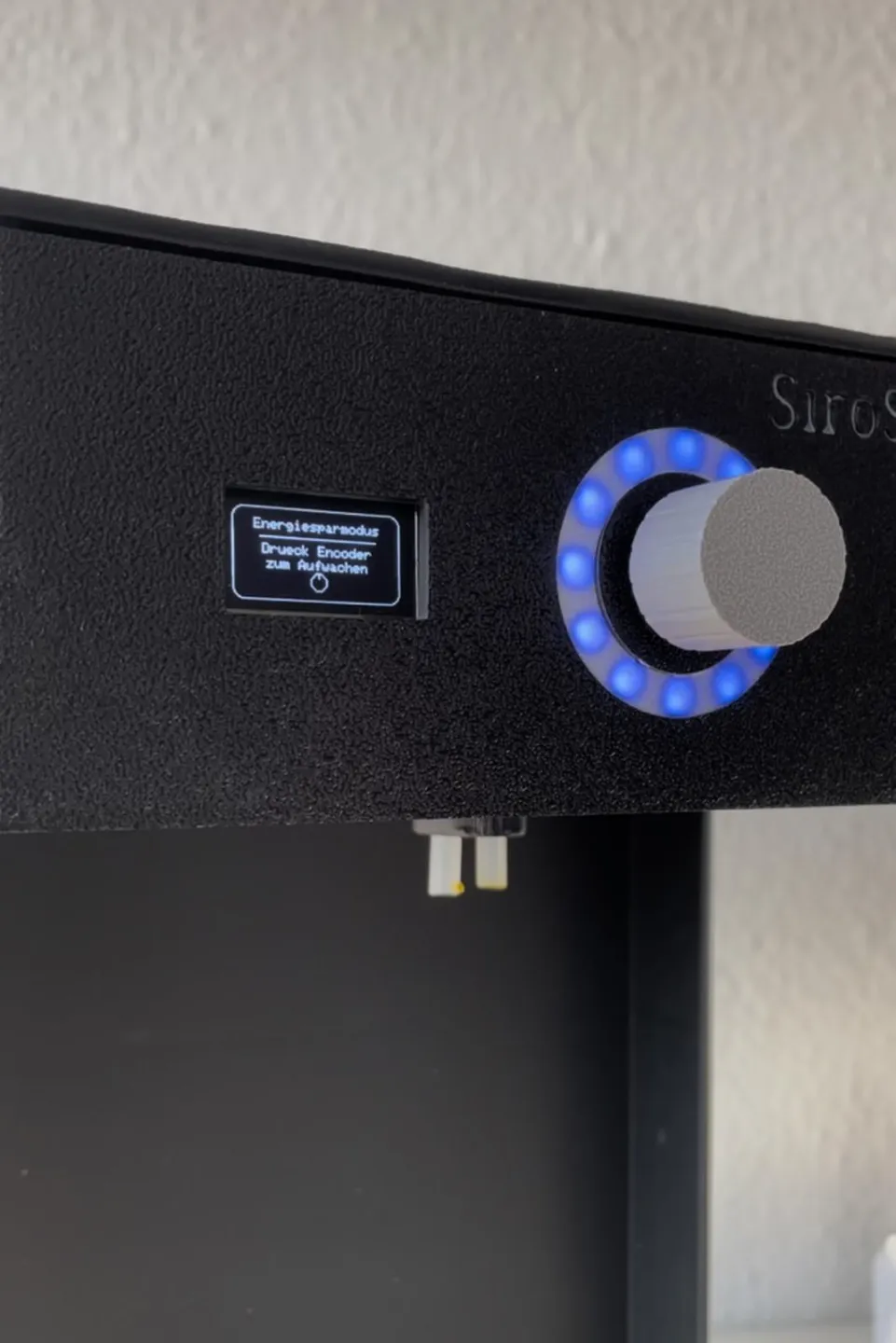

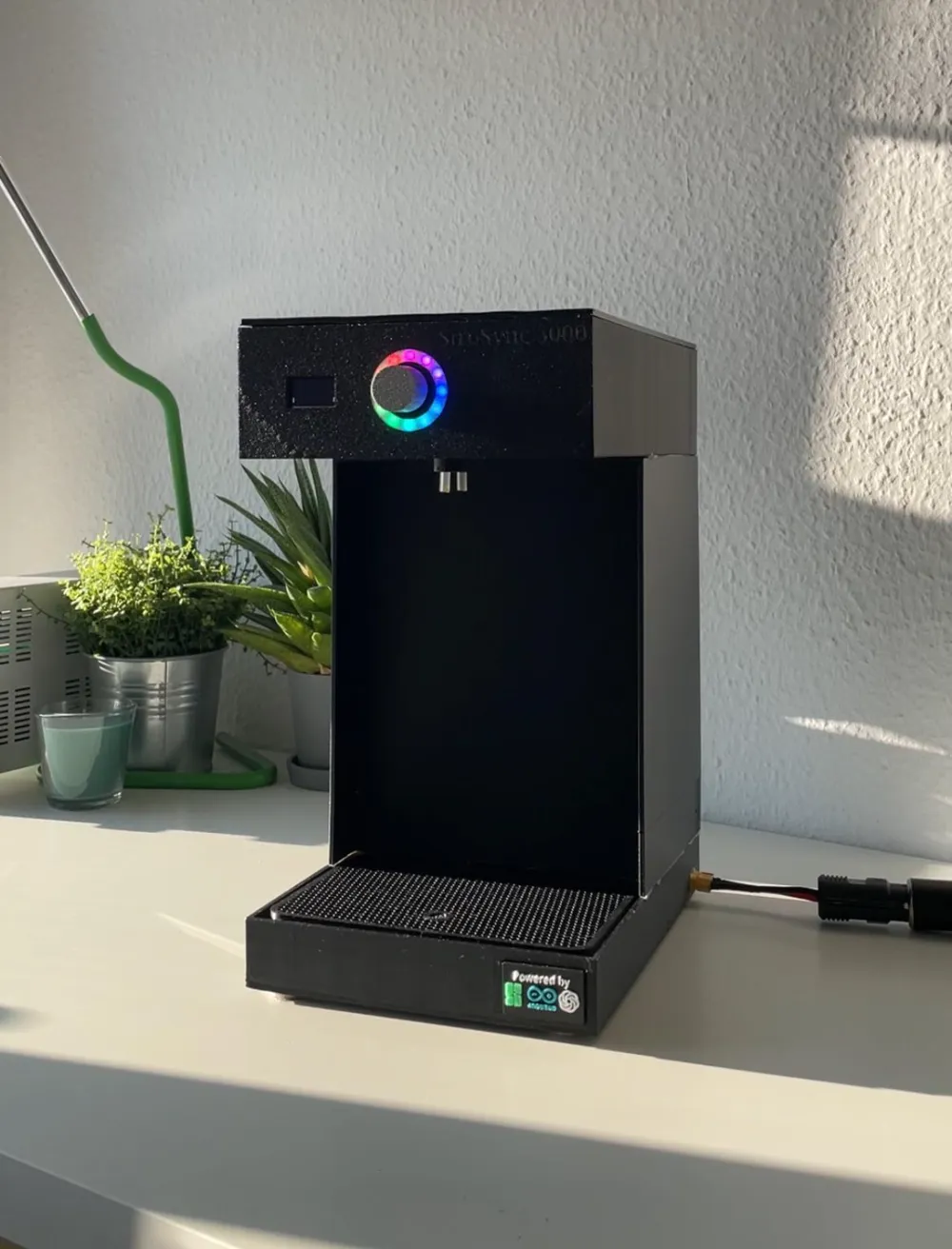

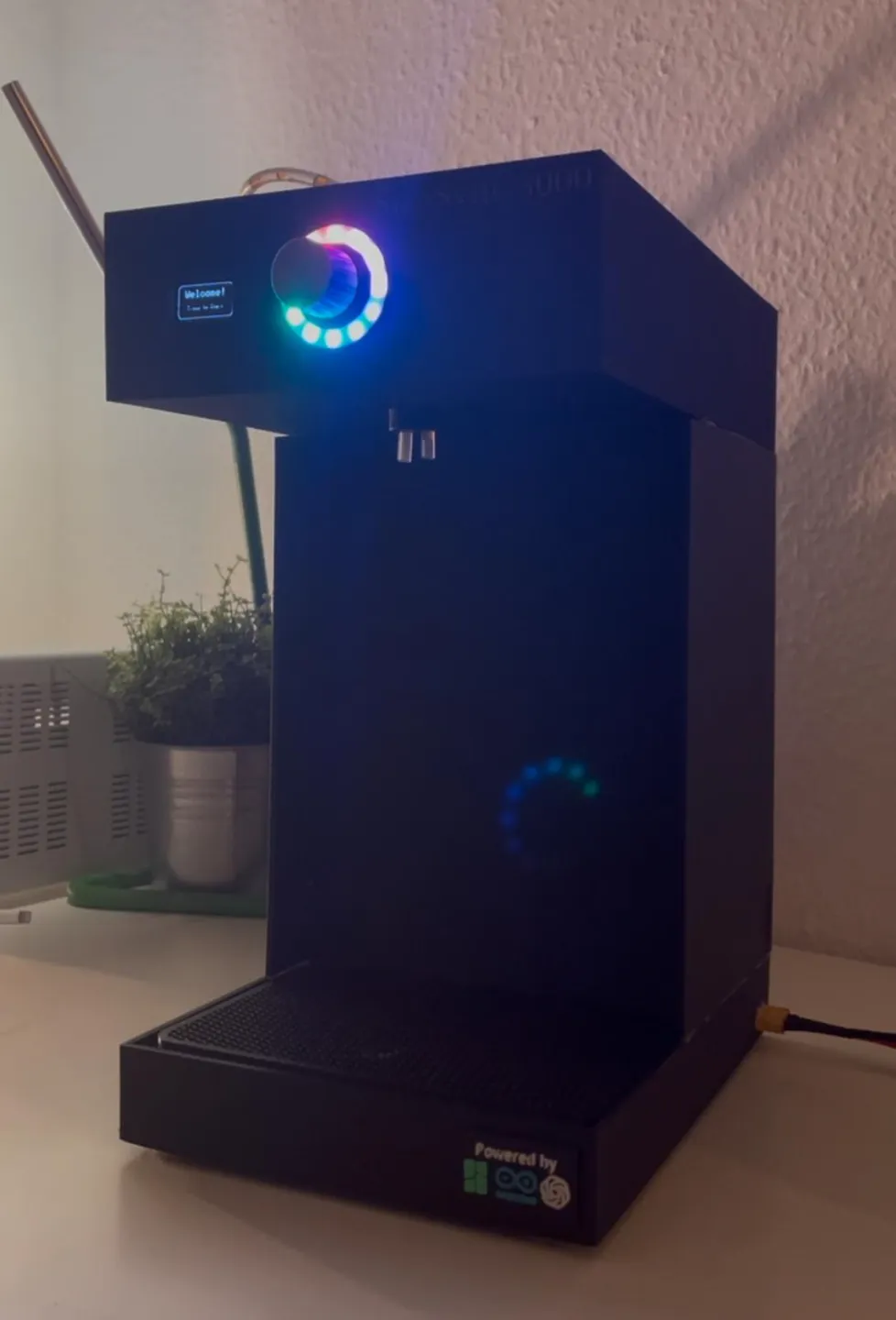

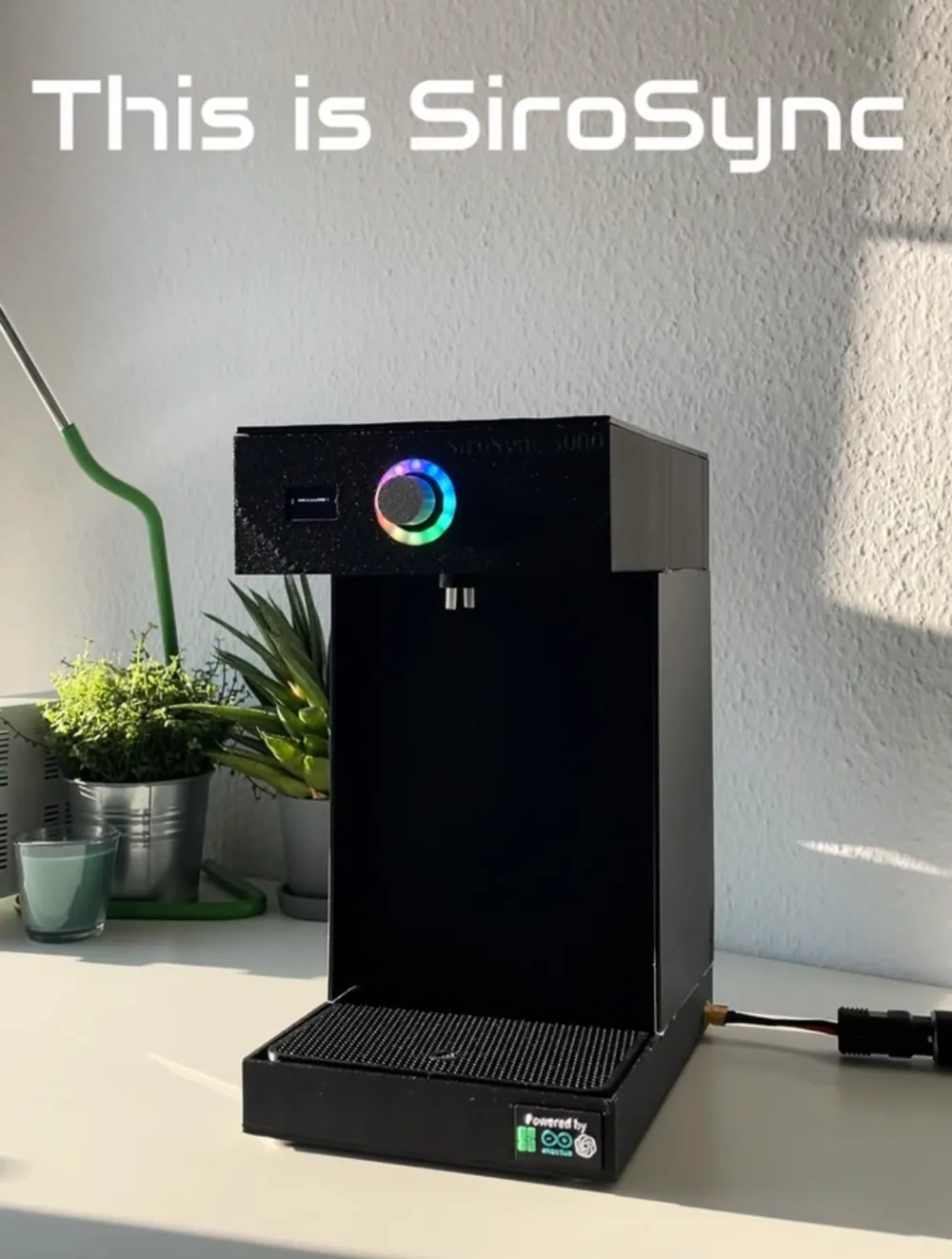

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost me for future enhancements Thank you very much</boostcontent></boostme><h3><strong>SiroSync – The Smart Syrup-Mixing Robot with OLED Display</strong></h3><p>Welcome to <strong>SiroSync</strong><br>SiroSync is an innovative robot that automatically mixes the perfect amount of syrup into your glass of water – for a drink with just the right taste, whether you want just a sip or a full glass The robot weighs the glass, calculates the required amount of syrup, and dispenses it precisely using peristaltic pumps With an OLED display, an encoder for navigation, a WS2812B LED ring for visual feedback, and RFID for service mode, SiroSync is a high-tech project for makers who love electronics, programming, and automation</p><p>Check out my TikTok videos to see SiroSync in action: <a target="_blank" rel="noopener noreferrer ugc" href="https://www.tiktok.com/@theprojecthub42">TikTok @theprojecthub42</a>.</p><p>&nbsp;</p><p><strong><u>Parts List:</u></strong><br> </p><figure class="table" style="width: 74.32%"><table class="ck-table-resized"><colgroup><col><col><col></colgroup><thead><tr><th><strong>Part</strong></th><th><strong>Quantity</strong></th><th><strong>Description</strong></th></tr></thead><tbody><tr><td>Arduino Mega 2560 R3 Board with USB Cable</td><td>1</td><td>Microcontroller for control</td></tr><tr><td>Load Cell with HX711 Module (1 kg)</td><td>1</td><td>For weight measurement</td></tr><tr><td>Rotary Encoder Module KY-040</td><td>1</td><td>For menu navigation</td></tr><tr><td>WS2812B RGB LED Ring (12 LEDs)</td><td>1</td><td>For visual feedback</td></tr><tr><td>1.3 Inch OLED Display (128x64, I2C)</td><td>1</td><td>For the user interface</td></tr><tr><td>L298N Dual H-Bridge Motor Controller Module</td><td>1</td><td>Control of the peristaltic pumps</td></tr><tr><td>12V DC Peristaltic Pump</td><td>2</td><td>For syrup dispensing</td></tr><tr><td>DC-DC Buck Converter (12V to 5V)</td><td>1</td><td>Voltage regulator for the Arduino</td></tr><tr><td>MFRC522 RFID Reader/Writer Module with Card</td><td>1</td><td>For service mode</td></tr><tr><td>Mini Breadboard</td><td>1</td><td>For wiring</td></tr><tr><td>Dupont Jumper Wires</td><td>1 Set</td><td>For wiring</td></tr><tr><td>12V DC Power Supply (e.g. 2A, 5.5x2.1mm)</td><td>1</td><td>Power supply</td></tr><tr><td>Food-safe Silicone Tubing</td><td>1</td><td>For syrup supply</td></tr></tbody></table></figure><p><br> <br><br><br> </p><p>&nbsp;</p>

SiroSync

ASIA

Print Profile(1)

Description

SiroSync – The Smart Syrup-Mixing Robot with OLED Display
