Description

Content has been automatically translated.
Show original

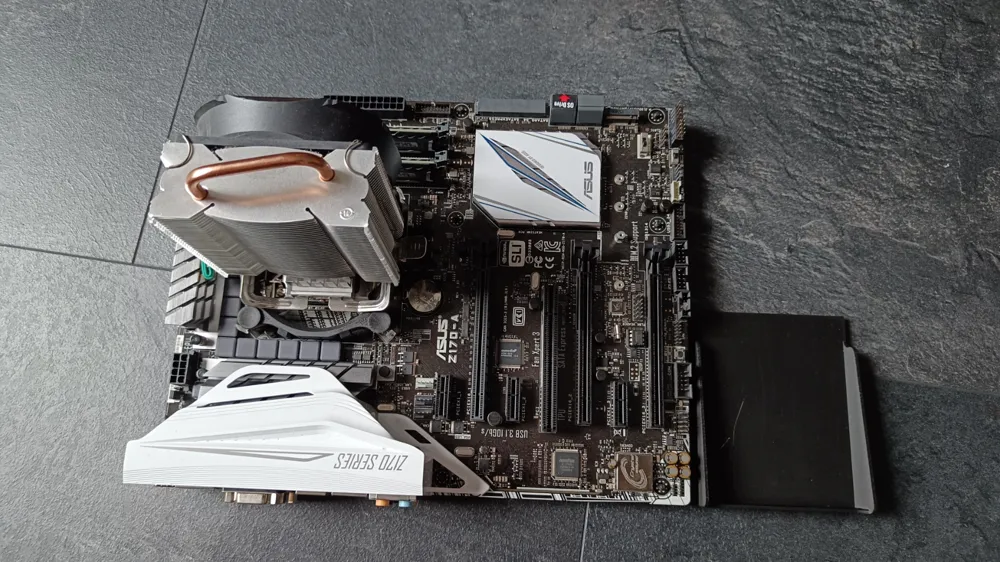

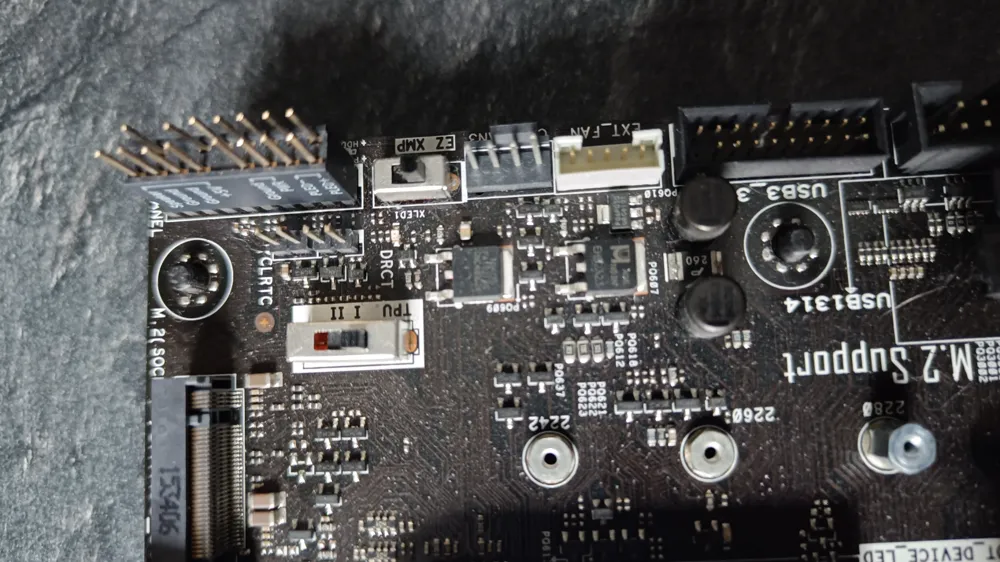

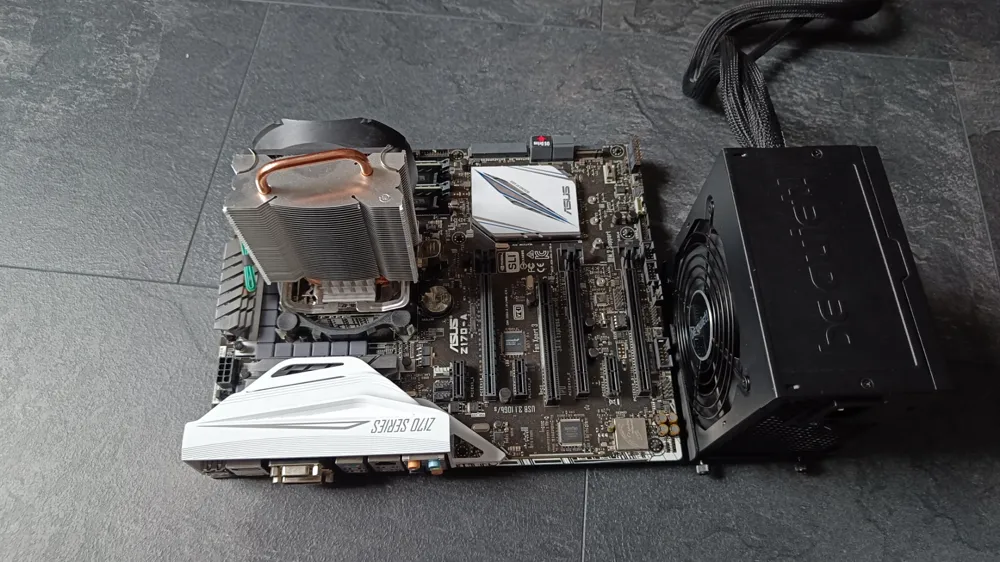

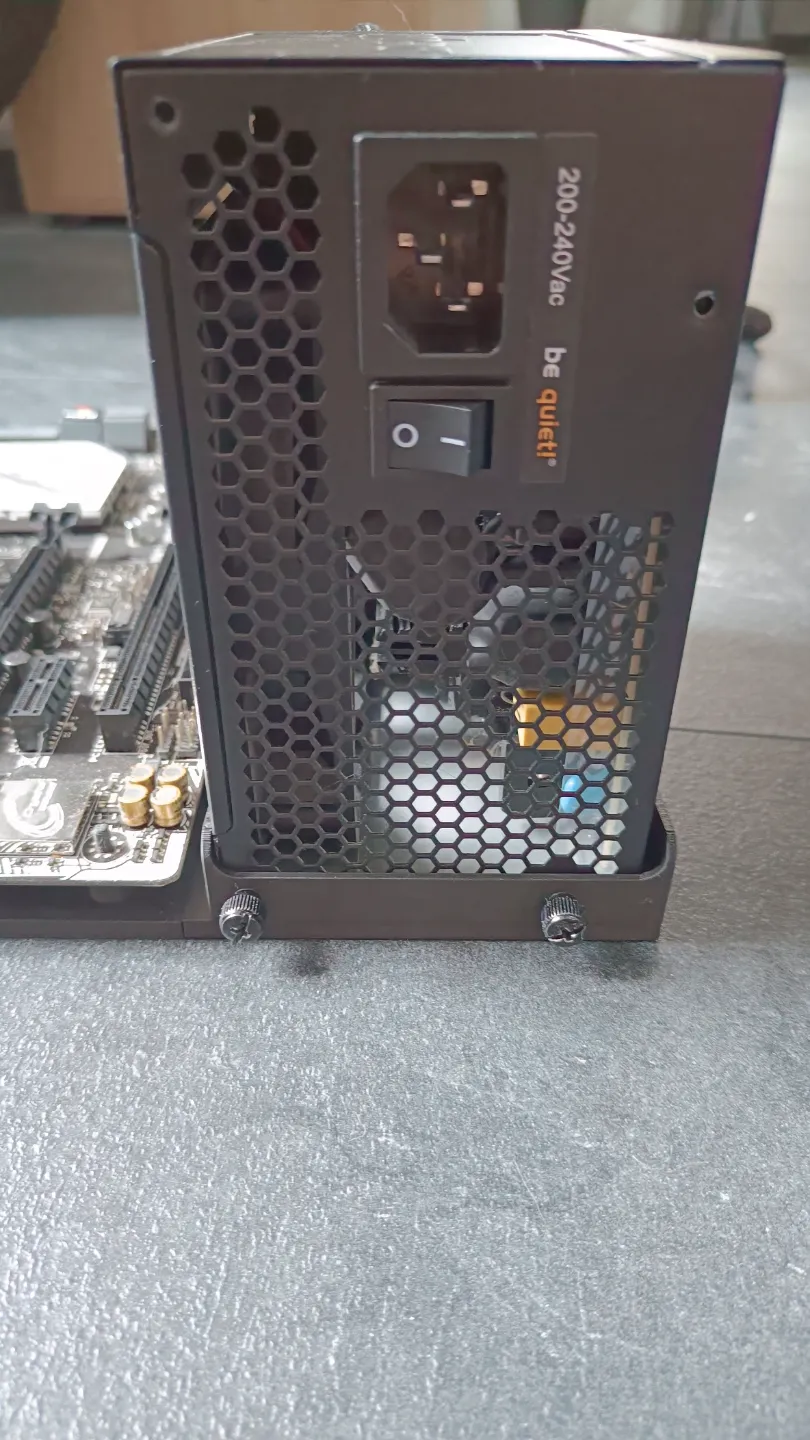

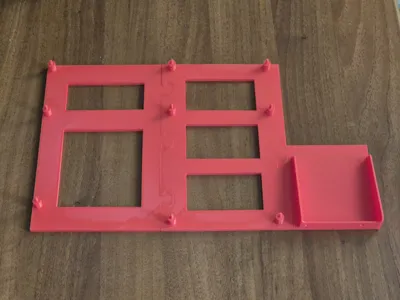

This is a test bench for computer hardware. Mainboards in the ATX form factor can be ideally placed here and are held in position by the small pins. A power supply unit can also be mounted next to it. Mounting a graphics card is also possible without any problems; the space downwards is sufficient.

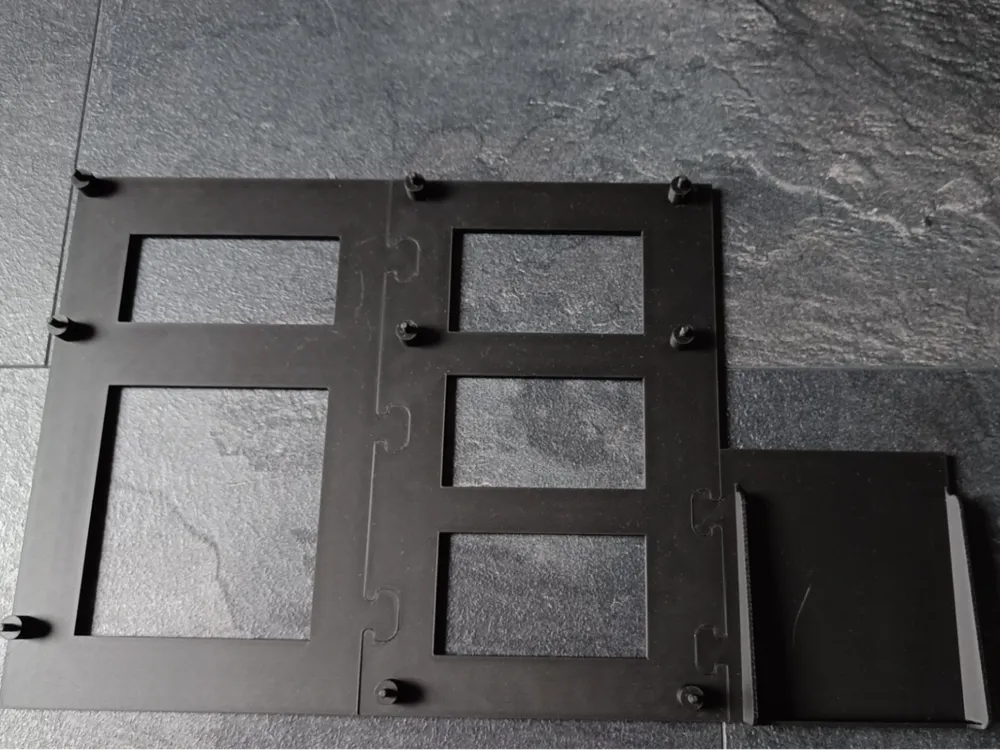

The print consists of three parts that are connected at the end like a puzzle. The parts hold together very well.

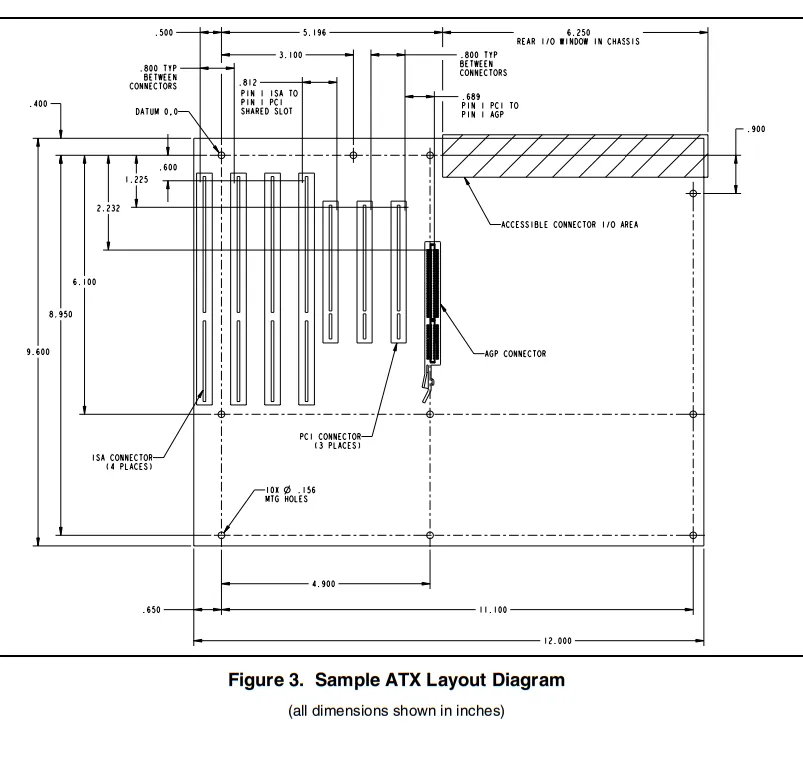

The position of the mainboard mounting is chosen according to the standard ATX format (see image).
Have fun with it!
