Triangular Geometric Chain

Update: In this third iteration, I've redesigned the supports to be easily removable, resulting in a refined and improved chain

I sought to create a chain for integration into my 3D-printed bag designs, aiming for a distinctive linking mechanism and aesthetic. To achieve this, I employed a triangular geometric form. The offsetting of two triangles at the connection point creates a satisfying interlocking structure. Significant effort was dedicated to fine-tuning the chain's flexibility and printability. Pleasingly, the final product boasts a unique appearance and tactile quality, further enhanced by a delightful, gentle clinking sound when manipulated.

Printing Guide

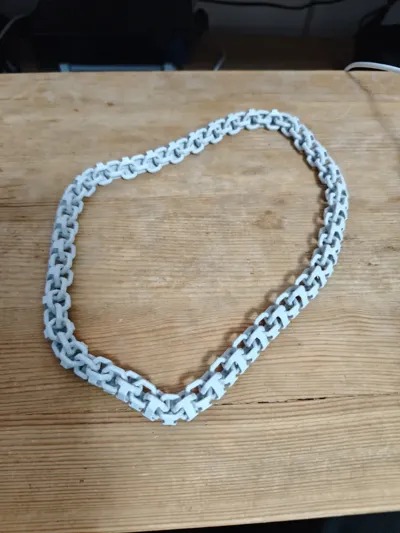

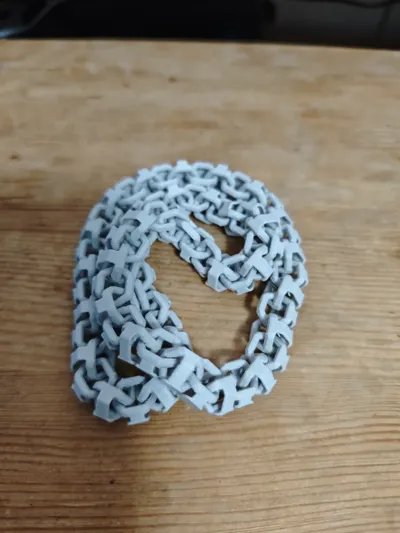

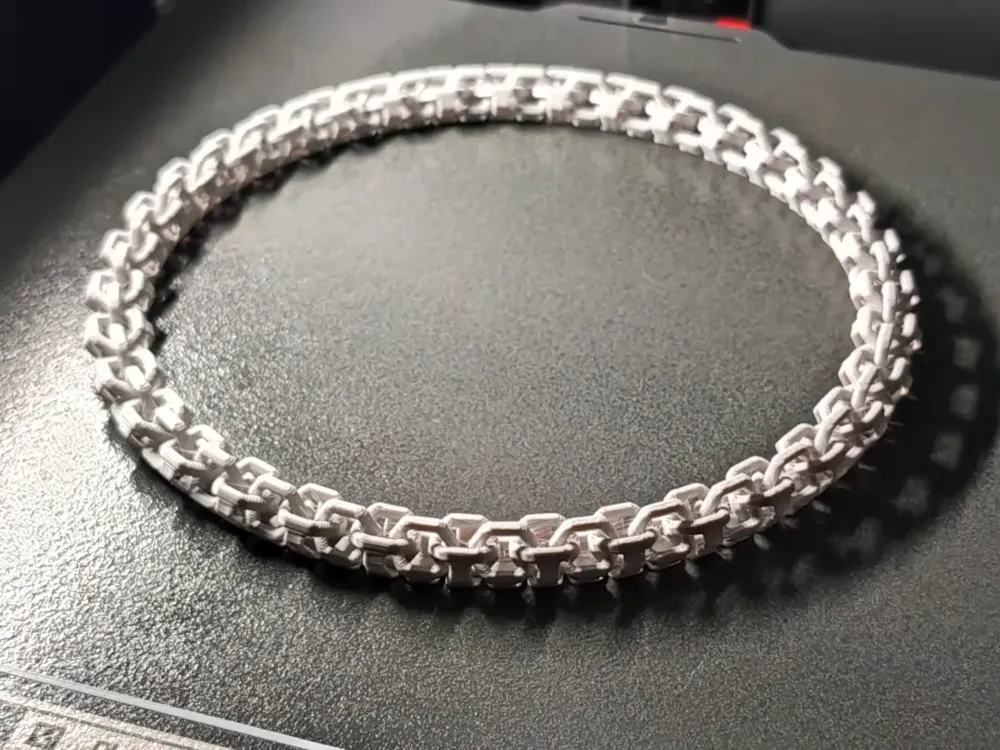

Printing the third version: The first plate yields a 50cm chain, suitable for wrist wear when formed into a figure-eight. The second plate produces a 75cm chain, ideal for necklace use. The third plate provides a shorter length, perfect for testing or hand-worn applications. Upon completion, use needle-nose pliers to easily remove the supports. Finish by gently filing away any excess material from the chain's surface.

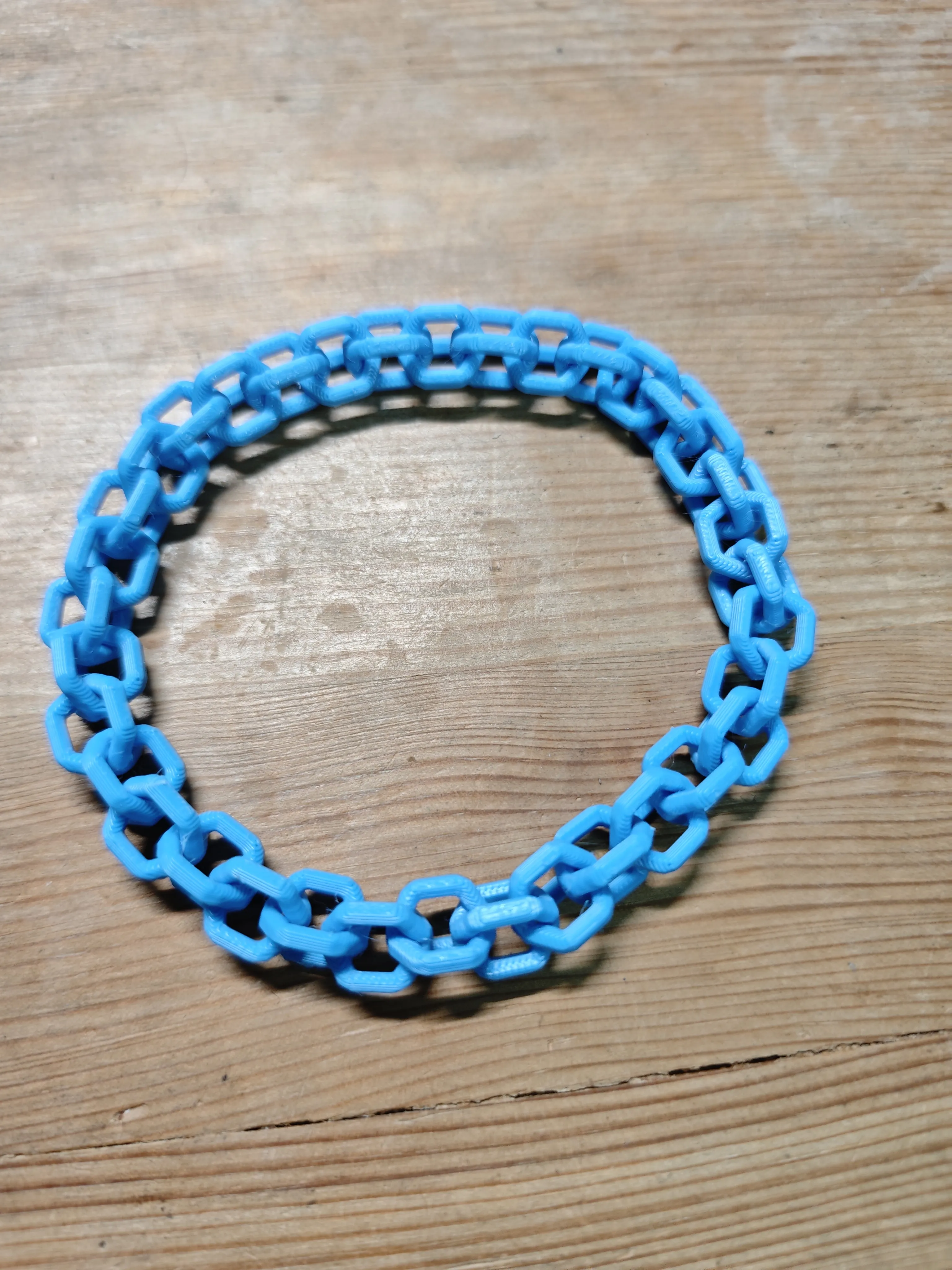

I've successfully printed this chain at both 75% and 50% scaling, although the characteristic gentle clinking sound is less pronounced at these sizes. I will subsequently upload 75% and 50% scaled versions suitable for necklace use, enabling fellow makers to conduct their own testing.

Enhance the chain with a pendant; I've designed a Github token charm, available here: https://makerworld.com.cn/zh/models/1032275-githubling-pai-lian#profileId-1064797https://makerworld.com.cn/zh/models/1032275-githubling-pai-lian#profileId-1064797

This chain design will undergo further testing; if satisfactory, it will be integrated with my flex fabric bag connectors for seamless attachment. Regardless, its inherent charm makes it equally well-suited for both playful manipulation and wrist wear.

For those who appreciate this chain's design, likes, saves, follows, and boosts are most welcome. Feel free to share images of your creations and feedback on printability within the comments section. Your input will be invaluable in refining this design for integration into my bag projects.
