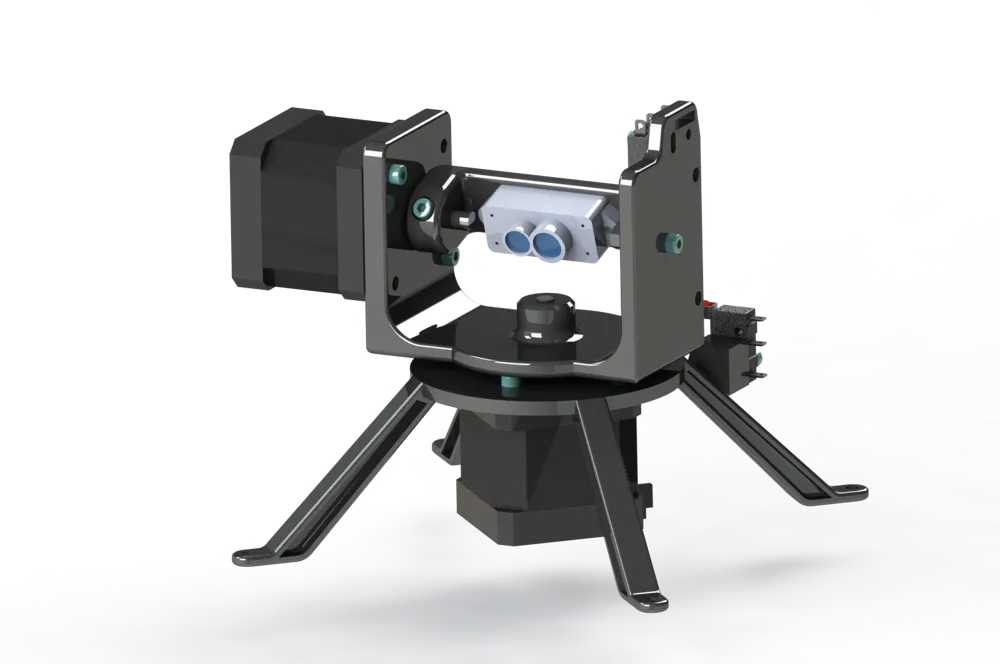

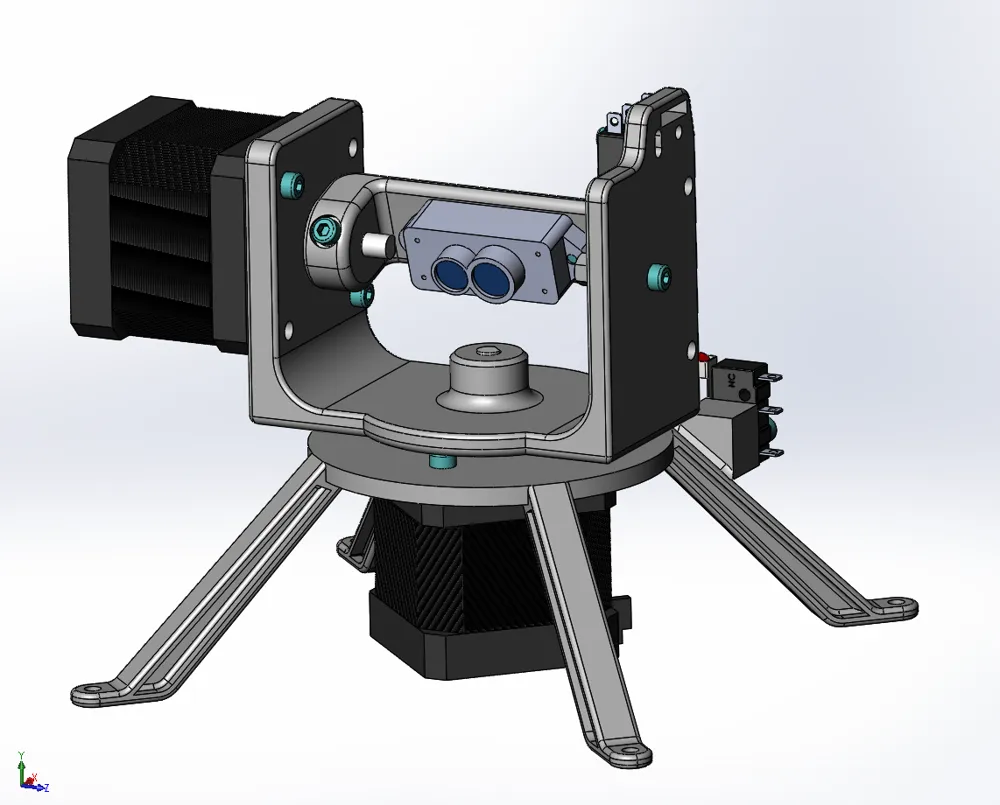

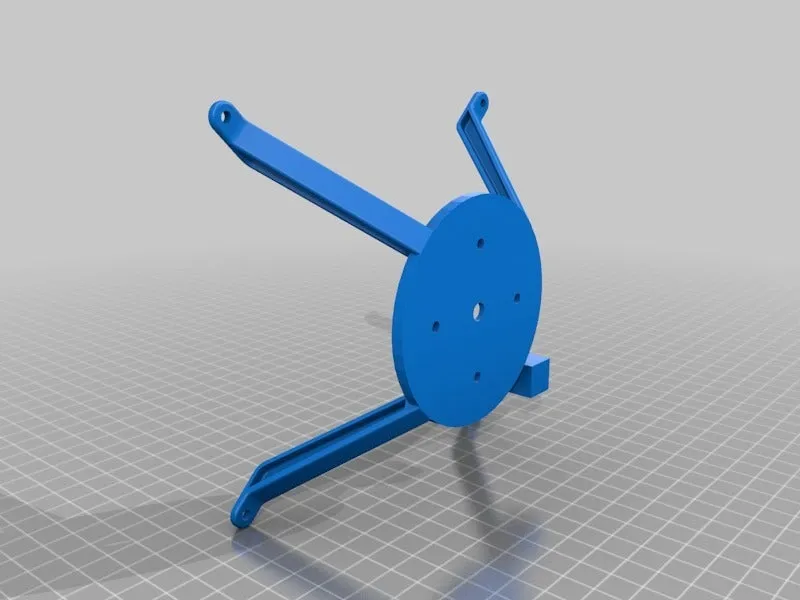

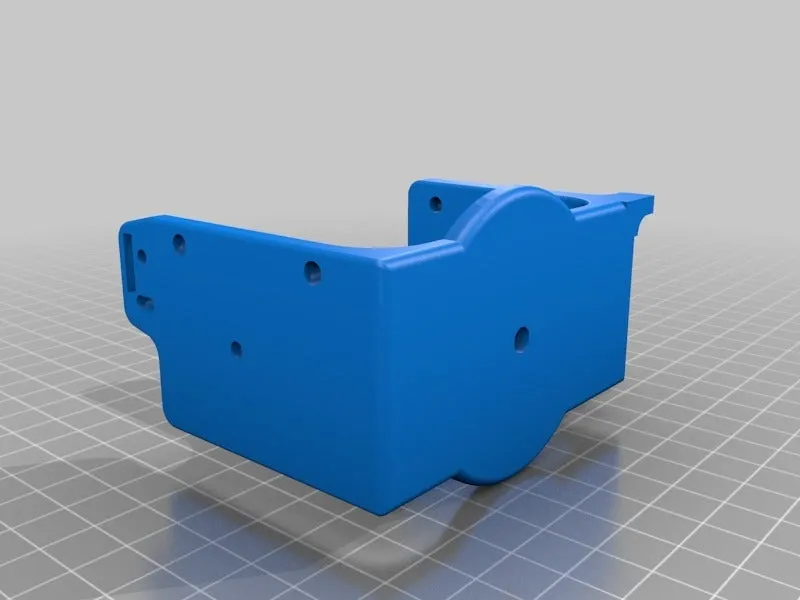

This is concept of cheap 3D scanner with lidar ( http://www.benewake.com/en/tfmini.html ).

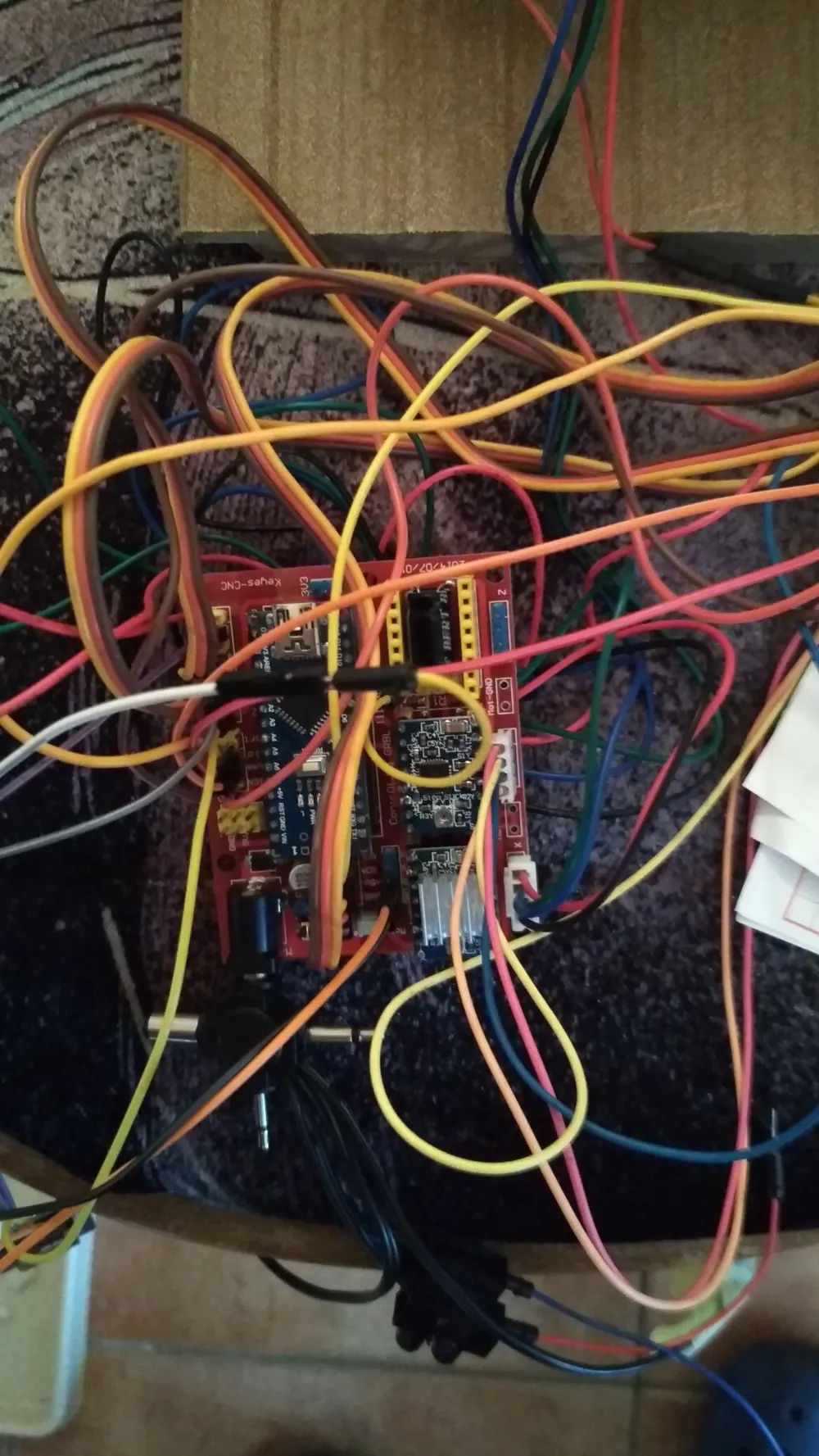

I use Arduino Nano with CNC shield + A4988 driver for stepper motor.
Scanner write position (x,y,z) to SD card.

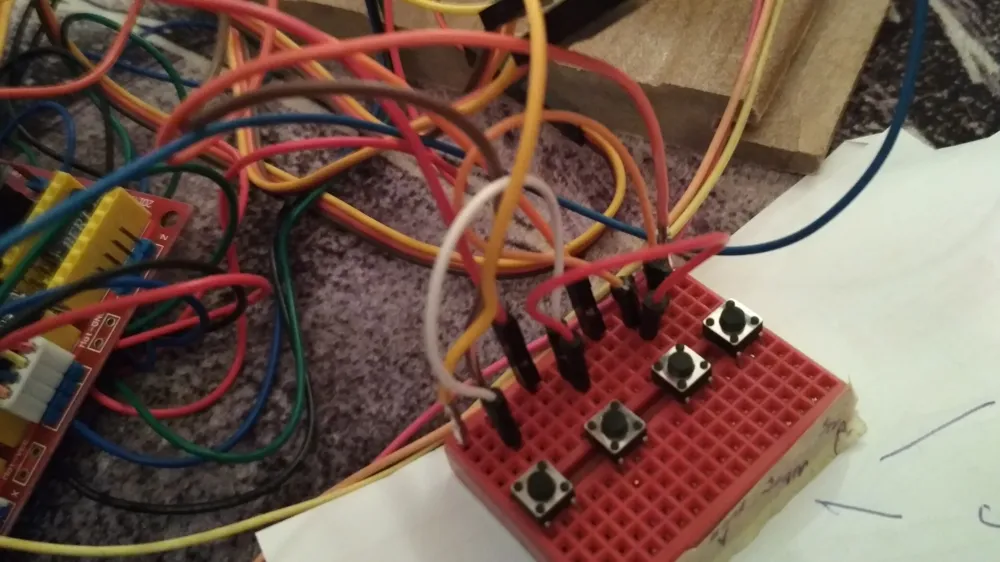

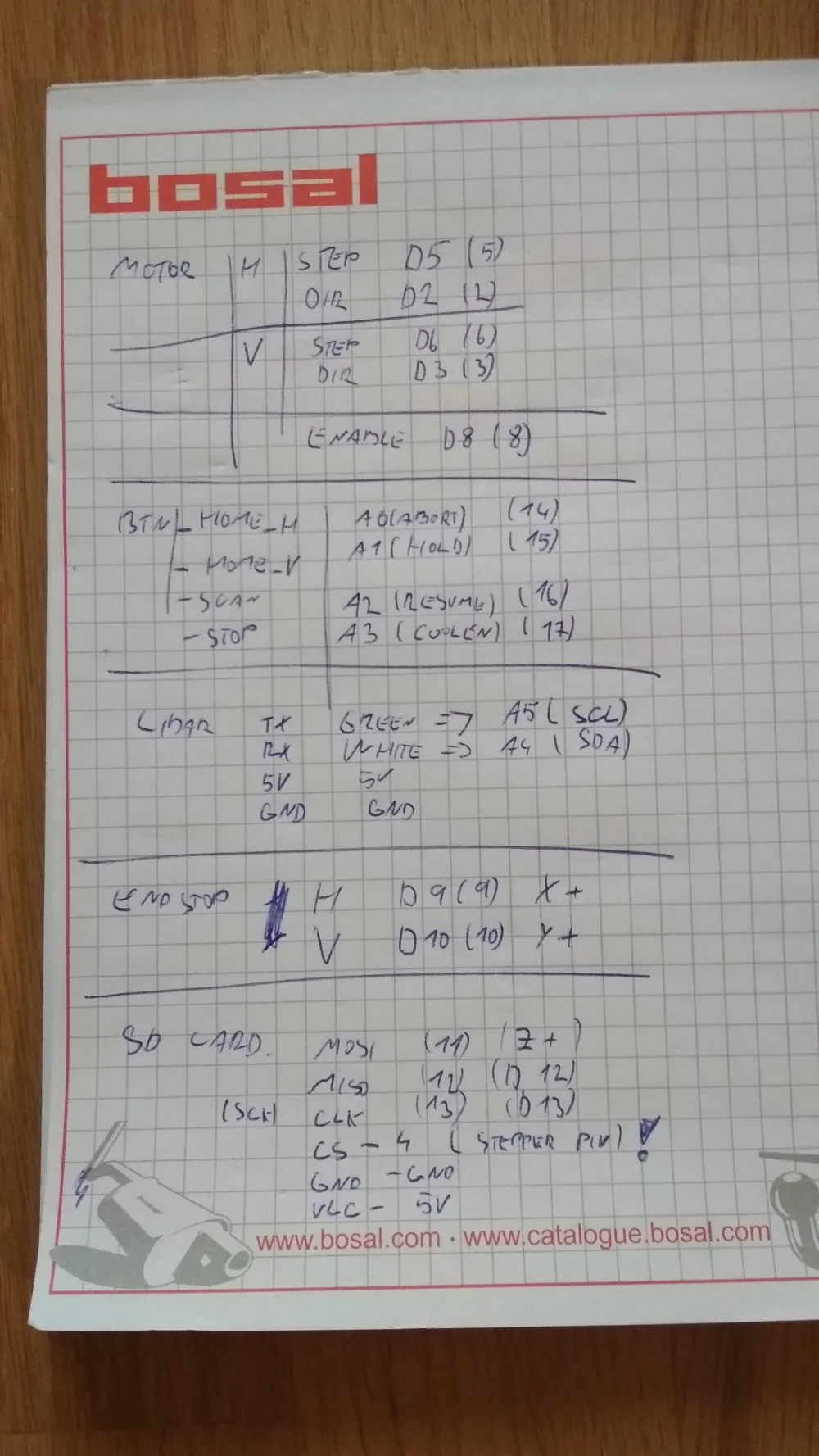

buttons for home H(orizontal), for home V(ertical), scan and stop(not working yet).
v1
v2
for now:

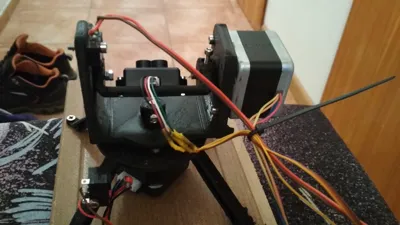

this is first test build.
NOT work microstep, so 1 step is 1,8° (not good for scanner-working on)
lidar accuracy is not acceptable - see video
UPDATE:

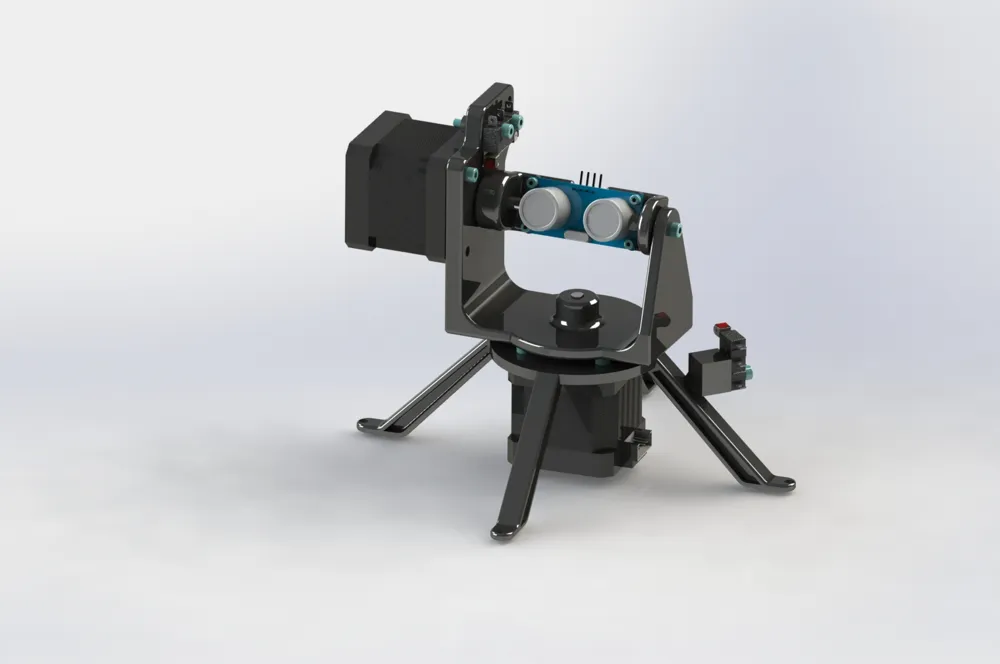

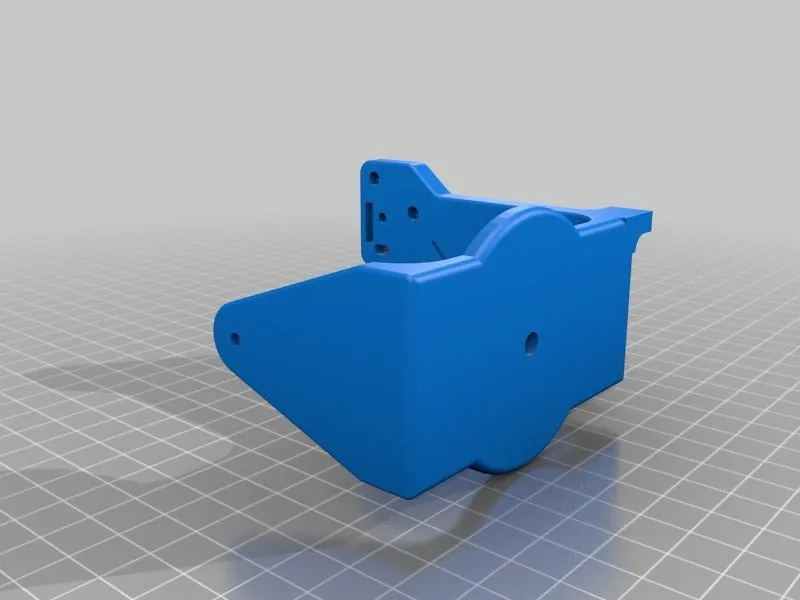

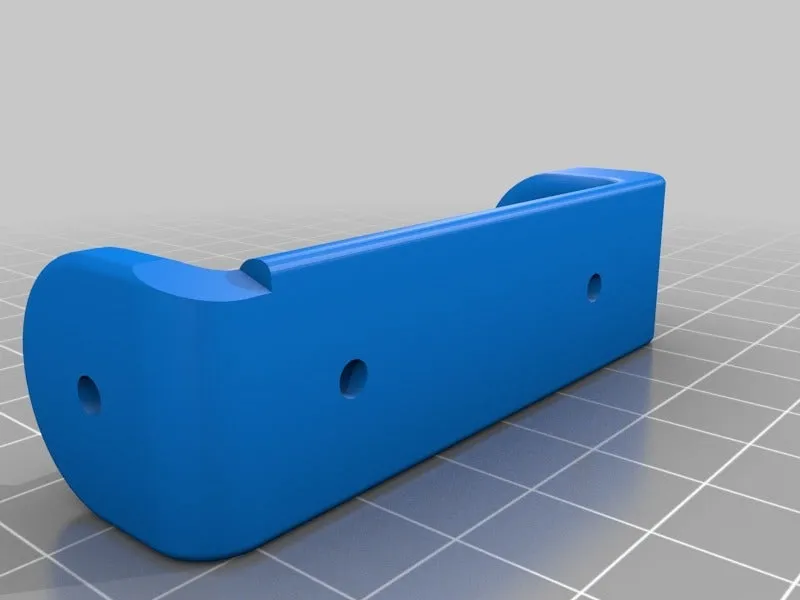

modify for change lidar or ultrasonic senor.

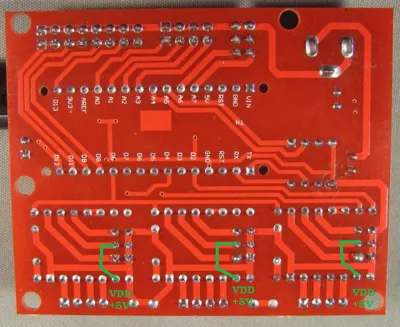

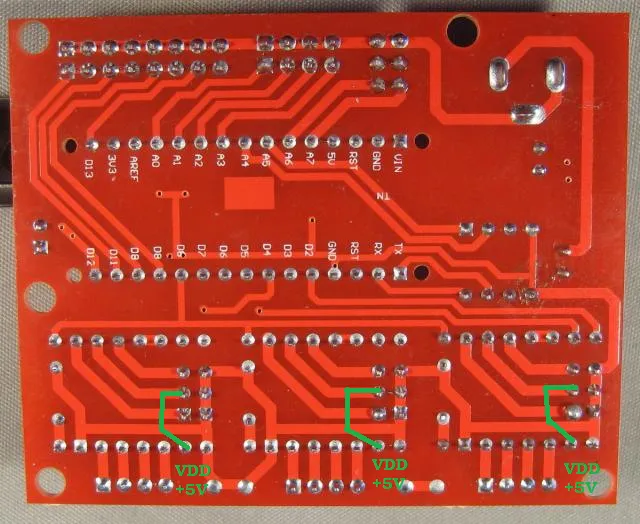

enabled multistep on driver(shield has wrong wiring...)
In archive scannerv2.zip are all files
more info. http://mochr.cz/3d-scanner/
Unassociated tags: cloud points, cnc shield, stepper motor, ultra sonic
