Box for 1x Shelly and 2x WAGO terminals
IP Report
Print Profile(1)
0.2mm layer, 3 walls, 15% infill
Designer
2.1 h
1 plate
Open in Bambu Studio
Boost
313
1248
53
34
761
473
Released
Bill of Materials
List other parts
- M3 Mutter x 4:
- M3 Senkkopfschraube(Länge 16 oder 20mm) x 4:
Description
Content has been automatically translated.

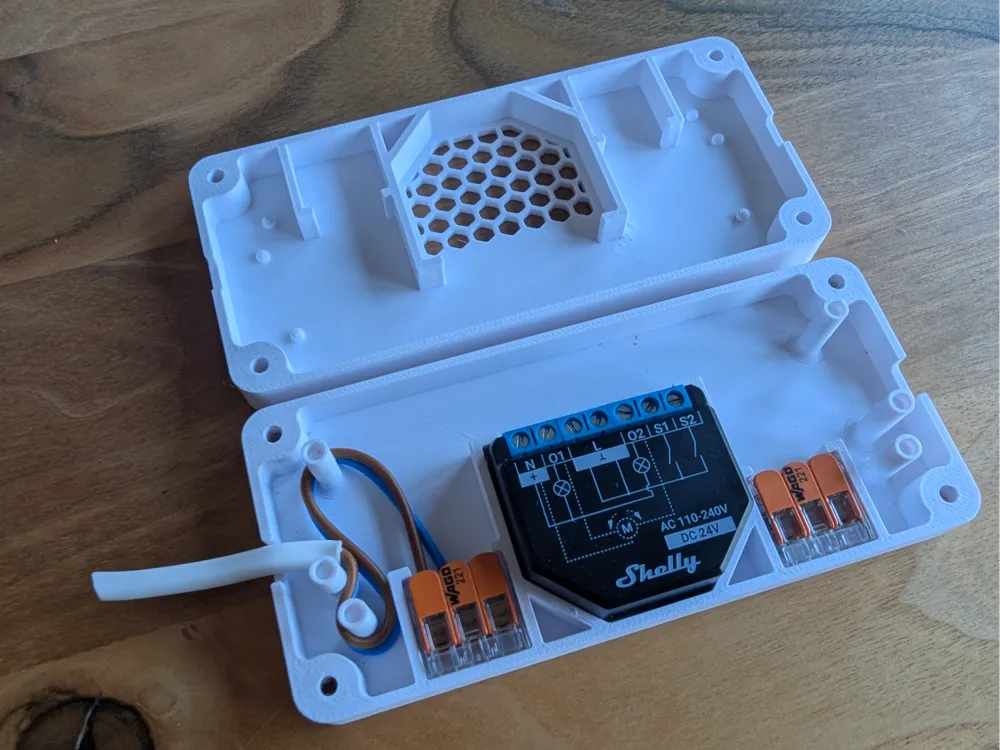

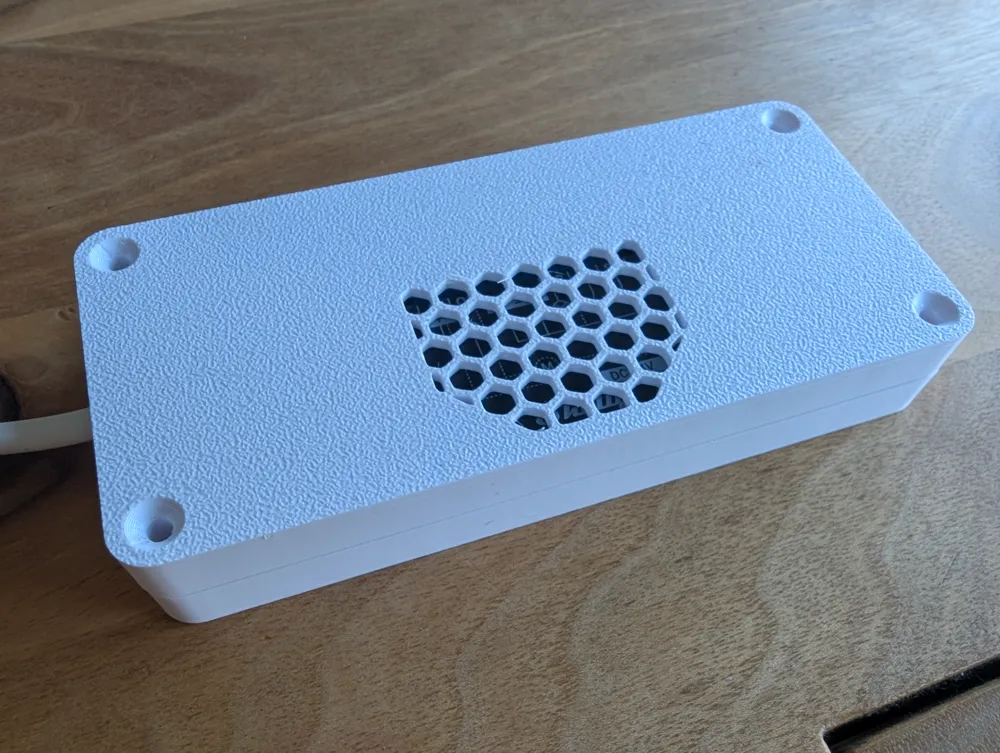

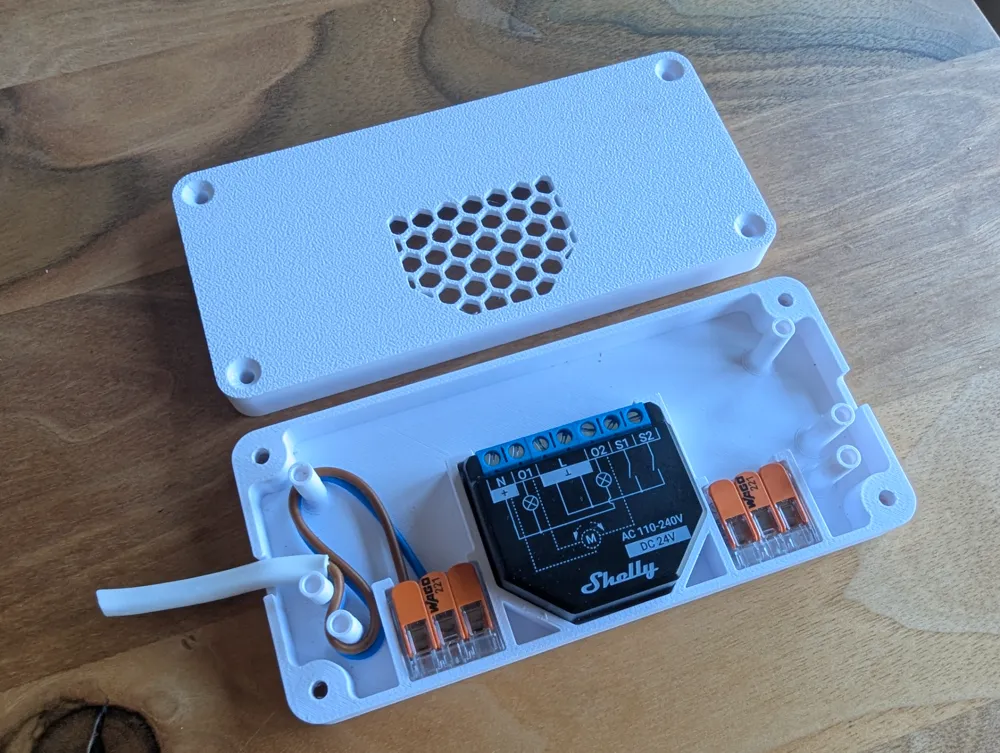

This is a box for a Shelly and two WAGO terminals.

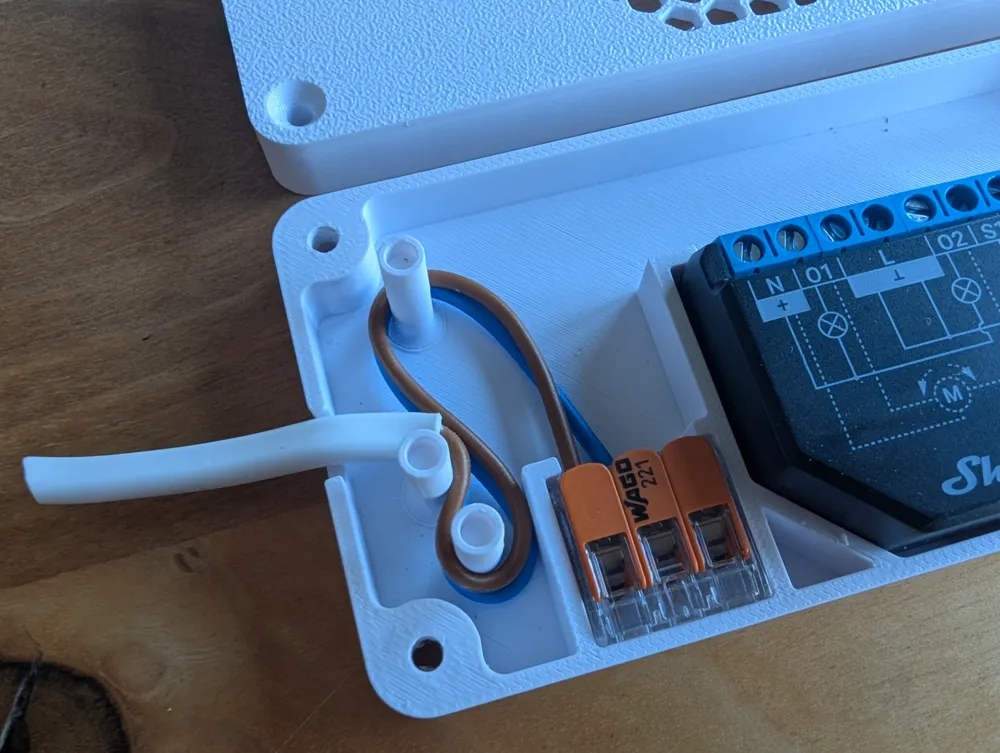

Strain relief is achieved via multiple pins, so only the box needs to be screwed on.
THE WIRING SHOWN IS FOR ILLUSTRATIVE PURPOSES ONLY!
DO NOT CONNECT LIKE THIS!

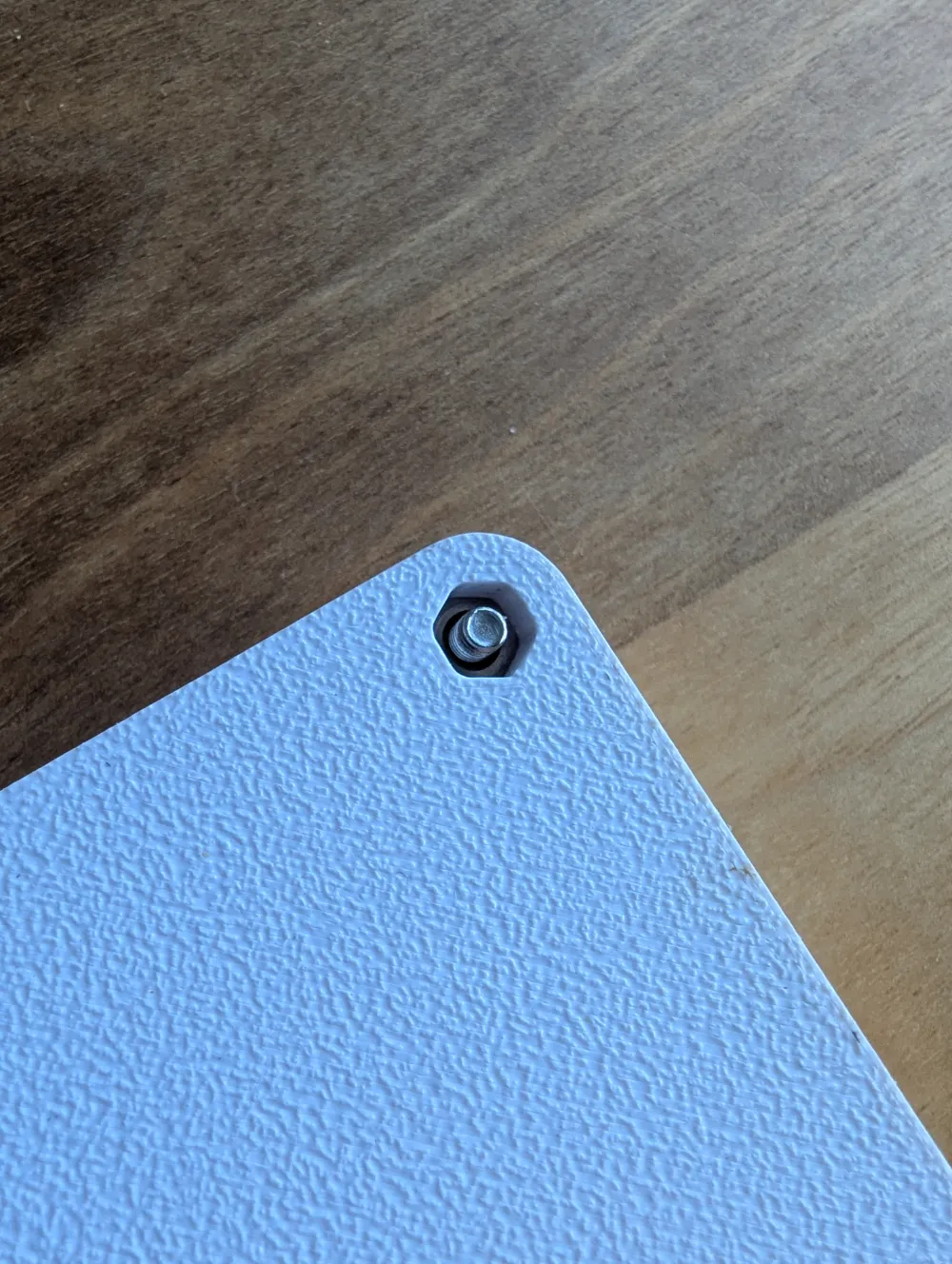

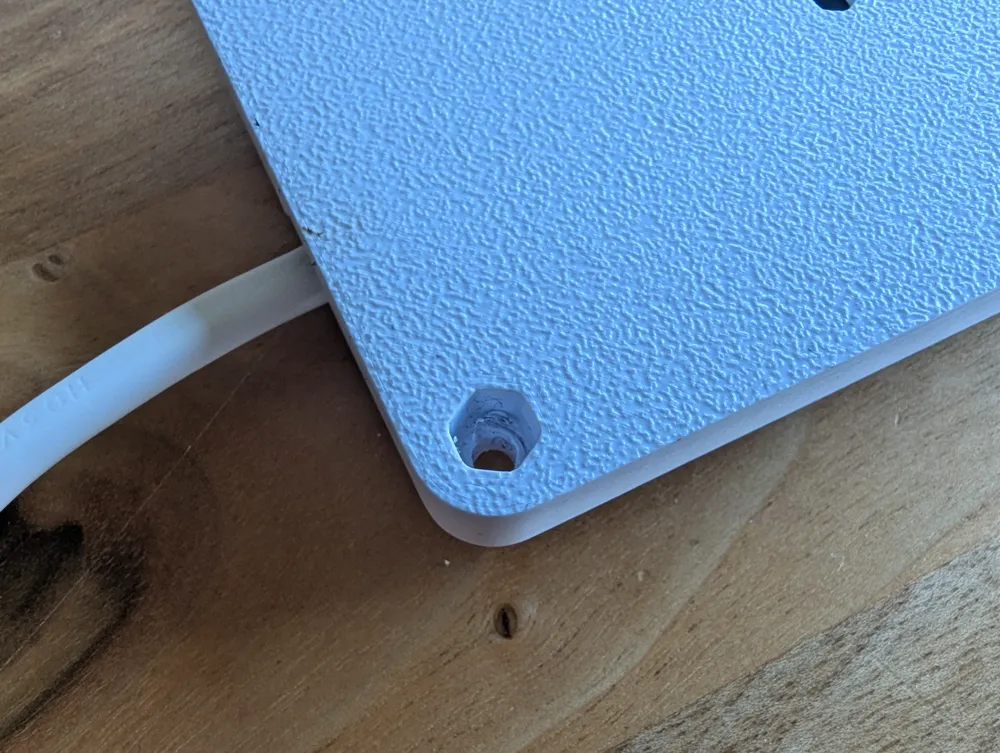

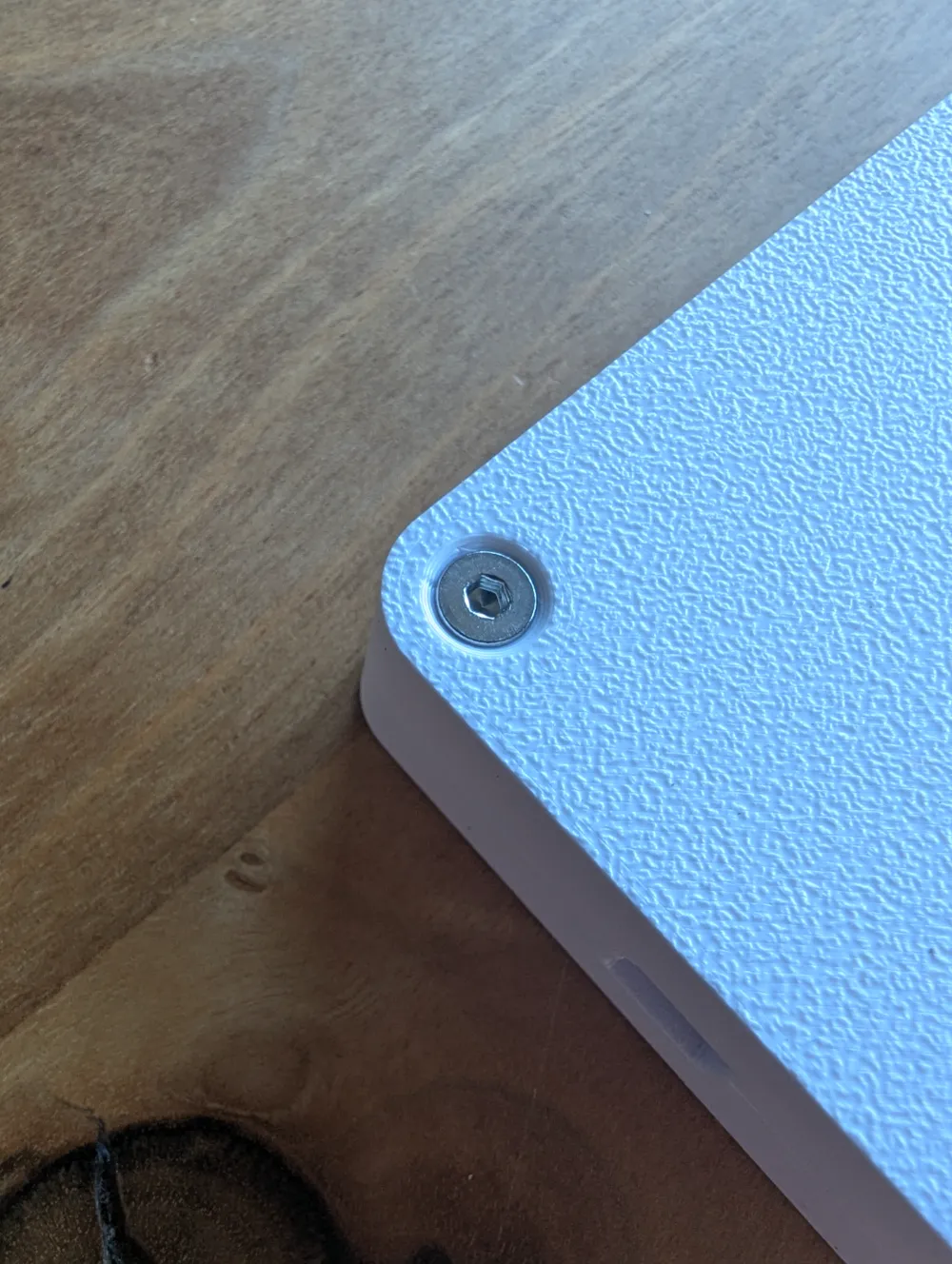

Four M3x16 or four M3x20 countersunk screws and four M3 nuts are required for fastening.
