Angle clamp V2

mpecyna
Tools>Hand Tools
IP Report

Print Profile(2)

All
P1S
P1P
X1
X1 Carbon
X1E
A1
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L
A1 mini
0.2mm layer, 4 walls, 25% infill
0.2mm layer, 4 walls, 25% infill
Designer
3.9 h
1 plate
4.9(66)
A1 mini version - 2 plates
A1 mini version - 2 plates
Designer
4 h
2 plates
4.7(7)
Open in Bambu Studio
Boost
392
1353
86
46
1.3 k
830
Released

Description

IMPORTANT: AFTER ASSEMBLING THE CLAMP, SCREW AND UNSCREW(x2) THE ENTIRE SCREW TO ENSURE SMOOTH THREAD MOVEMENT! ⚙️ THIS IS ESSENTIAL FOR OPTIMAL FUNCTIONALITY!!

Boost Me (for free)

If you like it, please consider giving it a boost to help more people discover it. Your support would mean a lot! 🙌

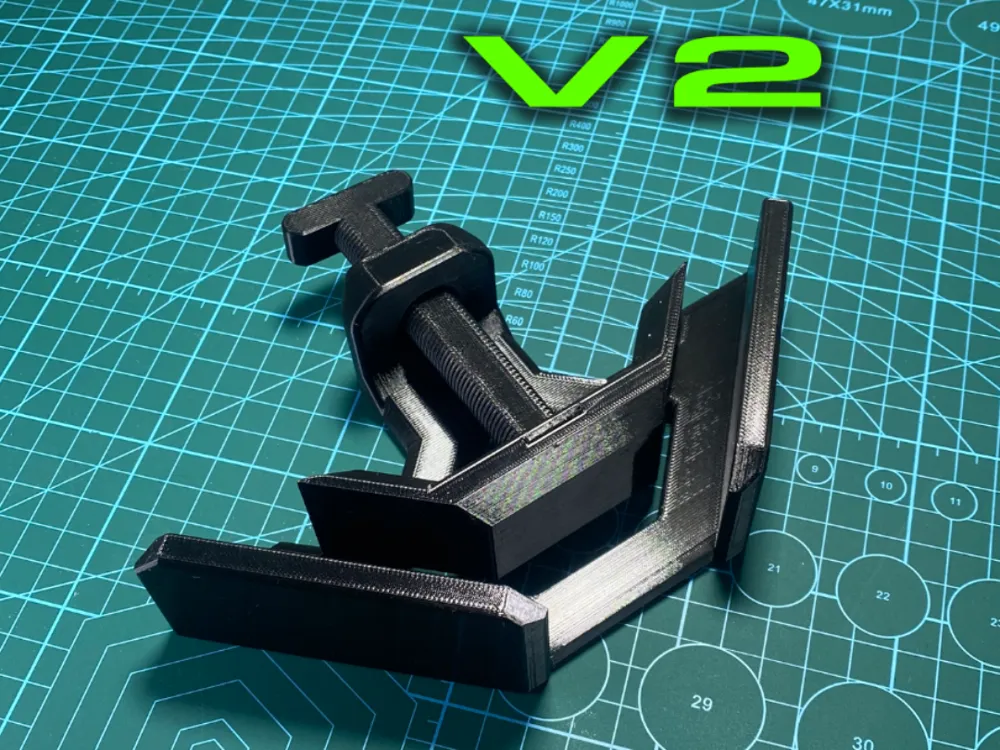

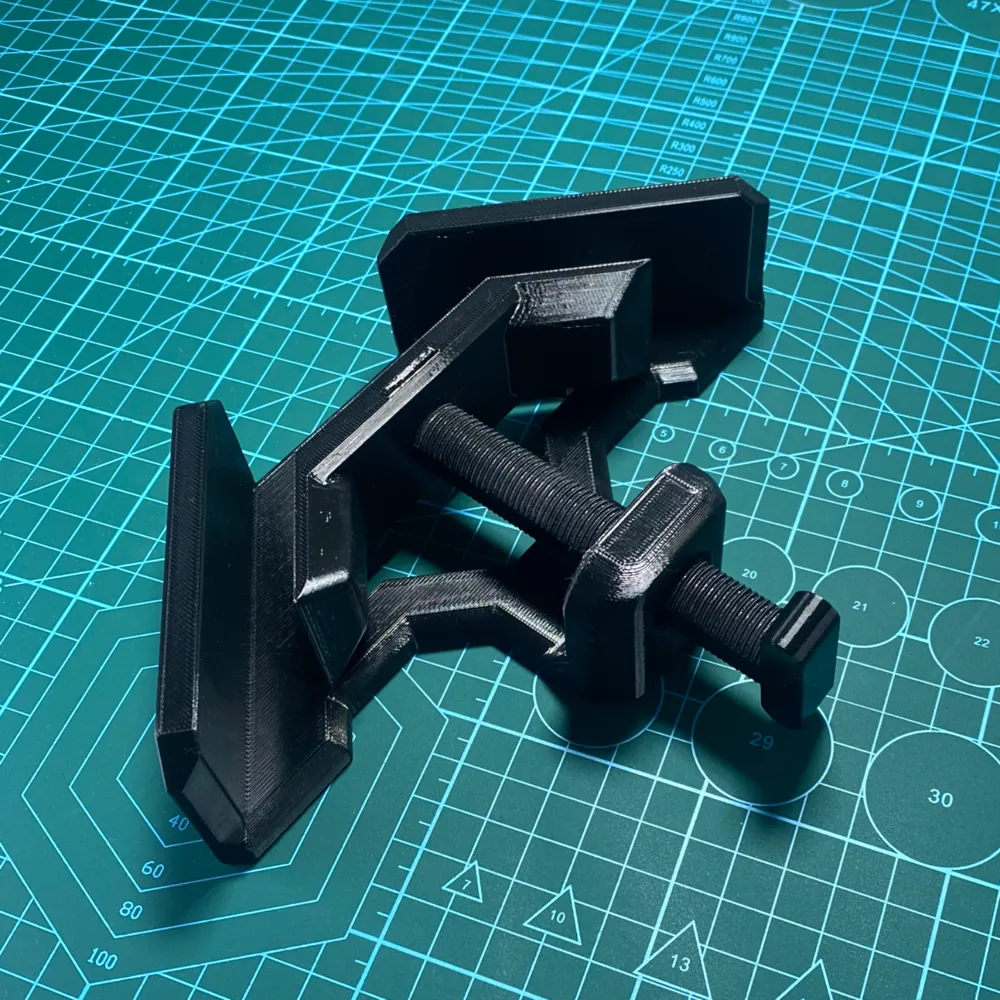

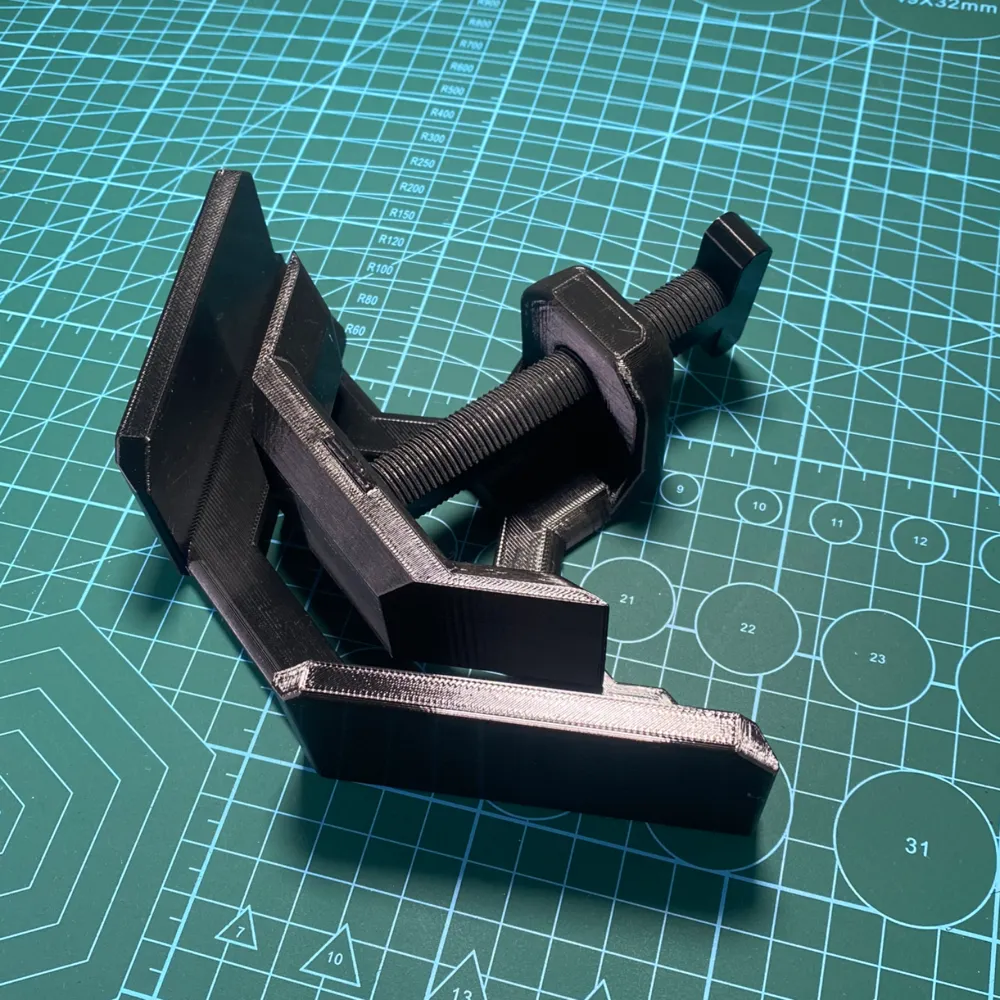

Introducing Angle Clamp V2, the upgraded version of my original angle clamp, now better than ever! 🔧 After receiving valuable feedback from the community, I’ve made key improvements to both the design and the strength of the clamping screw. This version offers enhanced durability and functionality, making it an essential tool for all your angle clamping needs.



WHAT’S NEW in Angle Clamp V2? 🔥

• The connection between the screw and clamping element has been redesigned for better performance and durability. 🔩

• The screw’s print orientation has been changed, significantly increasing its strength and reliability. 💪

• Aesthetic upgrade with smoother, rounded edges for a more polished and professional look. ✨

angle clamp
corner
wood working
woodworking accessories
woodworking accessory
clamp
clamps

Comment & Rating (86)

(0/1000)
@OfMetalAndMagic
Print Profile
A1 mini version - 2 plates
Print came out perfect, and the model is performing just like I wanted.
0
Reply
@eeezyy
I assume the boards have the same thickness?
0
Reply
@OfMetalAndMagic
Replying to @eeezyy :
Yup!
(Edited)
1
Reply
@Cruvinel
Printing with 0.2 layers, 4 walls and 25% infill. It prints in ABS and it seems very resistant. I haven't tested them in the carpentry shop but the grip works normally in my hand. Thank you very much for sharing.
The designer has replied
designer
1
Reply
@mpecyna
thank you too
0
Reply
@Redshift_zero
Boosted
Print Profile
0.2mm layer, 4 walls, 25% infill
Excellent design!! printed perfectly, smooth all around!
1
Reply
@aSciEnthusiast
Boosted
Print Profile
0.2mm layer, 4 walls, 25% infill
TLDR - the max width of this is about 2.25 inches or 5.5 cm. This is PERFECT. Exactly what I was looking for. 8 didn't want a set of non-adjustable clamps cluttering up my already cluttered garage. I printed it in PETG for durability. Absolutely wonderful.
1
Reply
@nucleool75
Print Profile
0.2mm layer, 4 walls, 25% infill
top
0
Reply
@britwit
Print Profile
0.2mm layer, 4 walls, 25% infill

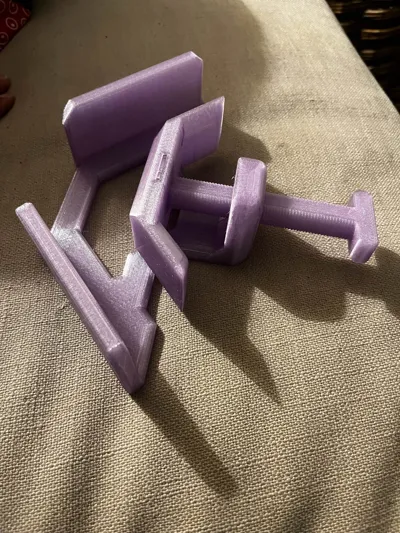

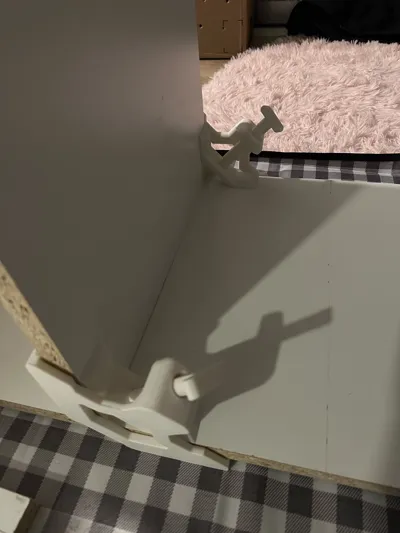

Great print. Works as expected and will likely print another. The pin keeps sliding out… I’m sure a little glue in the hole will fix that. I am using these for bookshelves construction and a closet build. The clamp will accommodate a range of material widths - at its widest setting, the channel is a little over 2”. Very happy with this print. Printed in Creality PETG in Translucent Light Purple
0
Reply
@Adam_Lane
Print Profile
0.2mm layer, 4 walls, 25% infill
Works well 👍🏻
0
Reply
@lawrencew009
Boosted
Print Profile
0.2mm layer, 4 walls, 25% infill

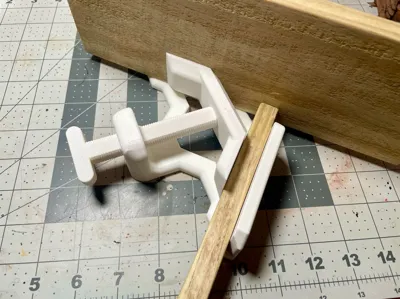

Works great! Been using them to hold 3/4 pieces together while the glue sets!
0
Reply
@Doyley
Print Profile
0.2mm layer, 4 walls, 25% infill
Neat design, printed 2 off, one was a little stiff but after exercising the thread several times it was fine. Thank you for the very useful and surprisingly sturdy right angle clamps.
0
Reply
@Lennert_HD
Print Profile
0.2mm layer, 4 walls, 25% infill
Super handy clamp. it was really useful to build my curtain housings.
0
Reply
