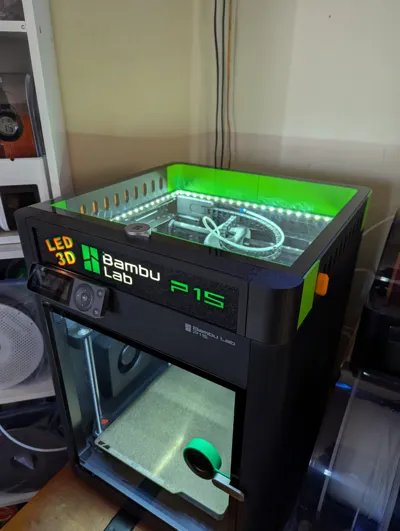

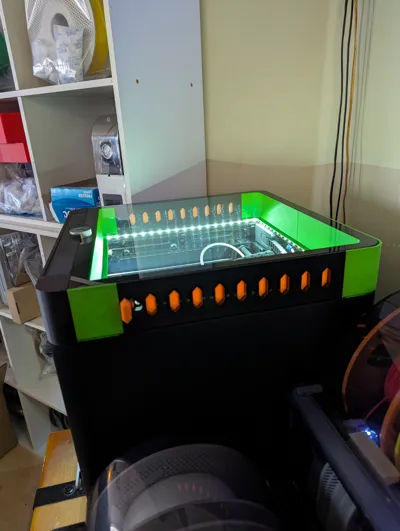

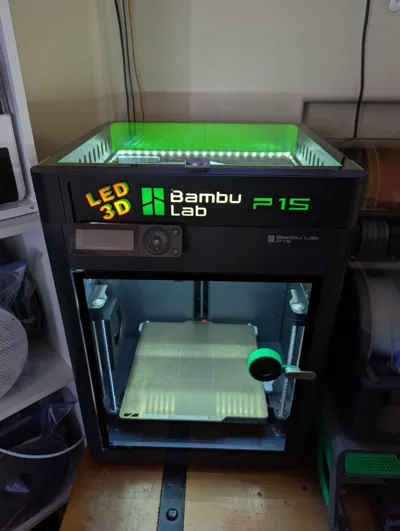

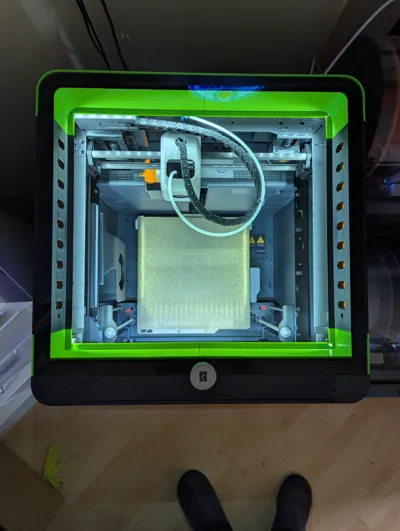

Bambu Lab riser

I decided to make my own custom LED riser, that all slots together and only requires 2 screws for the vent handles.

This model does have access to the SD card behind the faceplate.

Print main bodies in PETG for higher temp material usage.

Print the faceplate ALL in PLA or ALL IN PETG. do not mix them.

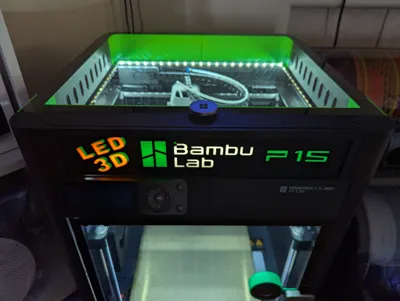

Customize the faceplate however you want.

-2 M3 x 15 or 20mm

-Optional LED custom lights. Provides excellent light inside Enclosure.

You will have to work the vent slides and side pieces a bit to loosen them up for your needs. I just slid them in and out quite a few times to free them up before assembling. After that just slide them in the correct way and thread the screw thru the inset side, and into the knob provided.

For the LED lights:

-if the USB plug will fit thru the hole on top right front corner, then you don't need to fish the LED lights thru the hole first. (optional i just trimmed the plastic down on the USB plug to fit.)

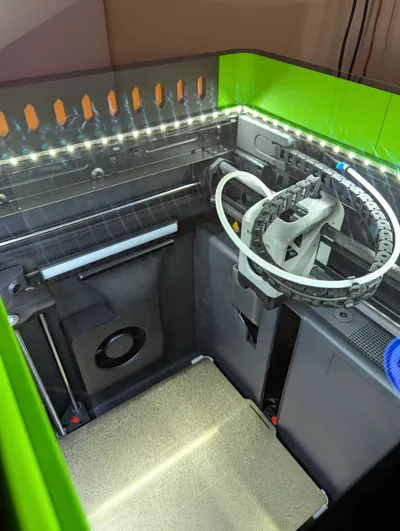

-fish the LED's thru the faceplate so that the LED's face inward. Once pulled thru enough so that the right amount of LED's/cord is left in the face plate, gently twist the LED strip so that it lays the correct direction to shine on the face plate.

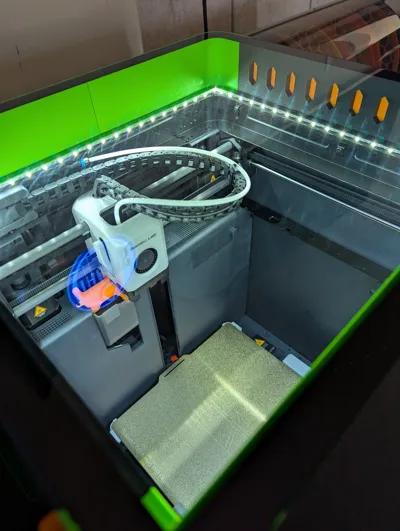

-pull plastic back off LED's and start sticking it to ledge on inside of riser. When you get to the corner gently push the LED strip into the slot so you can make the transition to the next side. Do the same procedure till your LED's have made it all the way around and cut the excess off at the cut point. (make sure it is the cut point)

-then adhere the LED's to the inside of the faceplate.

-I would suggest using a little bit of glue on certain points of the LED strip to make sure the adhesive on the LED's does not let go. (hot glue gun/super glue/etc.)

-Once LED's are installed on the assembled Riser plug in the USB in the front where there is an extra USB plug.
