Description
My Lamp
I designed this lamp for my nightstand. You can mount it both horizontally and vertically. You'll need an LED strip and a diffuser, each about 1 meter long. The slit is 12mm wide, so make sure your LED strip fits inside. If it's too wide, you can trim off the clear protection to 12mm—just be careful not to cut into the LEDs! ;)

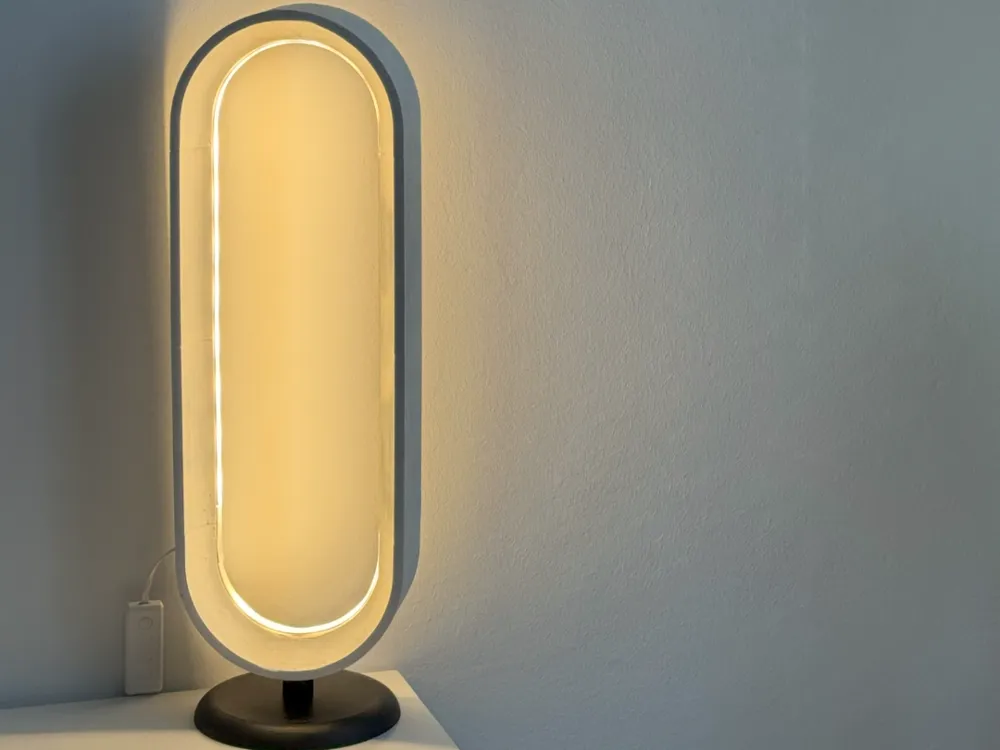

The diffuser seen in the picture is from amazon.

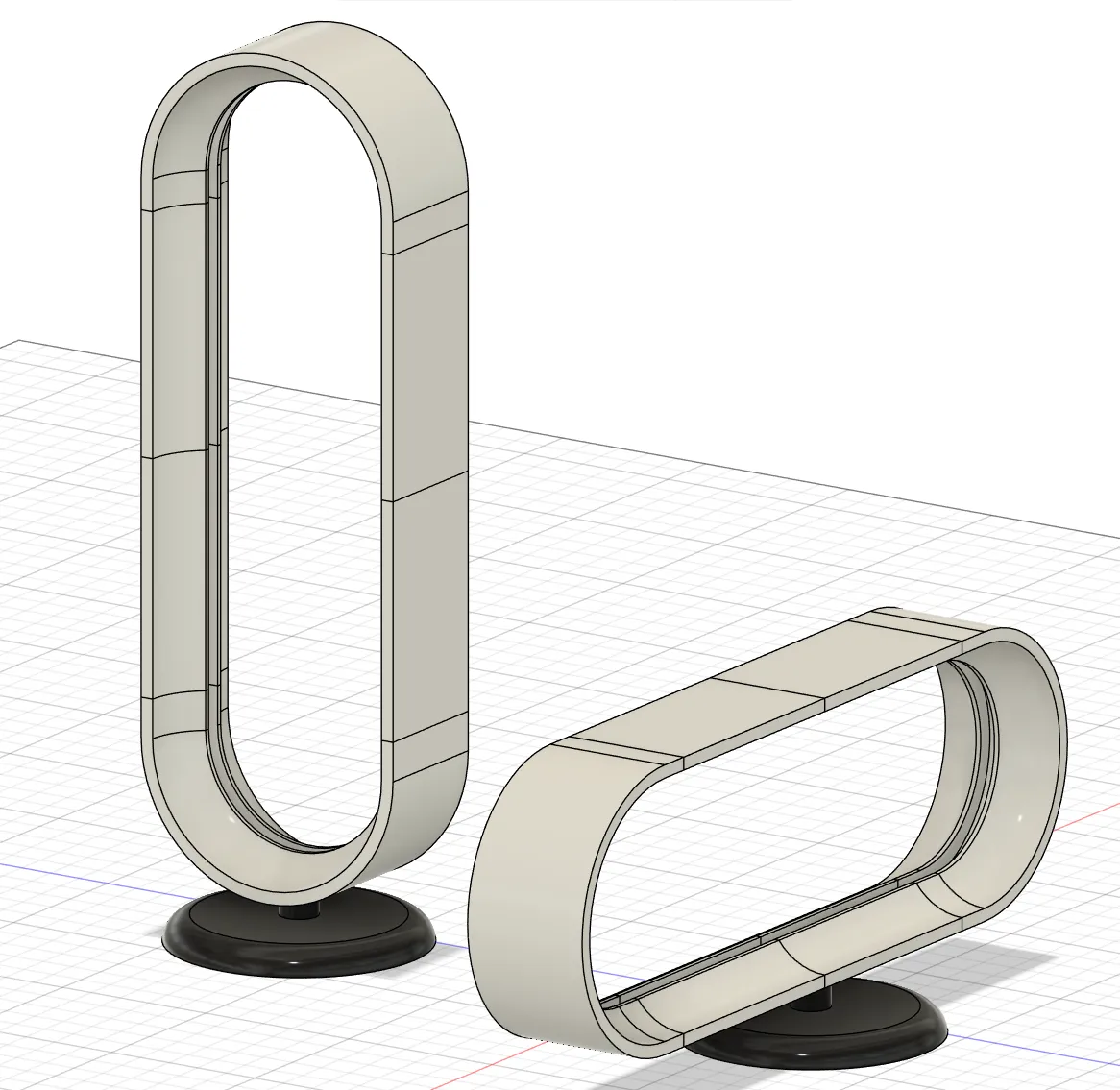

For assembly, please refer to the picture:
- Top Piece: Lamp Top
- Top Left Piece: Lamp Piece 1
- Top Right Piece: Lamp Piece 2
- Bottom Left Piece: Lamp Piece 3 (Screw)
- Bottom Right Piece: Lamp Piece 4
- Bottom Piece: Lamp Piece 5
- Base Piece: Lamp Base
Screw the base into the screw hole of your choice: either Lamp Piece 3 or Lamp Piece 5.
You could, in theory, expand the lamp to your desired height—just print Lamp Piece 1 and Lamp Piece 2 more often.
