Description
Content has been automatically translated.

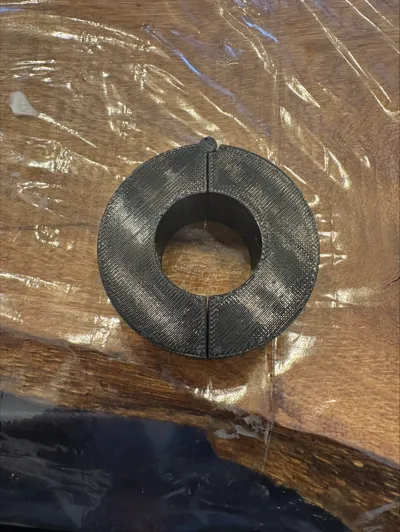

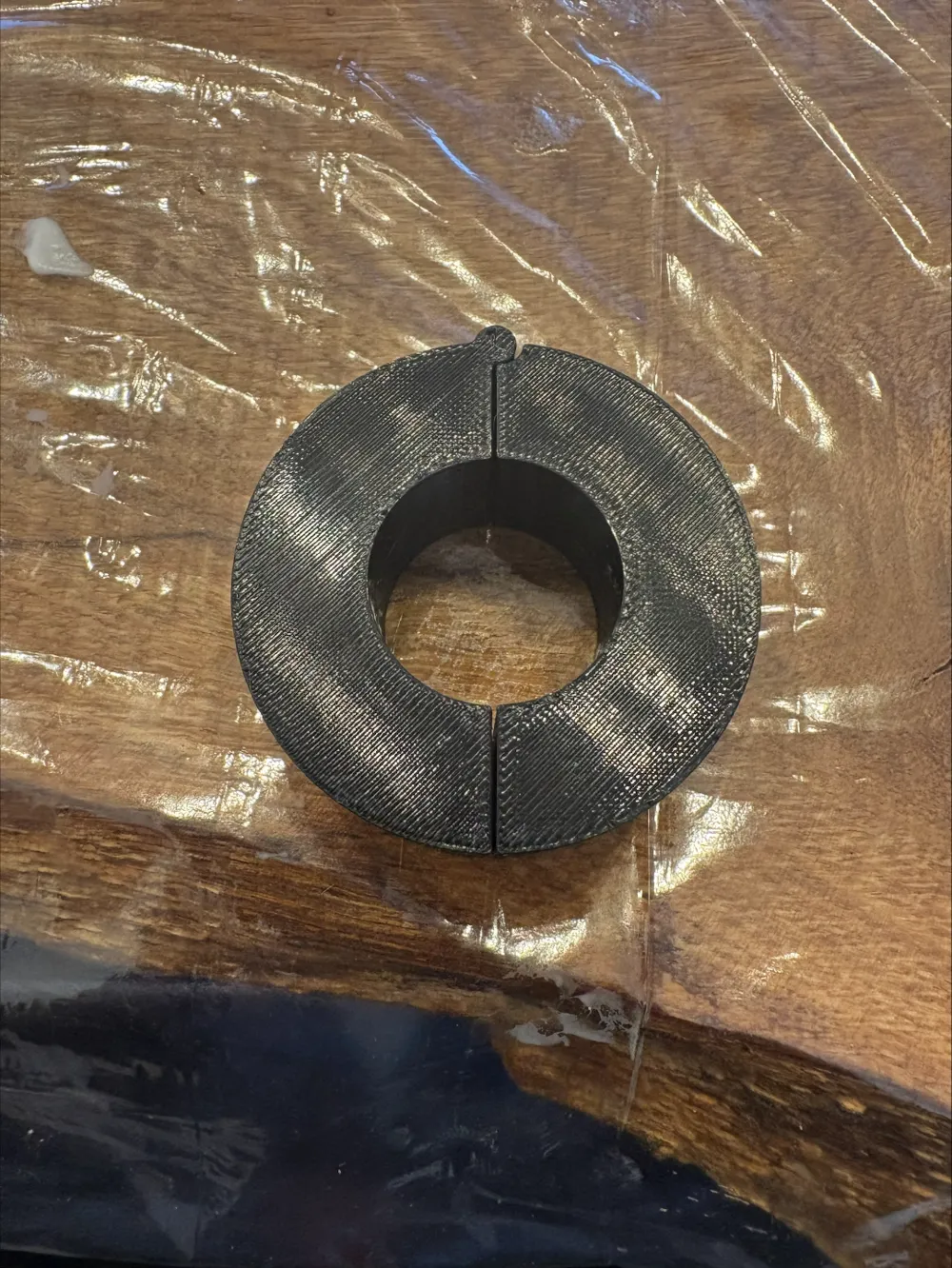

This ring, with an inner diameter of 26.5 mm, was designed by me to close the gap between the grip and the handlebar controls. Dimensions 55mm x 22mm. The inner diameter is 26.5 mm.

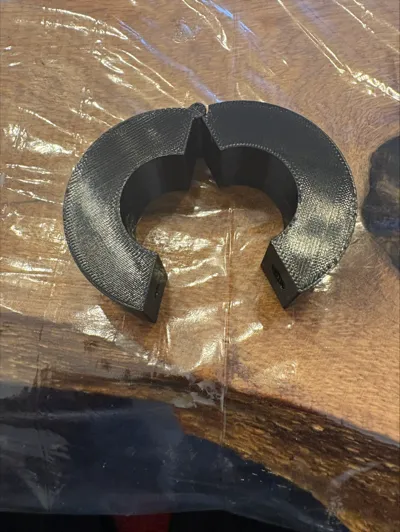

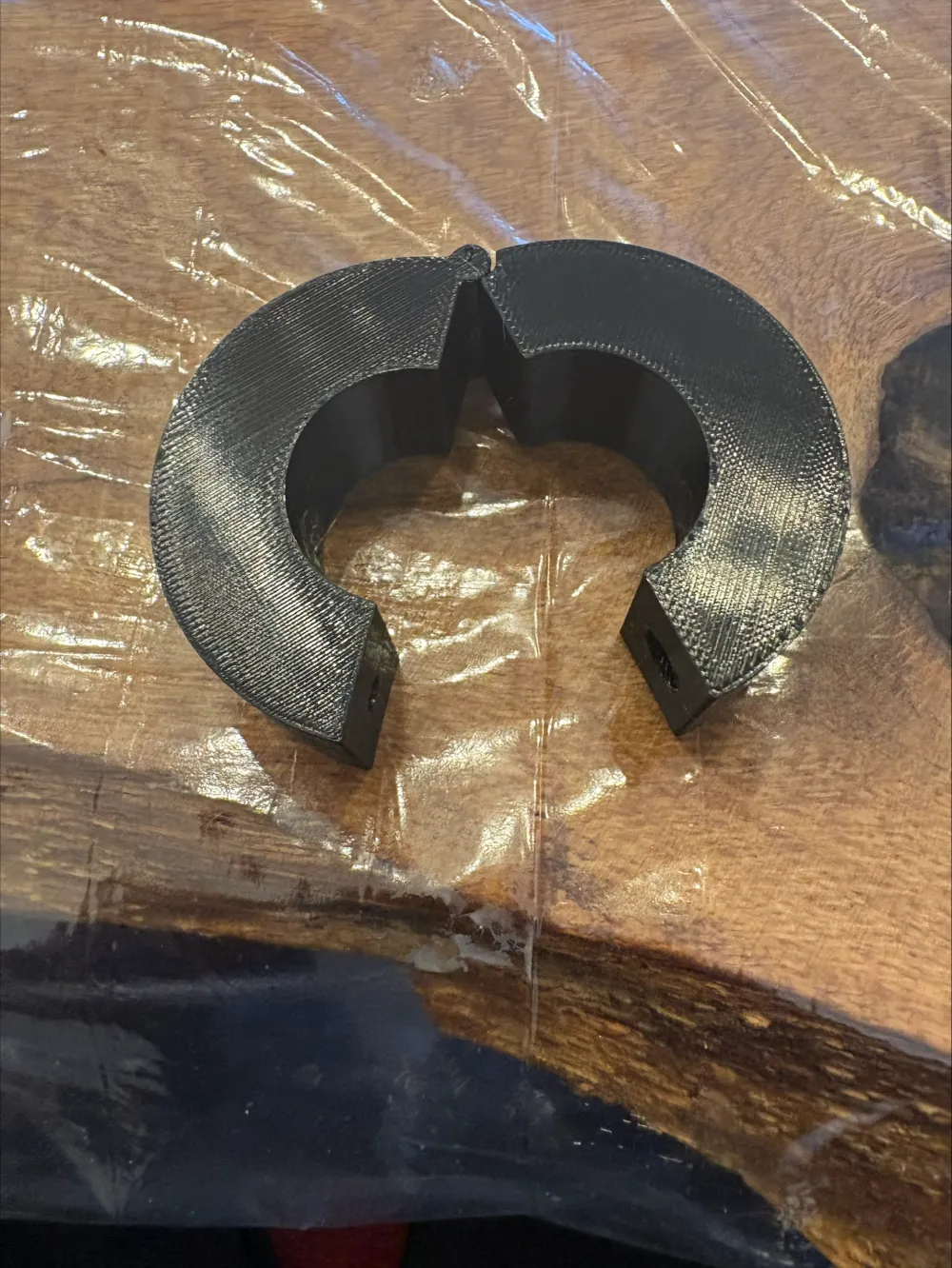

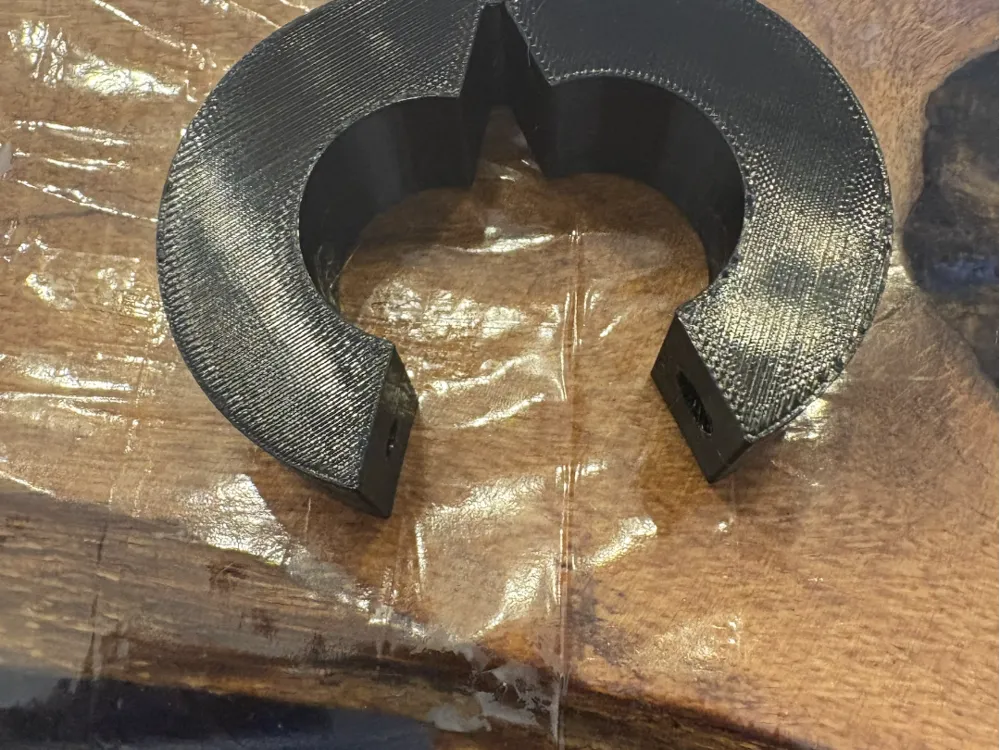

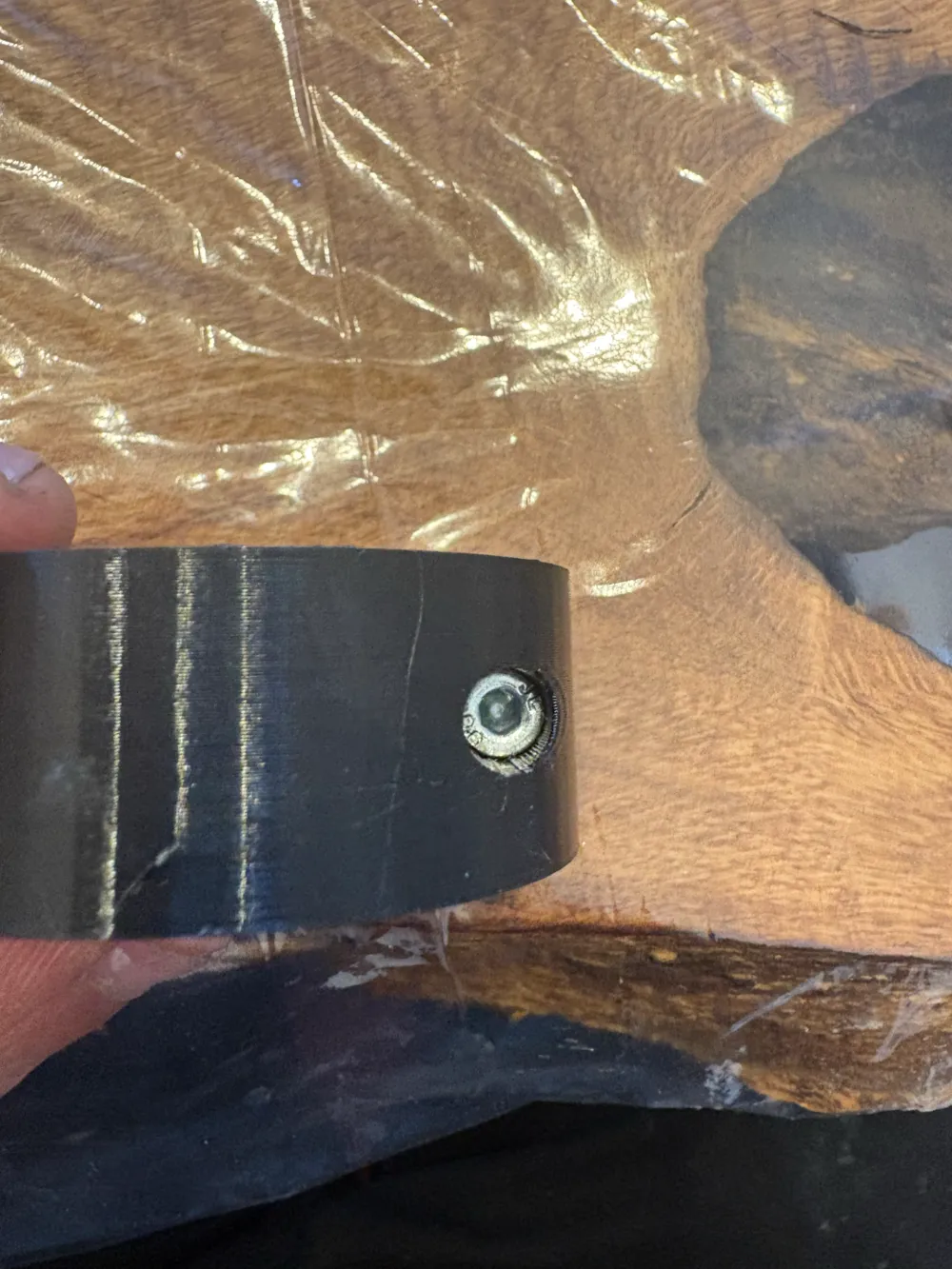

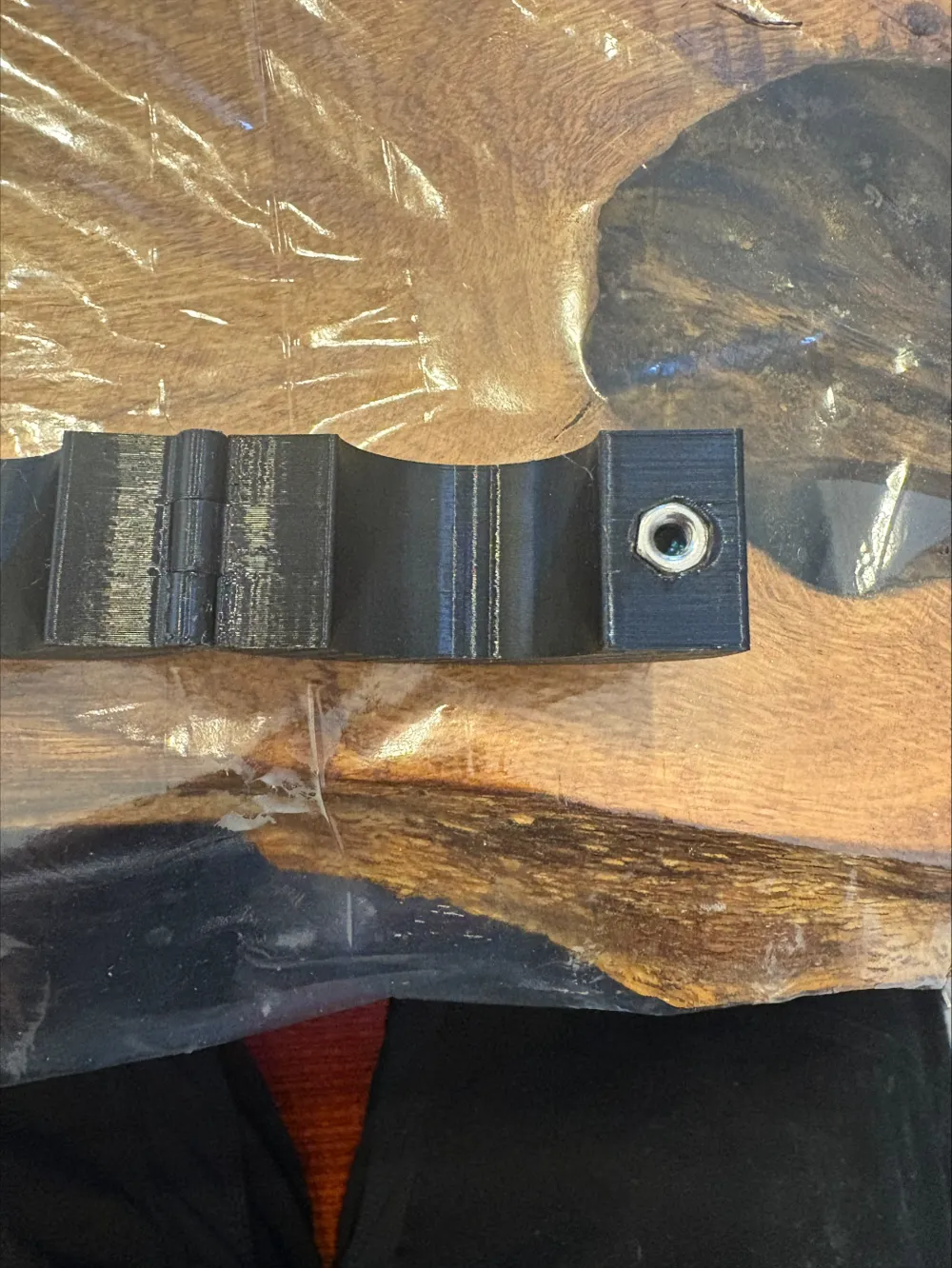

To install this ring on the handlebar without removing the grips, I have attached a hinge and embedded an M4 lock nut on the other side, which can be tightened with an M4 x 12mm hex screw. Black PETG was used.
