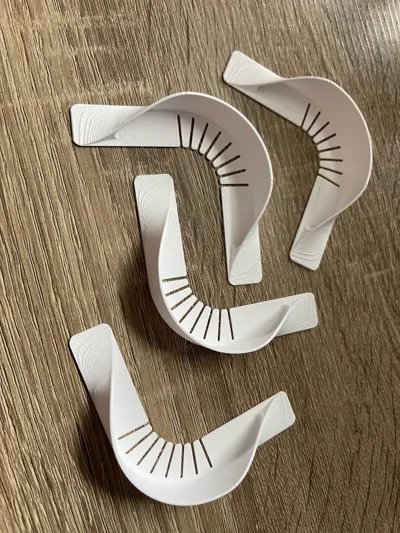

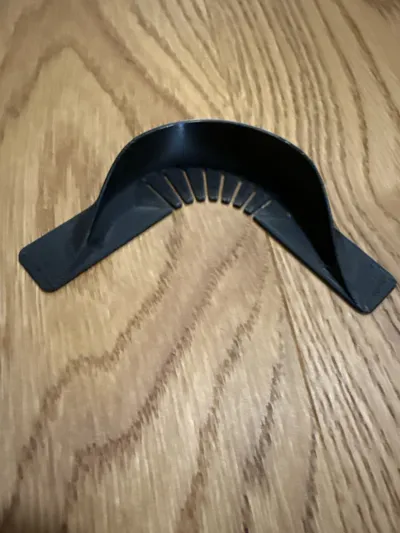

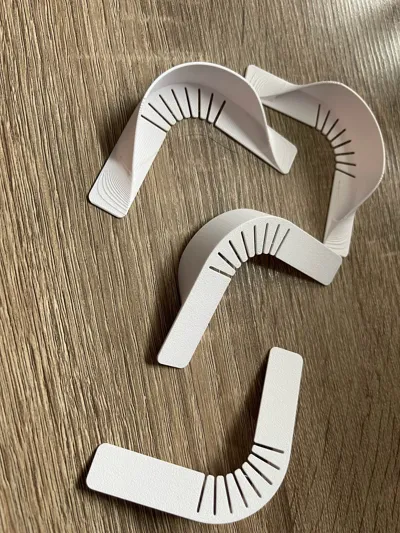

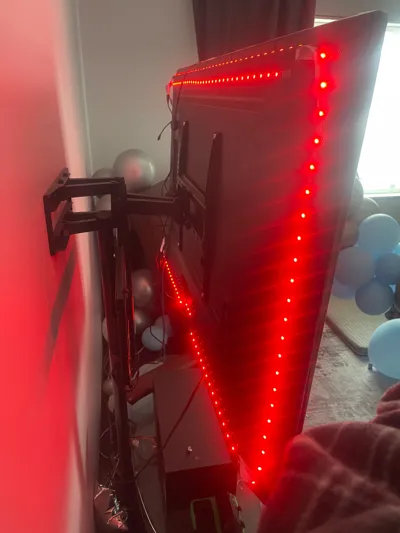

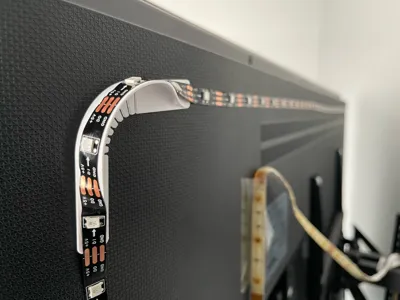

A guide suitable for getting ledstrips around a 90 degree corner. Especially useful for TVs, as this design makes sure there is no ‘empty’spot of lighting in the corners outside of the TV.

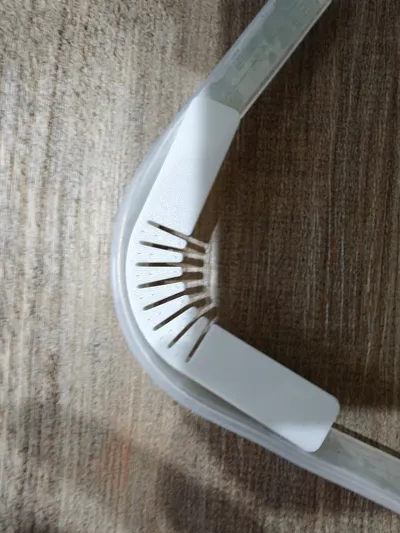

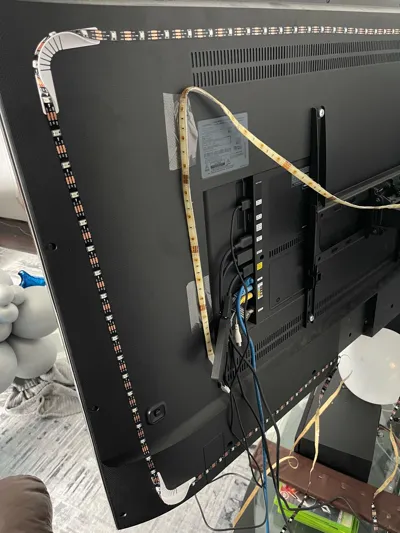

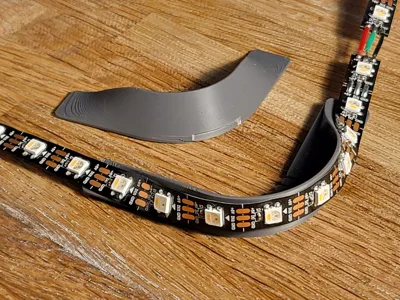

The base is flexible so it can adjust to the surface and the angle can be precisely set to 90 degrees. My recommendation is to first attach the ledstrip to the guide, and then the guide to the TV or other surface. This way the ledstrip can be set in the desired angle (90 degrees or slightly different than that if wanted)

Suitable for ledstrips up to 15 mm. Bigger is possible but it will stick out a bit from the print. Use double sided tape to attach it to the surface.
