Description
Summary

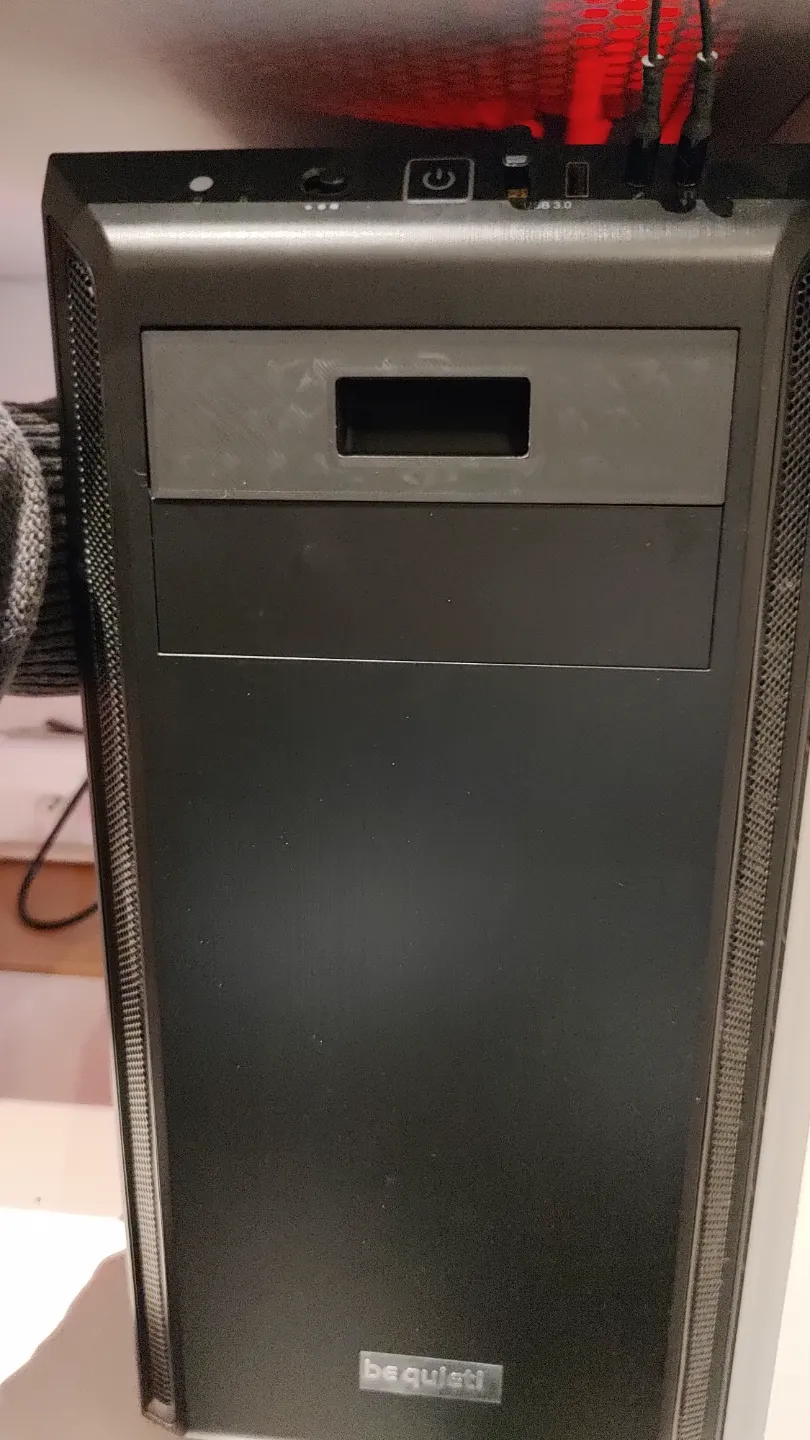

- I designed this model to provide an ideal place for USB, SSD, SD, micro SD and other PC components.
Specifications
- Parts were printed on a smooth PEI plate with PLA matte black.

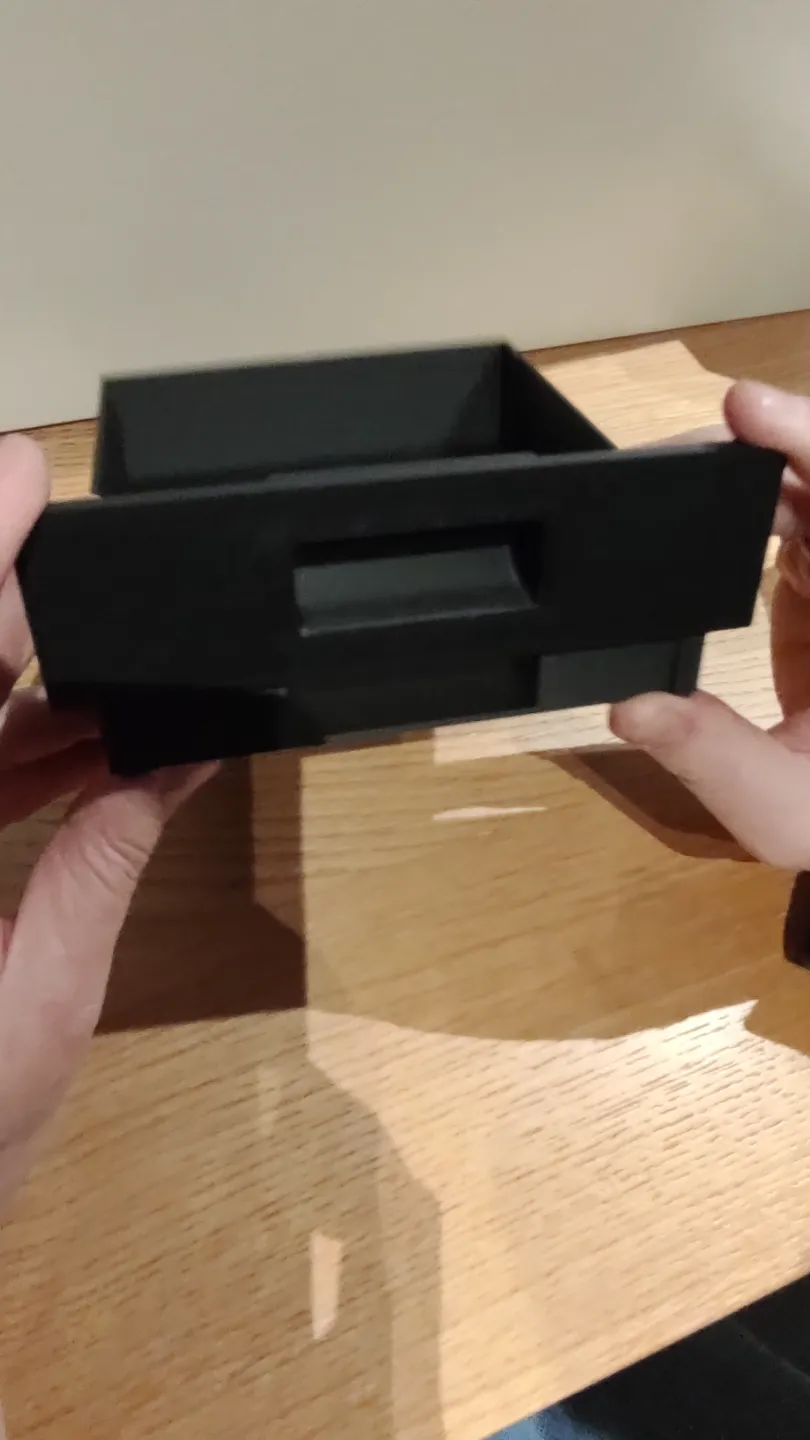

- Drawer has an inward handle for aesthetics.
- The drawer is completely removable but is equipped with locking tabs so that the drawer clicks closed nicely.
Dimensions : BxDxH

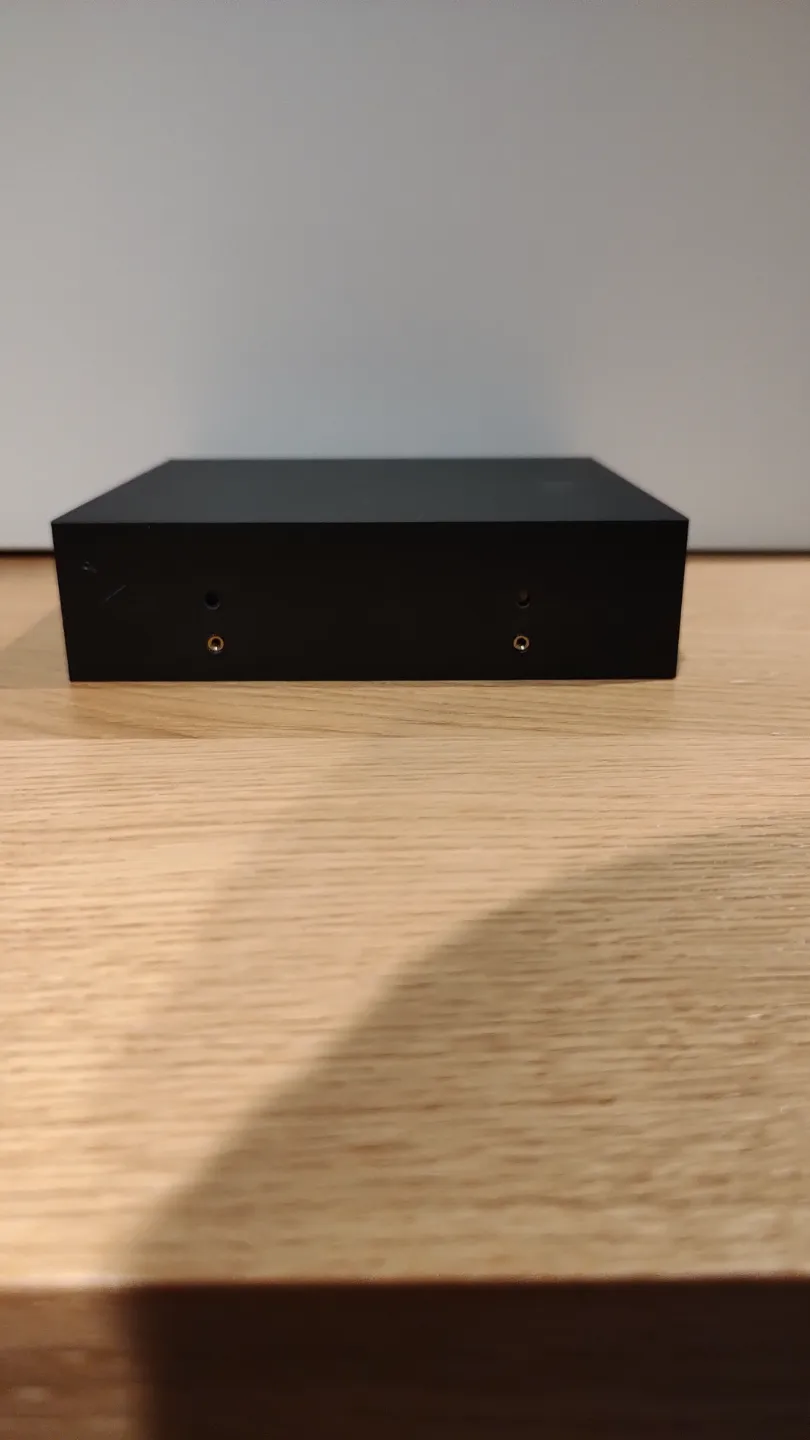

- Rack : 146x158x41,5
- Drawer : 136x165x36,5
- Front : 150x5x41,5
Assembly
- Remove the support

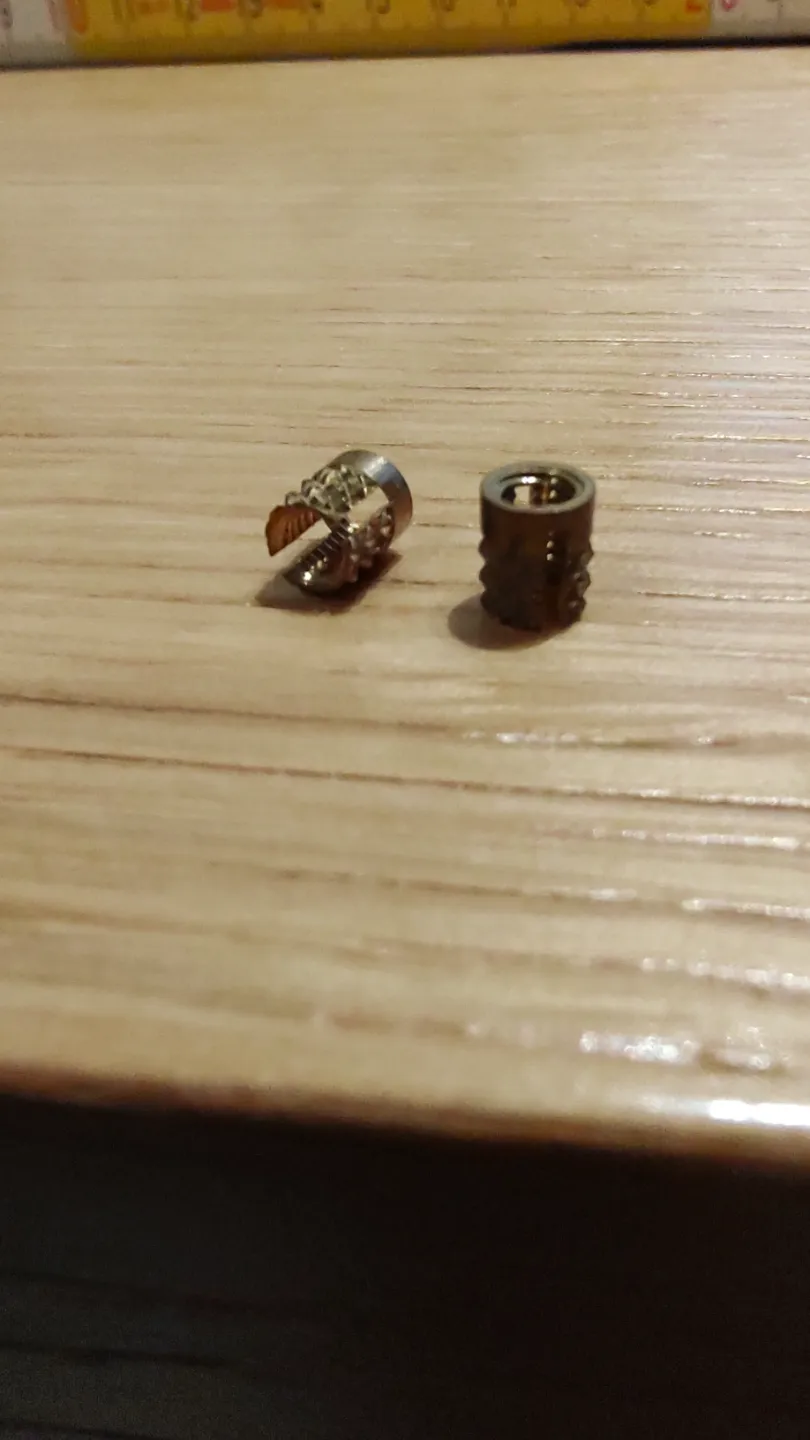

- If the case is not equipped with a pull and click system, M3 inserts (see image above) must be mounted. This is best done with a soldering iron.

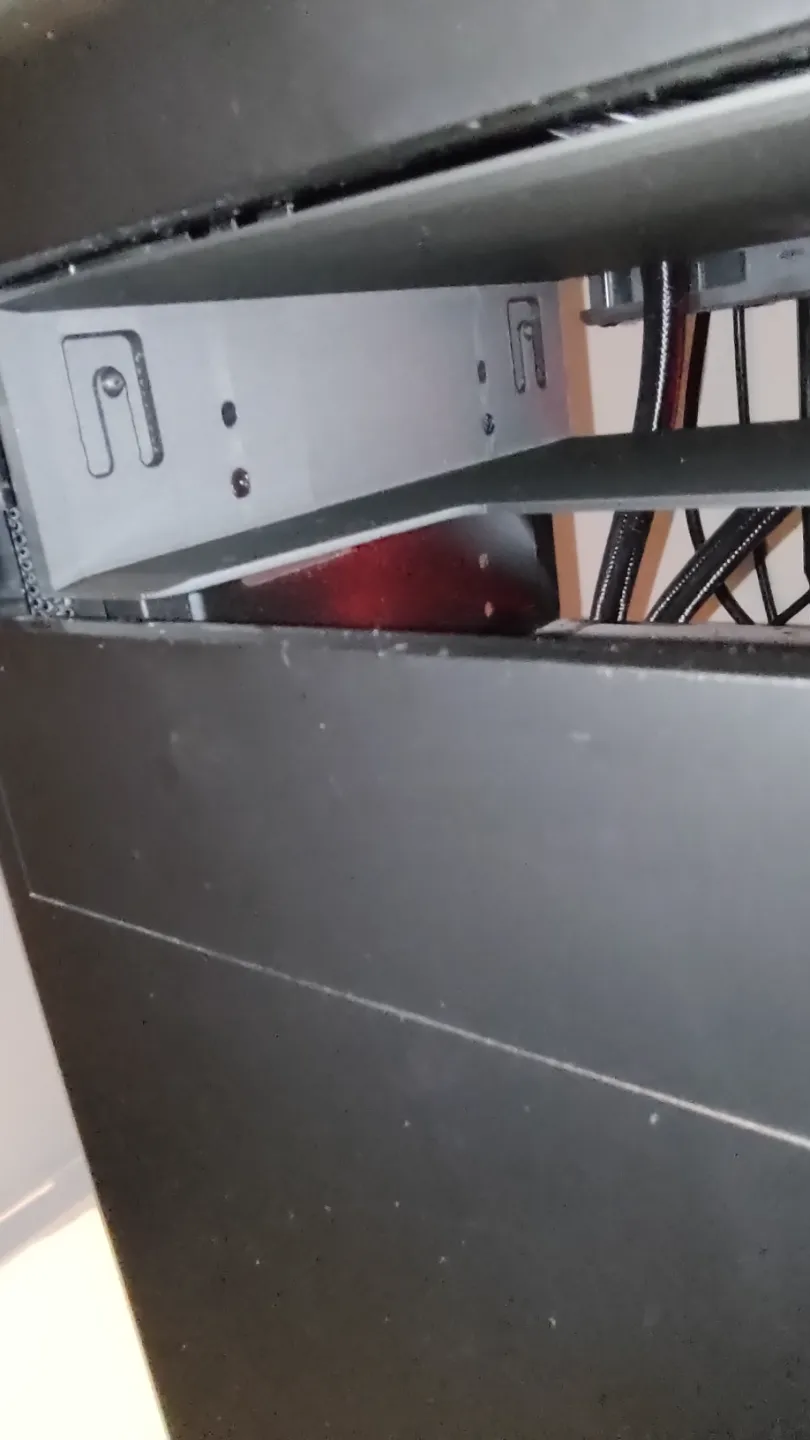

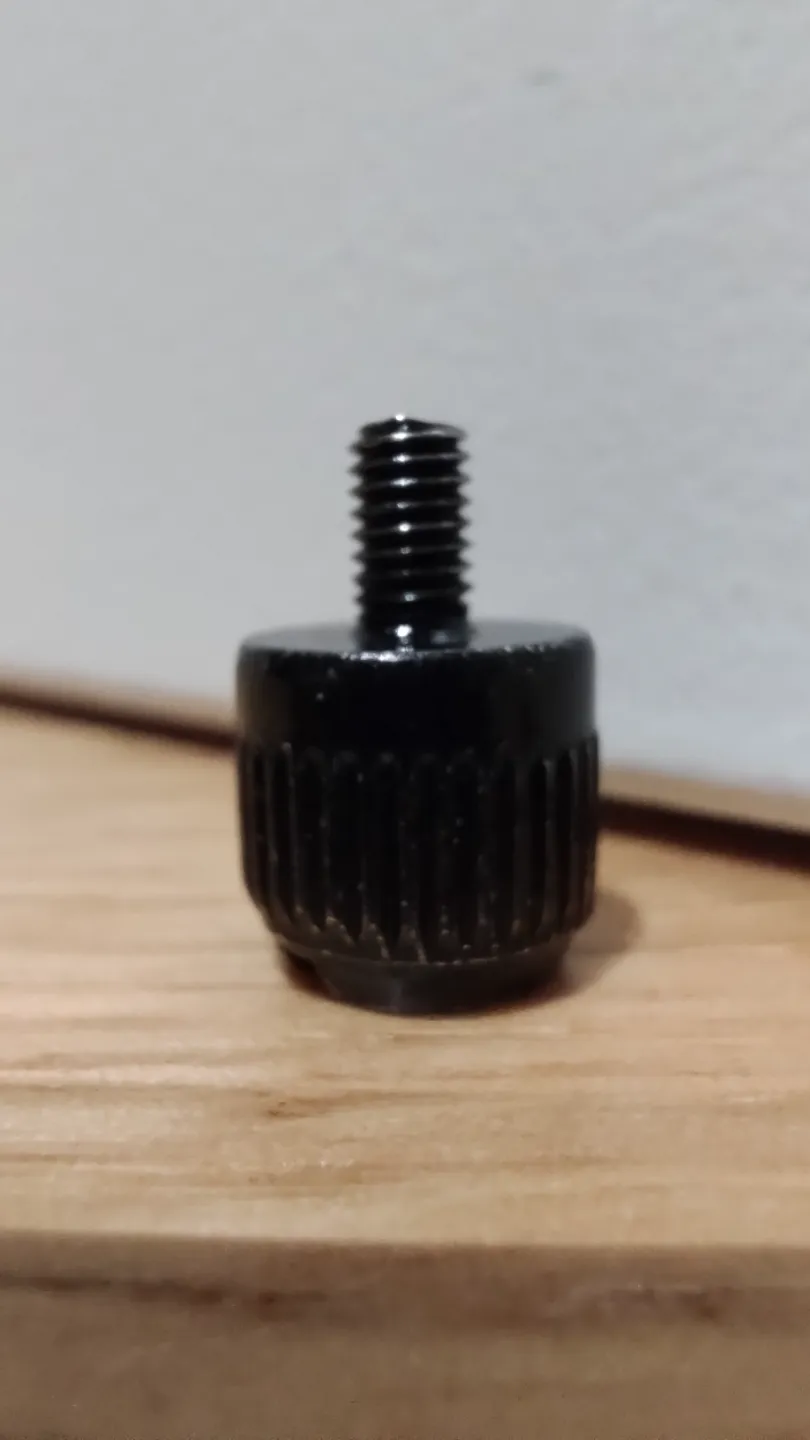

- Slide the rack into place taking into account the small arrows. Screw or click to secure the rack.

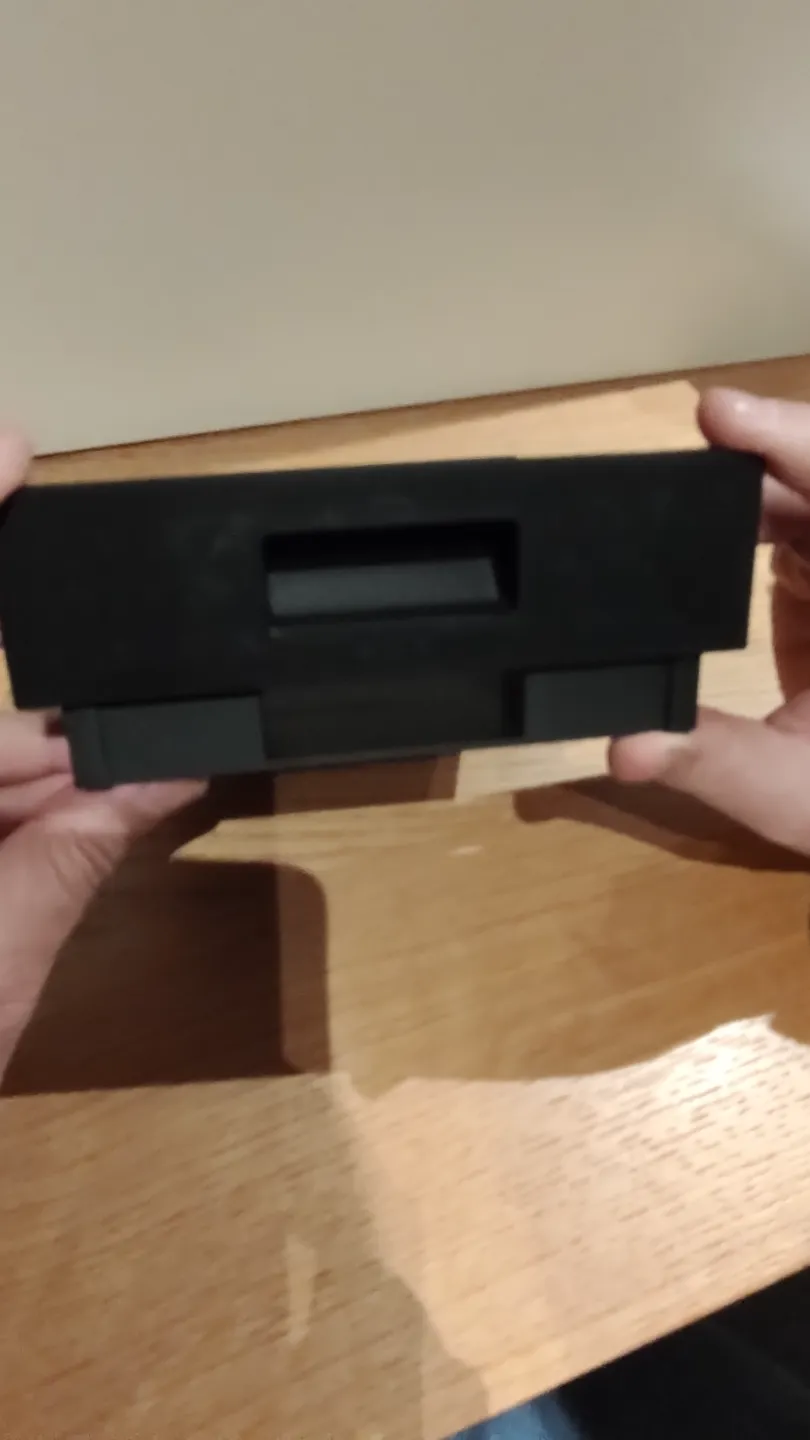

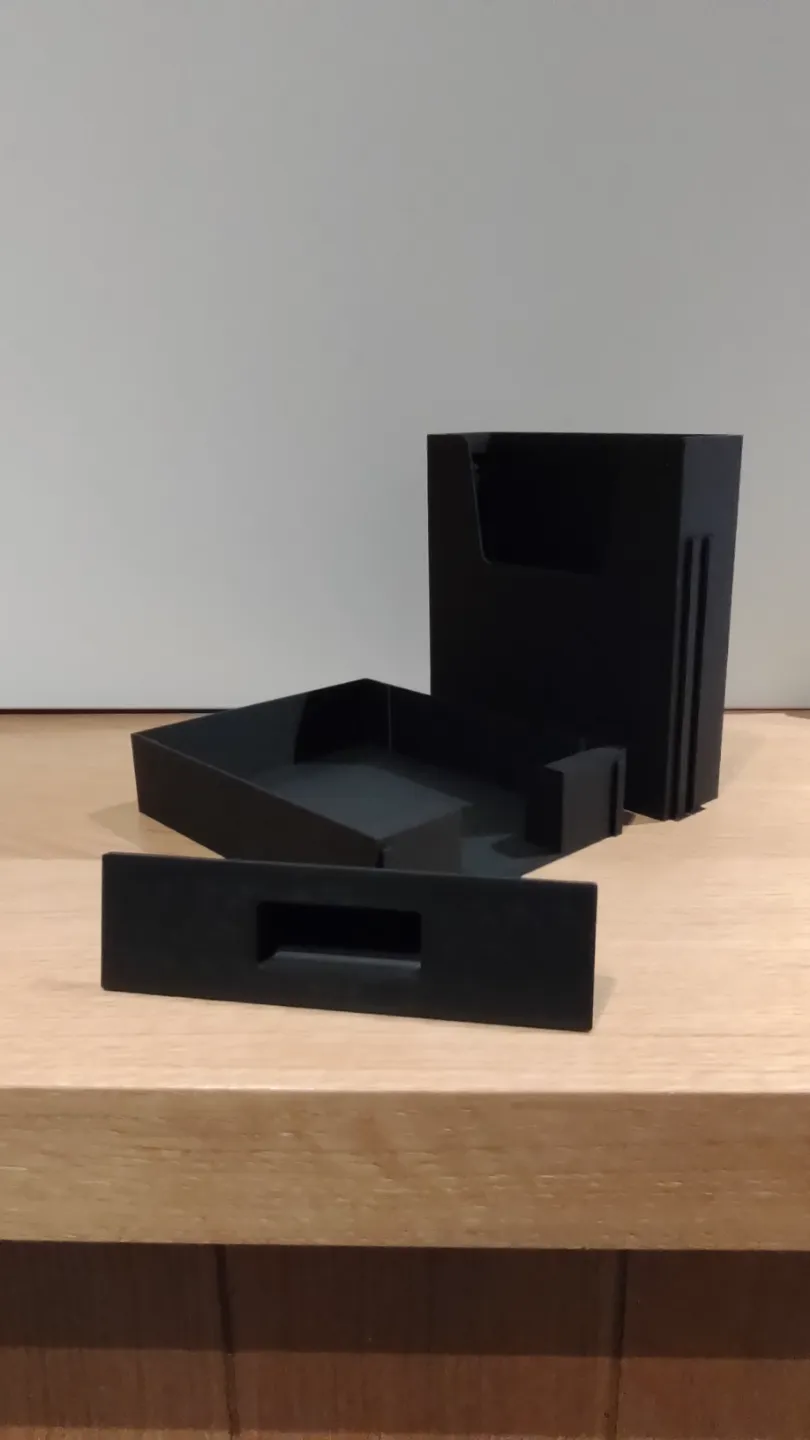

- Connect front and drawer with the dovetail slide connection. This should fit firmly.

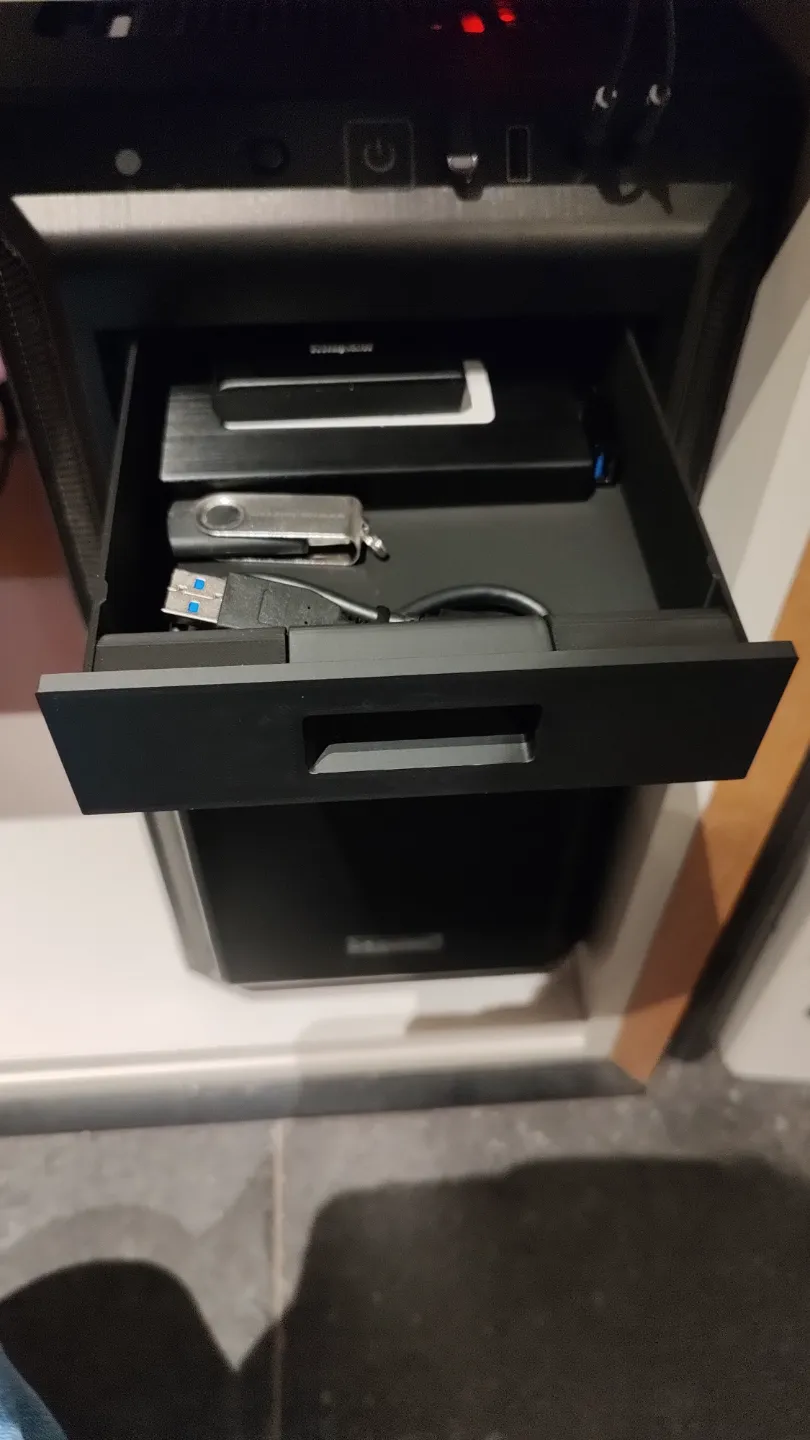

- Fill the tray with desired components.
On makerworld you can find all kinds of models for organizing the drawer. If you have any suggestions or anything specific to this design, please leave a message!
