Automatic Latch - Bolt
Print Profile(1)
Description
Fully Functional Latch/Bolt
Printing in PETG is recommended. The body can be printed in PLA, but parts 3 and 5 should be printed in PETG at minimum.
No supports required.
ASSEMBLY
1) Position the latch as shown in the image. The latch notch should face downwards from the second opening.

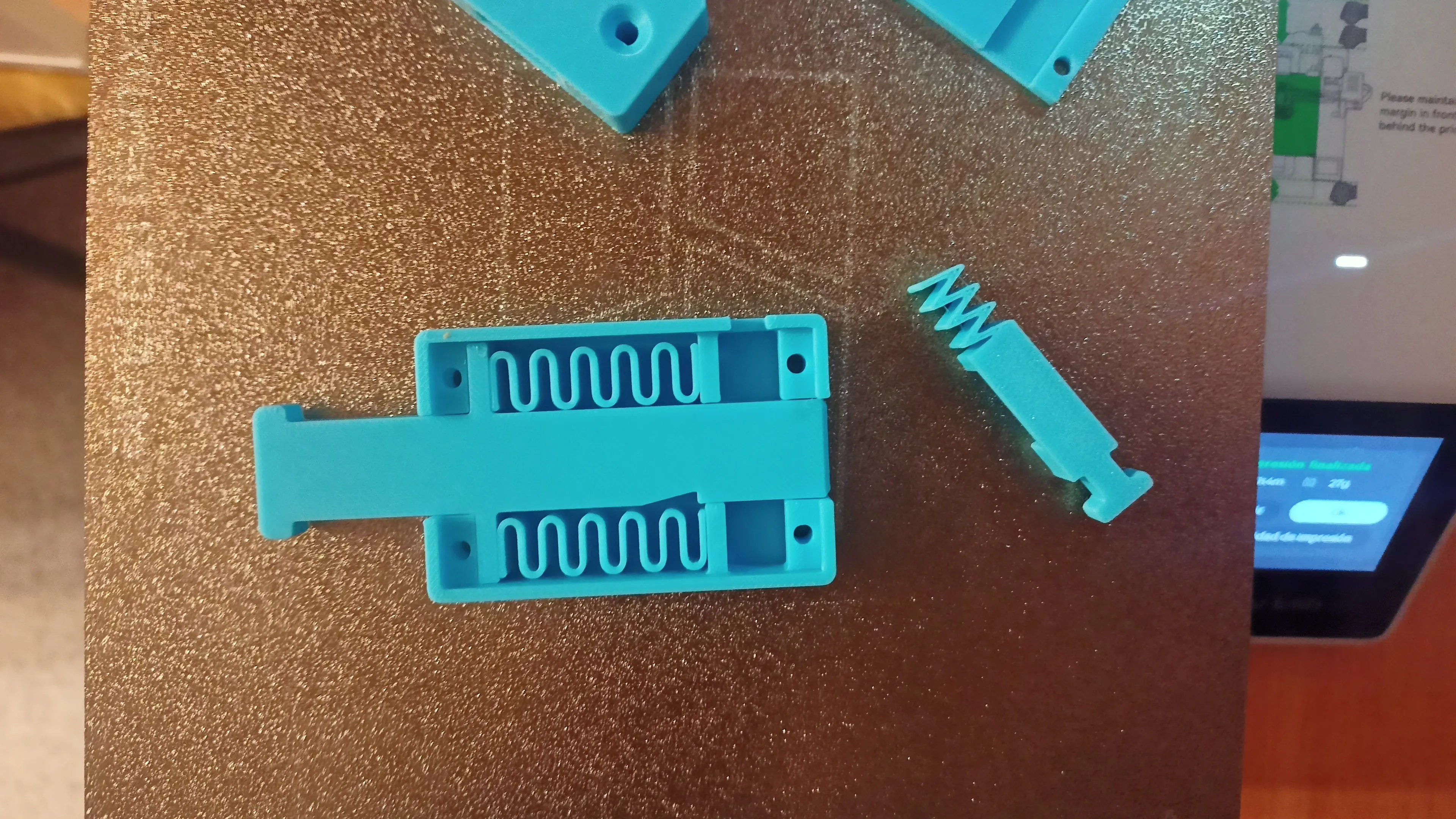

2) Install the springs in the recesses. If printed in PETG, both springs are required.
If printed in PLA, only one is needed, but flexibility will diminish over time.

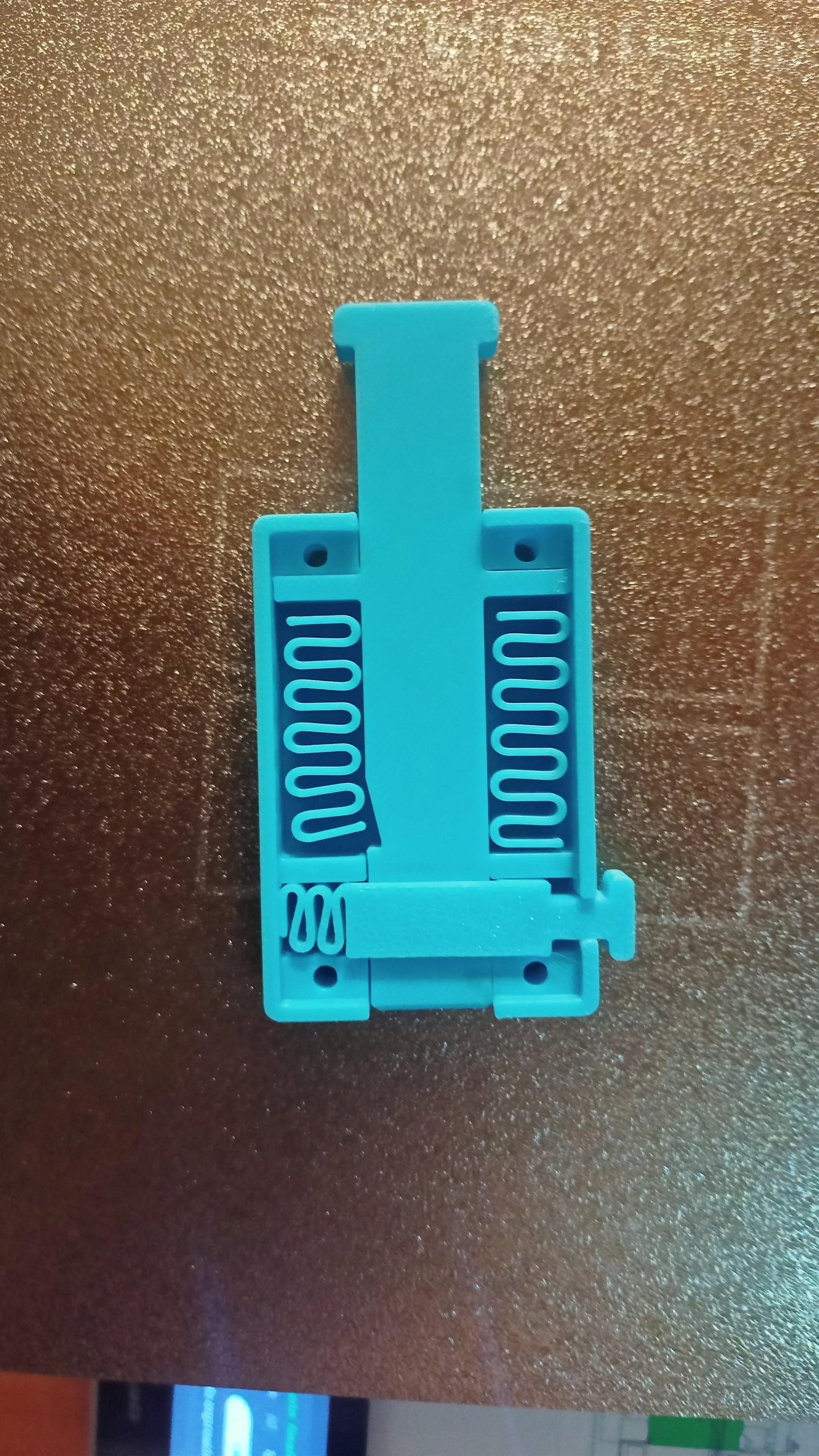

3) Install the catch with the button in the opening. DO NOT PRINT IN PLA
Note: There is a slight variation in its shape, but this does not affect functionality.
3) Finally, attach the cover. It has a notch through which the catch passes. And that's it!
