mini server rack

I designed a mini server rack with slots for 5 drawers. I designed drawers to hold:

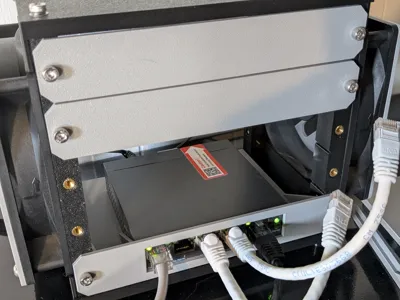

• PoE switch

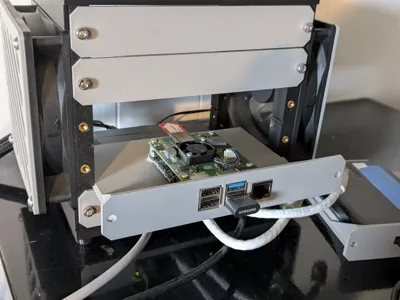

• Raspberry Pi 4 with PoE hat
• Raspberry Pi 5 with PoE hat

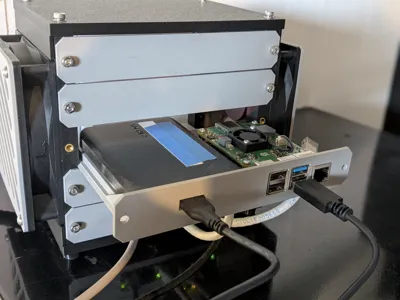

• Raspberry Pi 4 along side Toshiba

• SSD
• Cover for empty slots

It is assembled with M4 heat set inserts and M4 screws. A vertical heat press is very helpful in getting the heated inserts installed straight. It features 120mm fans on each side (one blowing in and one blowing out) to keep everything cool. I have included the native FreeCAD file so that the drawers can be adapted for all kinds of other electronics. The drawers are printed with tree supports from the bed only. The feet are printed in TPU for vibration dampening.

Amazon affiliate links (that help support my work):

PoE switch: https://amzn.to/4mT2ca5

Raspberry Pi 4: https://amzn.to/42NzpN5

Raspberry Pi 5: https://amzn.to/48ilphS

PoE hat for Raspberry Pi: https://amzn.to/4gZUCJm

Toshiba SSD: https://amzn.to/46PvMaj

assorted metric screw kit: https://amzn.to/46PvQH5

assorted heat set insert kit: https://amzn.to/4mWiEGx

vertical heat set insert press: https://amzn.to/4o6X2Ix
