Dial Caliper 2.0
Print Profile(1)
Bill of Materials
Description
UPDATE
https://makerworld.com/en/models/1187828-dial-caliper-v-3-0#profileId-1199133

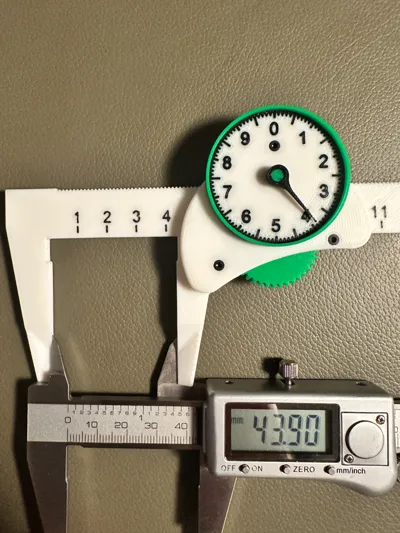

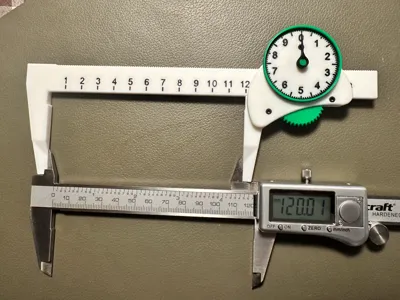

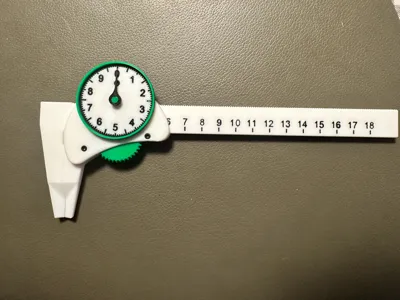

Dial Caliper with 0.1mm resolution.
This is my second version of a dial caliper. The improvements are:
-Indicator moves clockwise in positive direction
-One full revolution for each cm

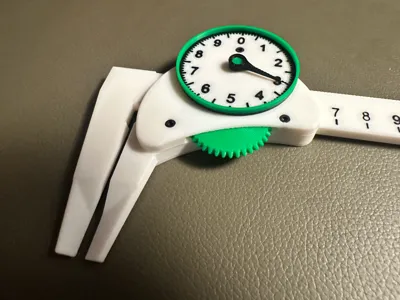

-Thumb wheel helps prevent gear backlash. Improves accuracy.
M2 screws 8 mm long are used for assembly. Can be bought from Bambu Maker's Supply. If you don't have suitable screws glue can be used instead.
I used PLA and PETG for support interfaces to improve supported surfaces. If you use the print profile, it is important to check the flushing volumes. Flushing volumes need to be set very high when switching both to PETG and back to PLA. I used max value, 800. This setting can not be included in the print profile, so you will need to change these values. PETG works well but special support filament is probably even better.
