Large, robust toolbox

Hello everyone again!!!

I have created a highly robust and large toolbox to store all those accessories from our 3D printing workshop or any type of object we desire. For me, it's the ultimate box!!!🤣🤣

And it's super robust!!!

The print profile comprises several plates:

Plate 1: Box

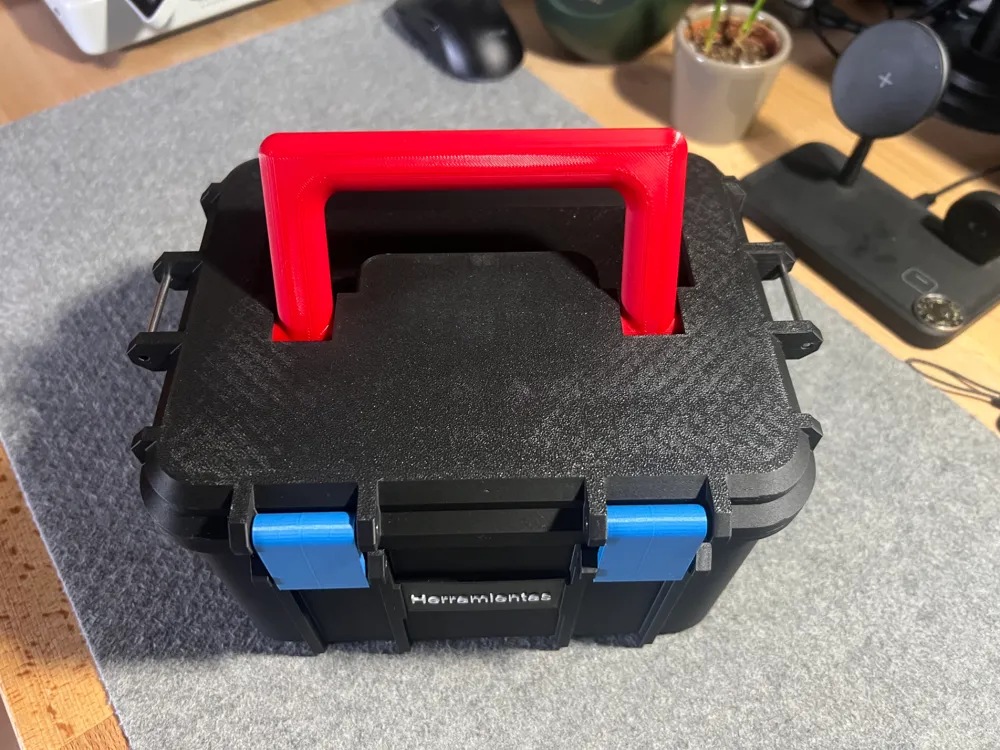

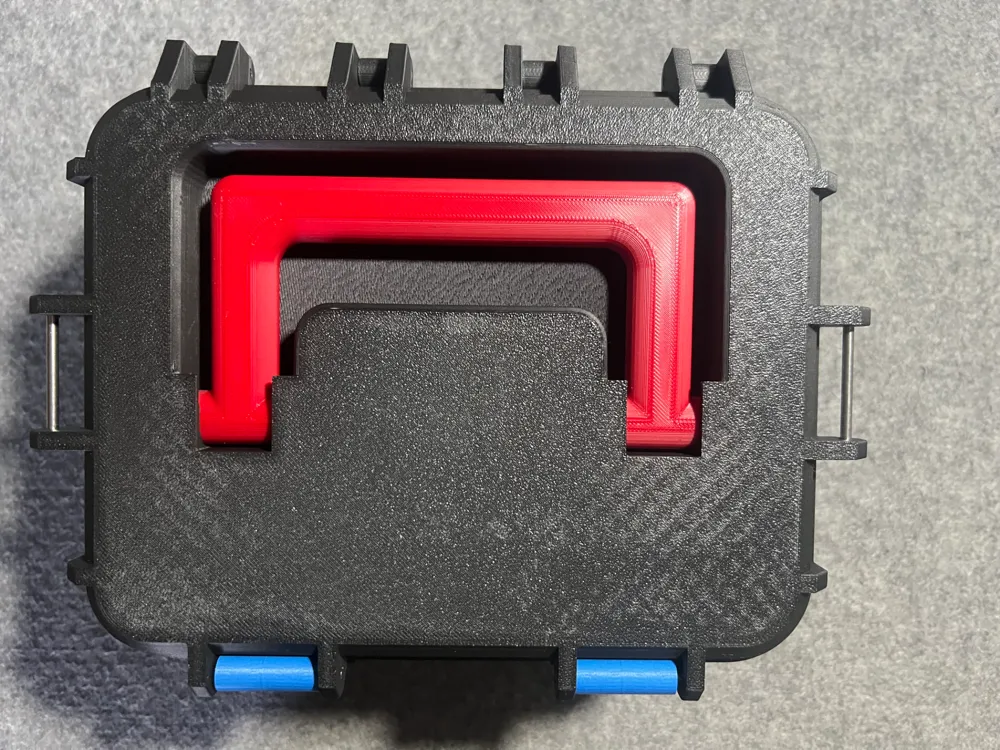

Plate 2: Lid with handle (Optional, there is a lid without a handle if you prefer)

Plate 3: Handle (Must be printed with the lid with handle)

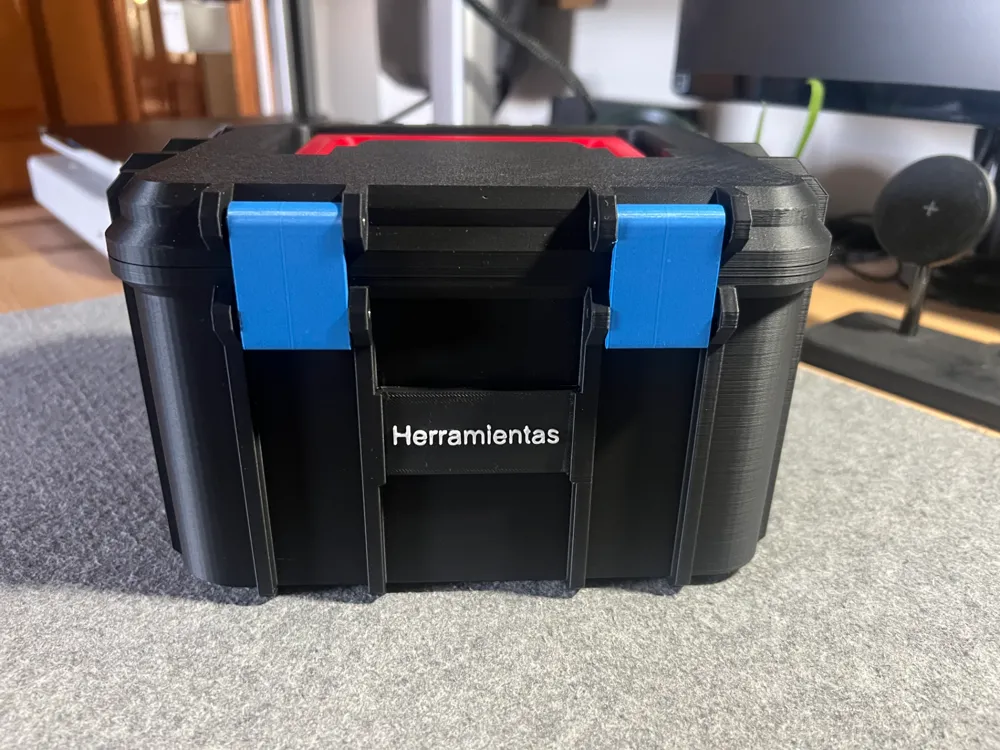

Plate 4: Box latches

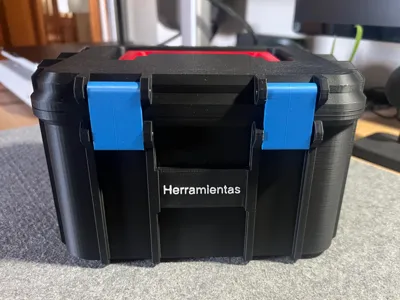

Plate 5: Label (You can add any text you like with BambuStudio) (Optional)

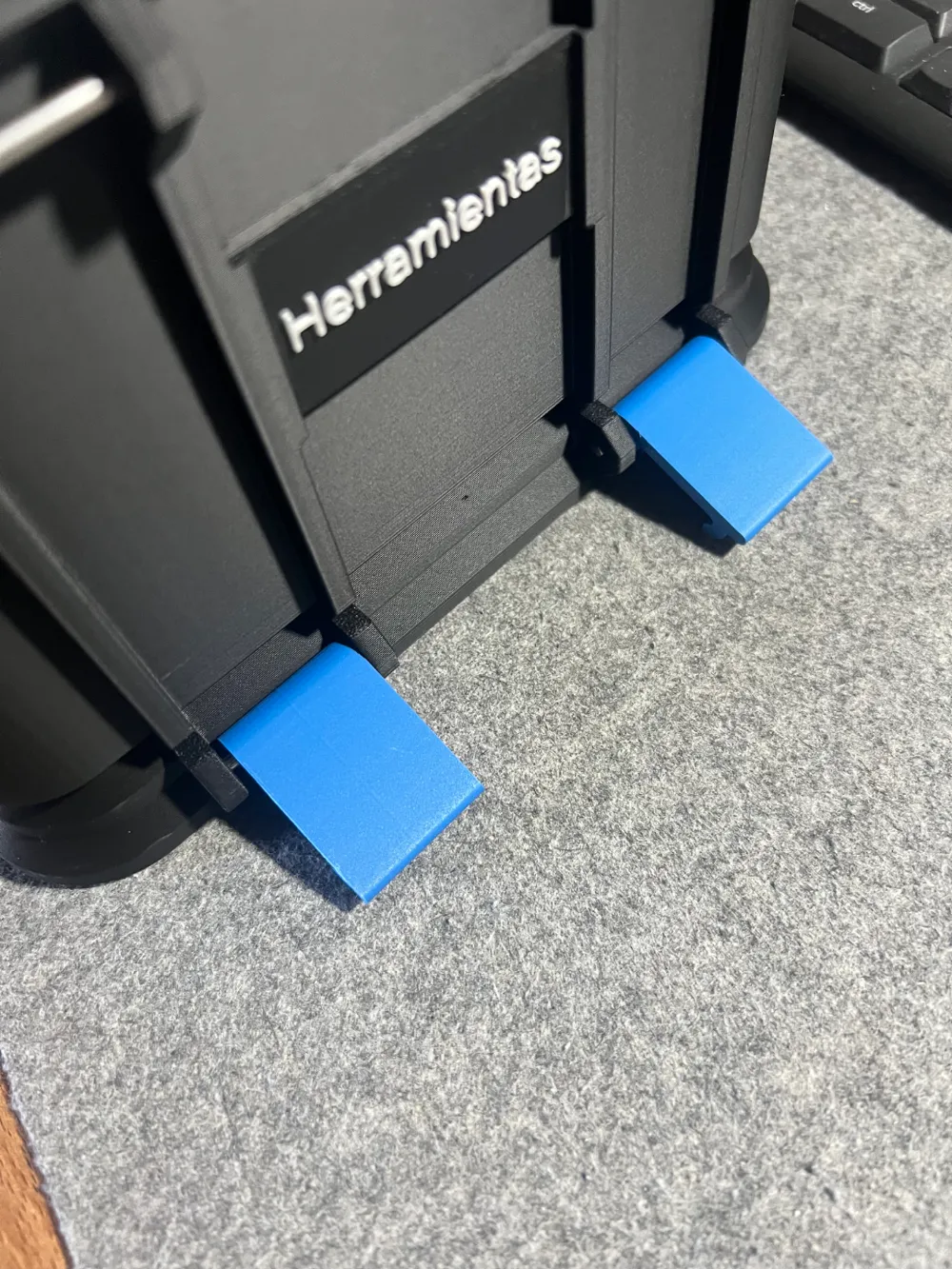

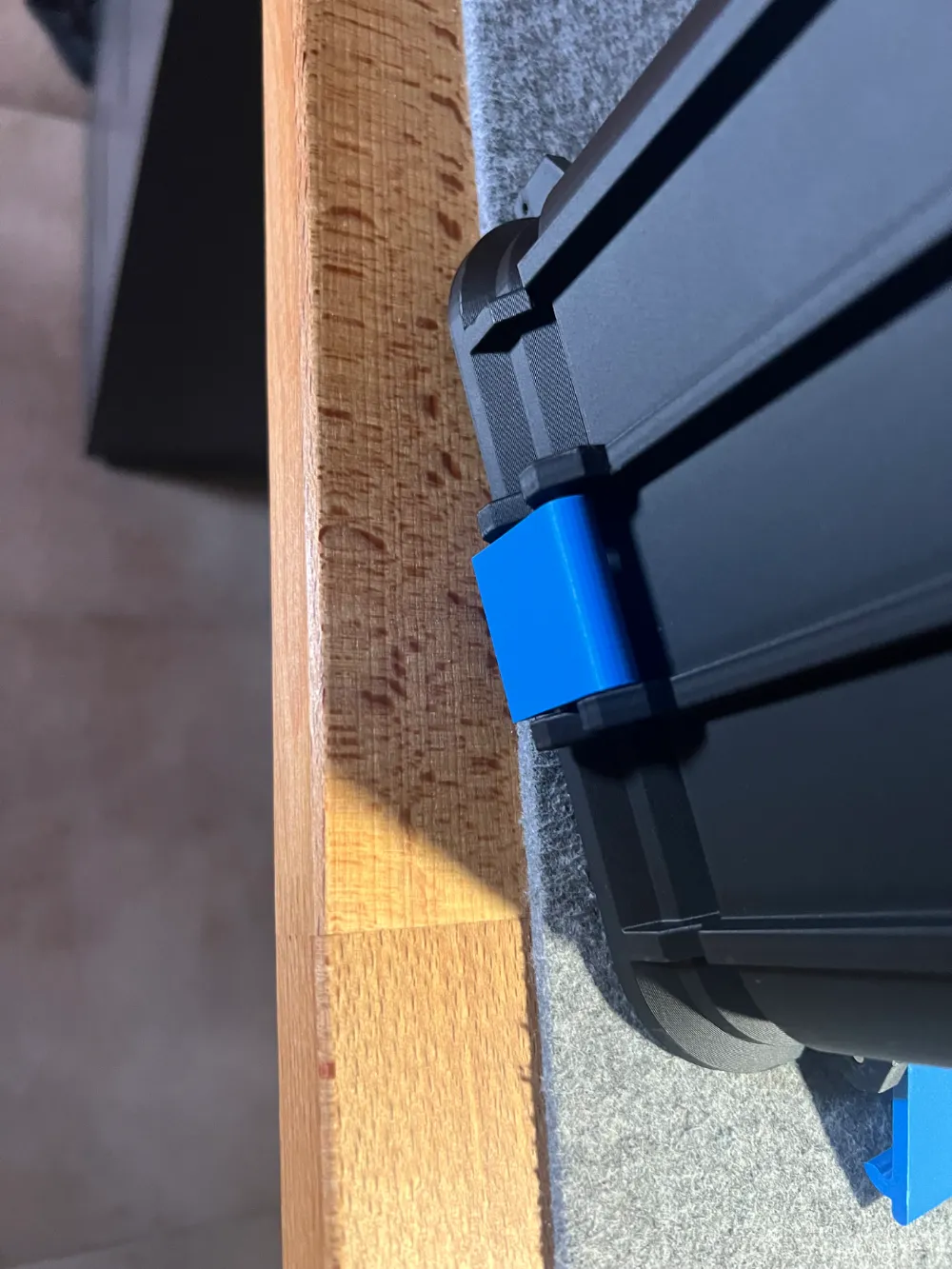

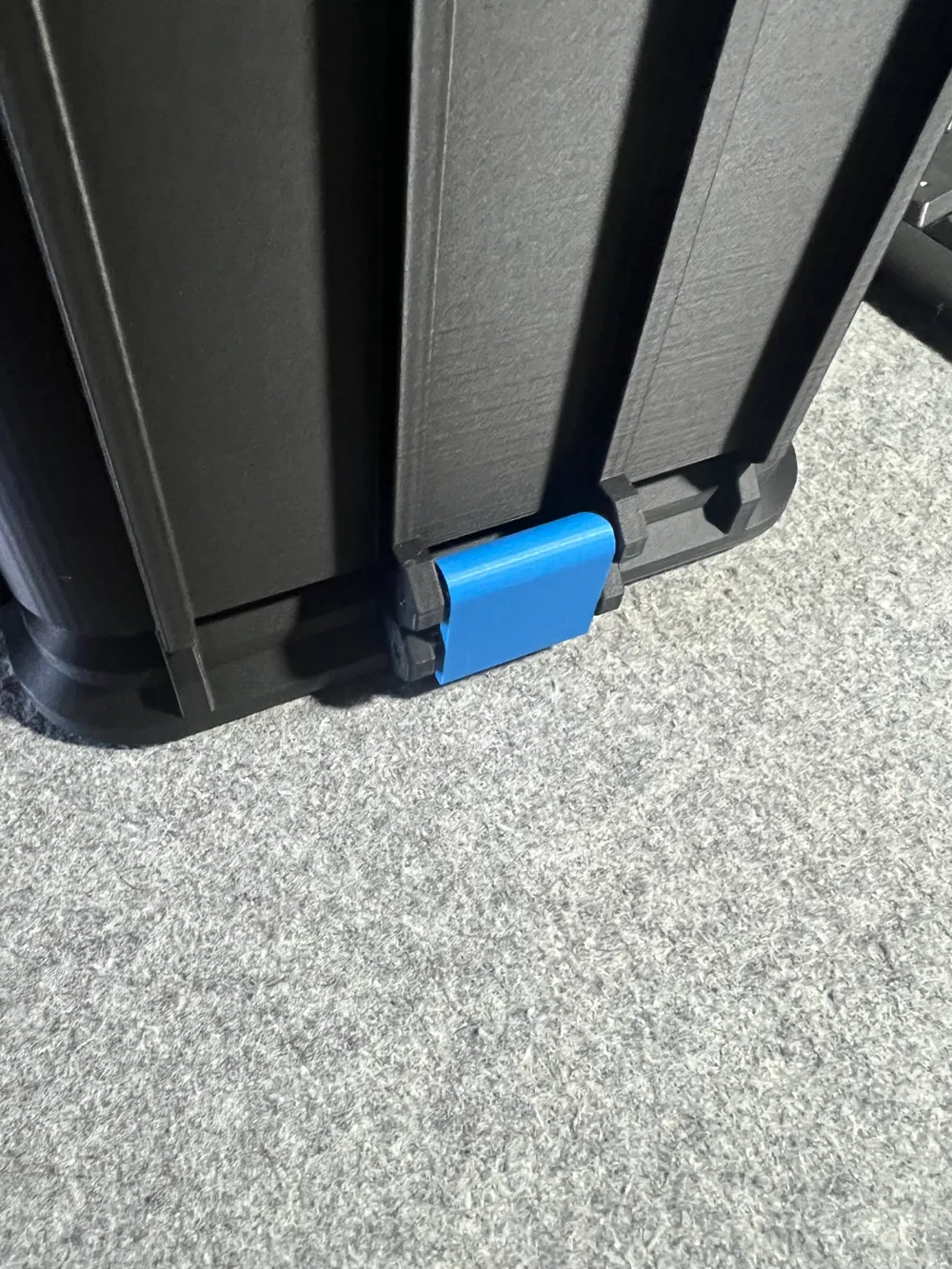

Plate 6: Side latches for joining multiple boxes (Print only if you are going to stack multiple boxes). They are put on and removed as needed; they are not fixed to the box. (Optional)

Plate 7: Lid without handle (Optional if you haven't printed the lid with handle)

Plates 8 and 9: Internal compartments to organize your objects (Optional)

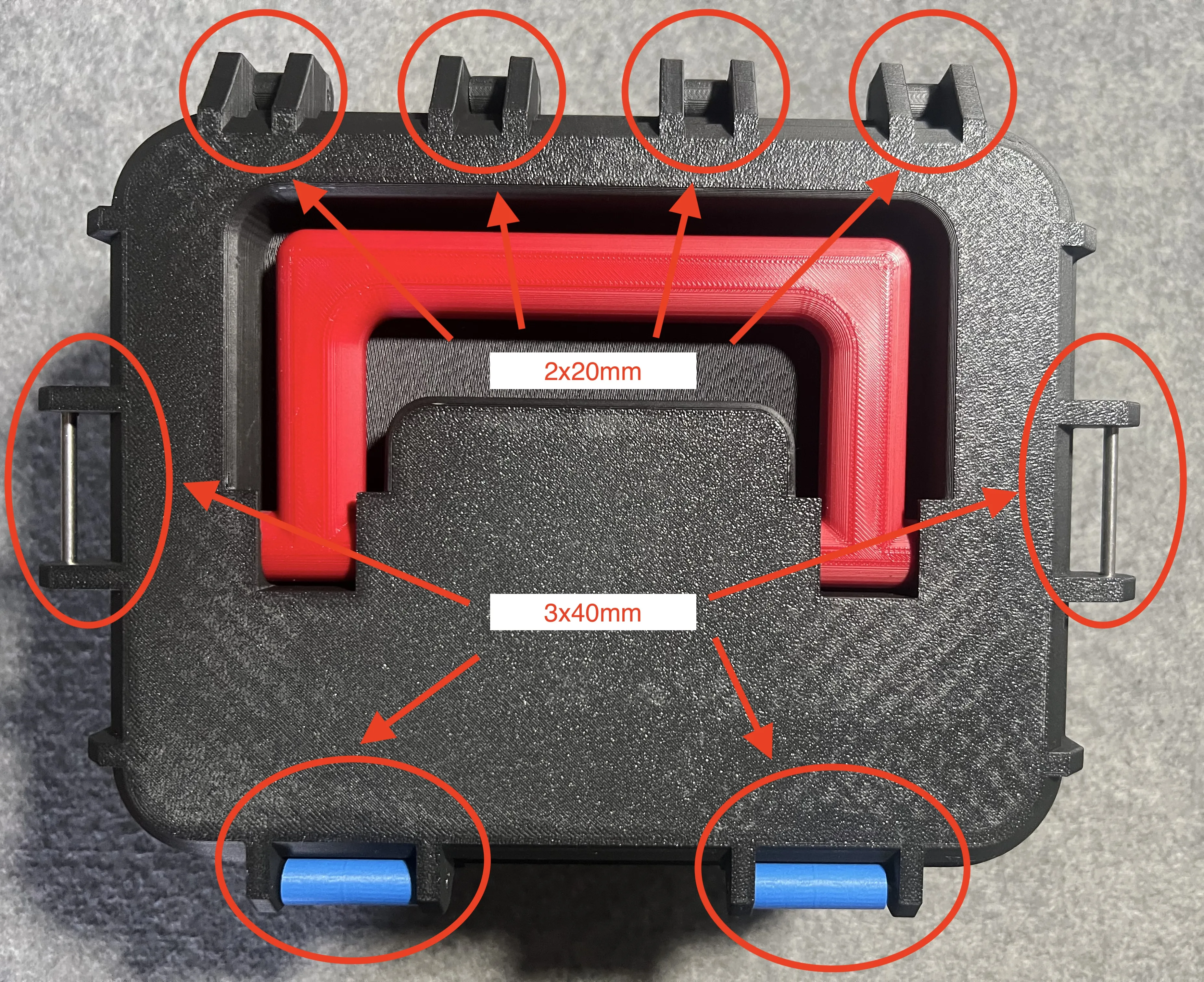

You will need steel pins to assemble all the parts.

• Four 2x20 mm pins are needed for the lid hinge.
• Four 3x40 mm pins are needed for the latch.

• Another four 3x40 mm pins are needed for the side connections (only if you are going to stack multiple boxes).



The pins fit very snugly to ensure they remain fixed, so you will need to use a hammer to put them in place.

It is not possible to use a hammer on the hinges. I inserted them slightly and then pushed them into place with a flat piece of metal.

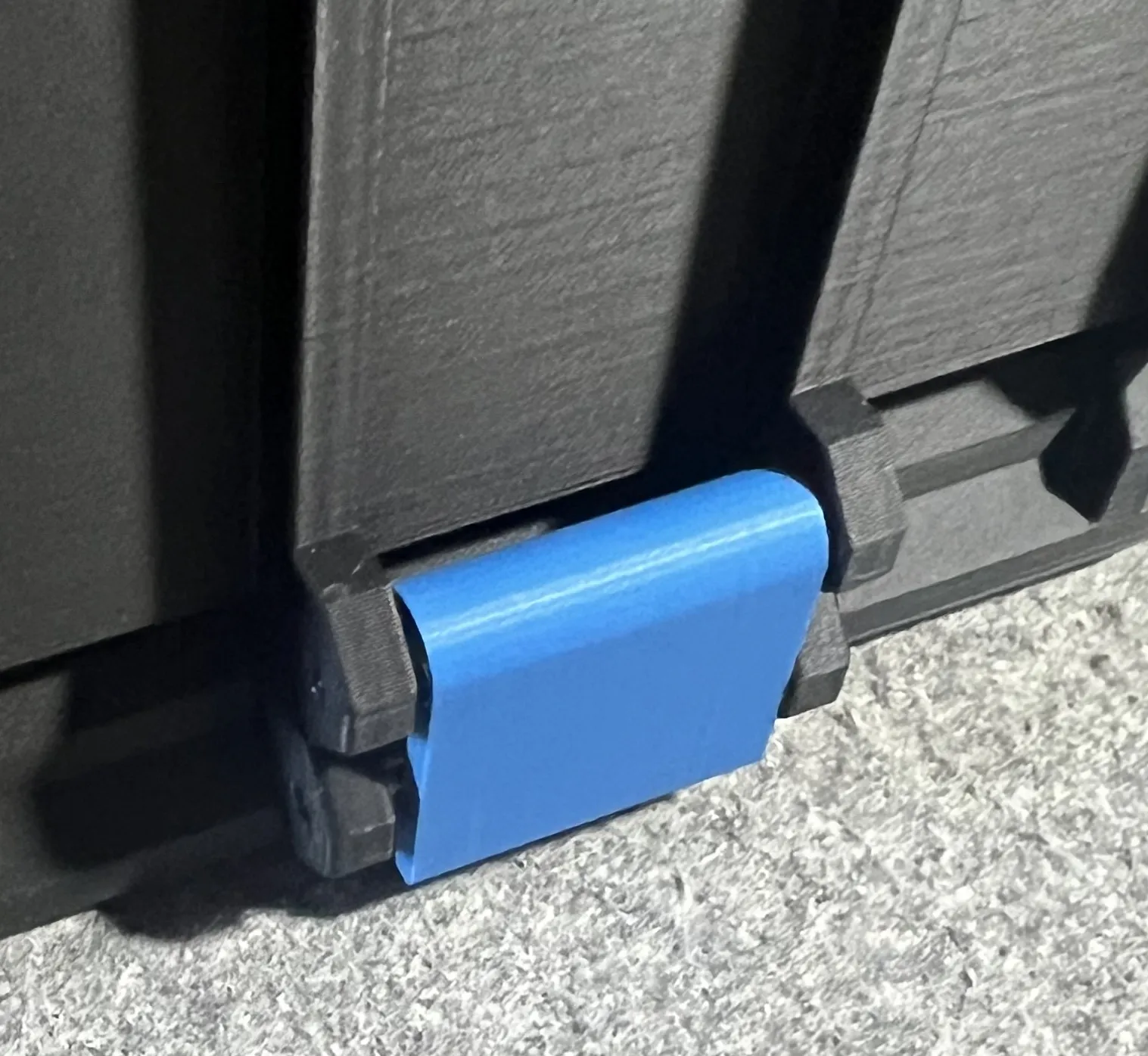

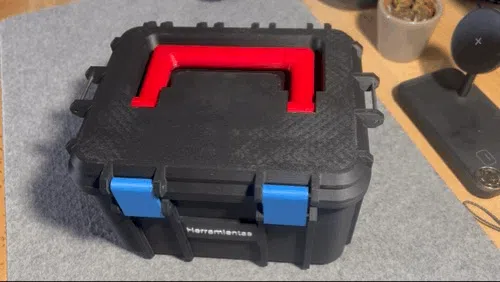

The box closes very tightly, preventing external dirt from entering. It also features a small lip that allows the box and lid to fit perfectly. The latches are very tight for an ultra-strong closure (it closes with a satisfying click).

The external dimensions are approximately 132 mm (height) x 210 mm (width) x 170 mm (depth), as the hinges and latches protrude slightly.

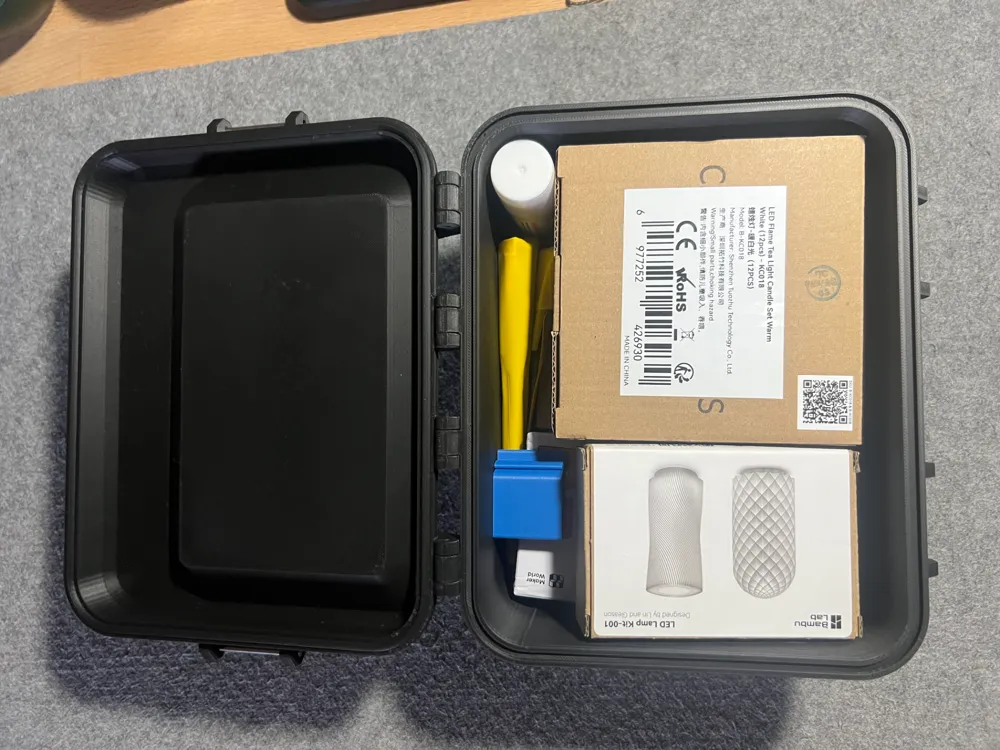

As for the internal dimensions, the box measures 128 mm (height) x 196 mm (width) x 150 mm (depth).

And that's more or less all I can say about the model.

I hope you like it and find it useful.

PS: If you print it, I encourage you to comment on your impressions of the model, upload photos of the result, and help me with a boost to continue creating more models.
