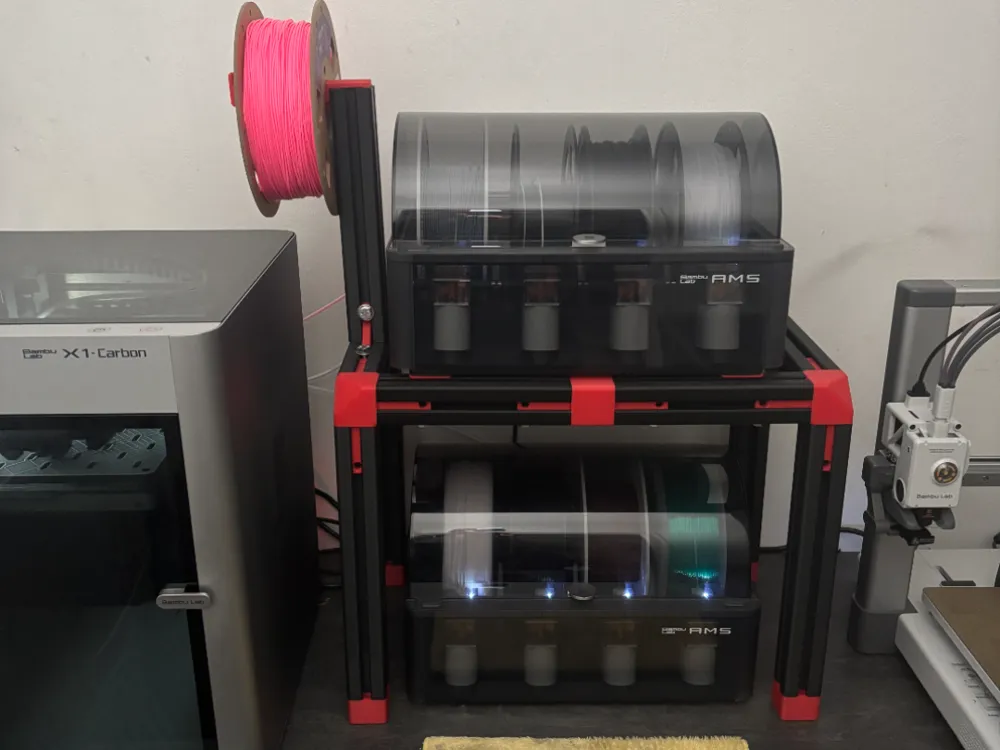

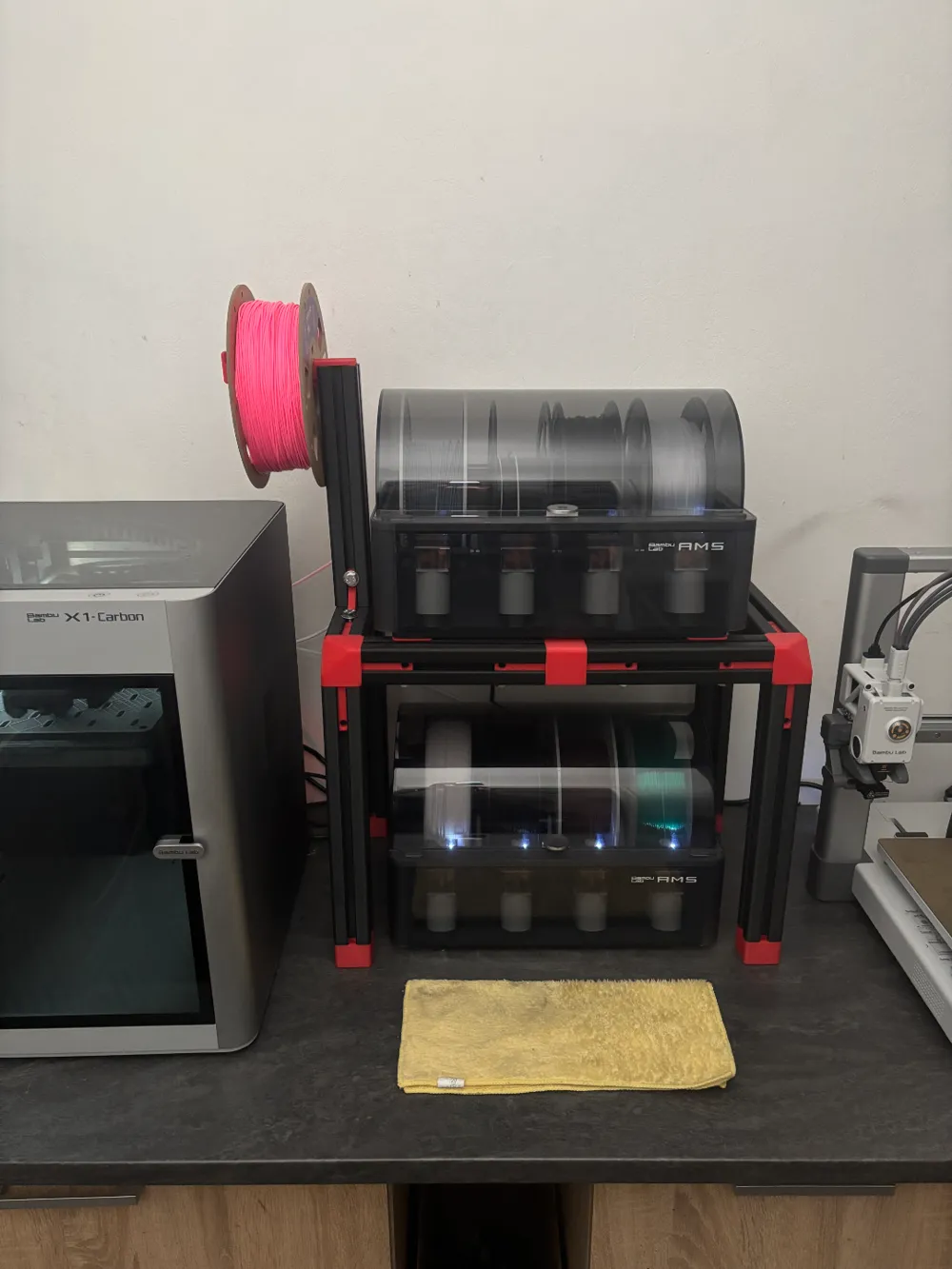

Support AMS
Print Profile(1)
Description
To assemble my AMS support, you can use glue or M8x12mm screws if you want to be able to disassemble it. You even have the option of printing the screws if you don't have any.
Assembly
Step 1: Take the red feet and insert four rods, then add the 50mm extension and finally a 250mm bar.
Step 2: Take a 3-way corner junction, insert the side of the junction with the eight rods from Step 1.
Step 3: On the two remaining sides of the junction, place a 220mm bar on one side and a 180mm bar on the other.
Step 4: Take a straight 2-way junction and insert it into the 220mm bar. NOTE: You must place the recess on the same side where a rod was missing on the 3-way corner junction.
Step 5: Repeat steps 1 to 4 once.
Step 6: Repeat steps 1 to 2 twice.
Then simply assemble everything.
