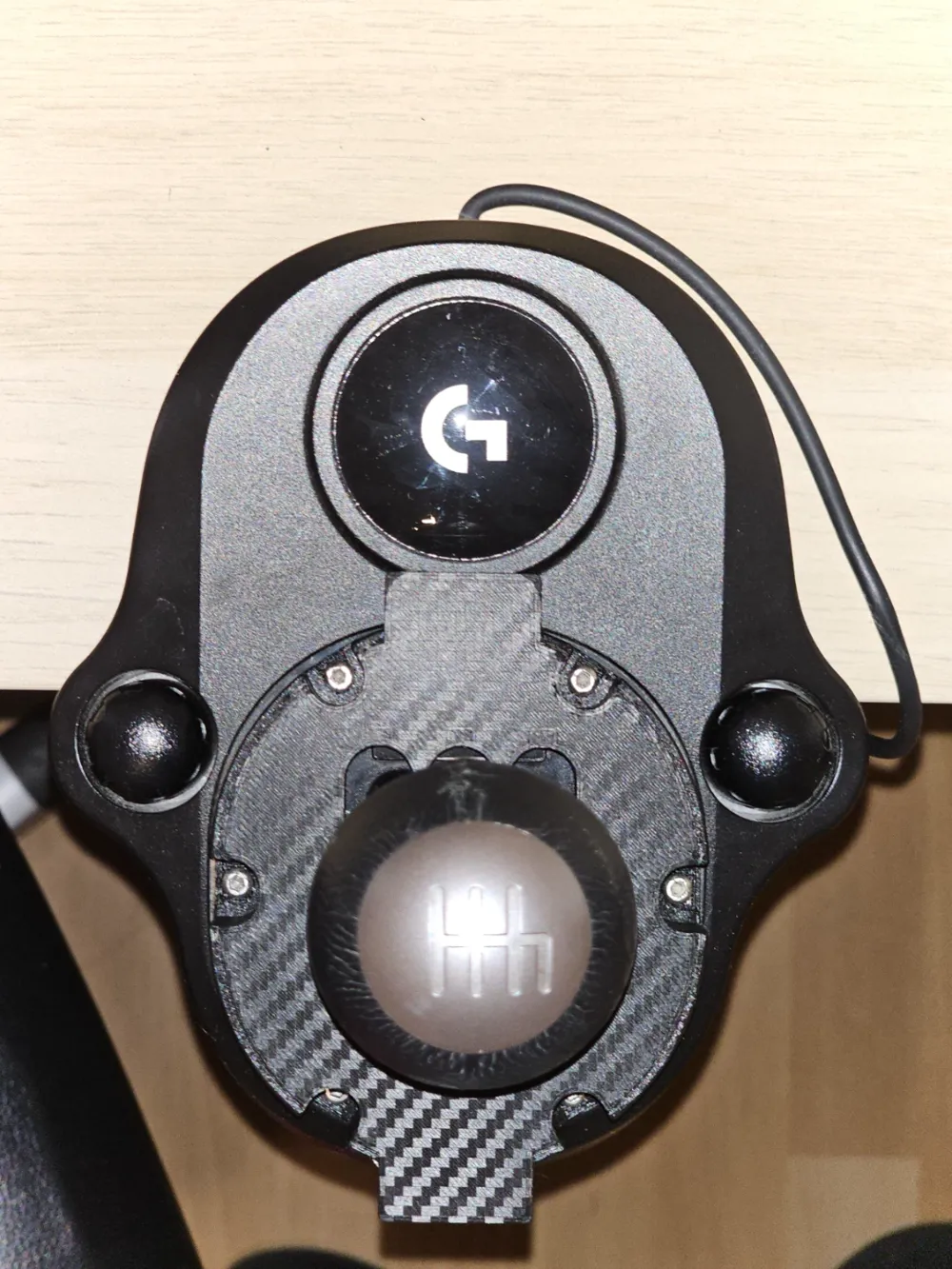

V2 G29/G920/G923 shifter H-pattern & sequential

Transform you Logitech Shifter into an H-Pattern OR Sequential box with this easy to install model.
This upgrade is compatible with ALL Logitech Shifters (G25/G27/G29/G920/G923).

This model is the upgraded version of my V1 publication: https://makerworld.com/en/models/643262#profileId-569275

Features:

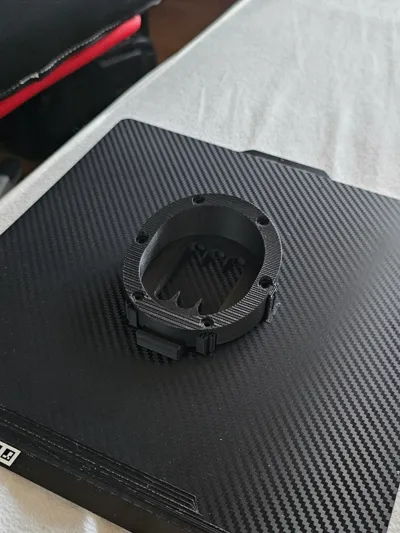

• Sleek design with optional Carbon Fiber look (with 3D-effect sheets)

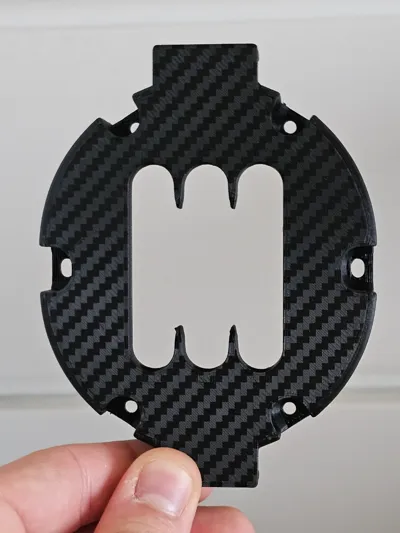

• H-Pattern with magnets for magnetic haptic feedback

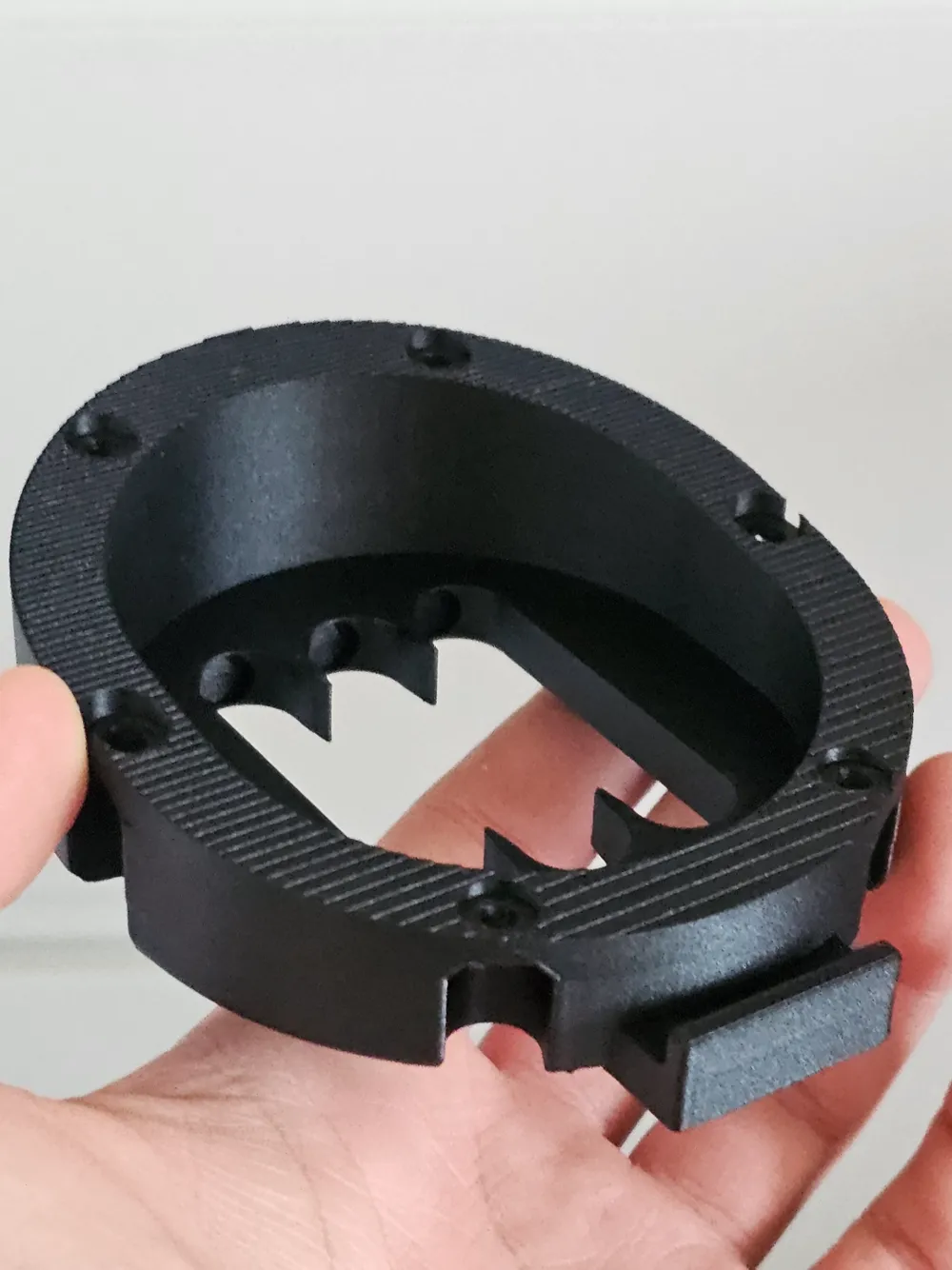

• Sequential box using rubber bands and magnets for haptic feedback
• Easy to install

Assembly guide:

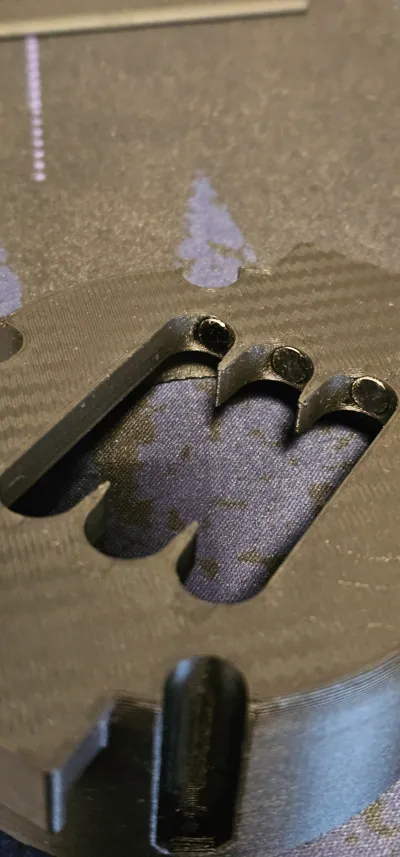

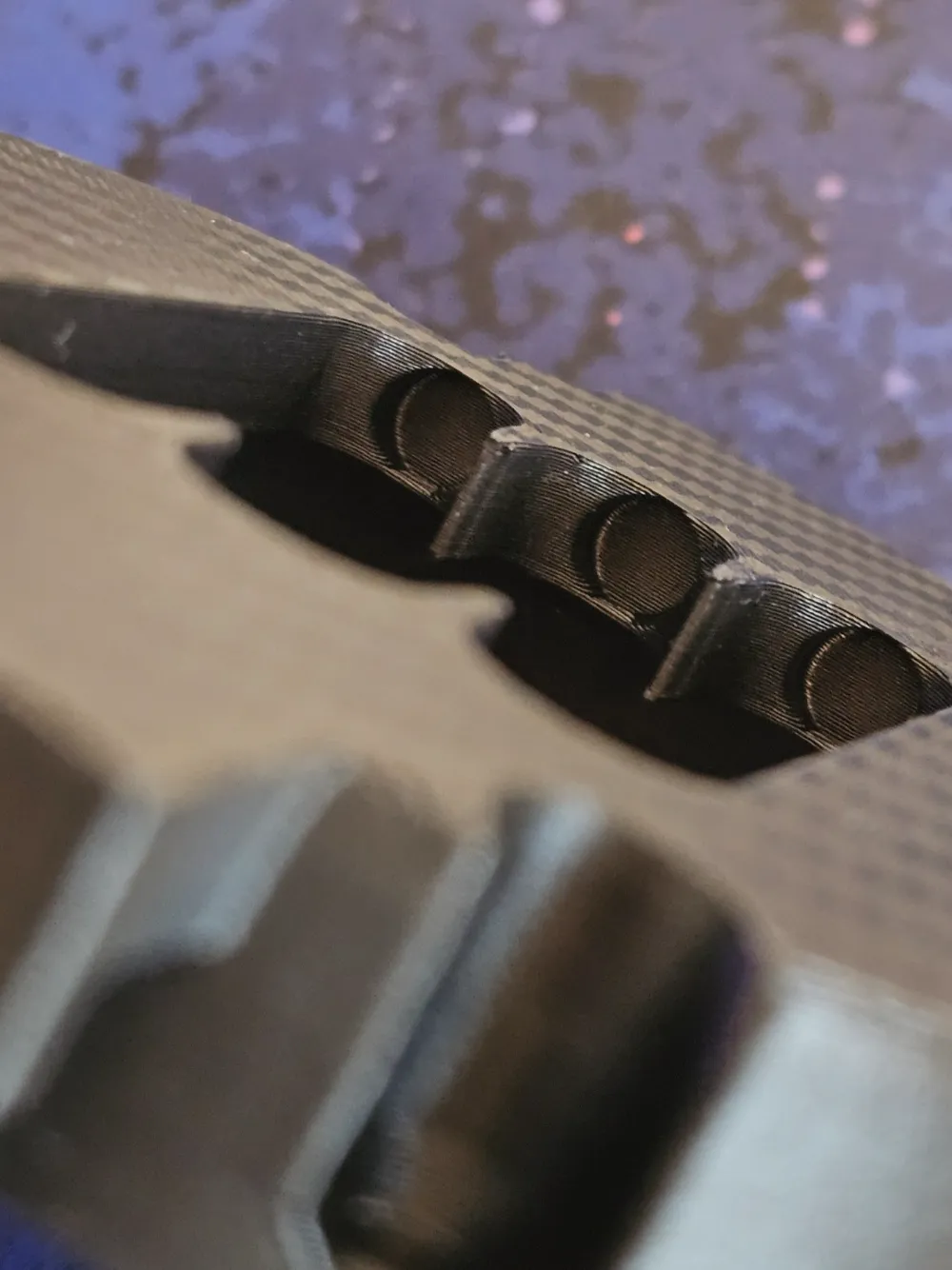

1. (OPTIONAL) Glue 6 magnets to the H-pattern mod (Size 6x2mm or 6x3mm)
2. Remove shift knop by lifting up the grey cover on top. Use a screwdriver with PH2 tip.
3. Remove standard cover by unscrewing 6 grey screws. Use a screwdriver with HEX tip.

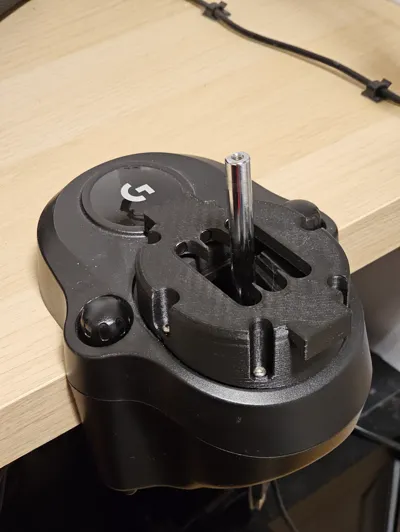

4. Lift up the leather part and replace it with printed mod.
5. Use the 6 original screws to screw the printed mod into place. DO NOT OVERTIGHTEN
6. Reinstall the shift knob, screw it in and reinstall the grey cover on top.

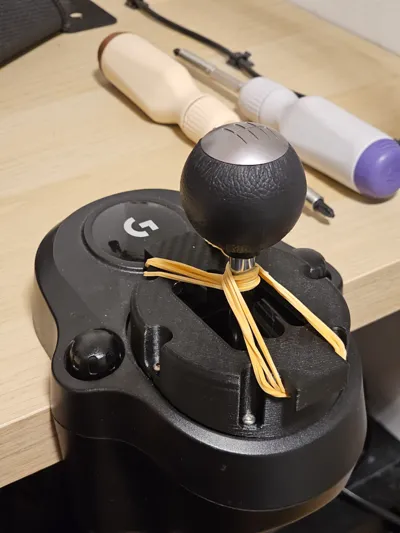

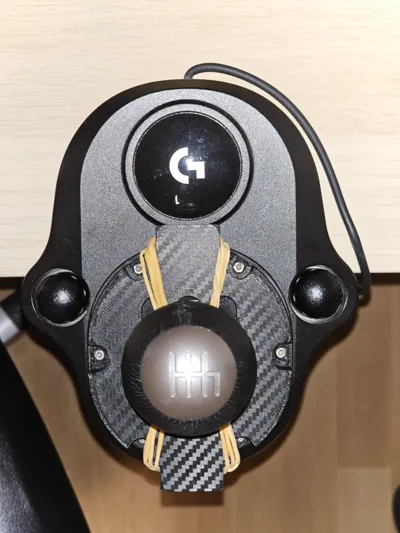

7. To use the Sequential box, install rubber bands.
8. ENJOY!

Bill of Materials (BOM):

• PLA or PETG filament

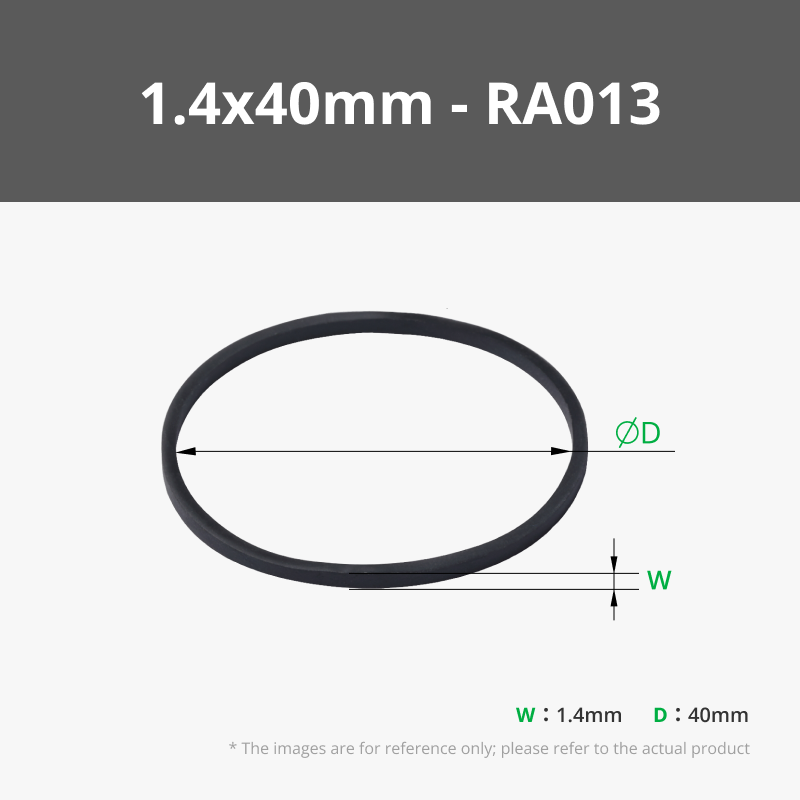

• 2 or more rubber bands (optional, for Sequential box)
• 6 magnets, size 6x2mm or 6x3mm (optional, for magnetic haptic feedback)
• PH2 and HEX screwdriver
