Crossbow
Print Profile(1)
Bill of Materials
- Rubber band (small) x 1:
- Rubber band (large) x 1:
Description

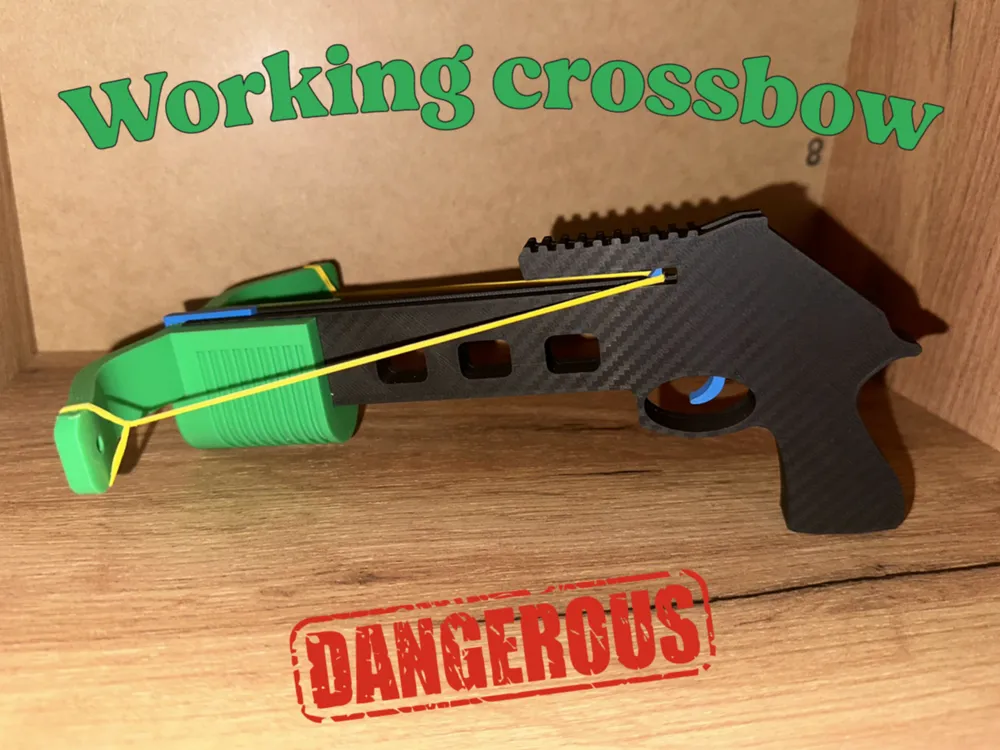

Fully printed - working crossbow
Be careful, it is toy, but it's still dangerous!
Dimesions are 230 x 170 x 95 mm
Printing :
- supports needed
- Print at 0.2mm layer height
Assembly:

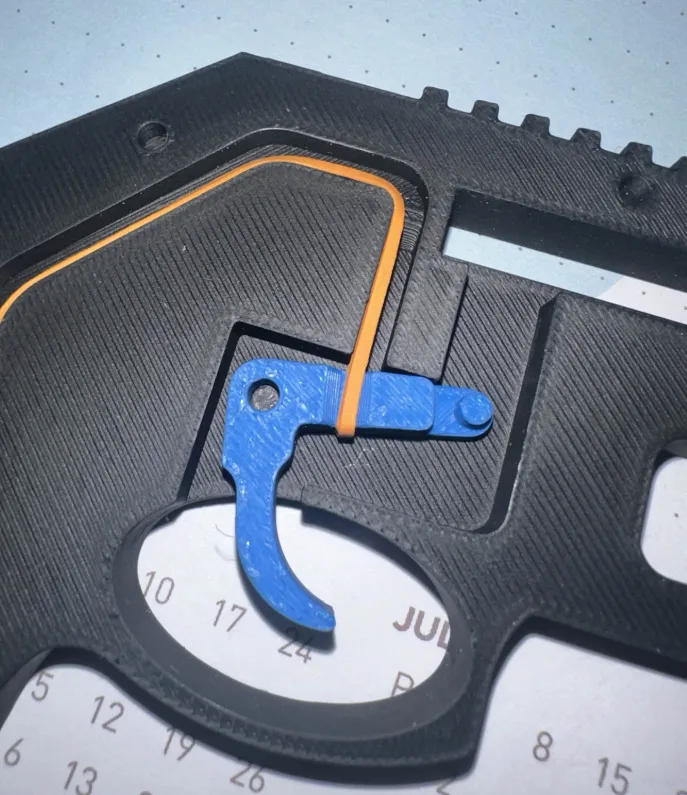

First you need to tight smaller rubber band

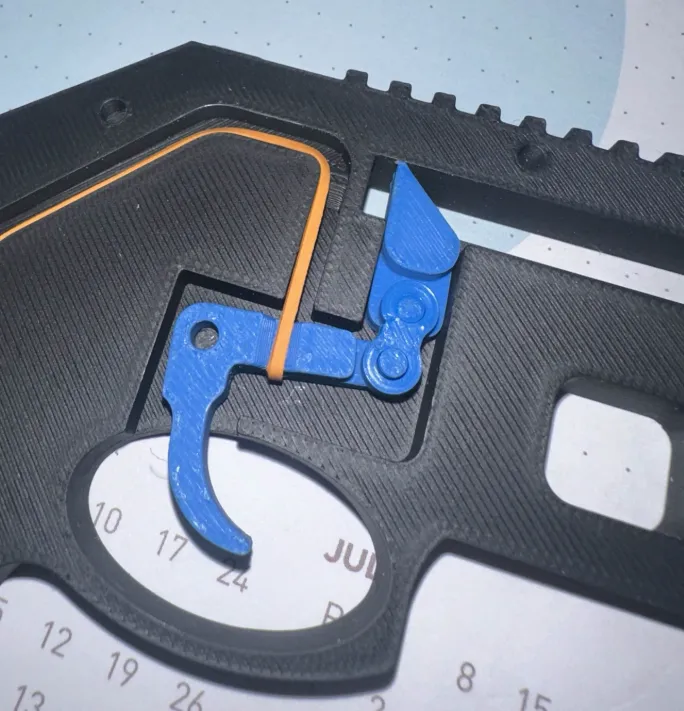

Now you need to assembly trigger
- Now put cover over the main part and watch out for holes to match up

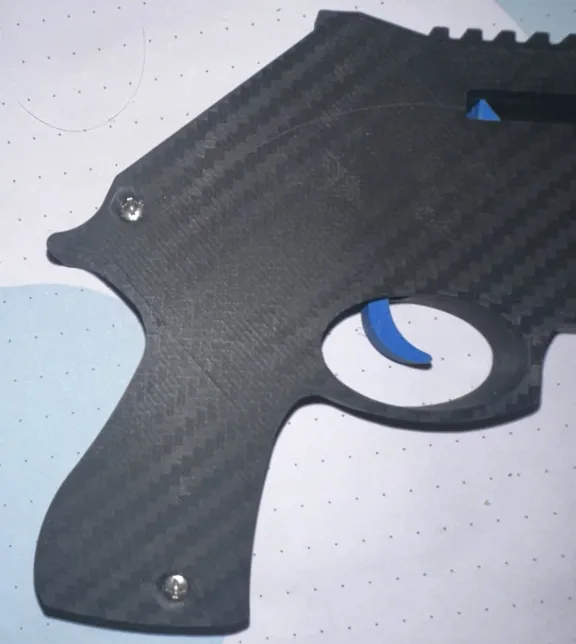

Now screw up 2 bolts into crossbow
Now slide riser-limb on crossbow

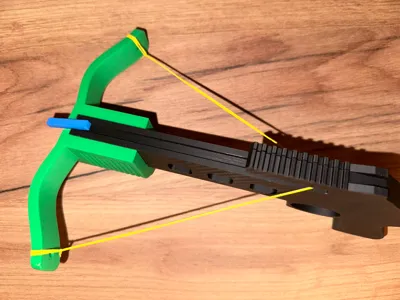

Now tie larger rubber band over end of limb or tie crossbow rope in holes
Tense rubber band into triger and load bullet (rectangle piece) and release the trigger
Filament used in photo:
- Bambu PLA Black
- Bambu PLA Bambu green
