Trophy Keyboard Button

If you want to be original and give someone a special trophy from your competition that they can hang on their keys, give them this Keyboard Button trophy.

If you want to support this project, feel free to share it to your friends and post your makes, so that others can see as well!

Overview

The model itself is very easy to assemble and it is only about 12 g of PLA at maximum and fairly quick print at 40 mins at maximum with AMS versions.

Now for the model itself. There are 2 variants of them. Use whatever you want. You can make your own in Bambu Studio by adding text to the RAW STEP models Casing_NO_TEXT and Keycap_NO_TEXT. There are also 2 print profiles for each - AMS and NO AMS version, that doesnt have colored letter on the Keycap part. You can also use some metal ring to hang it on your keys etc…

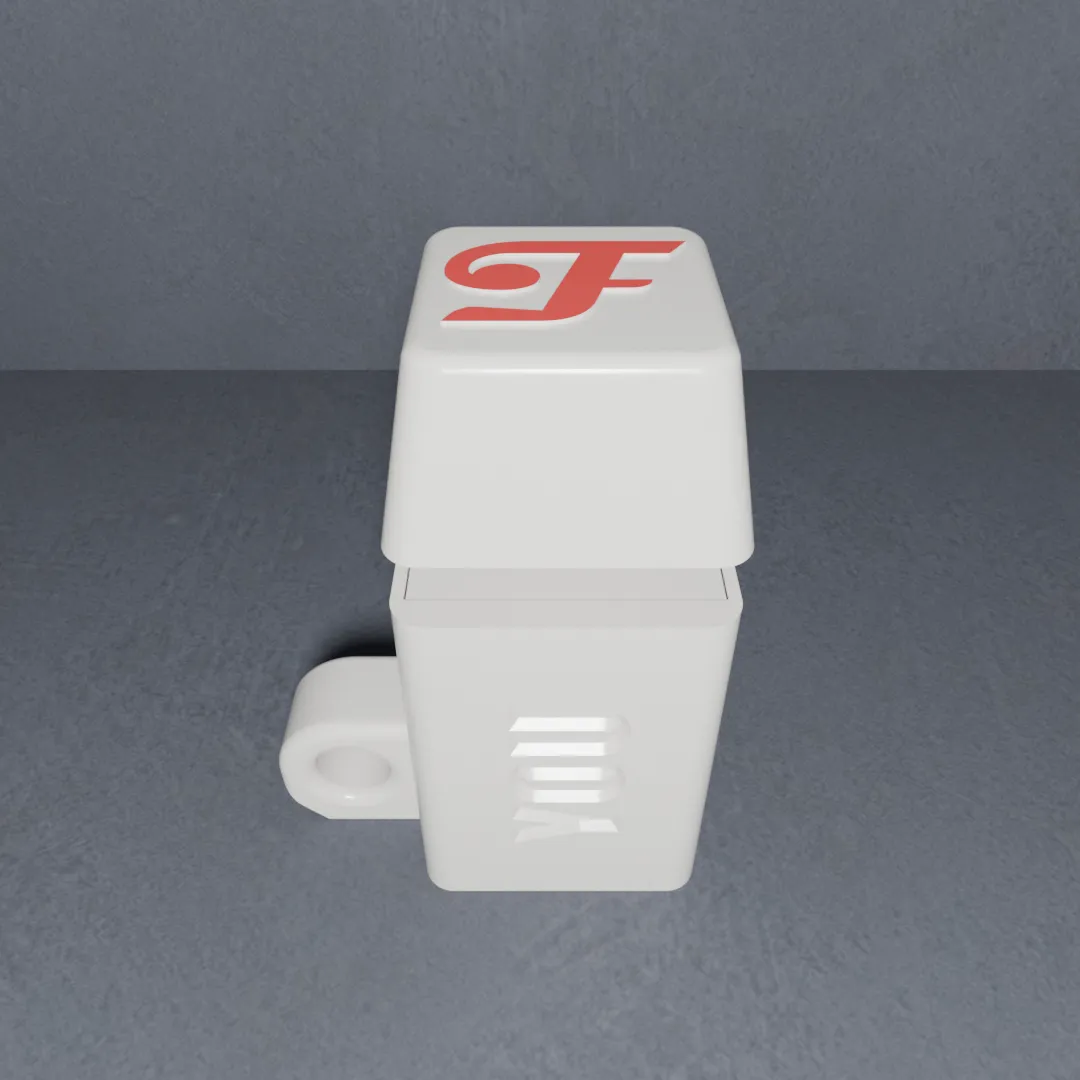

• “You Have Failed Button”

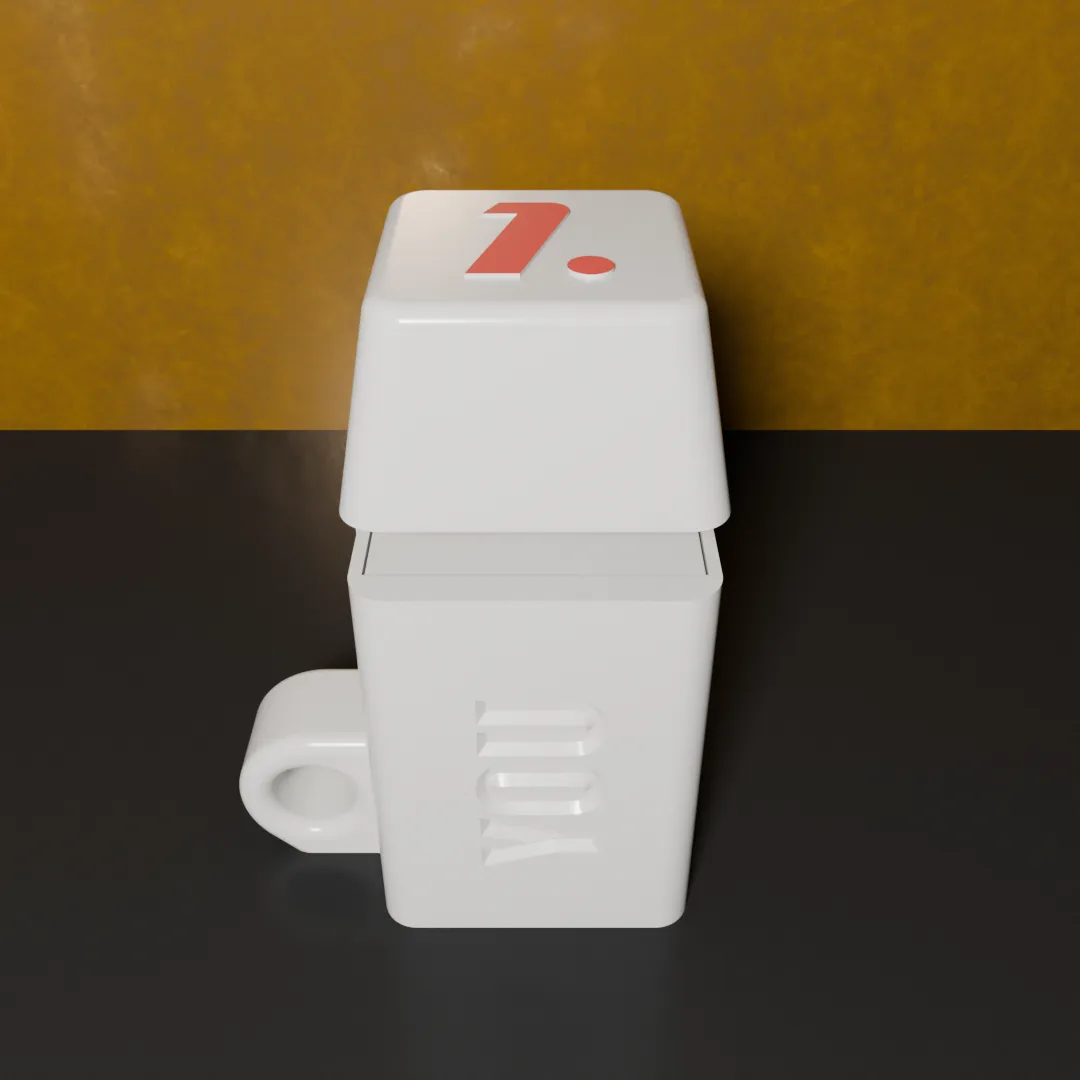

• “You Have Won Button”

• Your Custom
  • You can add your custom text in Bambu Studio.
    • Download the parts Casing_NO_TEXT and Keycap_NO_TEXT from RAW files of this project.
    • Load the default project and replace parts Casing_F and Keycap_F with Casing_NO_TEXT and Keycap_NO_TEXT.
    • Yoy can now click the text button icon in top right (T). Write some text to the input text field (thickness is up to you, but I recommend 1mm at max) and click on the Keycap or the Casing where you want to place the text.

Printing

• I recommend using my profiles due to tolerances and press fitting as well as design. I have tested these profiles.
• Print in PLA so that the tolerances are right
• Ensure that you have somewhat good flow calibrated filament

Assembly

Wish you happy printing and assembling!
