Manual Material System PC4M10

Manual Material System M10 Version

The Manual Material System is a simple and effective way to manage multiple filaments without the need for an automatic AMS unit. This system allows you to manually switch filaments during printing, enabling multi-color prints or material changes without interrupting the print job.

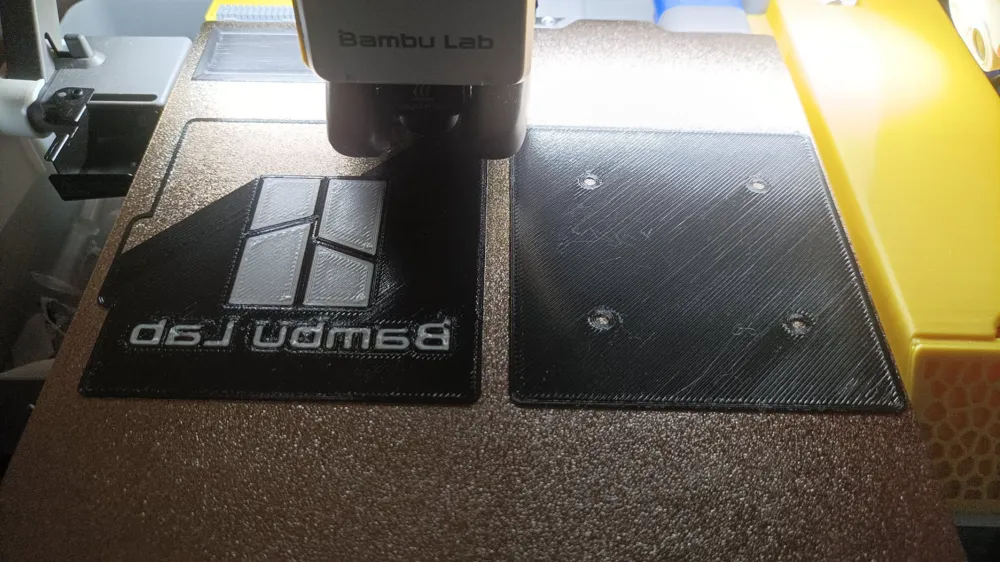

✅ Printing Specifications:

• Recommended material: PLA (other materials possible)
• Walls: 3
• Infill: 15% (grid)
• Filament usage: 57g
• Supports: Not required
• Size: Fits even on smaller printers like the Bambu Lab A1 Mini

✅ Features:

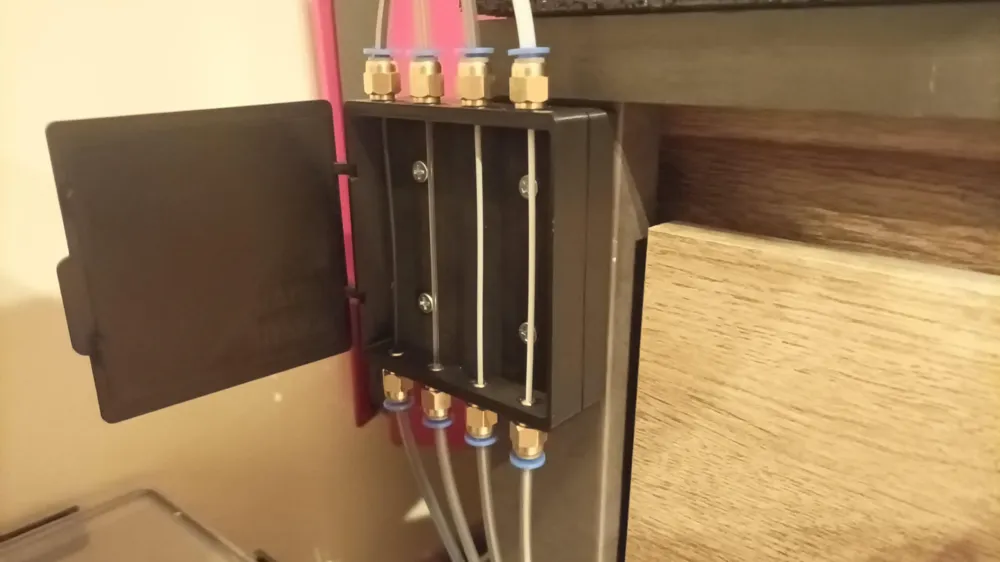

• Can be used as a filament switching system without opening dry boxes.

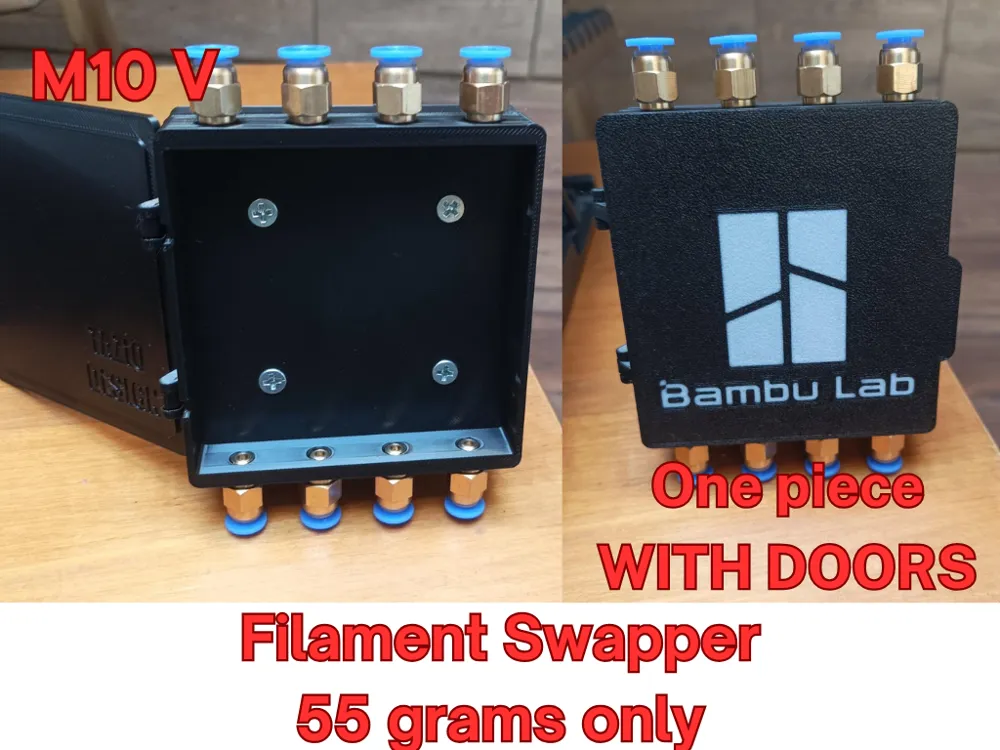

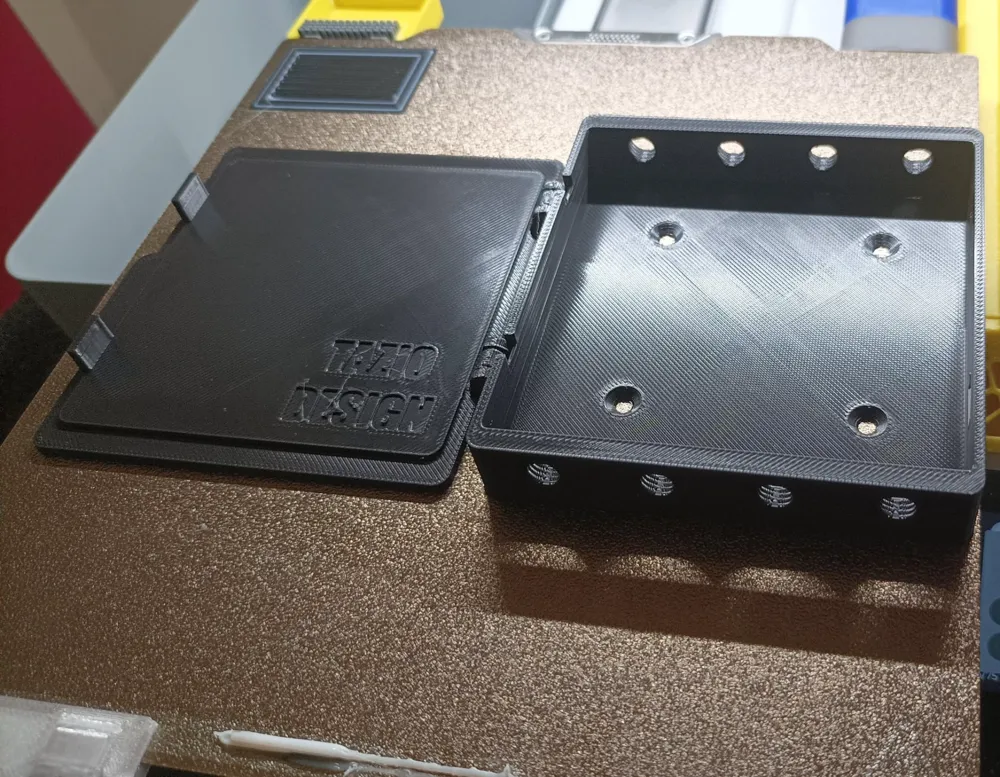

• Includes a built-in door, printed as a single piece with the main box using a functional hinge.

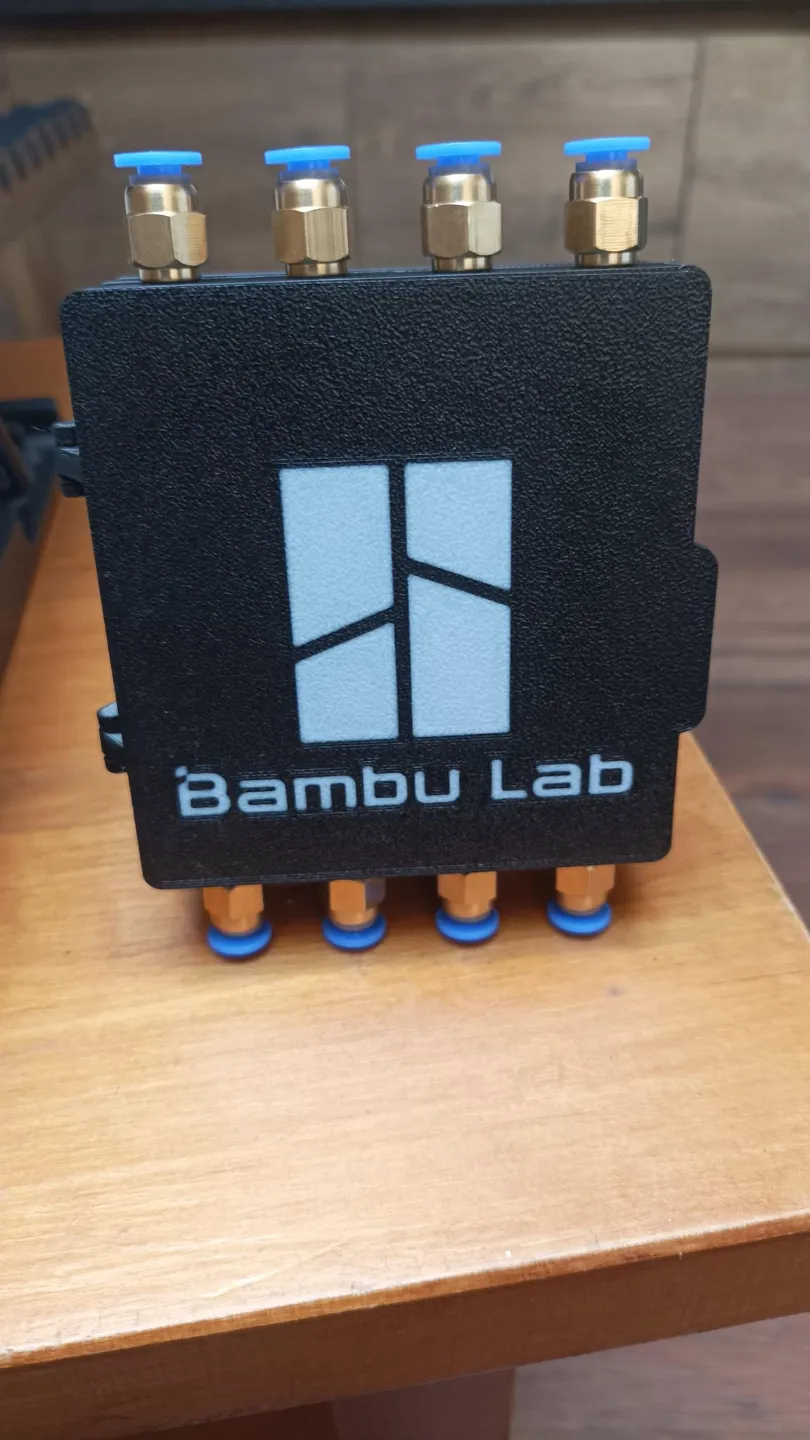

• Compatible with M10 thread pneumatic quick connectors.
• A separate profile includes an adapter for corner mounting
• M6 version --→ https://makerworld.com/en/models/1128856-manual-material-system-pc4m6#profileId-1128727

✅ Manual Filament Change Procedure During Printing:

1. In Bambu Studio, enable the purge tower.
2. During printing, when the nozzle moves to the purge tower, press pause.
3. Manually swap the filament and resume printing.
4. The printer will automatically continue with the new material.

This solution is perfect for users who want to experiment with multi-color prints or different filament types without investing in a full AMS system!
