STEMFIE Essentials
Print Profile(2)
Description

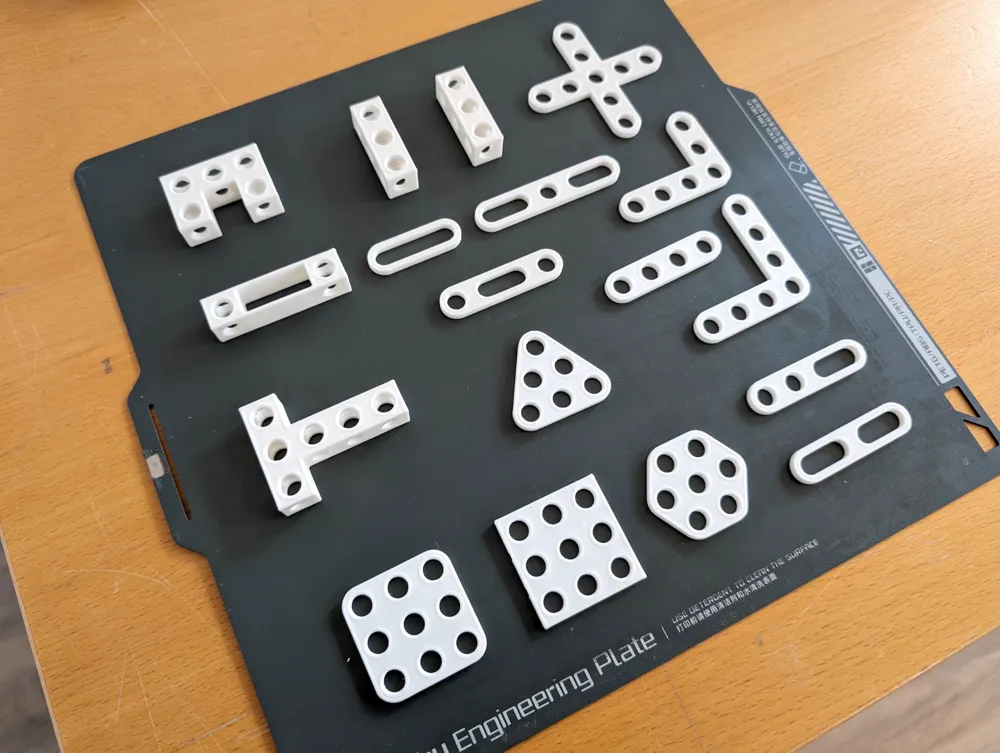

This build plate file contains an assortment of commonly used STEMFIE parts in different sizes nestled into compact build plates measuring less than 140x140x140 mm (5 ½ inches squared), which fits comfortably in most 3D printers' build volume.
You can start by importing each .3mf file into your 3D printer's slicing software. All components are oriented to 3D-print optimally without support structures. Please ensure a flat, clean build plate and calibrate it well.
If you use a filament-based 3D printer (FDM/FFF), I recommend PLA or PETG material for making STEMFIE parts. In addition, the following printing settings work well for making STEMFIE parts.
- Material: PLA filament
- Layer height: 0.2 mm
- Perimeters (shells): 3
- Top solid layer count: 4
- Bottom solid layer count: 3
- Infill: 15%
- Generic print speed: 50 mm/s
- No support structures
For more information about the STEMFIE project and to download the complete range of parts, please visit the download page.
STEMFIE is a free and open-source educational toy! So have fun 3D-printing lots of parts and inventing your project builds!
