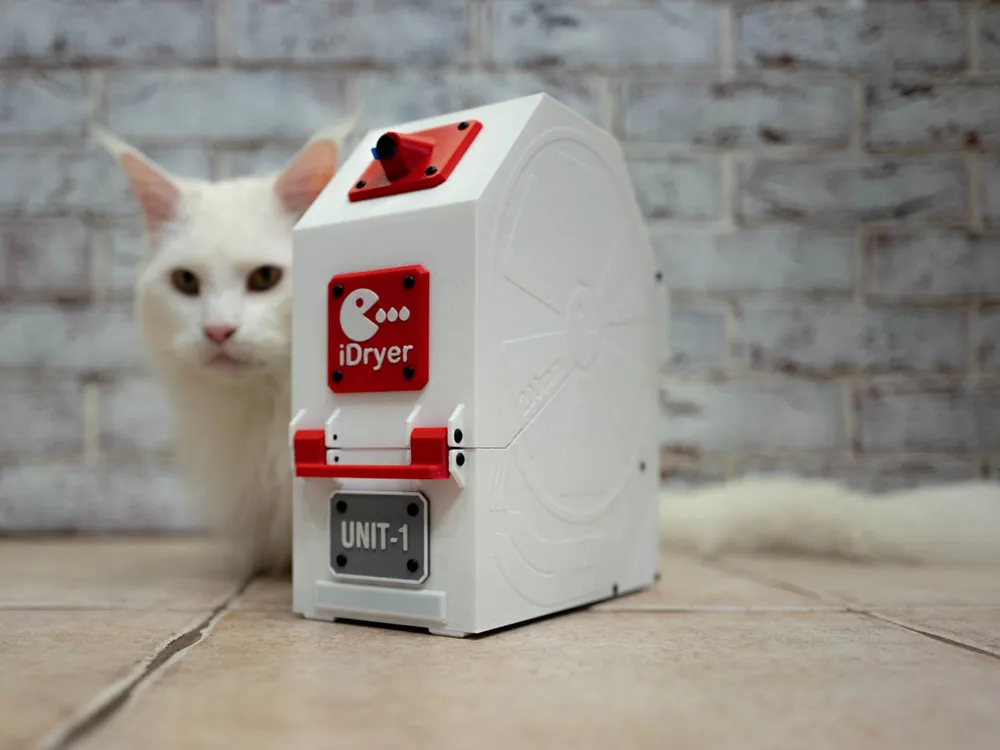

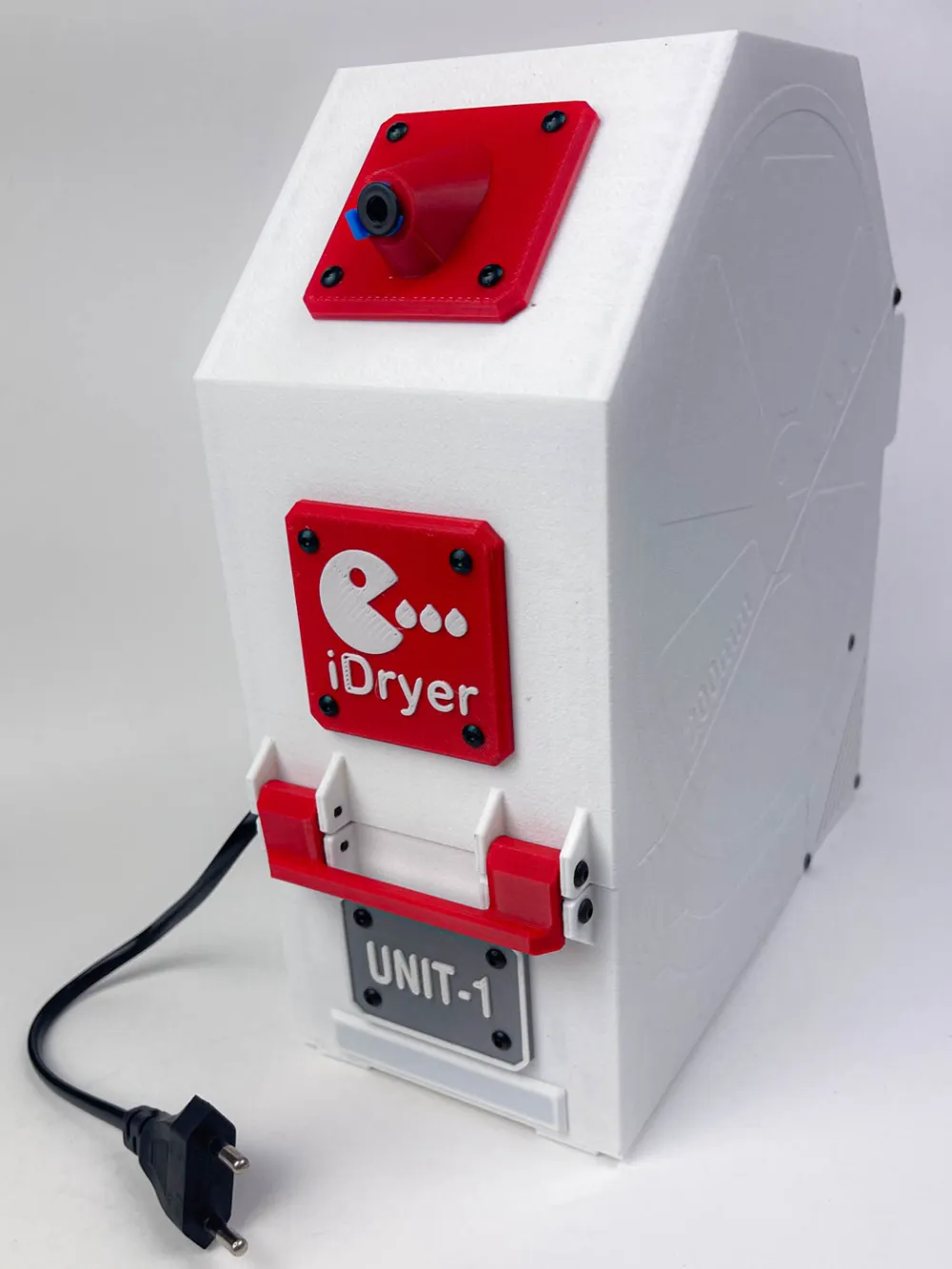

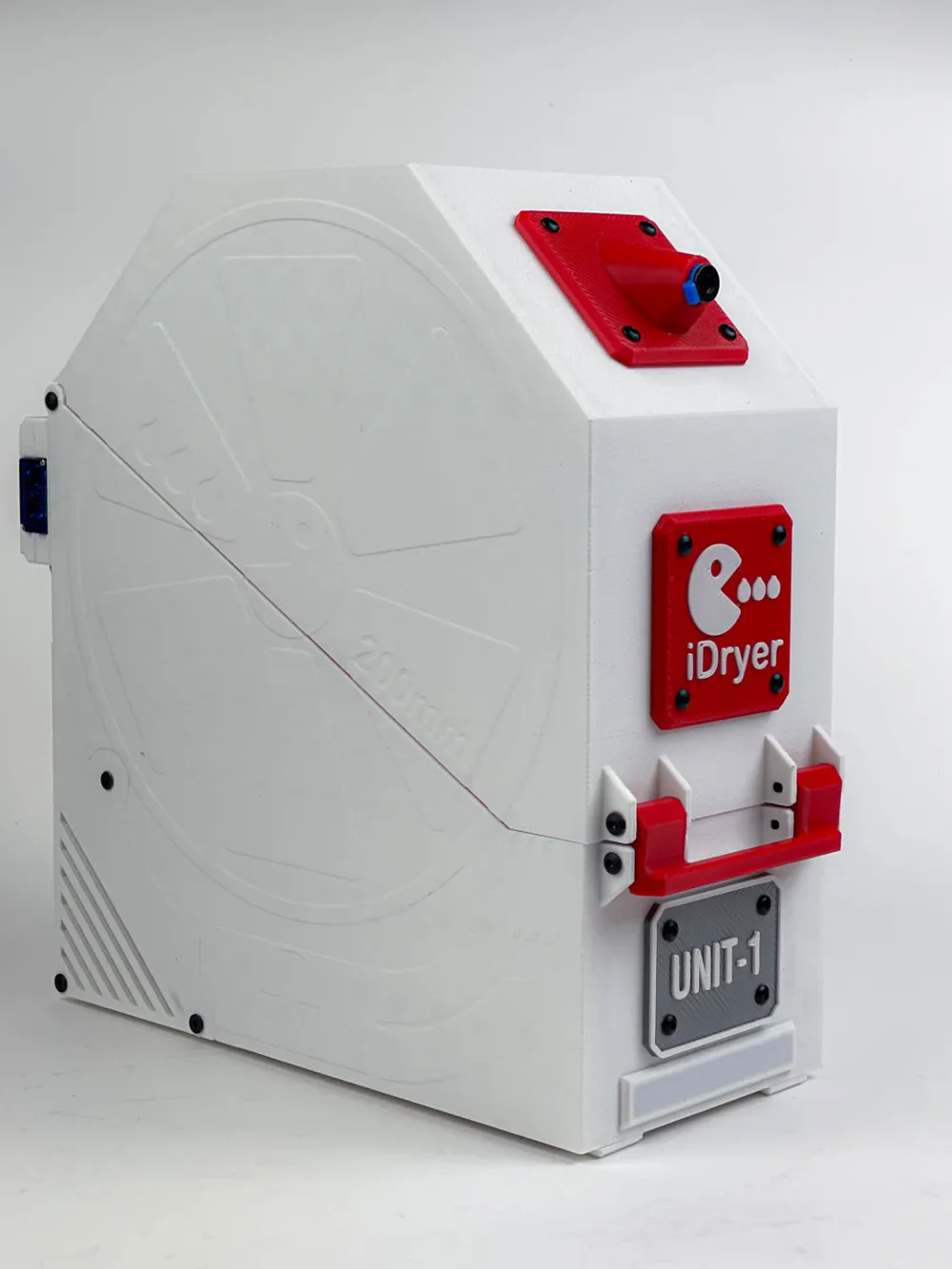

iDryer Unit: DIY System for Drying and Storing Filament
Project Description:
The iDryer Unit is an open-source system designed for drying and storing filament, created specifically for 3D printing enthusiasts. The device allows you to dry filament at temperatures of up to 90°C and maintain optimal conditions for printing. The project is entirely DIY-focused, using easily available components and a case that you can print on your 3D printer.
Key Features:
Drying temperatures up to 90°C.
Support for up to three additional drying modules with individual temperature settings.

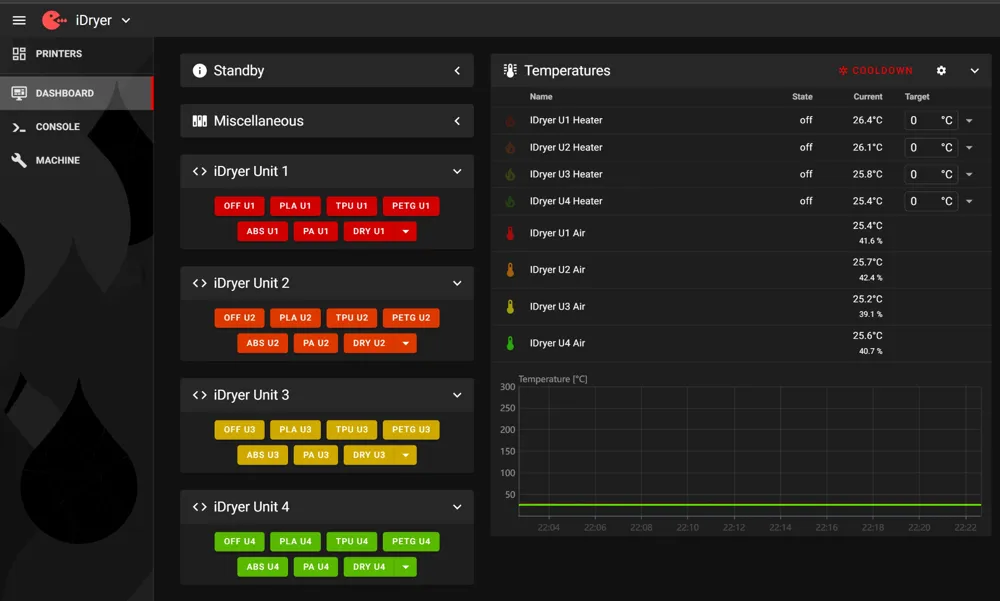

Managed via Klipper firmware, allowing macro customization for tasks such as automatic printing after drying.
Filament storage mode with humidity control.
Who is This For?
The iDryer Unit is perfect for anyone looking to improve the quality of their 3D prints by eliminating issues caused by wet filament. It’s also ideal for DIY enthusiasts who want to build a reliable device on a budget.
What You Need to Build It:

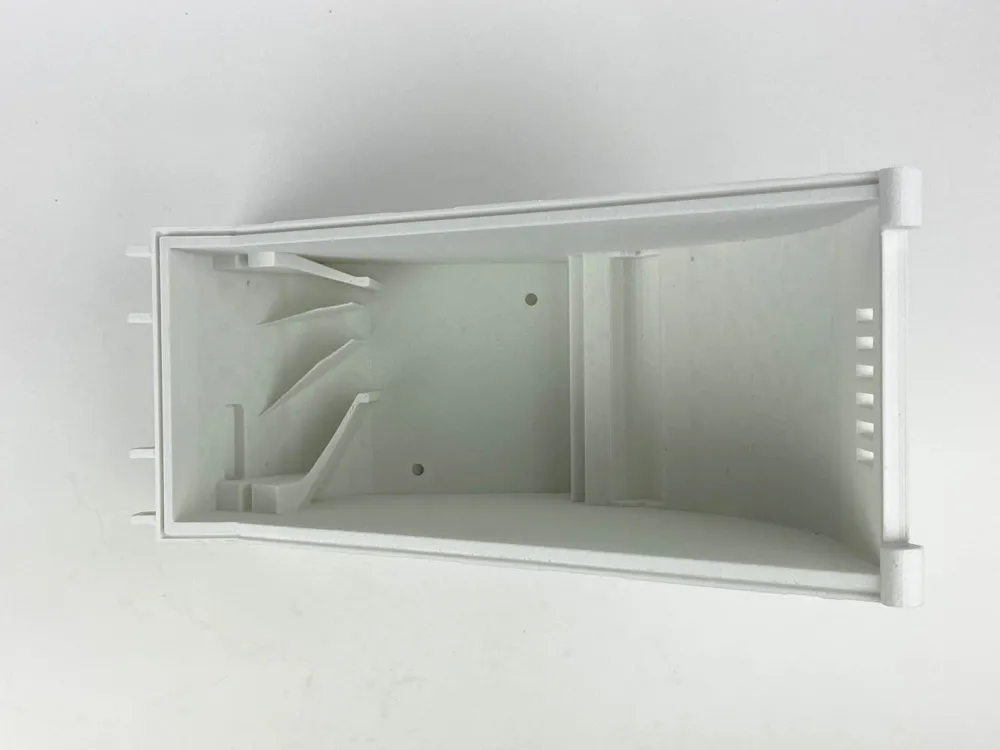

A case that can be easily printed on a 3D printer.
Сomponents (list provided in the documentation).
A minimal set of tools for assembly.
Advantages:
Open-Source: All files for printing and assembly instructions are available for download.
Versatility: The device can be adapted to your specific needs and tasks.
Ease of Assembly: All components are large and easy to handle, even if you have little experience with electronics.
Why It’s Important:
Moist filament can degrade print quality and cause extrusion issues. The iDryer Unit solves this problem by efficiently drying the filament before use and keeping it in optimal condition.
Download the files and start building! All instructions and materials are available here: https://docs.idryer.org/
Component List
| Name | Quantity |
|---|---|

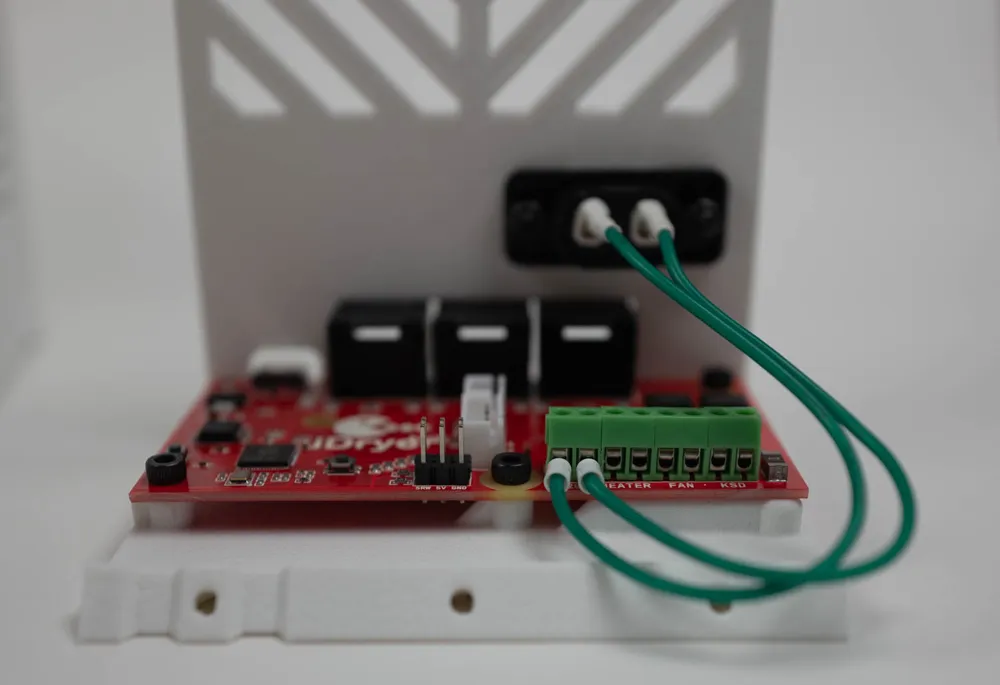

| Controller Board | 1 |
| 7530 Fan 220V | 1 |
| Heater 220V/100W | 1 |
| SHT31 Sensor | 1 |
| SG90 Servo 180° | 1 |
| KSD9700 130°C | 1 |
| Thermistor 100K 5% 3950 | 1 |
| XH2.54 4P | 1 |
| C8 Cable | 1 |
| C8 Connector | 1 |
| Silicone Wire 300mm | 1 |
| PuGV Wire 1x0.75 300mm | 1 |
| TPU (red, flexible) | 1 |
| Tube clamp (fitting) | 1 |
| Heat shrink tubing | 2 |
| Fan nounting screw M5 | 2 |
| Screws M3x25 | 6 |
| Screws M3x16 | 4 |
| Screws M3x12 | 12 |
| Screws M3x8 | 16 |
| Screws M3x6 | 3 |
| M3 Washer 0.5 | 12 |
| Bearing 623ZZ | 4 |
| Aluminum Tube 10x1 85mm | 2 |
