If you found this model helpful, fun to print, or just enjoyed using it, please consider giving it a 🚀 Boost! Your support really helps me keep creating and sharing more designs. Every boost makes a difference! Thank you very much! 🙌
UPDATESUpdate: 2025.03.23 ✨ Improvements:
Update: 2025.03.07 ✨ Improvements:
Update: 2025.02.25
We tested several times and were able to scan all the codes. When scanning various codes consecutively, the process sometimes required us to close and reopen the app or adjust the phone's position to let it focus properly.
Unless any other issues are detected, I will now work on improvements for this model.
Cheers! |

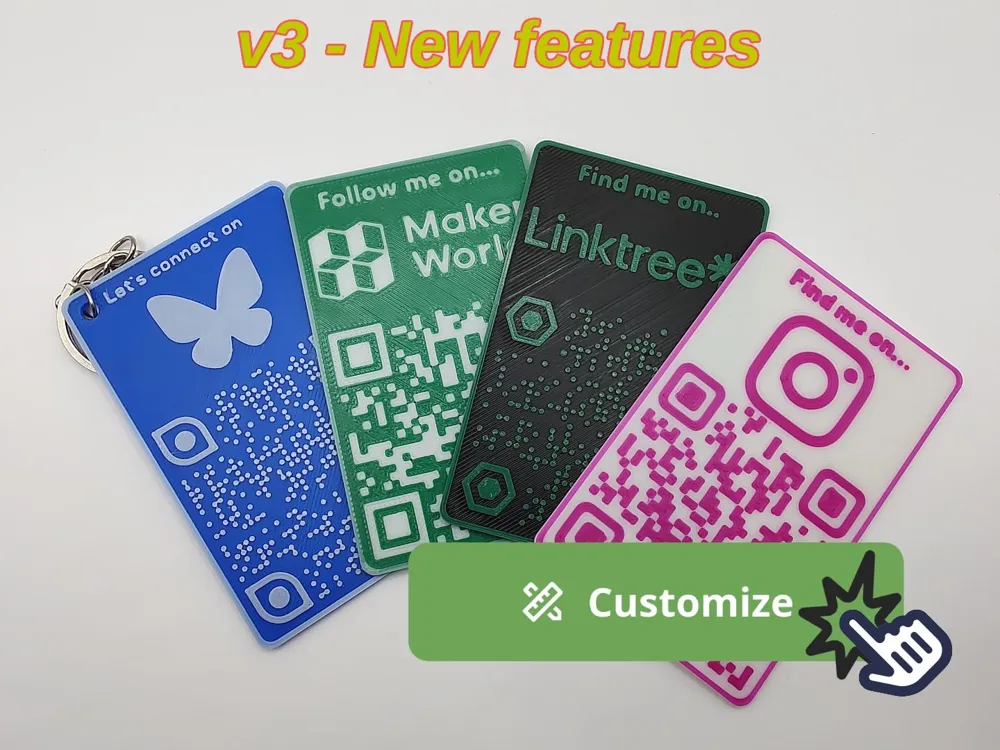

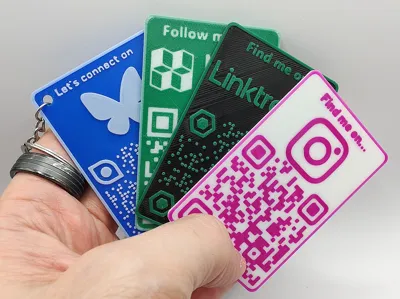

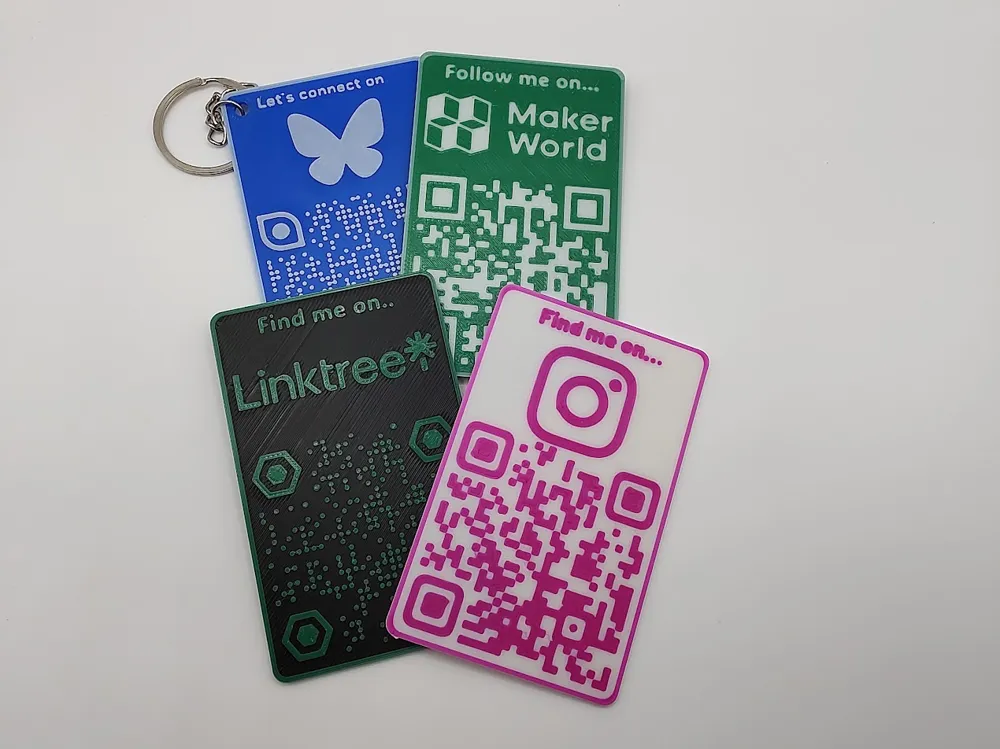

Networking just got easier with this wallet-sized, customizable QR code card.
Whether you want to share your social media, website, or portfolio, this customizable qr-card model makes it effortless.
You can create your own QR code card with a link to your favorite social network or your own website.
Features and Customization:

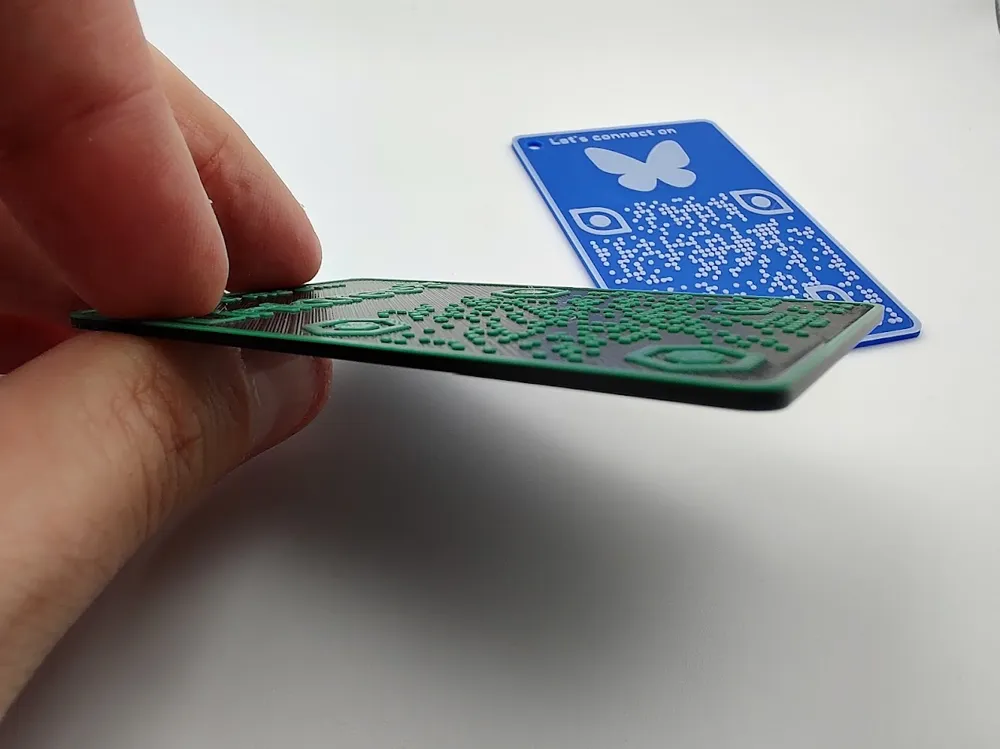

- Ultra-thin design – Card thickness ranges from 0.4mm to 3mm, perfect for any wallet.

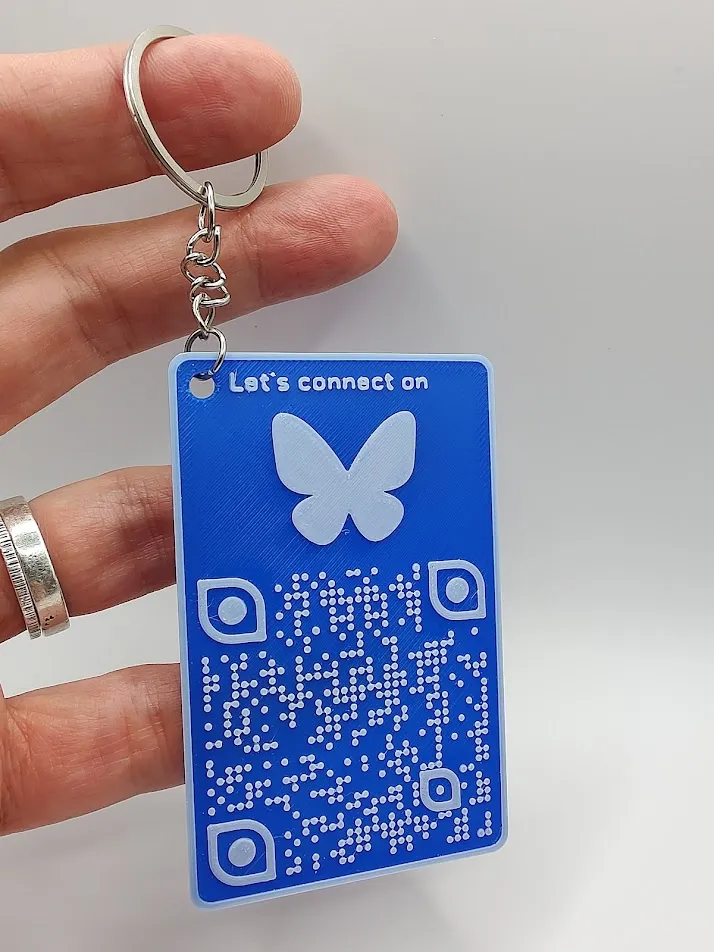

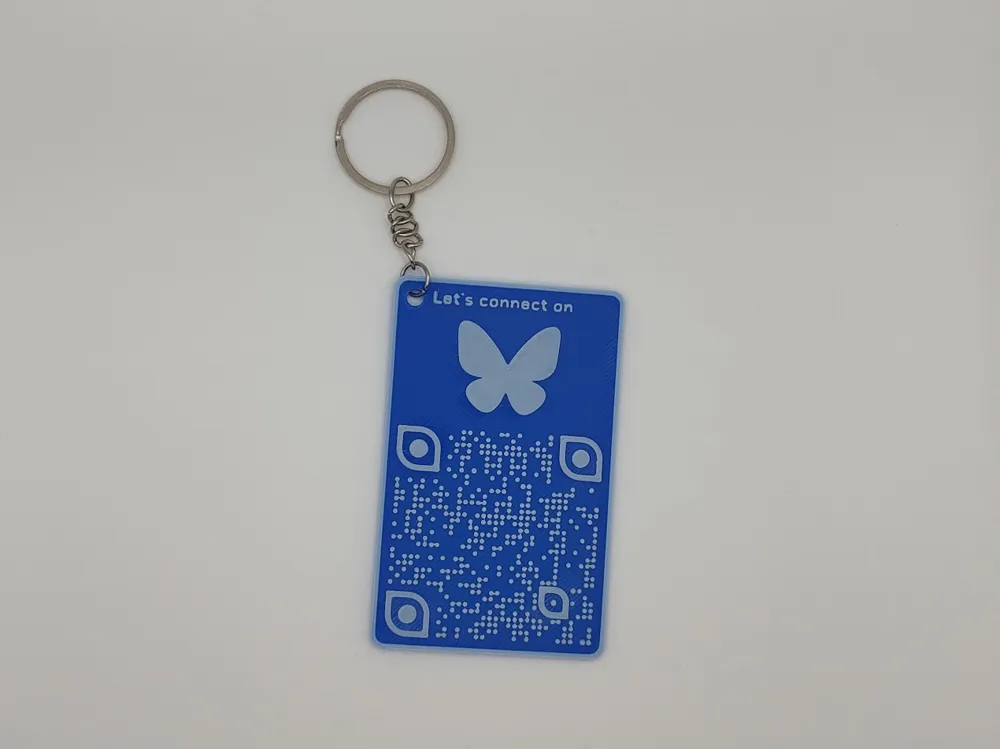

- Optional keychain hole – For on-the-go convenience.
- Custom branding – Add social media icons or your own logo.
- Multiple QR code styles – Match your aesthetic.
- Personalized text and font options.
- Fully customizable colors – Customize the card, QR code, logo, and border.
- NEW Additional text on the back side – Add your own claim, additional contact details, or any info you like on the back of the QR card.
Designed for creators, professionals, and anyone who wants a modern, eye-catching way to share their links.
Would you print one for yourself? Let me know what you’d put on yours!
The model has been thoroughly tested and printed multiple times before publishing.
I've conducted a batch of automated tests to check all QR code customization permutations and also tested the printed version to ensure aesthetic changes don’t affect functionality.
Printing hints
The 3MF generator for the customizer has been tuned to print at the best possible resolution (0.16mm layer height, Arachne wall generator).
I strongly advise against printing this model at less than 0.16mm layer height. Please don’t complain if you print at 0.28mm and the QR code doesn’t work.
The model can be printed with the QR code facing either the plate or upwards. If you use a textured PEI plate, I suggest printing it upward.
Printing with AMS:
If you own an AMS, printing is straightforward. You only need to customize your QR code, export the 3MF file, and you’re ready to go!
Printing without AMS:
If you do not own an AMS or prefer your card to have some bevel, you can turn off the “AMS compatible” option in the customizer. You can then define how much the QR code (logo, text, and borders) will be extruded.
Finally, to apply the color change, follow these simple steps:
- Download the customized STL file.
- Import it into your preferred slicer.
- Slice the model.
- Add a filament change.

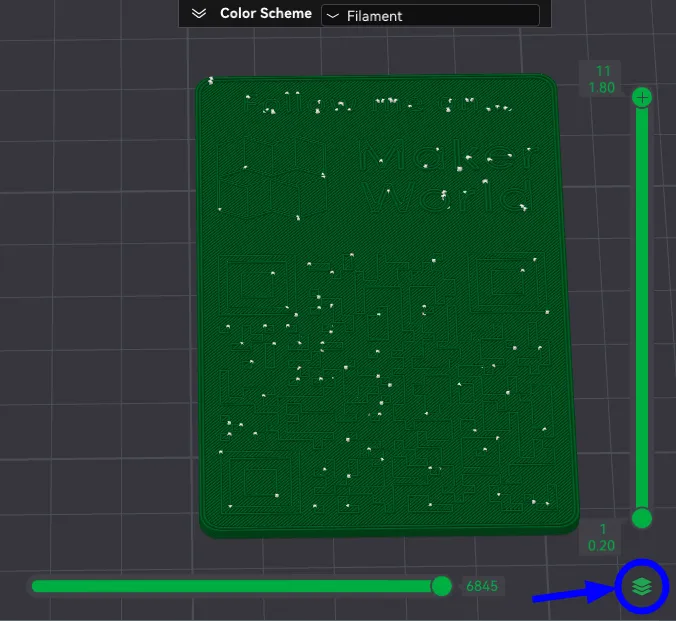

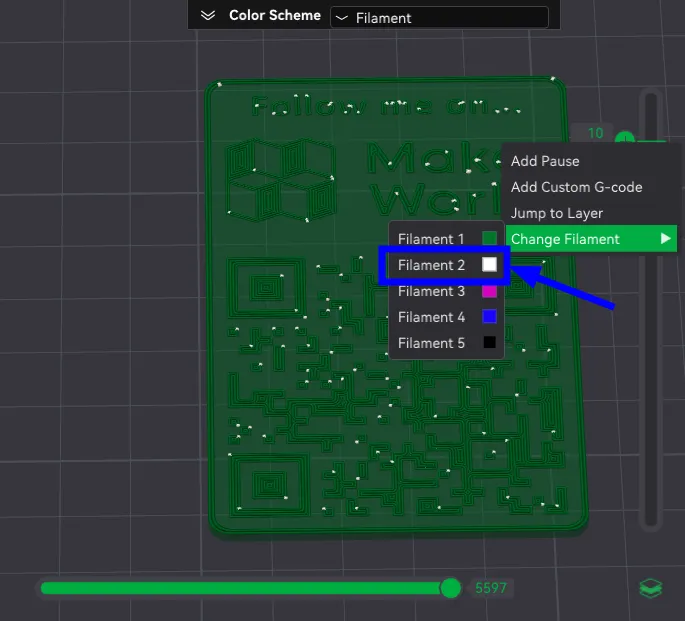

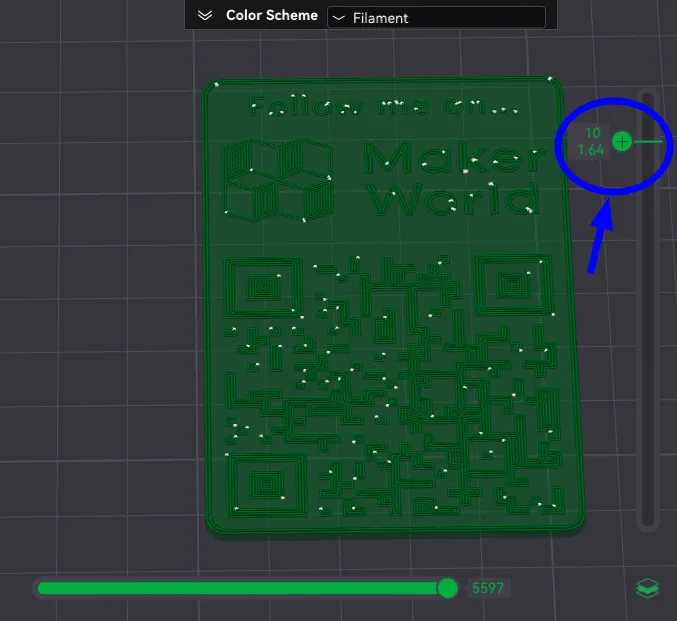

To add the filament change:

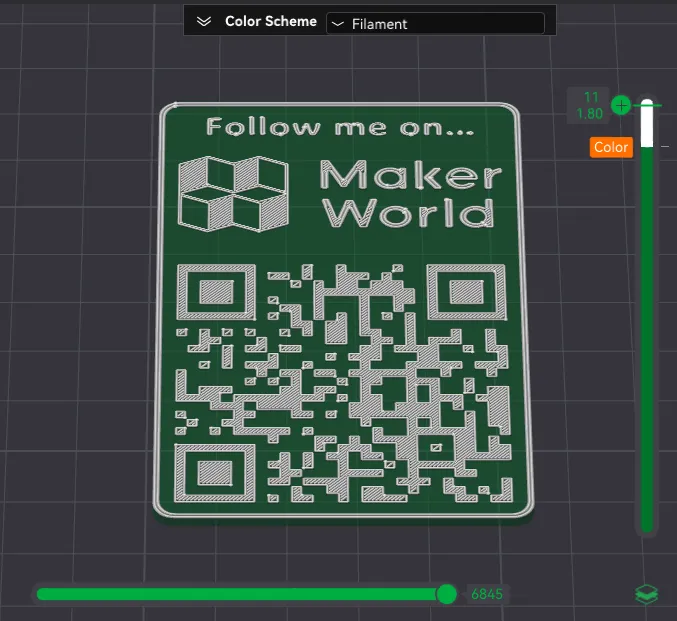

Now you can print your model. The printer will notify you when it’s time to change the filament.
Special thanks to:
- xypwn for writing the scadqr library (https://github.com/xypwn/scadqr)
- dinther for his wonderful pathbuilder library, which allows SVG paths to be translated into OpenSCAD polygons (https://github.com/dinther/pathbuilder/)
