盘中有两款握丸，可以删除不要的




Spool Holder + Rocker Arm

Tech0verlord




Screenshot 2025-03-29 175147.png

The original profile was designed for PETG&#39;s shrinkage in mind, since everything was either too tight or too loose when I tried to fit them onto my Pasta-lite. I shrunk everything down very-very slightly, while also modifying the geometry to make it easier to insert and remove the pins and match the pre-exising design language of the Pasta-lite. The bearing might be a bit difficult to put in, but now it wont fall out whenever you swing that part out of the way. I also laid the solo pin on it&#39;s side to give it some strength and make it less likely to break from being inserted and extracted from it&#39;s slot.&nbsp;Also, I switched the print settings to that of the default 0.2mm height print settings, to speed up print time with PLA, and considering the Pasta-lite also uses those height settings without any problem.

Freed up pins, snug bearing, sped up for PLA

Madddogg100

Pasta lite Spool Holder.jpeg

Spool Lock 1.jpeg

Spool Lock.jpeg

The non bearing side was a little tight so I enlarged the space with a negative part in the slicer and it fit nice.

Resized the non bearing end

KYZ Design

PASTA lite Receiver - a Pastamatic Remix

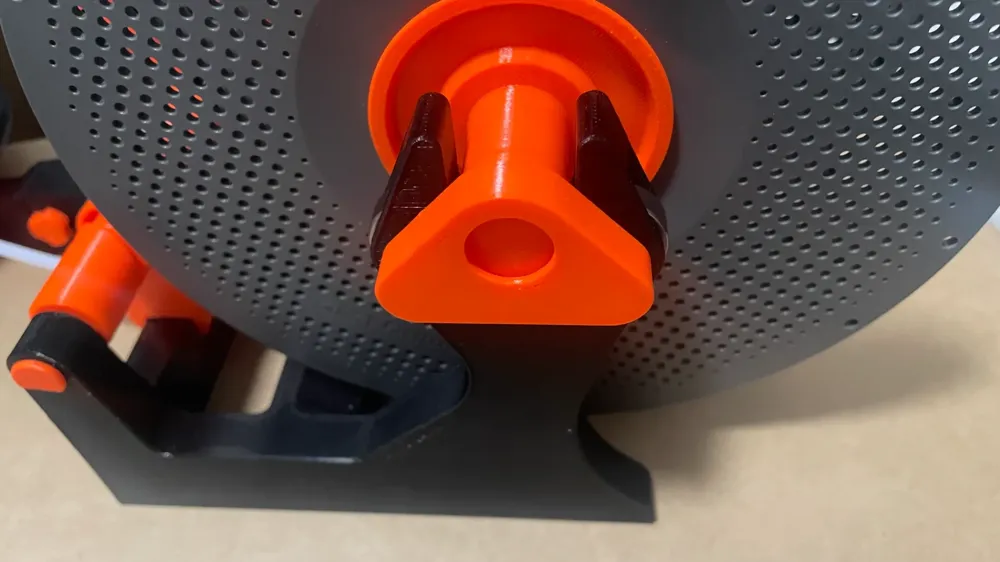

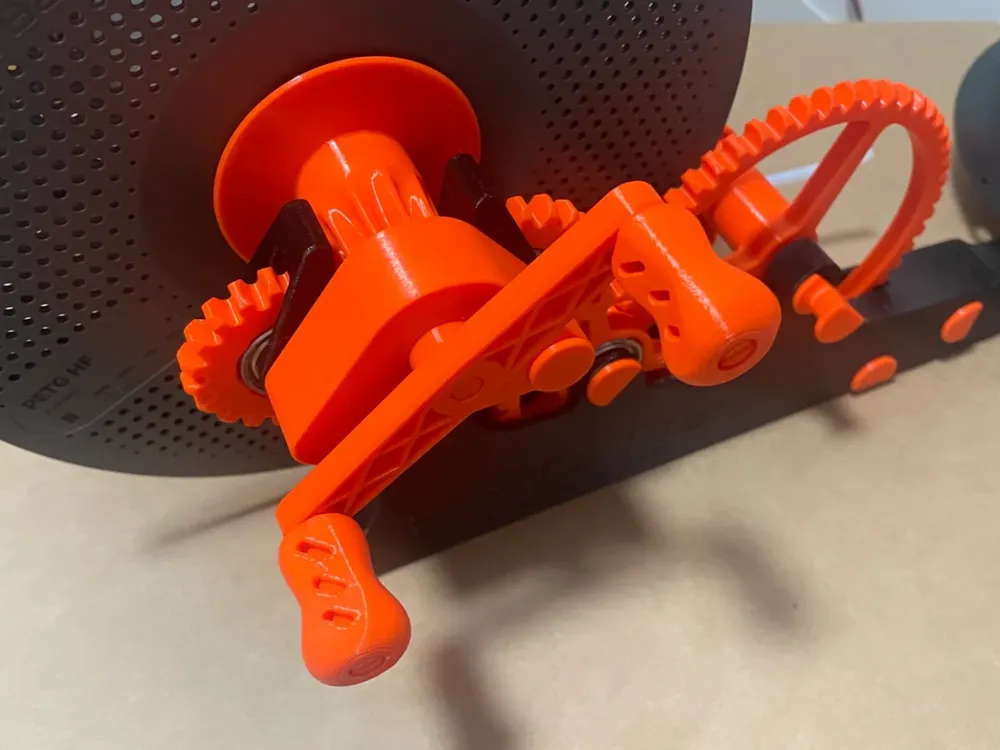

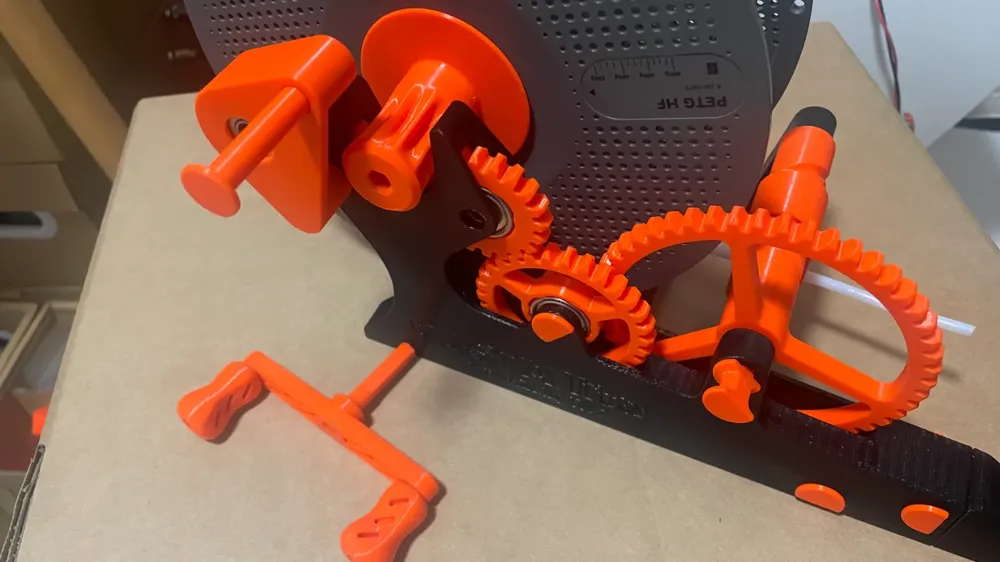

<boostme><boosttitle>Boost Me</boosttitle></boostme>两侧的固定框架，可以限制线轴所有方向的偏移，让线轴始终处于正确位置（可以让耗材更均匀排列） 固定器1设计了快速打开设计，只需要取下一颗固定销，即可取出整个线轴  摇臂对称设计，减小了快速旋转时的离心力，防止震动导致底座移动  固定器1需要一个608轴承固定摇臂 固定器2建议涂抹润滑油 握丸轴与握丸之间建议涂抹润滑油

<boostme><boosttitle>Boost Me</boosttitle></boostme>Lateral retaining frames restrict spool movement in all directions, ensuring consistent filament alignment for even material distribution Retainer 1 features a quick-release design; removing a single pin allows for easy spool removal The symmetrical swing arm design minimizes centrifugal force during rapid rotation, preventing vibrations from dislodging the base Retainer 1 requires a 608 bearing to secure the swing arm Applying lubricant to Retainer 2 is recommended Applying lubricant between the grip wheel and grip is also recommended

treetopped


Rocker ARM for PASTA lite

gr0kash













Pasta Lite Handkurbel

Pasta Lite Hand Crank
