Hexagonal Lamp

IP Report

Print Profile(0)


Add the first print profile to earn points

Boost
25
50
0
0
12
0
Released

Description

Hardware

  • The bulb is an LED. I would avoid bulbs that get hot.
  • Switch
    • 2x 20mm M3

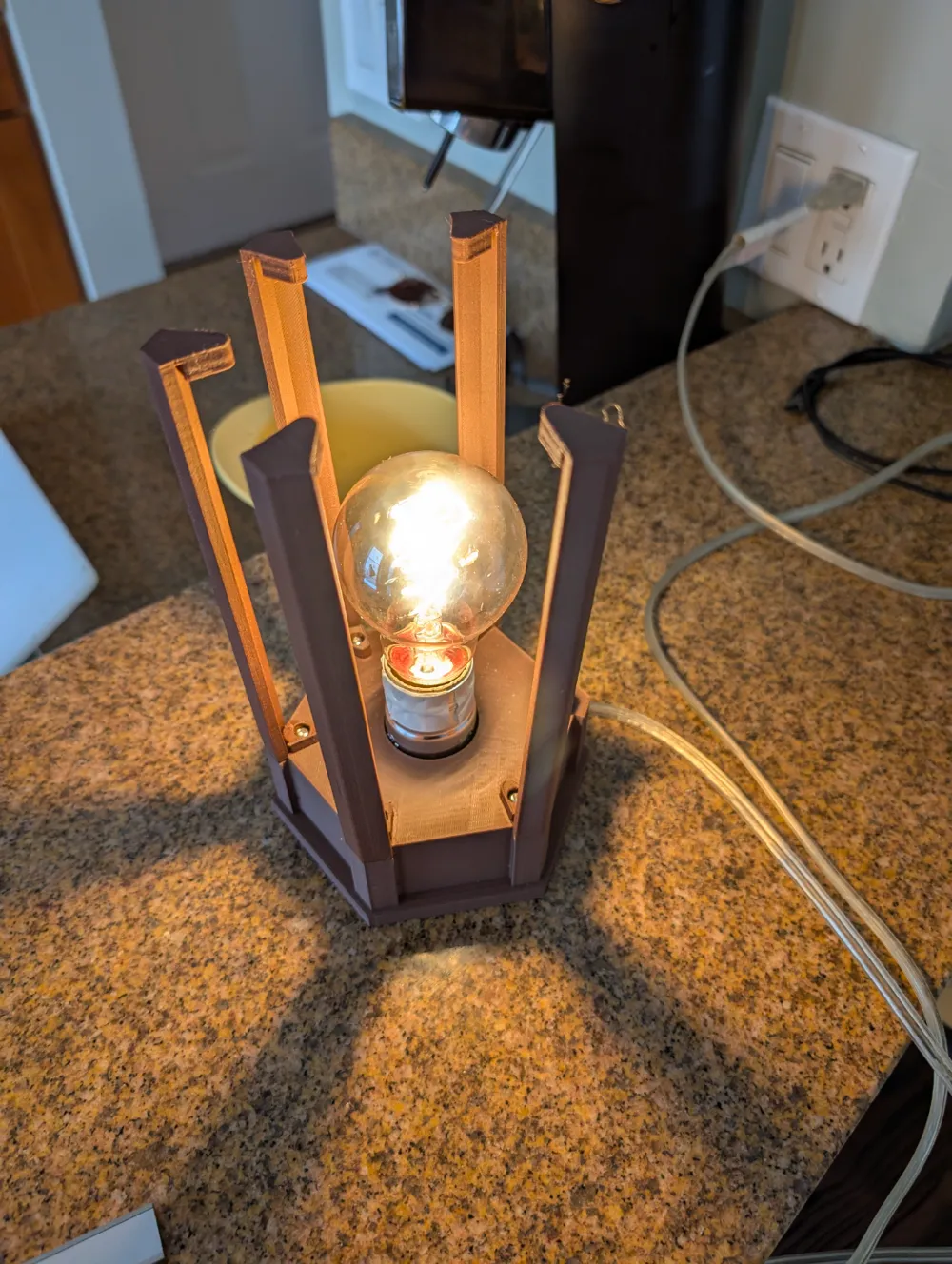

  • Lamp Posts
    • 6x 12mm M3
  • Socket screw
    • There is a separate hole for the lightbulb socket for a screw to go in, that i used to prevent the socket from falling out or spinning around.

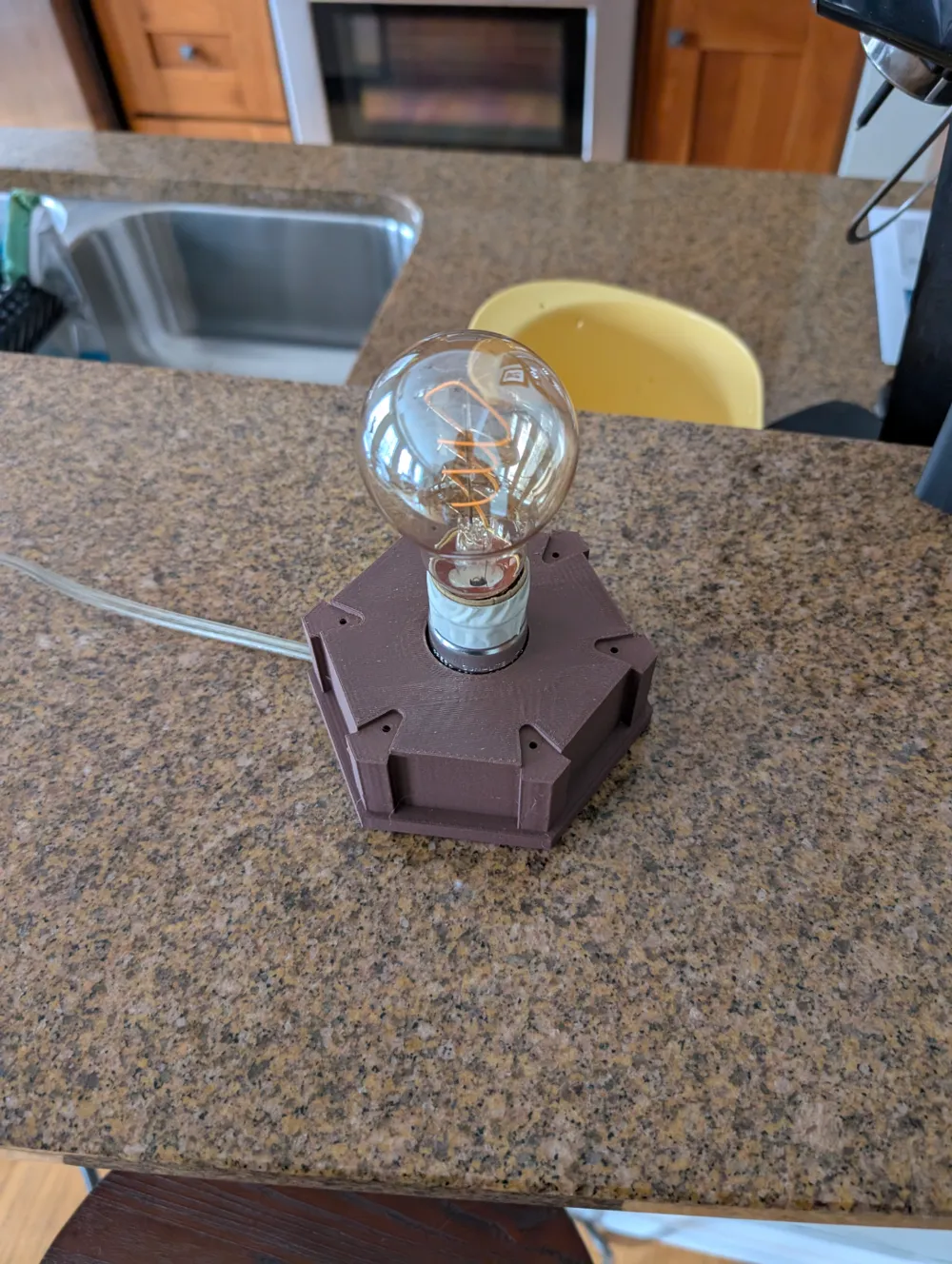

  • Lightbulb socket

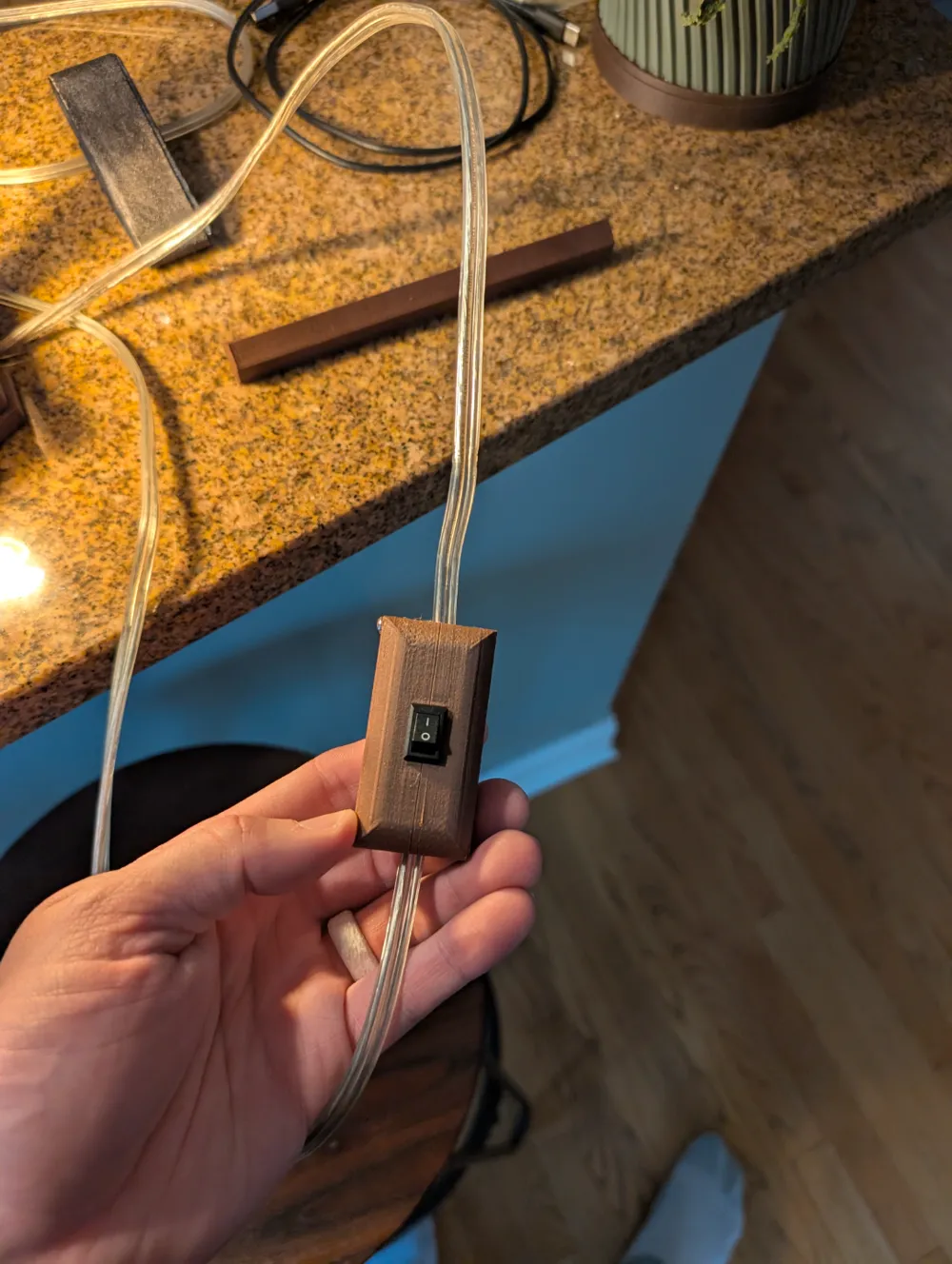

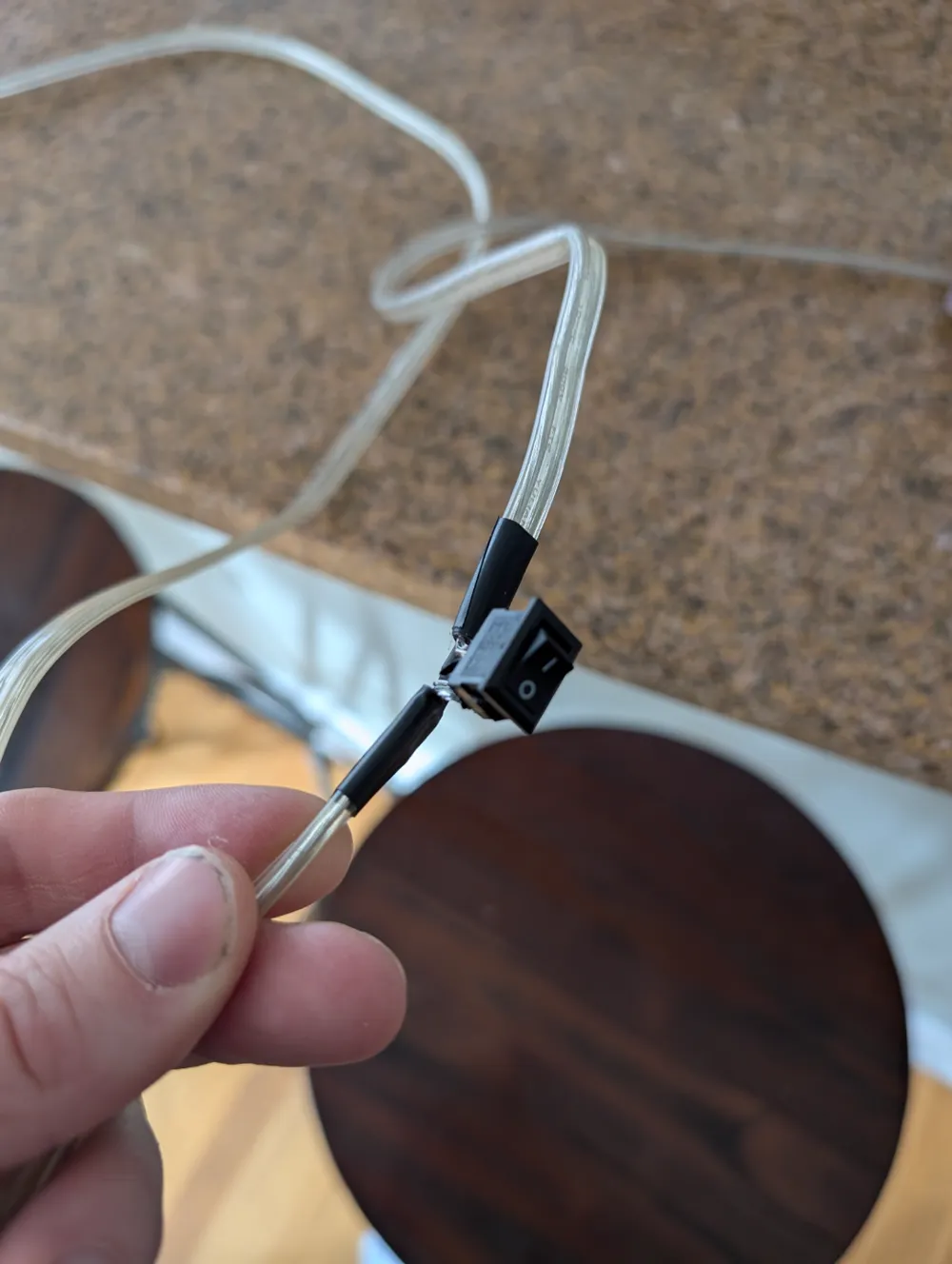

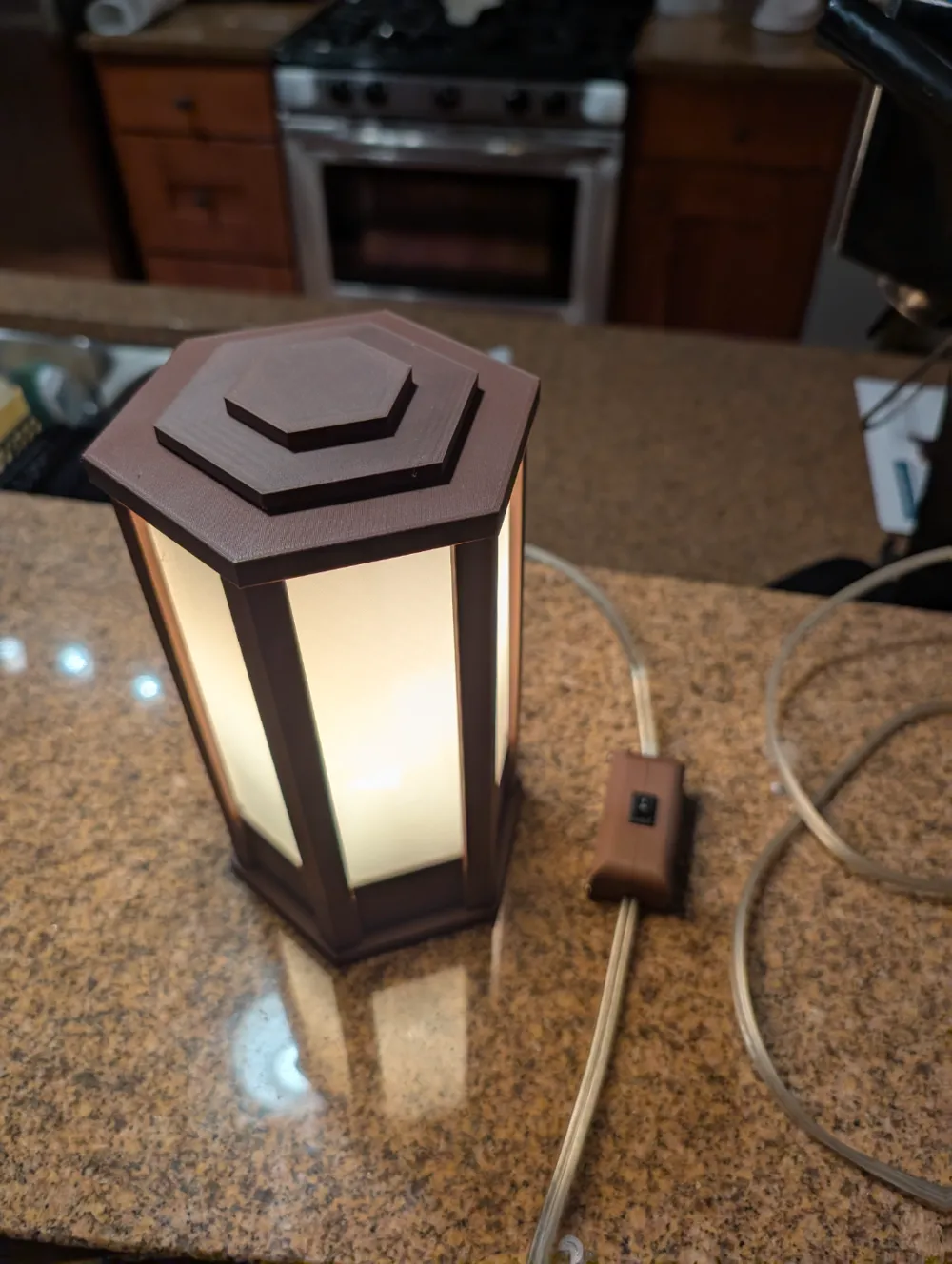

    • I cut off the spinning part of the socket that turns on the light and soldered my own switch in the power line

Print Info

  • The posts were printed laying horizontally

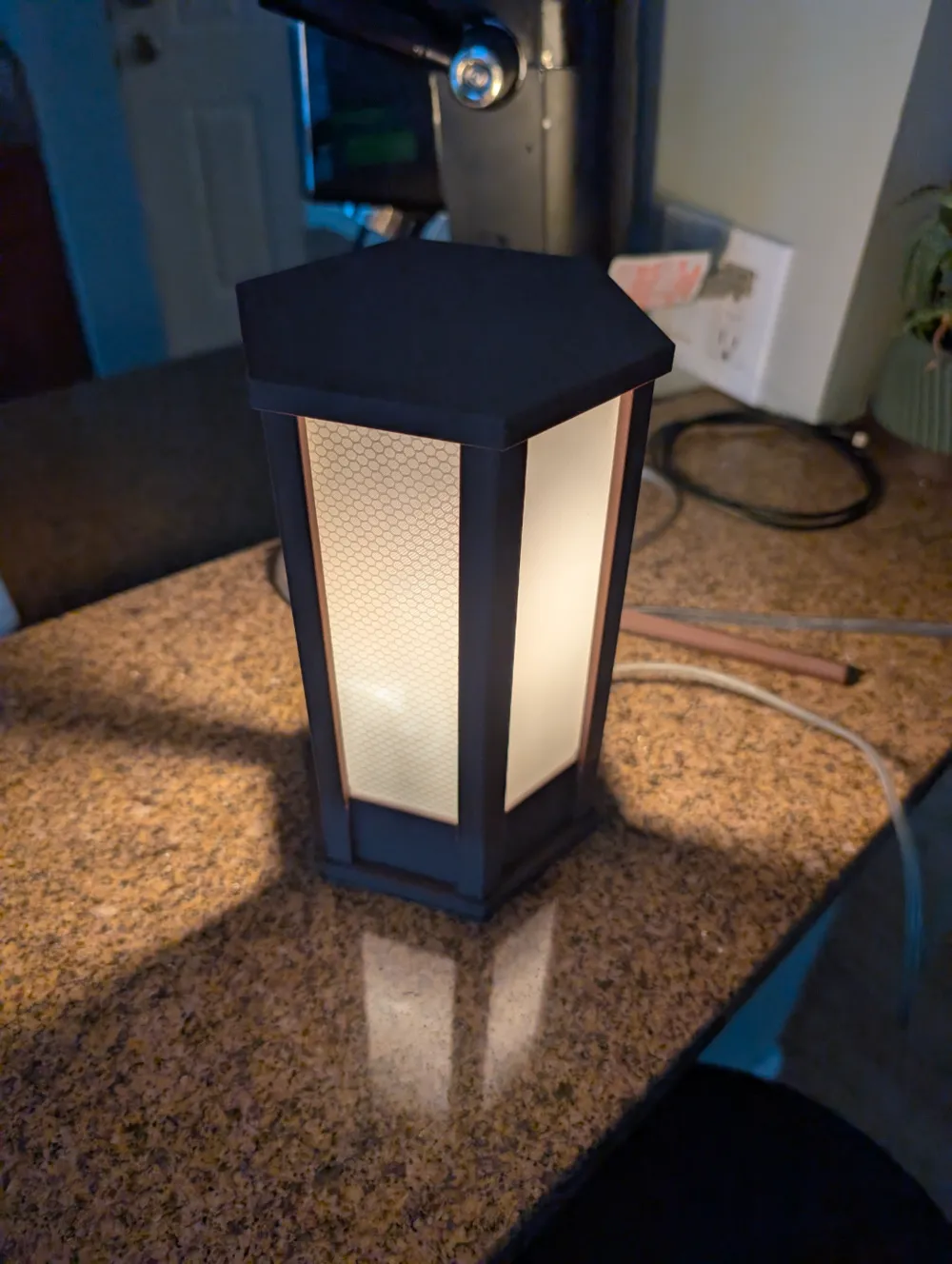

  • You can print a 159x54x1.8 mm flat square and remove top layers to do infill patterns if you'd like. I tested with honeycomb but my wife didn't like it

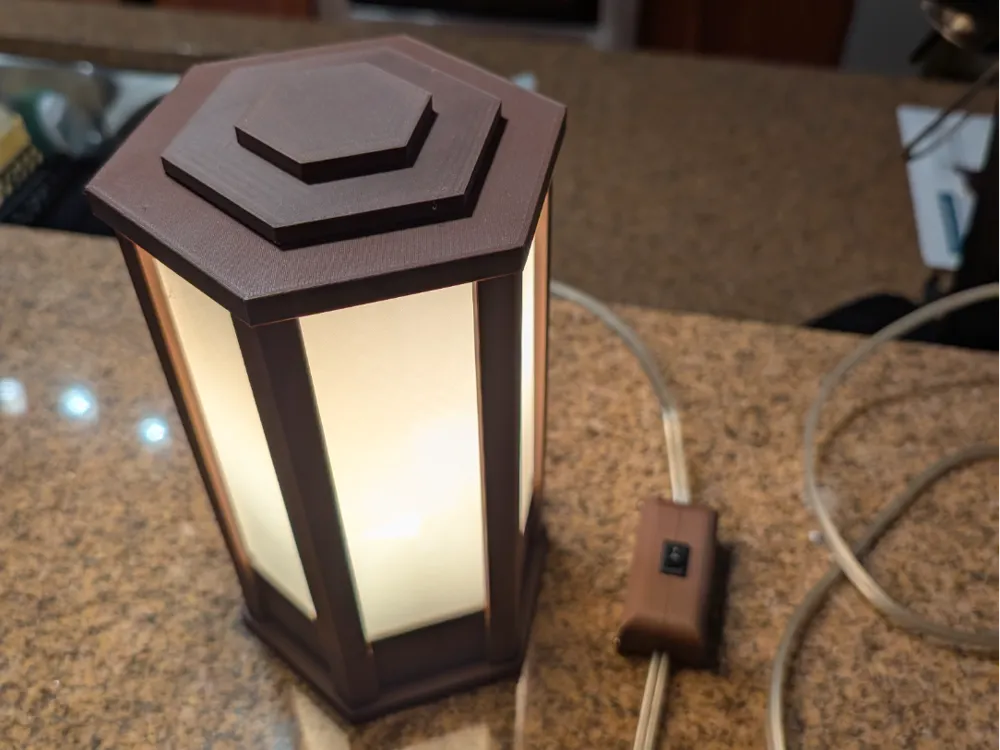

  • The diffuser is flexible enough to get into the slots without too much trouble
  • I printed with 0.2mm layer lines
  • (Optionally). I also put air dry clay inside the base to make it feel heavy.

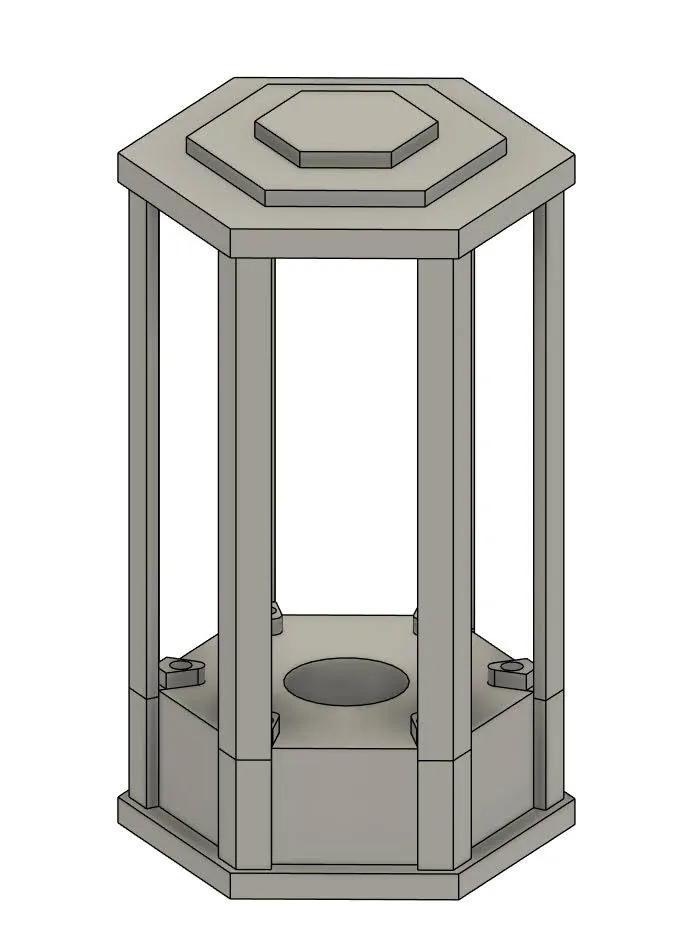

I've shared .step files so you can easily modify at will. Thanks for looking.
