Robin Lightbox

The materials used are listed below.

Materials

Filament

Yellow (eSUN PLA+) - https://www.amazon.com/gp/product/B07FQHP78J

Black (Bambu Labs) – Basic PLA Black

Red (Bambu Labs) – Basic PLA Black

LED Strip Light

COB LED Strip Light (5V) - https://www.amazon.com/gp/product/B08X1QMRKK

USB C to stripped leads Power Connector

Type-C Female Chassis Connector- https://www.amazon.com/gp/product/B0C7CPYL79

6.6FT 5V USB Type C Switch Extension Cable

USB C Extension Power Cable - https://www.amazon.com/dp/B0CQ41BRS1

USB Wall Charger 5V 2A

USB Wall Charger - https://www.amazon.com/dp/B07DCR29GN

Assembly

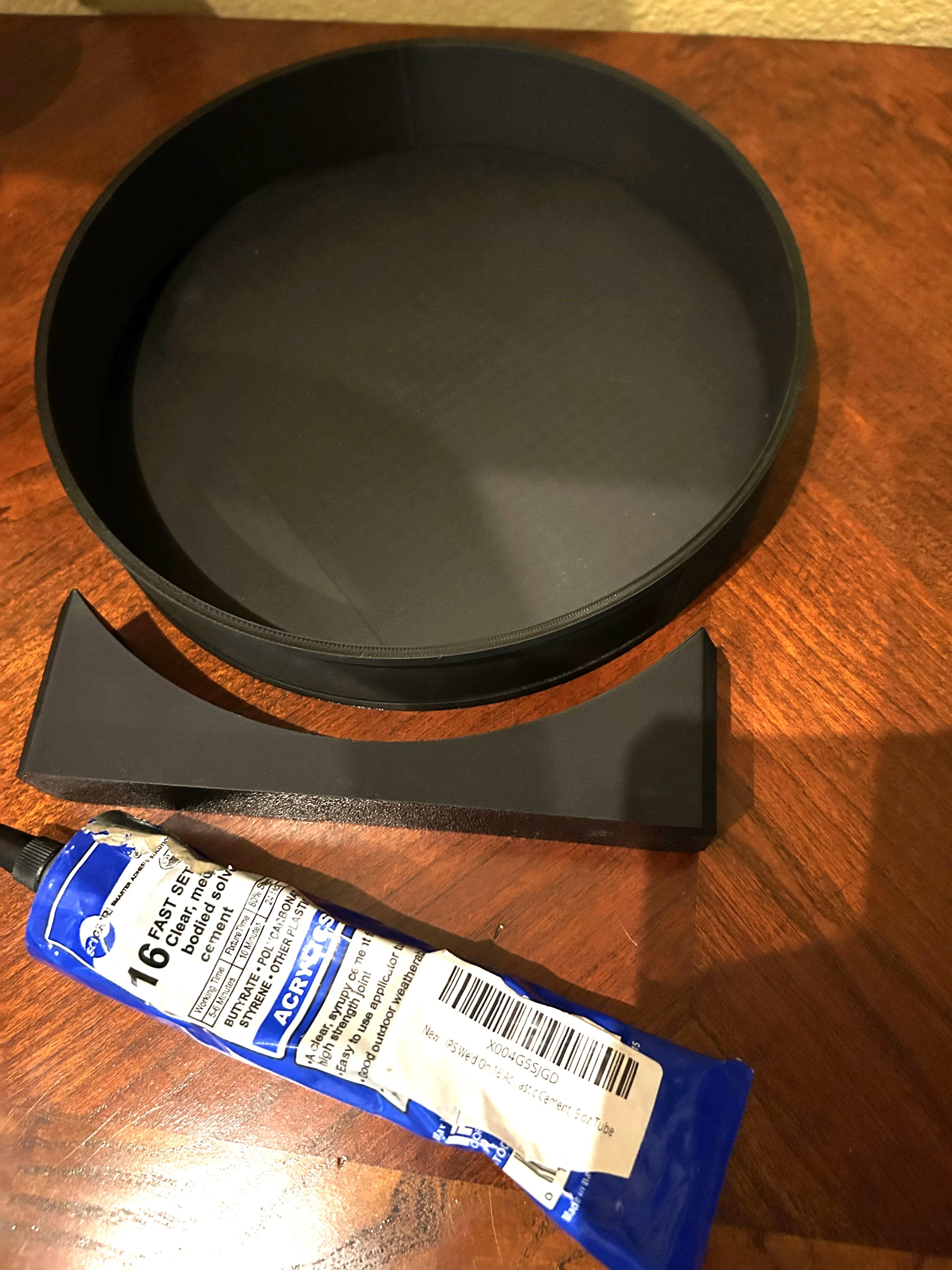

• Glue Stand to base of light box.

          I use SCIGRIP 16 - https://www.amazon.com/gp/product/B003HNFLMY

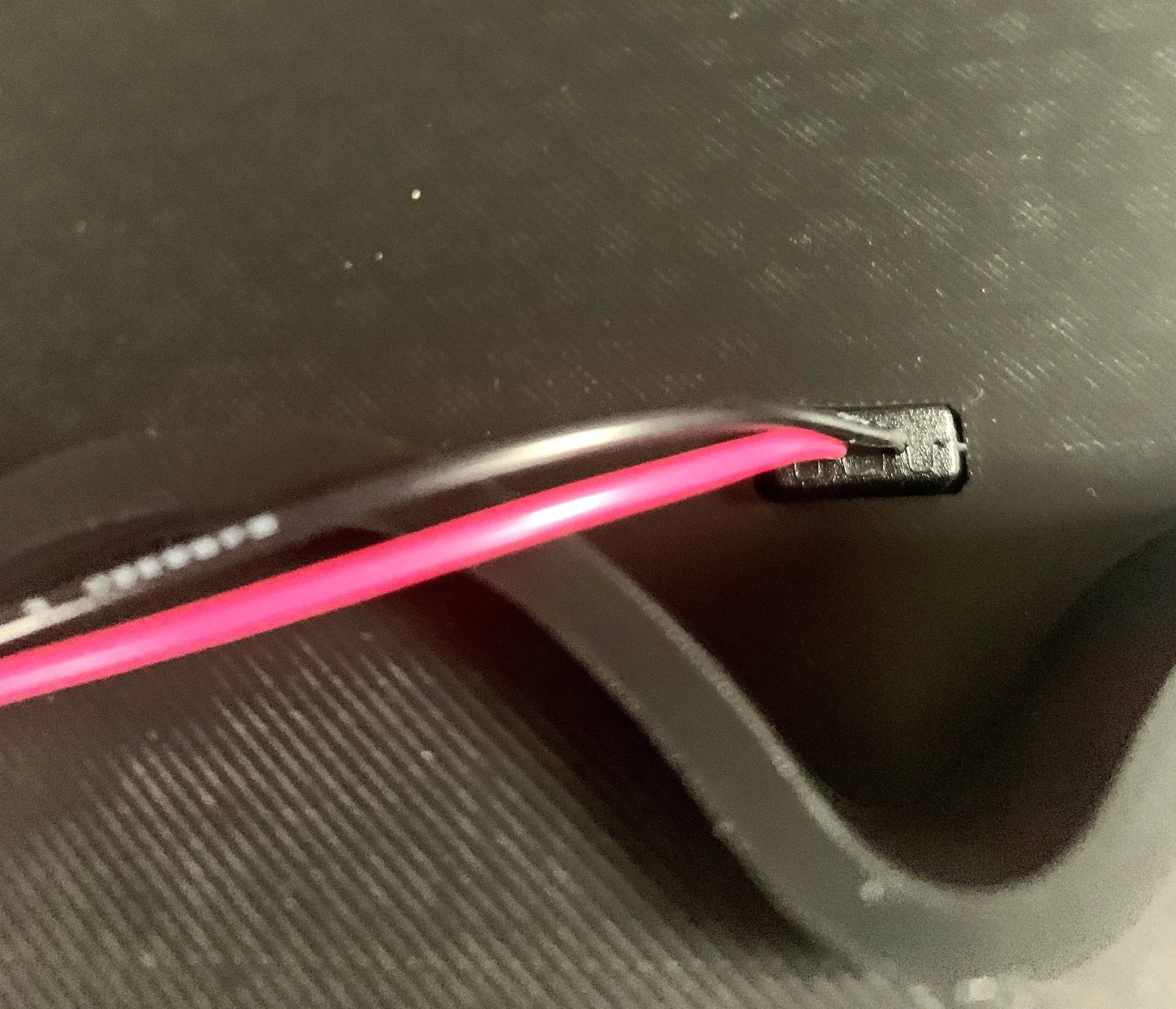

• Insert the USB-C chassis connector on the back of the light box.



• Cut the LED Strip Light dimmer cord and leave about 5 inches of the white wire attached to the COB Leds.
• Remove a few inches of the white insulation exposing the red and black wire in the insulation.
• Slide heat shrink over the red and black wire on the USB-C chassis connector.
• Solder the USB-C chassis connector wires (red and black) to the COB LED wires (red and black) that are coming out of the white insulation.
• Slide the heat shrink over the exposed solder connection and apply heat to the heat shrink.

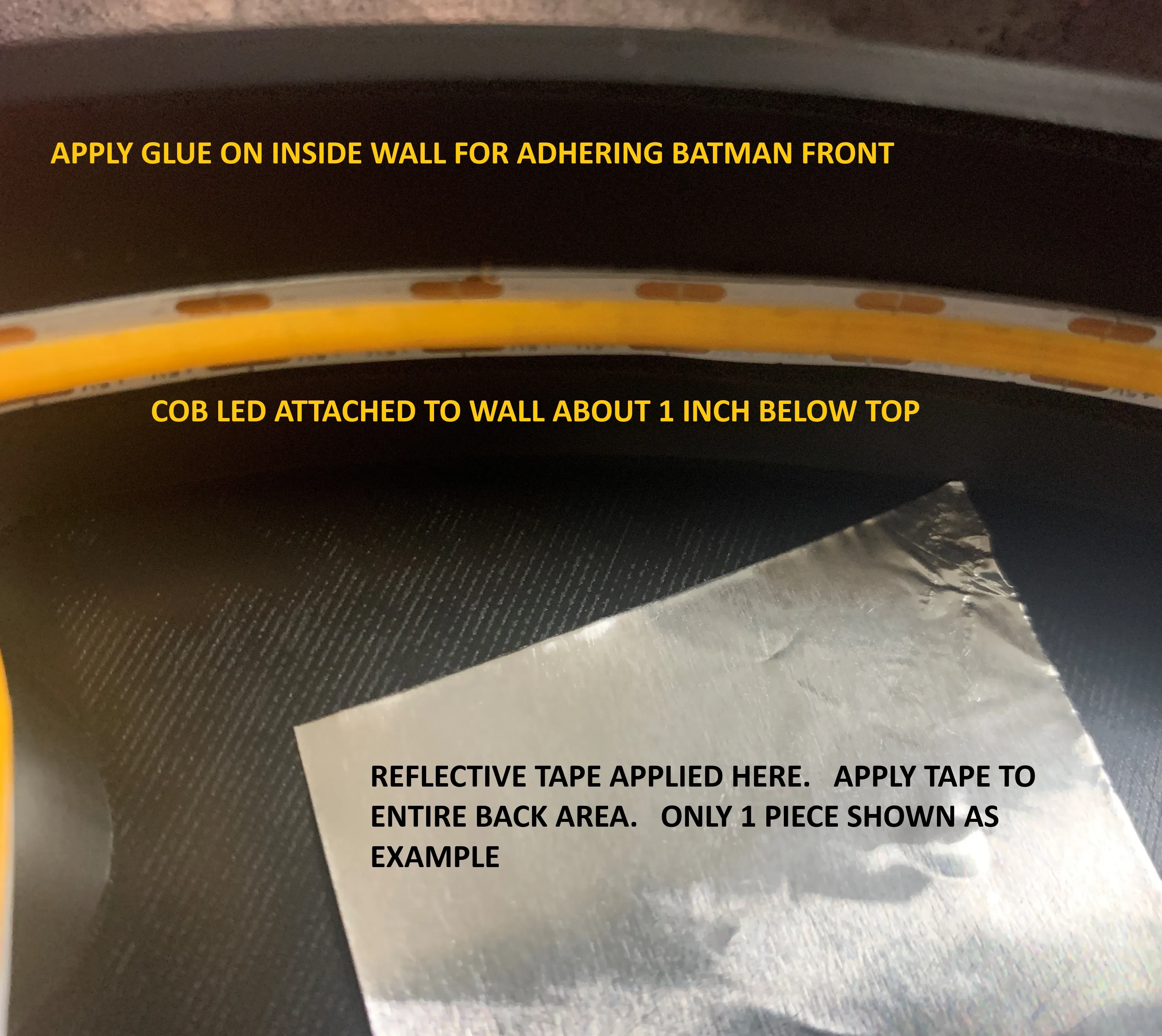

• Apply the COB LEDs about and inch down from the top of the back opening and route around the interior of the back attaching the LEDs via the tape on the COB LEDs.





• Add reflective HVAC tape to the interior back of the light box
• Use Scigrip 16 glue to top edge of light box back
• Attach the front Robin lens to the light box back.
