Dial Indicator Case
Print Profile(1)
Description

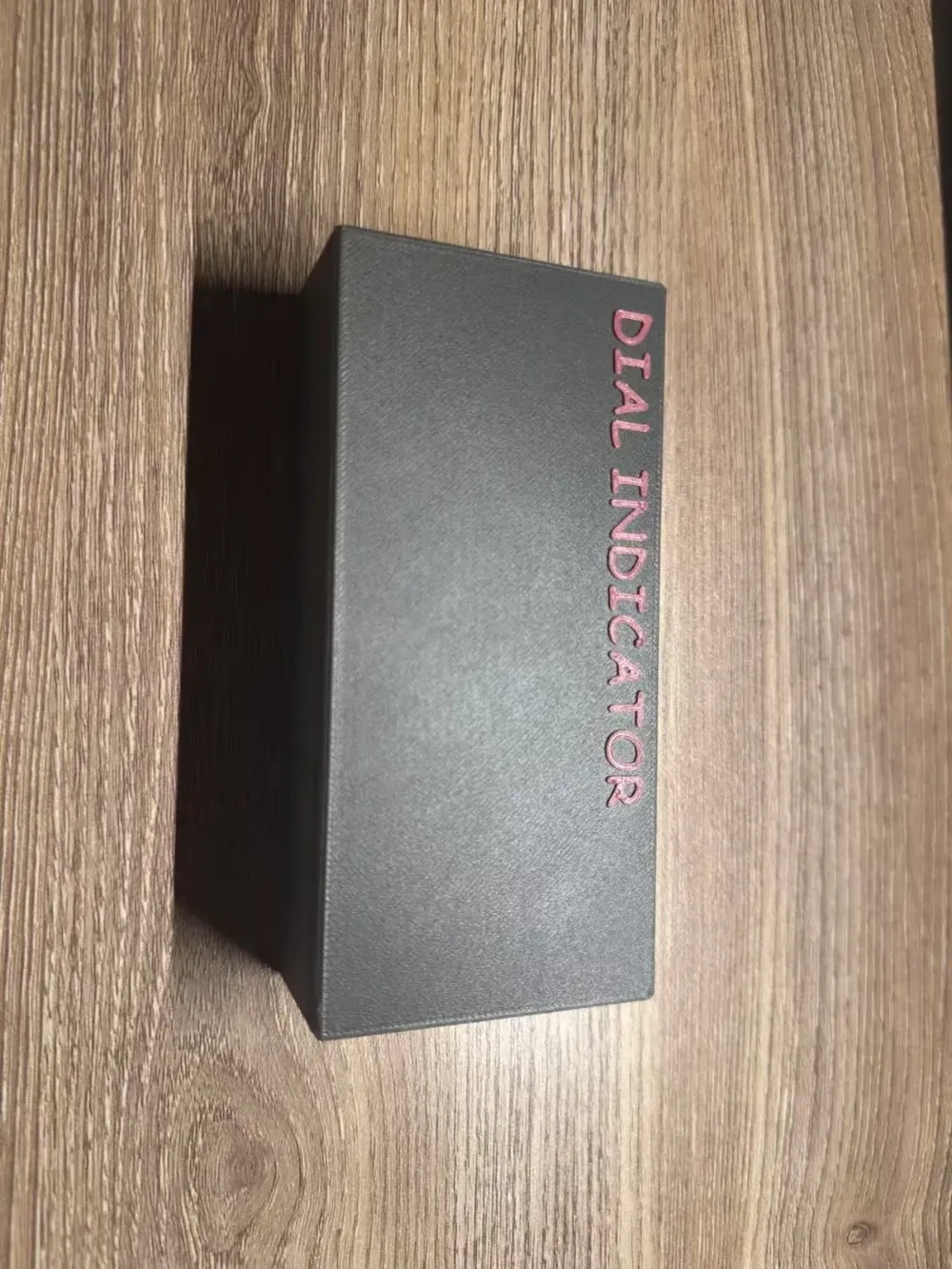

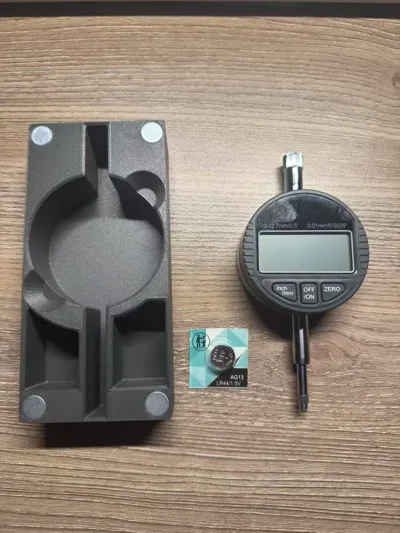

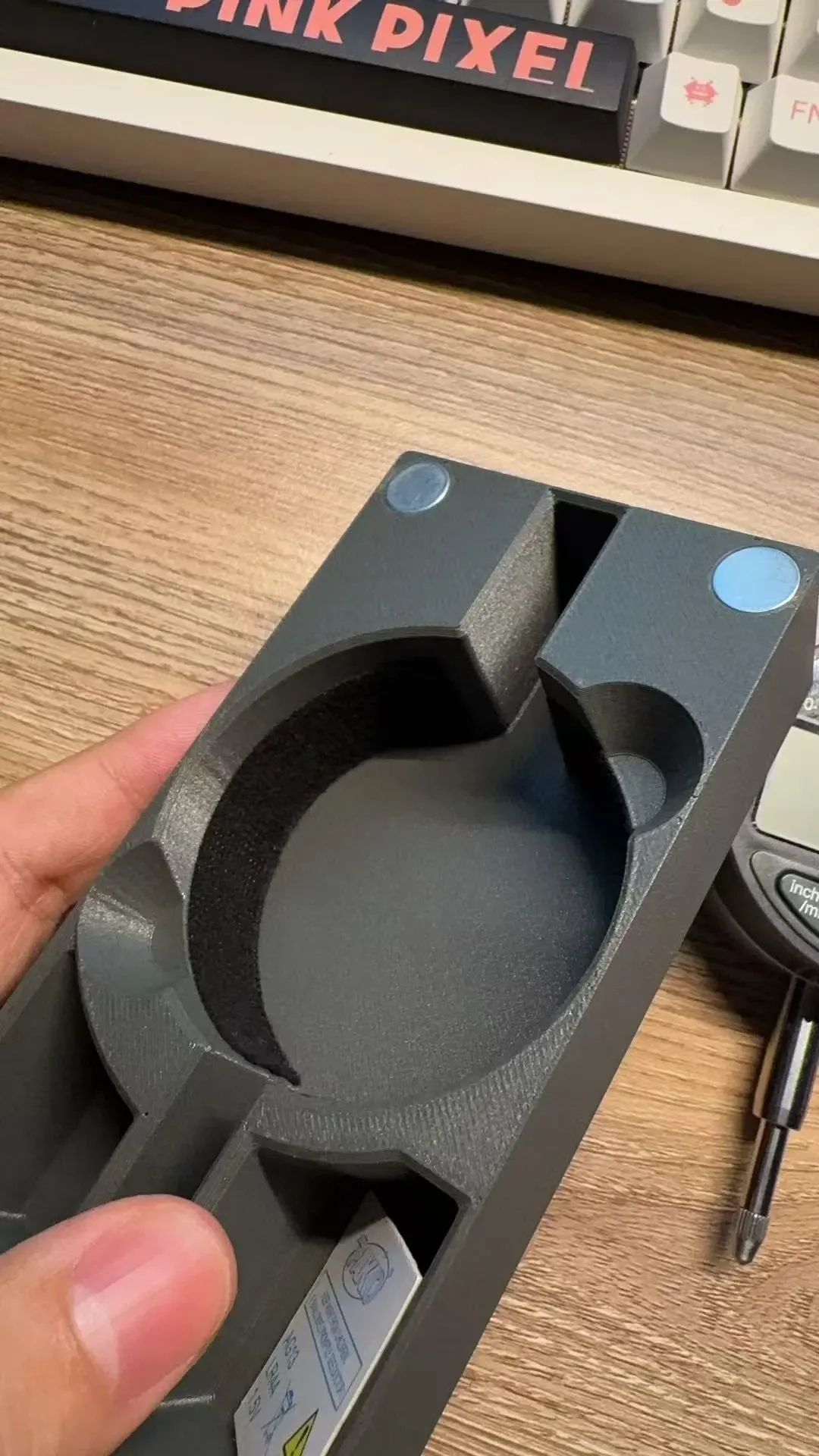

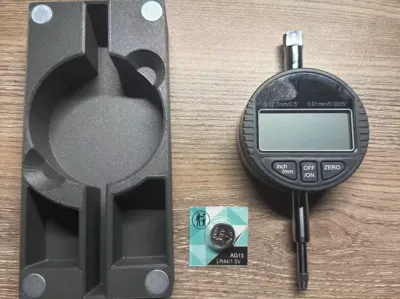

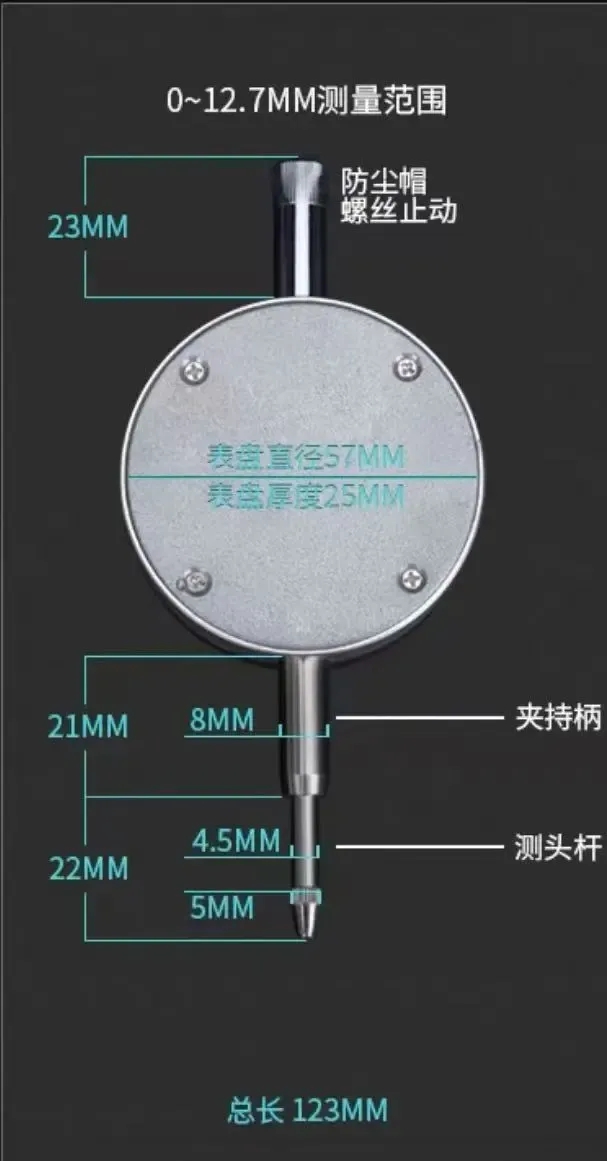

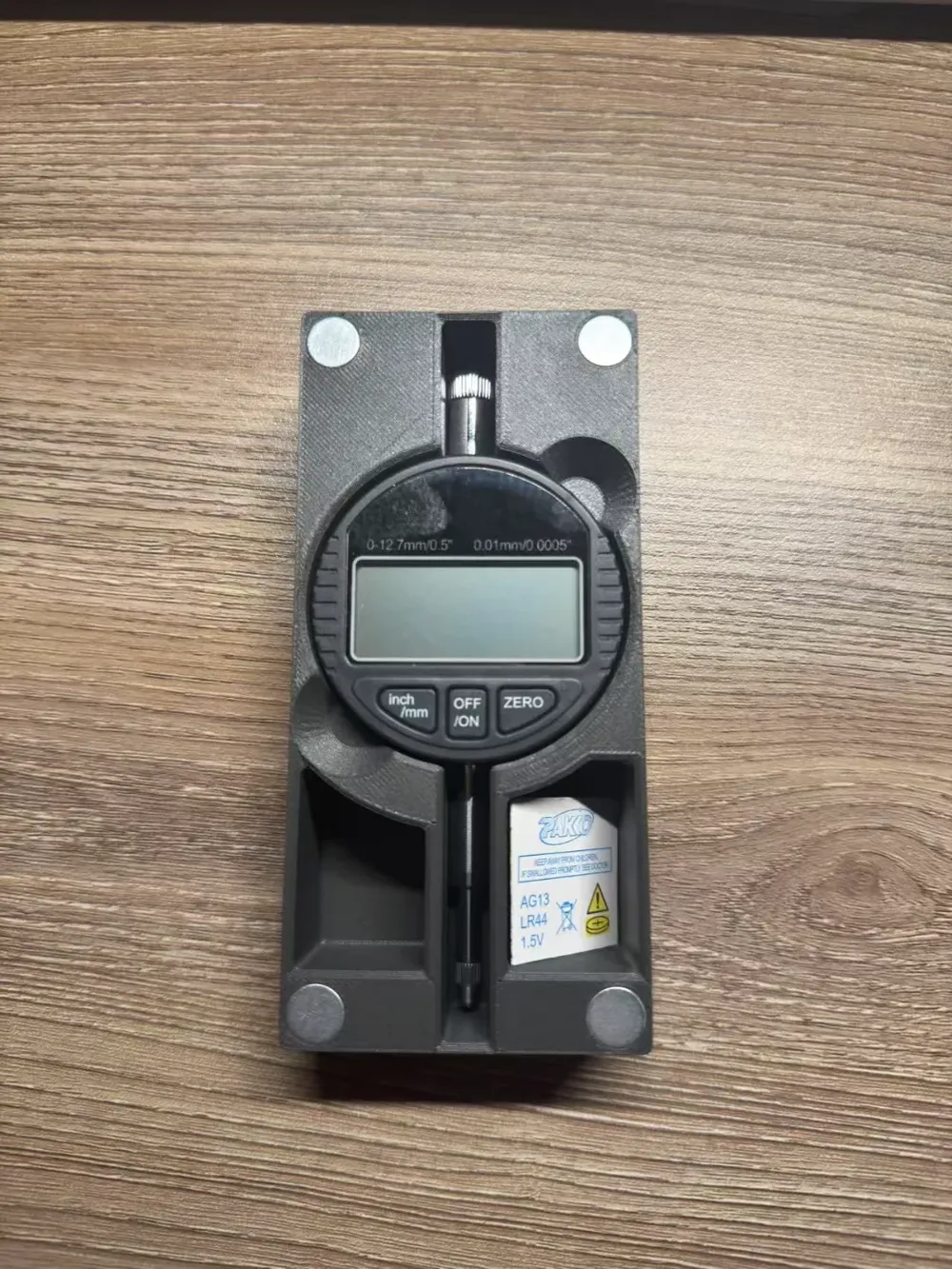

This dial indicator storage case accommodates indicators of the size shown in Figure 1 or smaller, though this is not recommended. Based on my observations, it generally fits digital dial indicators with a 12.7mm measurement range. It features eight φ10*1.5mm recesses for embedded magnets (eight corresponding magnets required). Additional internal grooves provide storage for batteries and other small accessories. For enhanced protection, consider lining the interior (as shown in Figure 2) and the lid's contact points with a thin (approximately 0.3mm) felt adhesive tape to prevent impacts and scratches.
The SolidWorks sldprt file is uploaded for modification and adaptation. Please remember to download and like the design. Thank you very much.
