Inside 4x4 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

6.4 h

3 plates

5.0(1)

Inside 2x3 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

3.8 h

3 plates

Inside 3x3 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

4.6 h

3 plates

Inside 3x4 gridfinity, 0.2mm layer, 2 walls, 15% infill

Designer

5.5 h

3 plates

Open in Bambu Studio

Boost

105

Released

Bill of Materials

Maker's Supply Kits and Parts

Select all

M3 Socket Head Cap Machine Screws (SHCS)

Description

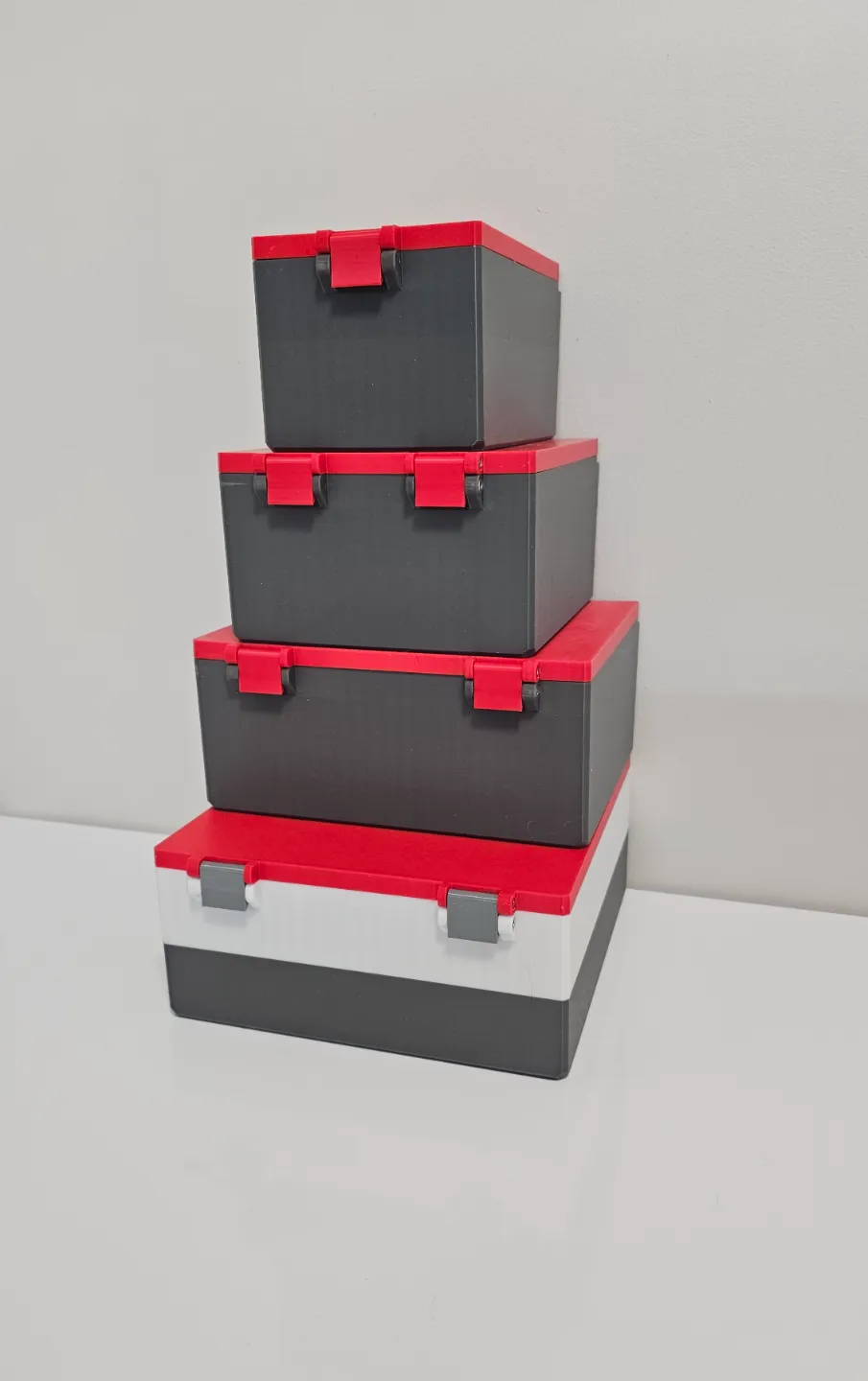

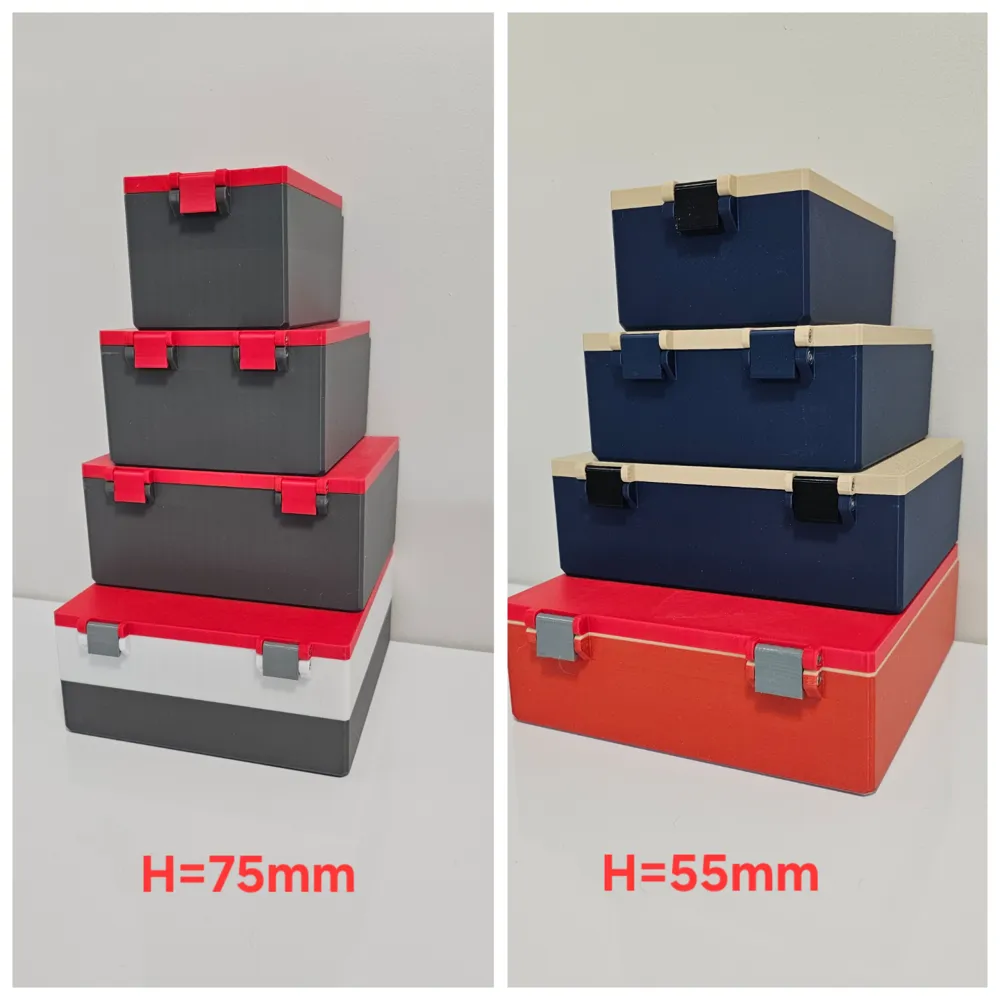

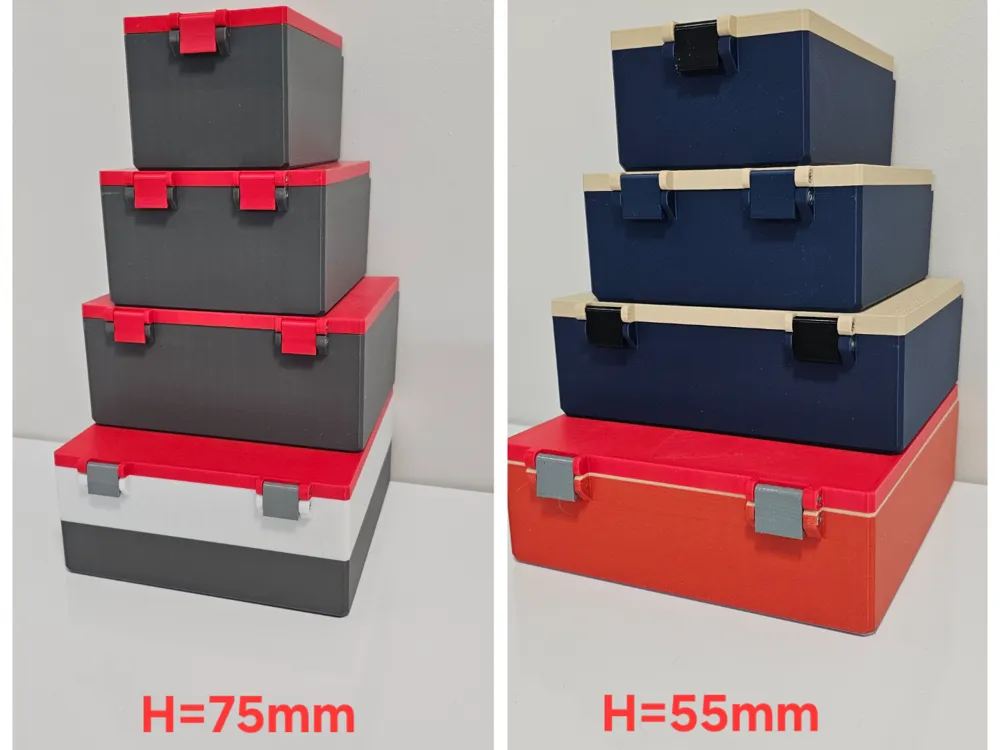

New height, 75mm inside.

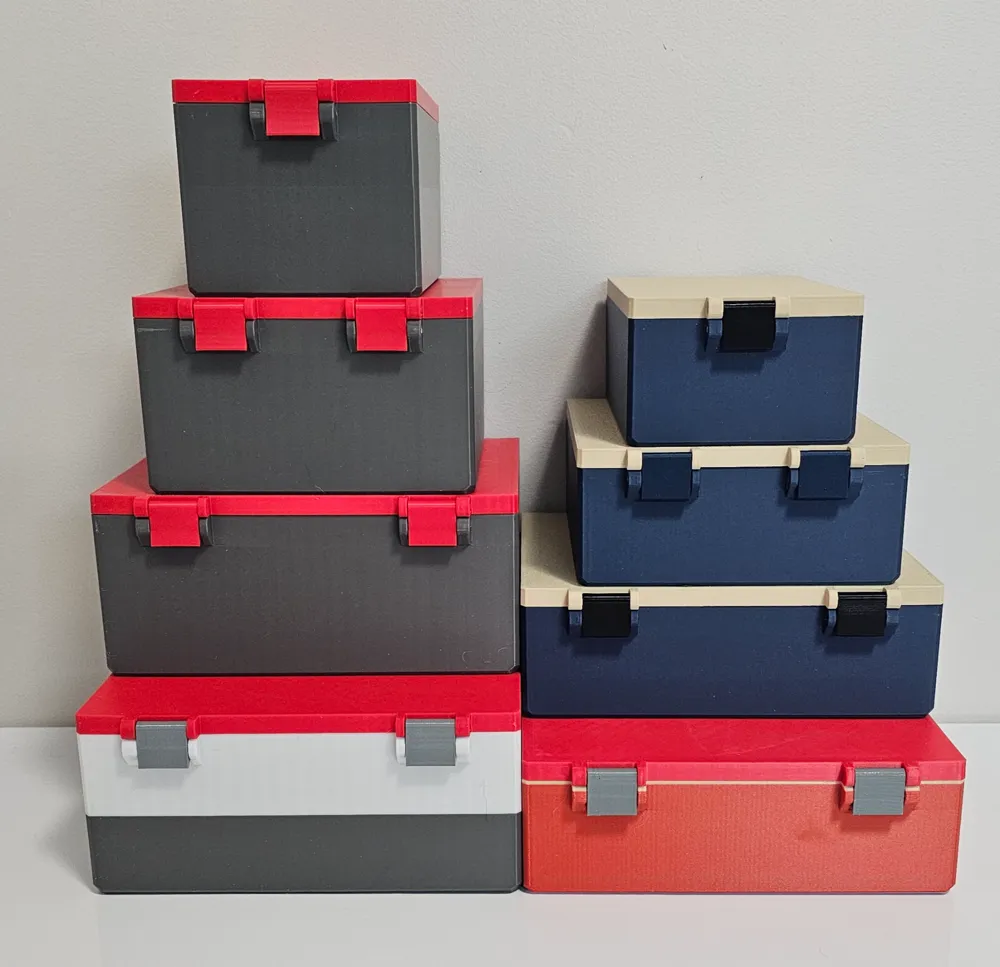

Link to 55mm high boxes:

https://makerworld.com/en/models/1051724#profileId-1038594

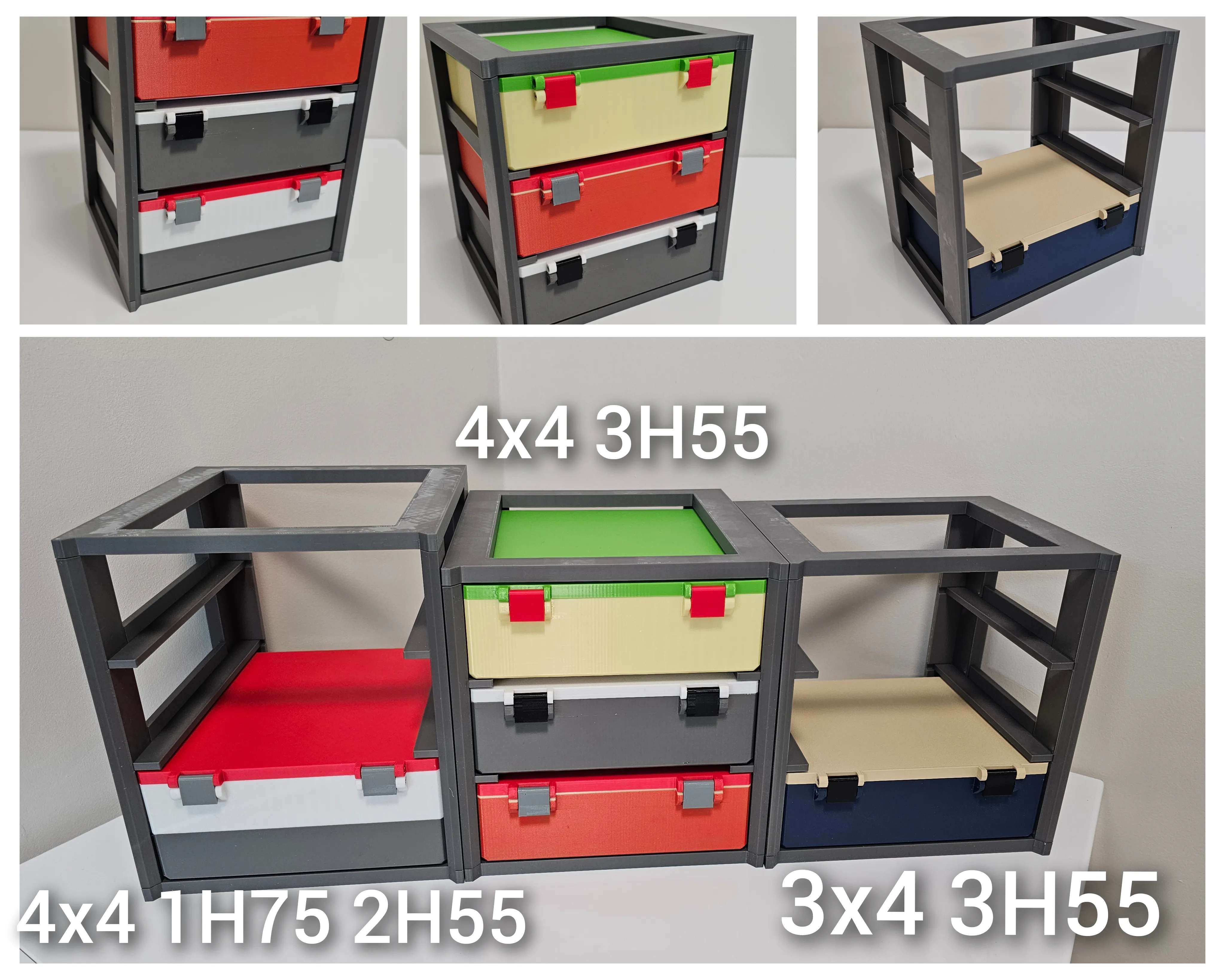

LInk to Box Storage Frame System:

https://makerworld.com/en/models/1094107#profileId-1088179

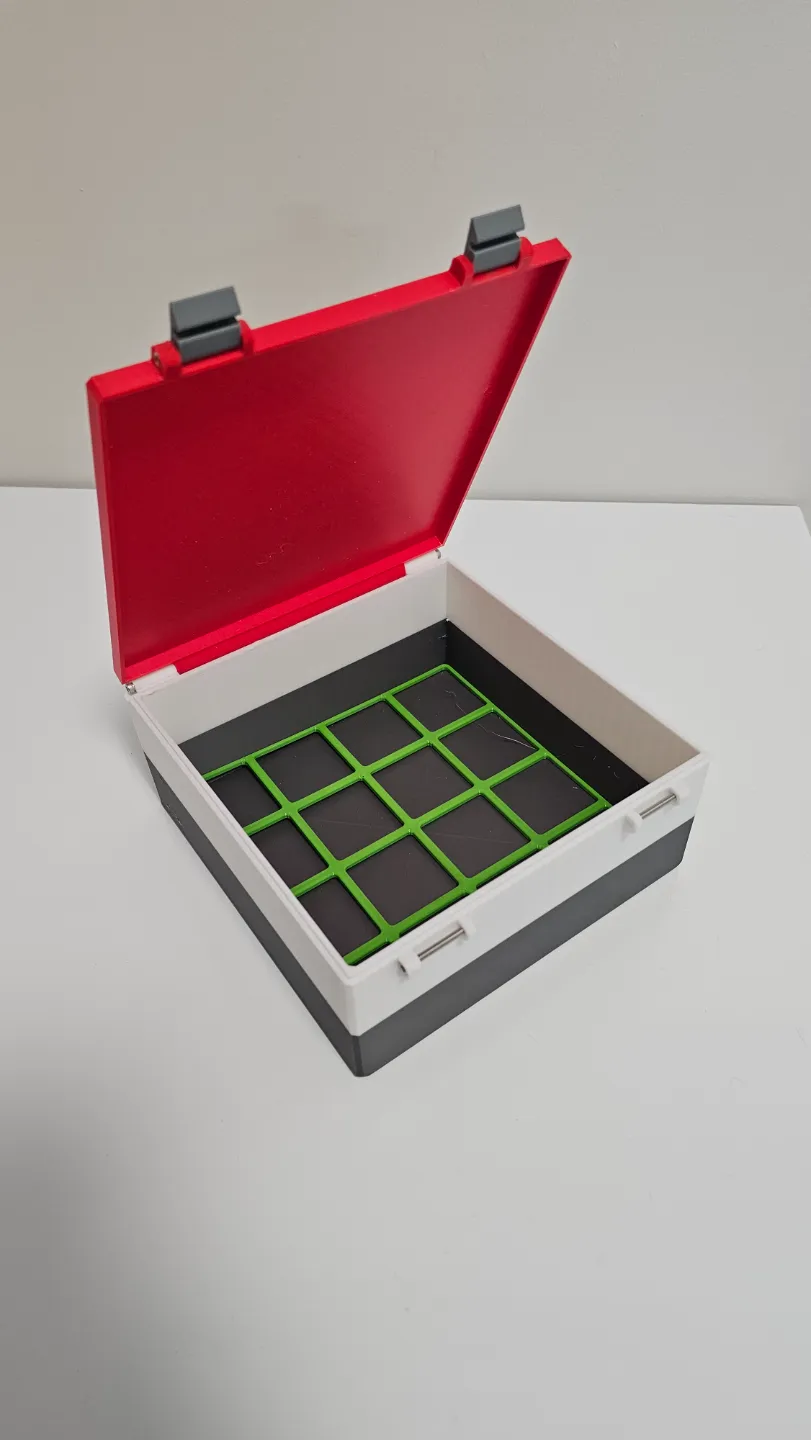

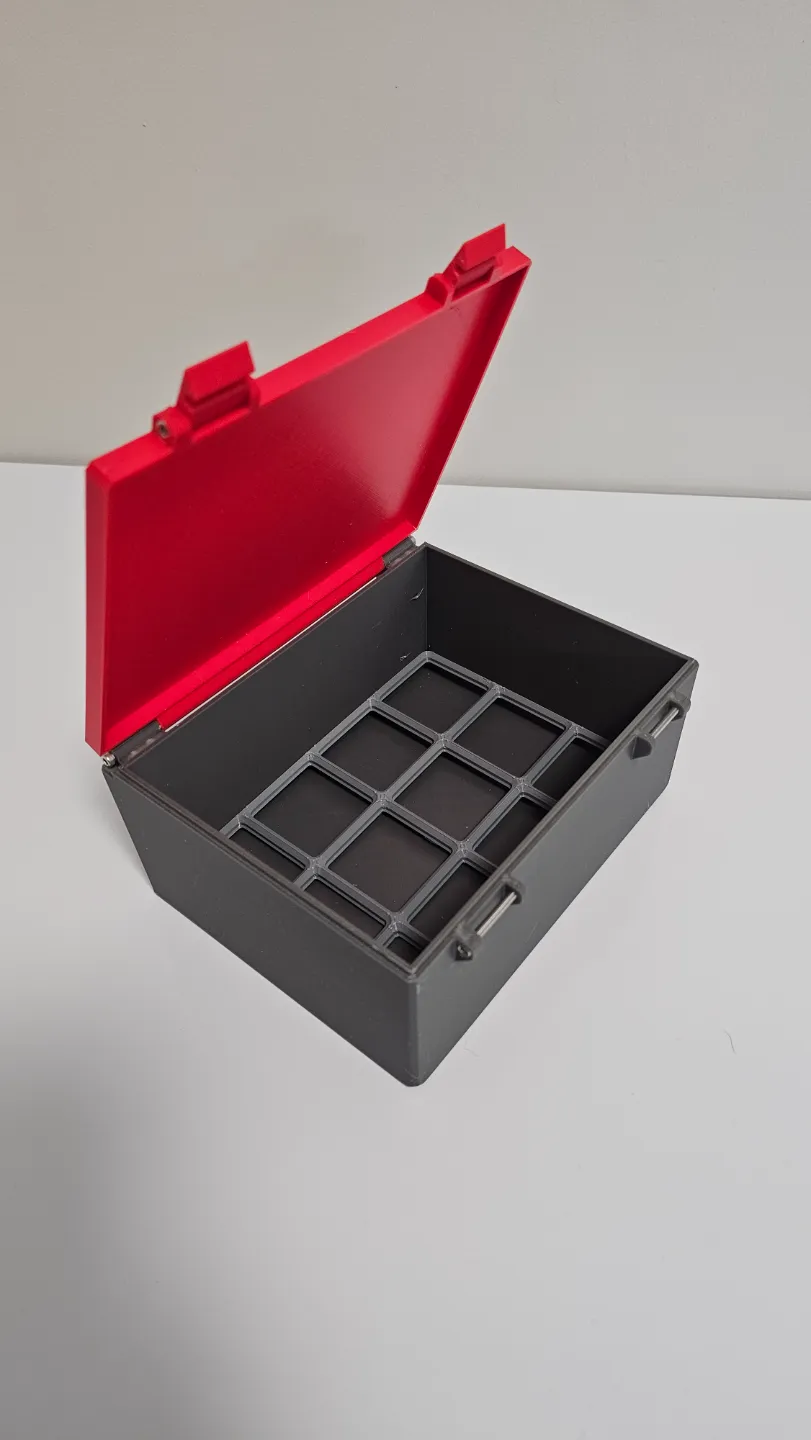

Storage boxes, compatible with gridfinity 2x3 3x3 3x4 4x4

The 4x4 box does not fit on the A1 Mini

To assemble the boxes, you need M3x25 screws, with dimensions like those from the bambu store.

Closing clips are better printed in PET-G, but PLA is also OK, or they may hold less well after a longer period of use. There is no need to print clips with a higher infill, they are harder to fit then, the standard 15% infill is ok.
