SUZUKI Oil Funnel - Thread-In No Spill
Print Profile(1)
Bill of Materials
Description
Boost Me (for free)
Support more cool designs!!

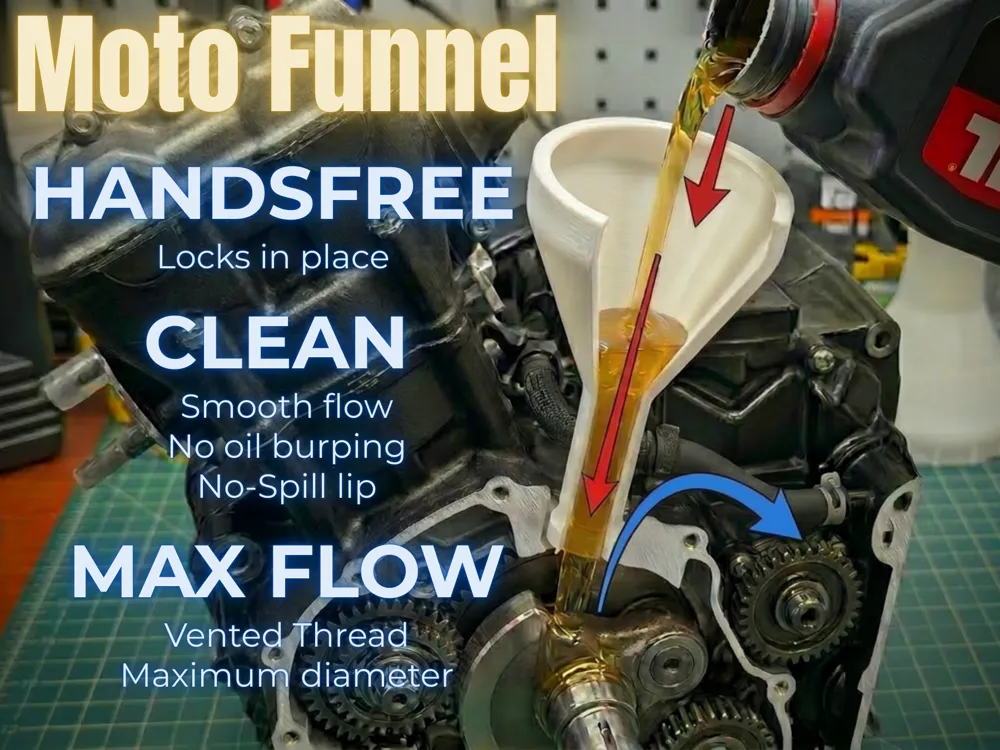

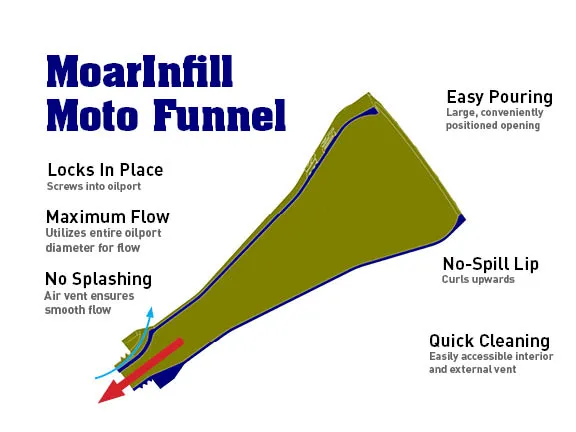

No more spills or needing a second pair of hands during oil changes. Maximum flow area and vented for fast, smooth oil filling.

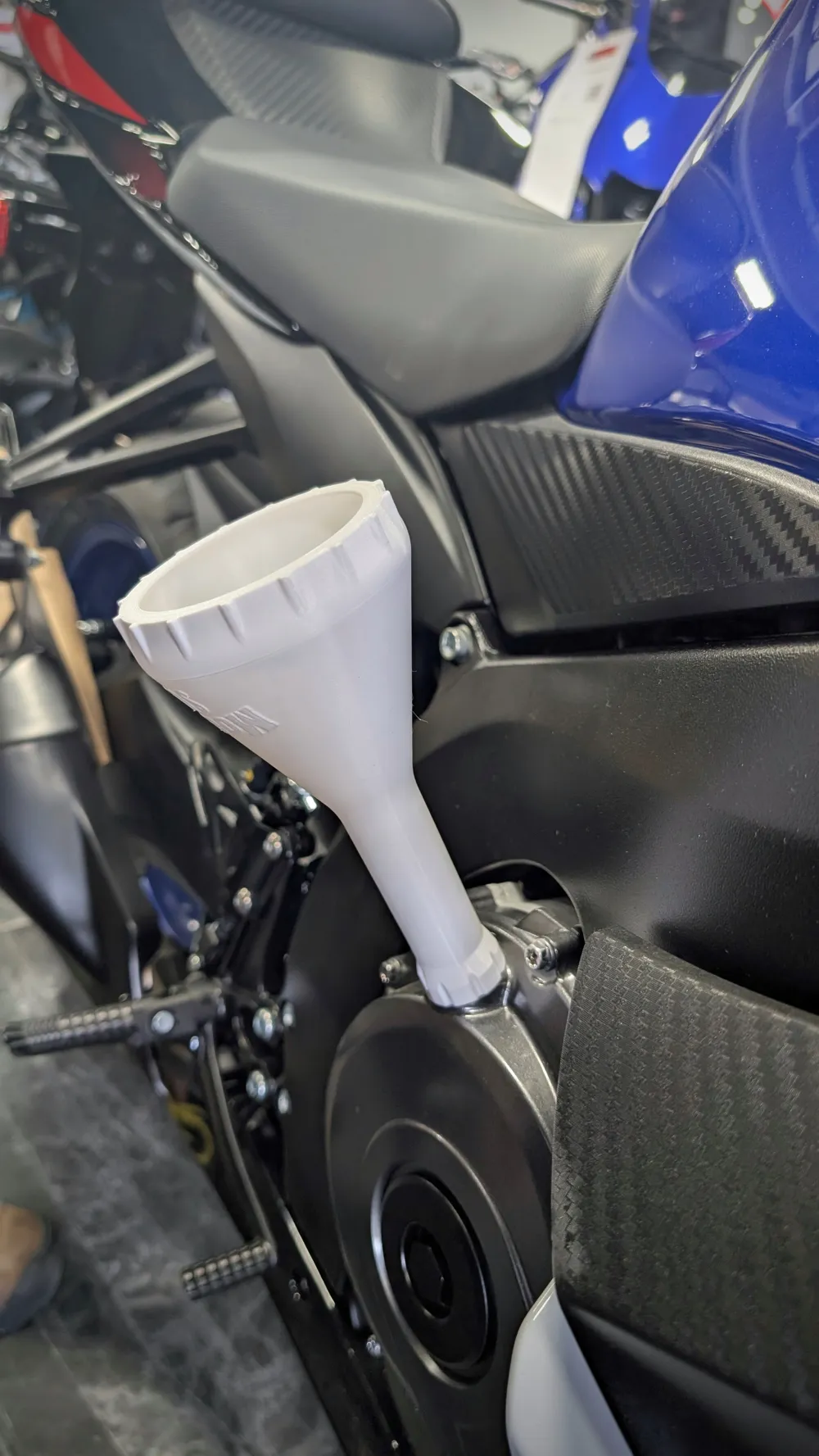

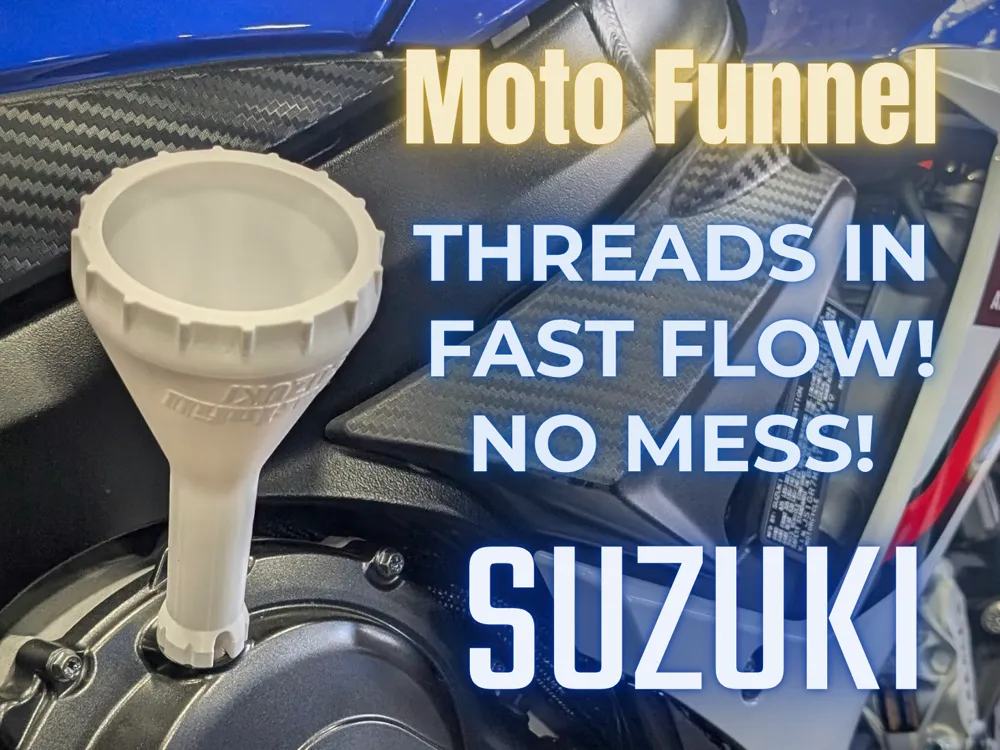

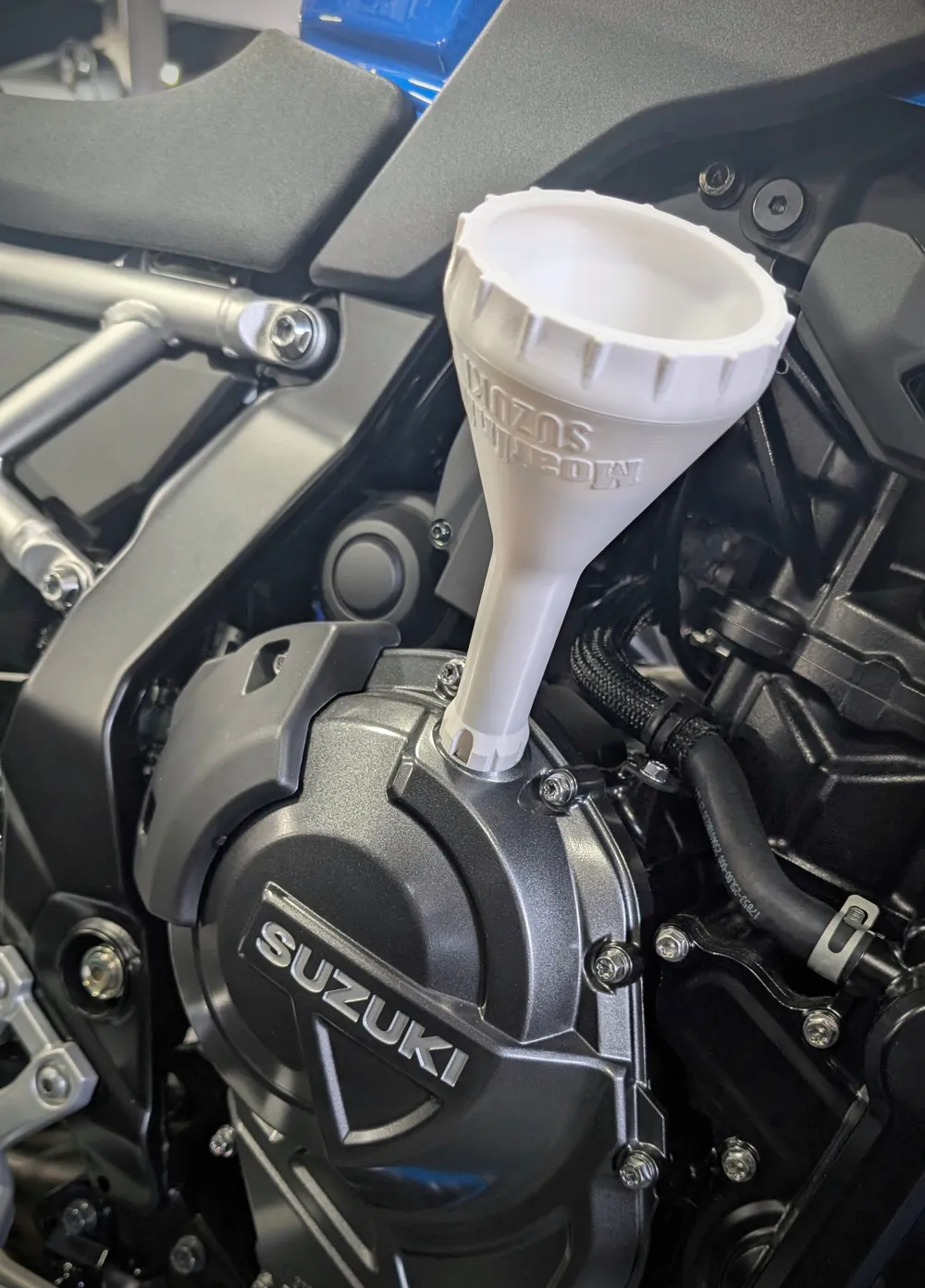

Threads directly into the oil fill port on most Suzuki motorcycles.
Does NOT fit: GS500 ('01-'09), GSX1100 ('88-'94). Find those funnels and more brands and models here: complete funnel set for all makes and models available
The MoarInfill Moto Funnel is a must-have accessory for those who prefer a hassle-free and smooth oil service experience!
Print guidelines:
- PETG or other higher temperature material
- 0.4mm nozzle
- 0.2mm layers for the main body, 0.1mm layers for the threads
- Slow down for threads
- 3 wall loops
- Arachne (This ensures fast printing and structural integrity for the main body)
- 20%+ infill
- No support
