MODULAR PEG BOARD
IP Report
Print Profile(1)
ADDED TRIM PIECES
Designer
8.2 h
3 plates
Open in Bambu Studio
Boost
66
174
5
6
164
74
Released
Description

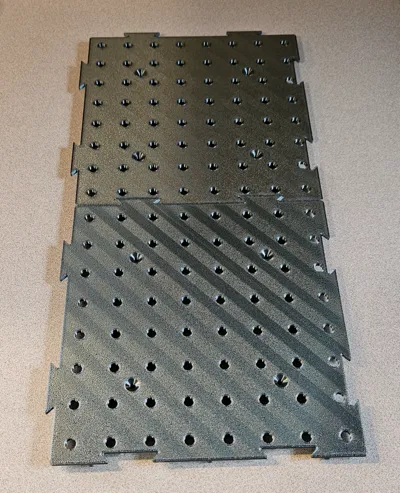

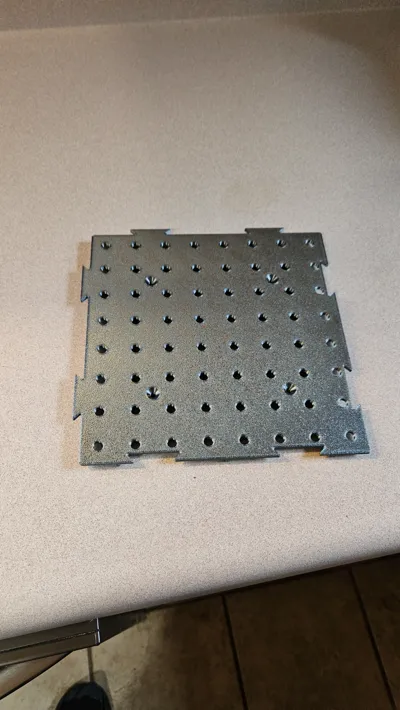

- Interlocking, modular peg board
- 8" x 8" mounting area per plate
- Standard 1" x 1" grid spacing
- ¼" mounting holes
- 4 screw mounting holes (#8 size) per plate
- Tough design for holding the heaviest tools
- 1/8" thick mounting plate, 3/8" overall thickness
- Corners and edges added!

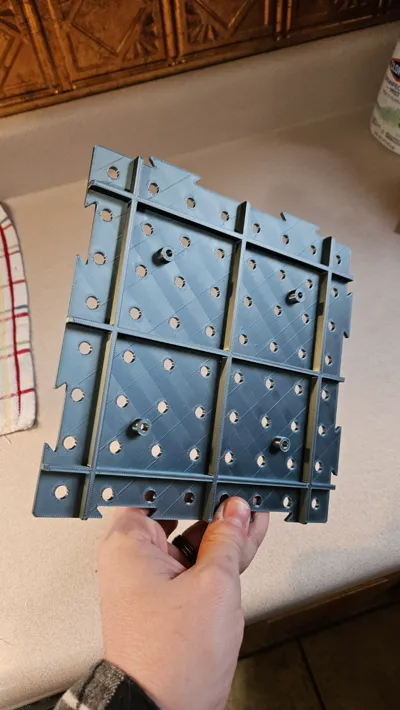

Print the board face down to save on time and material. Use different textured plates to customize your own look!
For the borders, they can be printed face up or face down.
- If you print face down, use snug supports for the protruding blocks
- If you print face up, use snug support and simply remove the brim pieces. No need to fully remove the supports!
!! It is very important that the boards all match orientation or the borders will not fit !!
