Waveshare 8.8" display & Raspberry Pi case - Free 3D Print Model

Search models, users, collections, and posts

jdamcd

Hobby & DIY>Electronics

IP Report

Print Profile(1)

All

P1S

P1P

X1 Carbon

X1E

H2D

H2D Pro

H2S

P2S

H2C

X2D

A2L

0.2mm layer, 4 walls, 15% infill

Designer

1.9 h

2 plates

Open in Bambu Studio

Boost

107

Released

Description

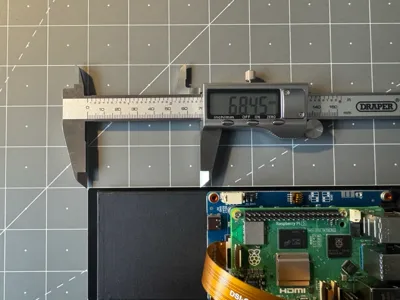

A case for the Waveshare 8.8" DSI display. The circuit board is supposed to be 68.45mm from the edge of the display from the technical drawing and 3D model. However, it's 3.5mm off on my unit (see pictures). I've included an additional STL file that uses the spec measurements in case there are different variants out there.

Boost Me (for free)

Please boost if you found this model useful!

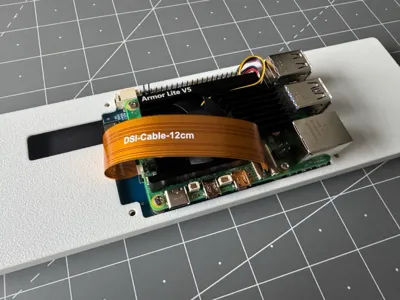

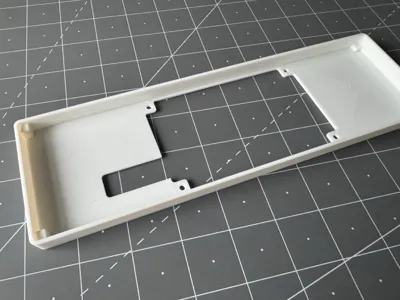

The back cover fits a Raspberry Pi 4 with all ports accessible. 4x M3 screws are required to attach the bezel and cover to the screen.
