Optimized Beam-Column Node
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
2.6 h
1 plate
Open in Bambu Studio
Boost
9
22
0
0
10
7
Released
Description
Content has been automatically translated.

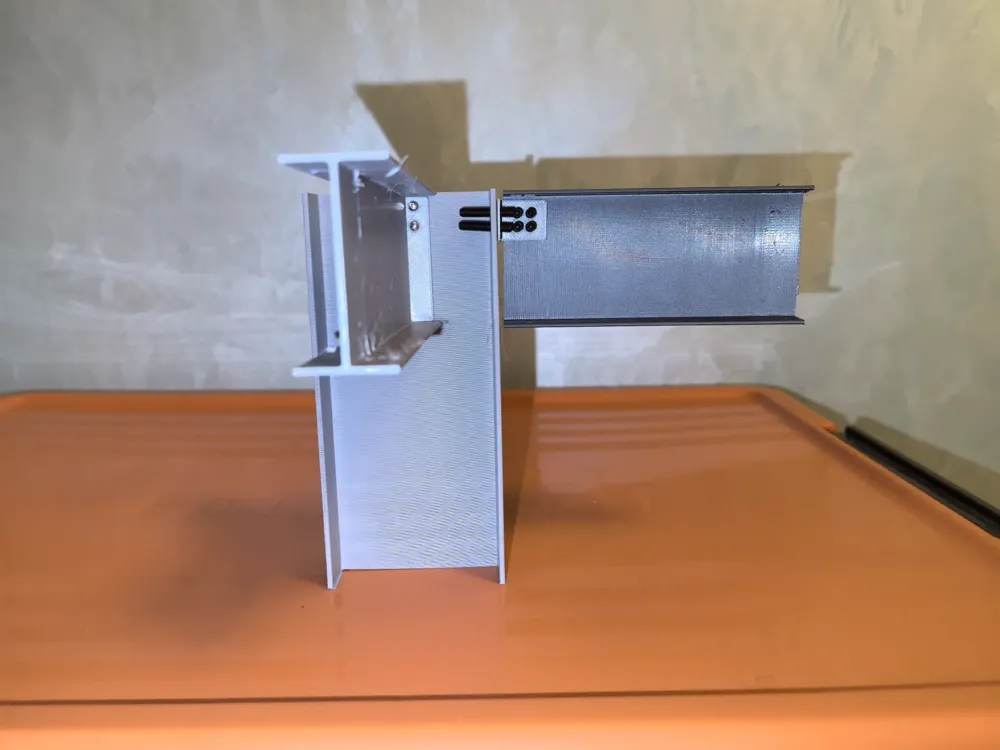

This is an optimized steel beam node model

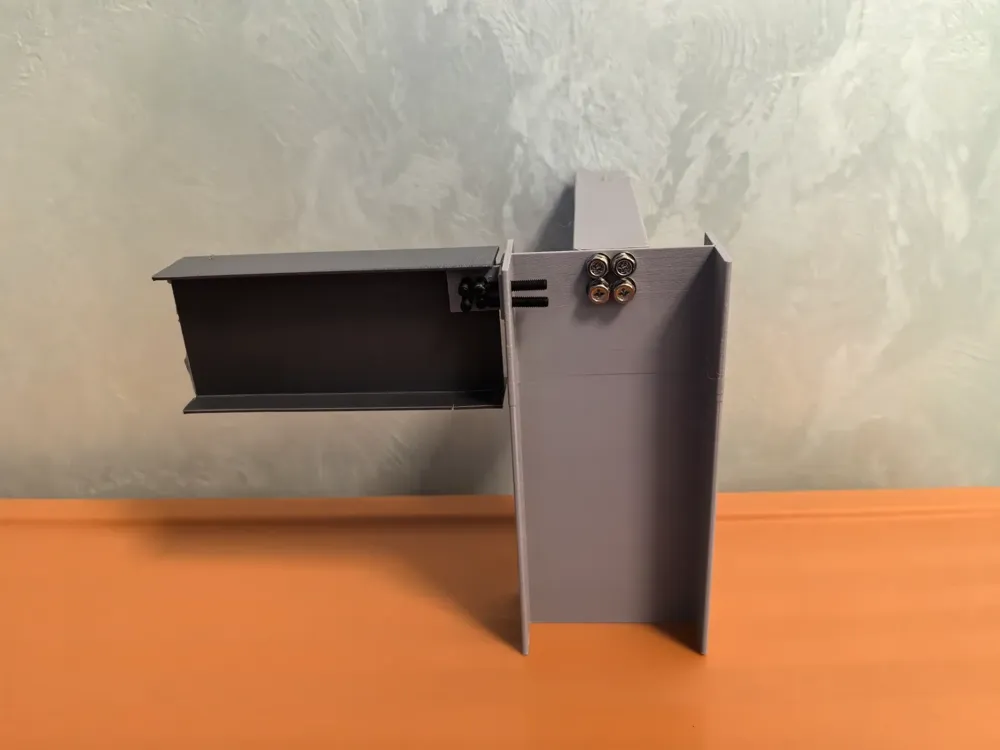

The screws used for connection are M3*16 flat-end fasteners, it is recommended to use M3*10/8 flat-end fasteners, or use M2 hexagonal bolts and nuts (I only found M3*16 flat-end fasteners)
The hole size is 3mm in diameter
