NES Controller Shell with removable faceplate

BentleyWilkinson
Hobby & DIY>Electronics
IP Report

Print Profile(1)

All
A1
P1S
P1P
X1 Carbon
X1E
X1
A1 mini
H2D
H2D Pro
H2S
P2S
H2C
X2D
A2L
0.12mm layer, 2 walls, 15% infill
0.12mm layer, 2 walls, 15% infill
Designer
3.1 h
4 plates
4.8(5)
Open in Bambu Studio
Boost
70
145
23
8
103
47
Released

Description

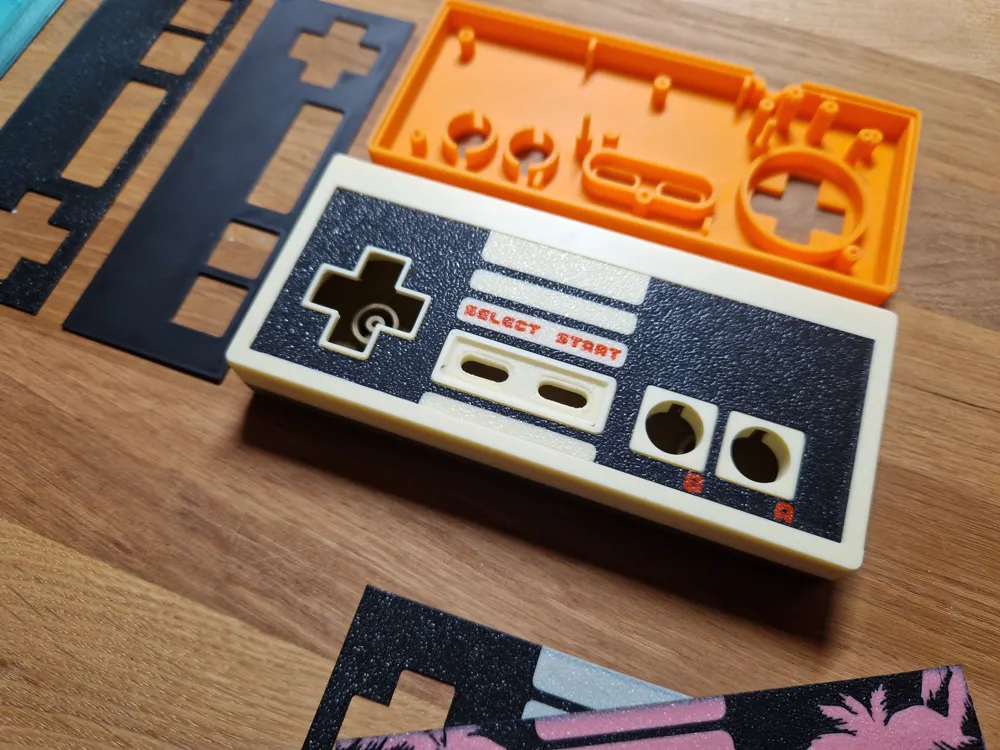

NES 8-bit controller replacement shell with a removable and customisable faceplate.



This is a full non-replica replacement shell for the NES 8-bit controller, the back is shaved smooth with no text, the logo on the faceplate has also been removed. No buttons included!

IMPORTANT!

In the print file there are a few things to take note of if you want to have a successful print!



  1. The shell is printed on a SMOOTH PEI plate while the faceplate is printed on a TEXTURED PEI plate. If you don't have both, please adjust the file accordingly!

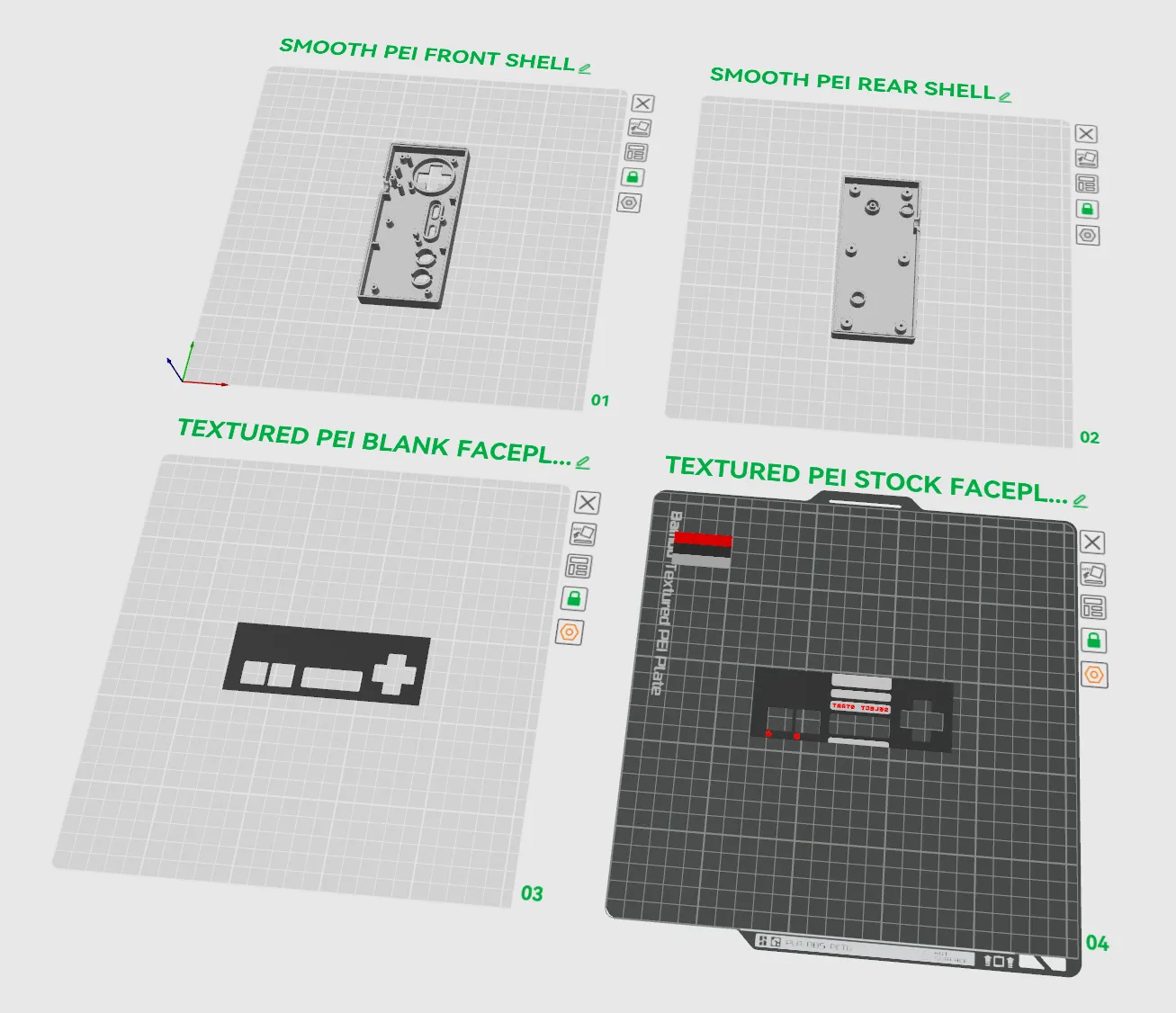

    NOTE! Difference between print plates on Shell VS Faceplate

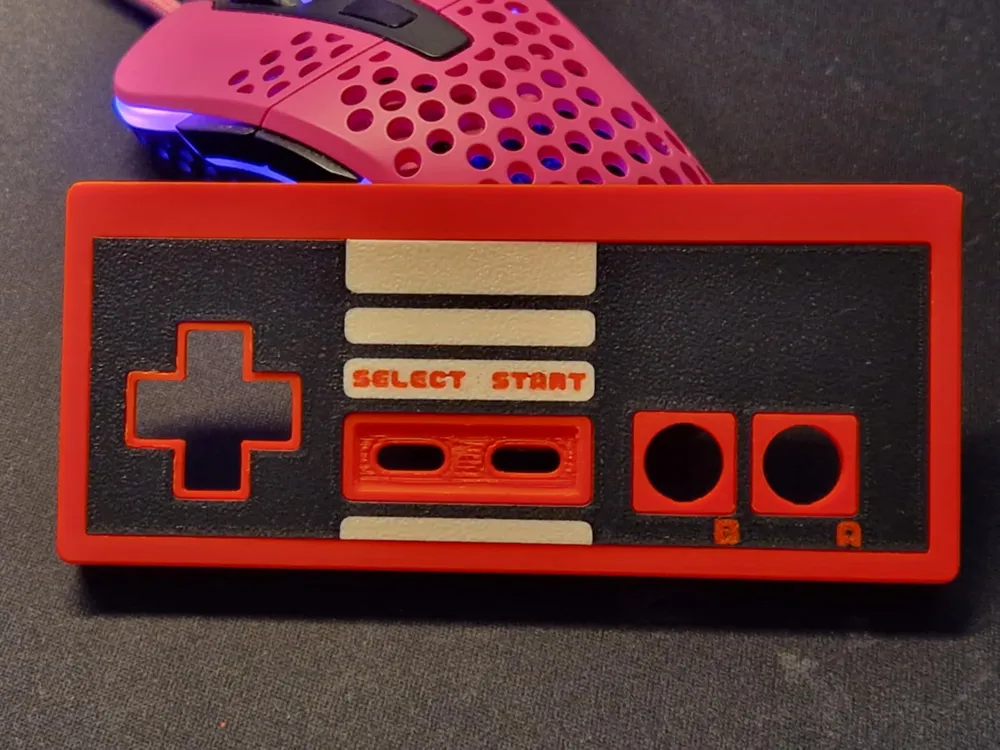

  2.  The “Stock” Faceplate should preferably be printed with a 0.2mm nozzle, this is what I have been using in my sample images. The following is a visual comparison in the slicer!

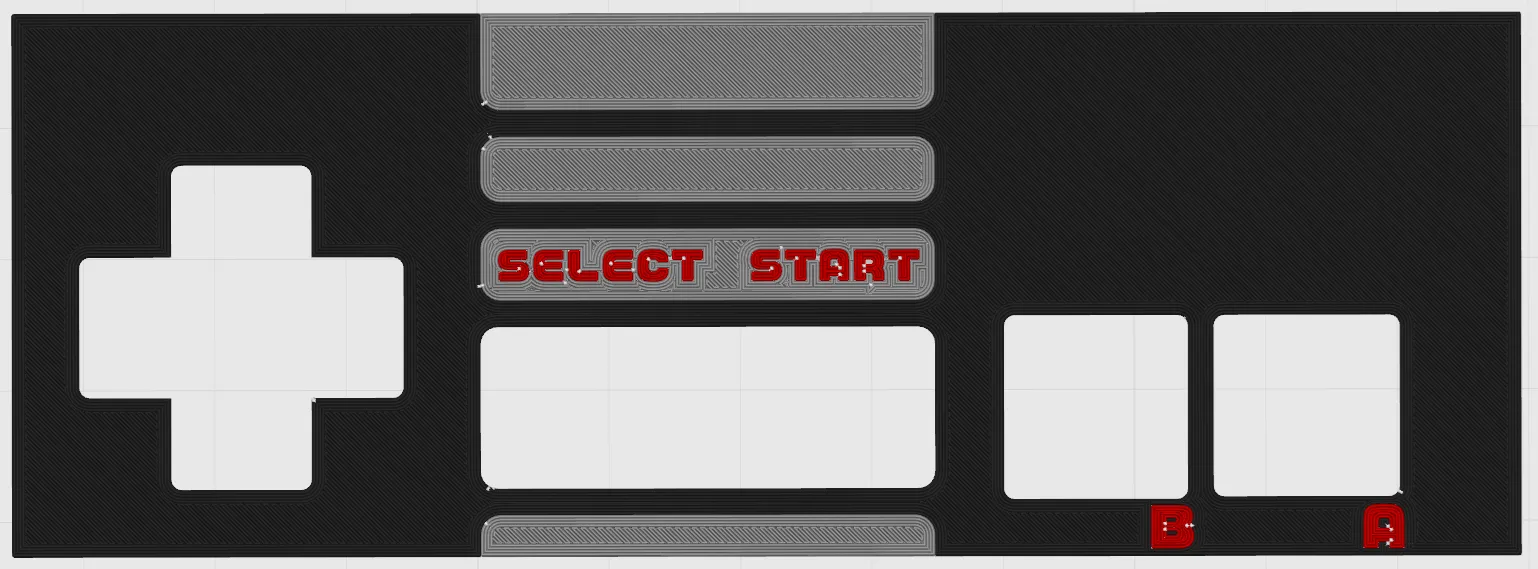

    NOTE! Sliced with a 0.2mm nozzle!

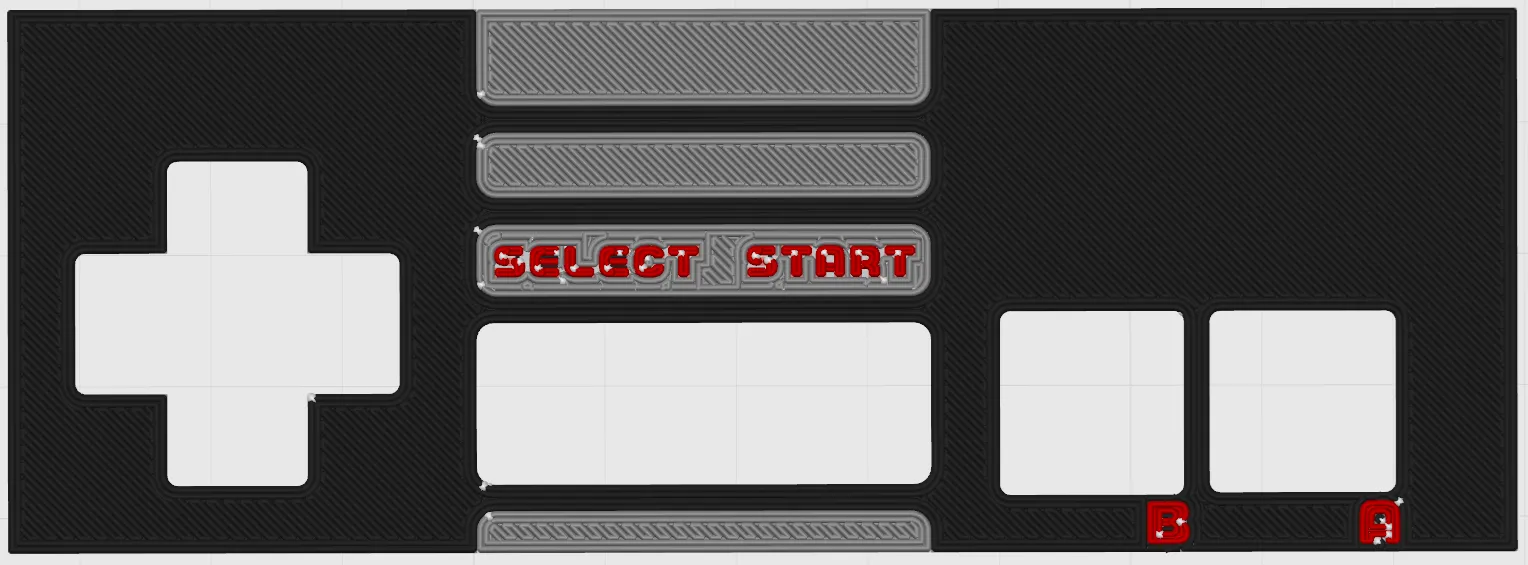

    NOTE! Sliced with a 0.4mm nozzle!



Boost Me (for free)

If you love yourself a bit of retro stuff, give this a boost so I know what to make more of!

nes
nes 8bit
Nintendo
nintendones
8bit
8BitDo
controller
Game
super mario
zelda
videogame
replacement
spare
custom
GameBoy

Comment & Rating (23)

(0/1000)
@user_864346557

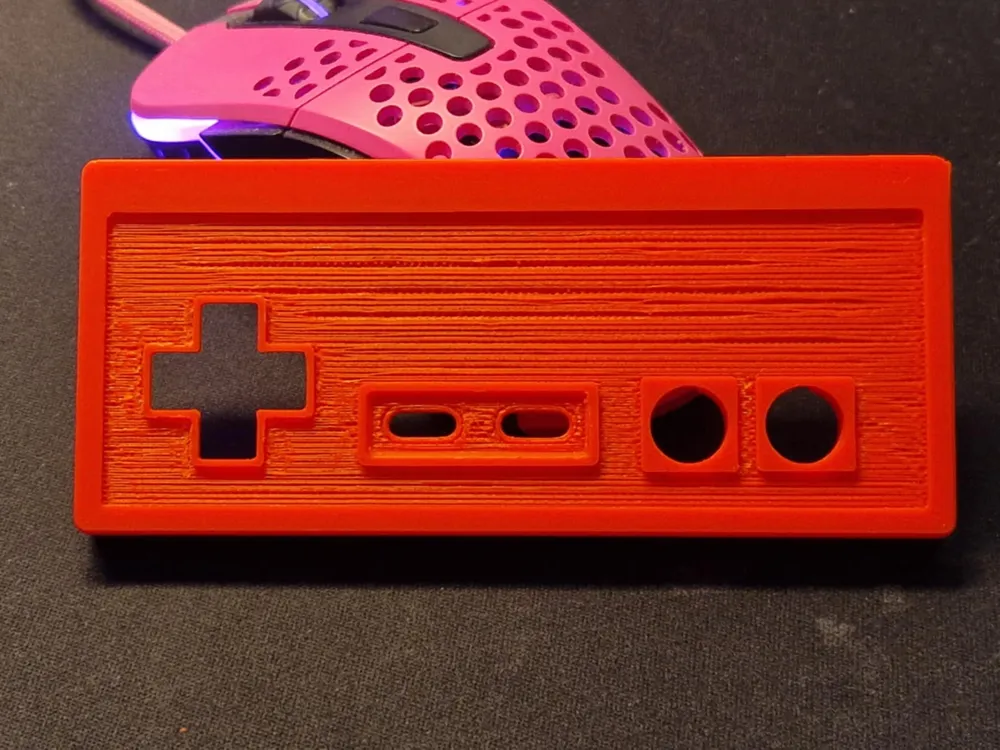

Nice design! What kind of supports du you use? My start select groove looks really bad.
The designer has replied
designer
1
Reply
@BentleyW

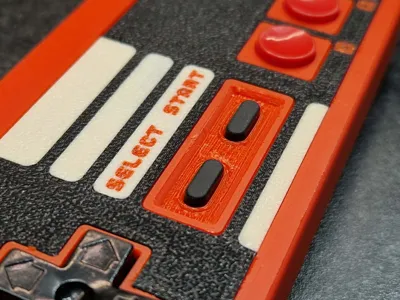

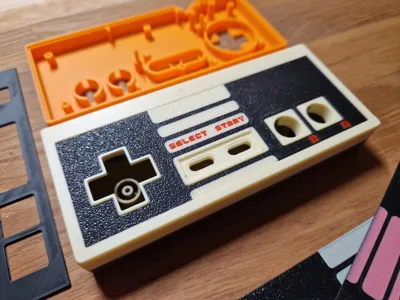

It should use standard "normal" supports. I am aware that when using the basic profile the start and select slot can look a little rough as I don't want to risk print failure if people's tolerances are not quite correct. If you are able to print that piece with adjusted tolarences with a different filament you could get a great result, so PETG supports if the shell is printed in PLA, that way you'll be able to get it much smoother. If you print the front shell with tree supports I know that the majority of the supports where you add the decorative piece will be quite difficult to remove when I did my testing. The goal was to make it easy to print with as little waste as possible, so some corners had to be cut. Attached is a close up of my final test print with the supplied print profile with genuine Nintendo internals.
(Edited)
0
Reply
@user_864346557
Replying to @BentleyW :
I understand! You dont happen to have a "hard to print" variant as well? I'd love to make these as good looking as possible :)
designer
1
Reply
@BentleyW
Replying to @user_864346557 :
If you're keen to learn more about using different materials for a smother finish you should check out this thread: https://forum.bambulab.com/t/support-filament-petg-for-pla-and-pla-for-petg-and-more/5942/4 I unfortunately don't have the capacity to set up and test a PLA/PETG-blend profile at the moment.
1
Reply
@psybertech
Boosted
Print Profile
0.12mm layer, 2 walls, 15% infill
nice! thanks!!!!!
The profile uploader has replied
profile
1
Reply
@BentleyW
super cool!
0
Reply
@dale_coop
Great file. I loved printing this NES controller. 👍☕️
Show original
designer
1
Reply
@Jcann77
Print Profile
0.12mm layer, 2 walls, 15% infill
(Edited)
The profile uploader has replied
0
Reply
@BentleyW
love the colours!
0
Reply
@user_1082604307
Boosted
Thanks
The designer has replied
1
Reply
@BentleyW
thank you!
0
Reply
@WalleriusDesign
Boosted
Stylish! Love Nintendo retro stuff..😍 It deserved a boost!
The designer has replied
Show original
designer
1
Reply
@BentleyW
Thank you so much!
Show original
0
Reply
@felixemo
Print Profile
0.12mm layer, 2 walls, 15% infill
The profile uploader has replied
profile
1
Reply
@BentleyW
thank you for taking your time to print and rate!
0
Reply
@nessafromearth
Print Profile
0.12mm layer, 2 walls, 15% infill
0
Reply
@hartmanl2354
Print Profile
0.12mm layer, 2 walls, 15% infill
0
Reply
