Description

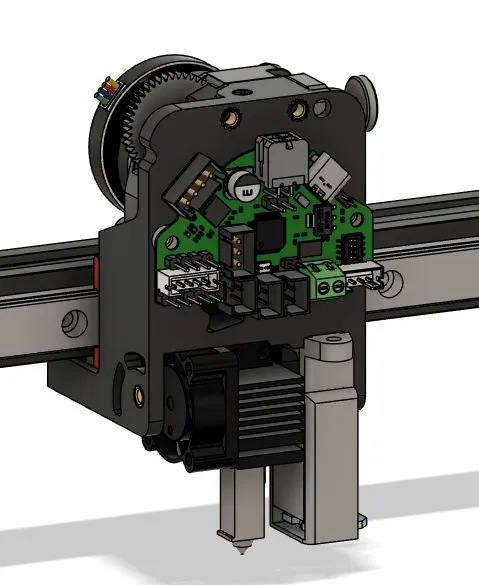

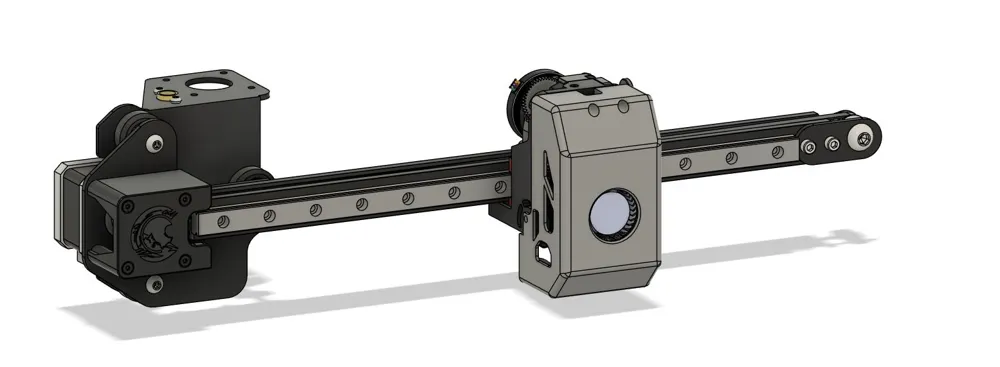

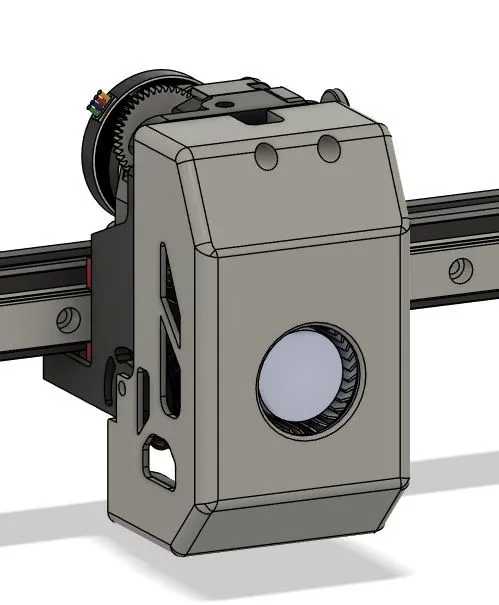

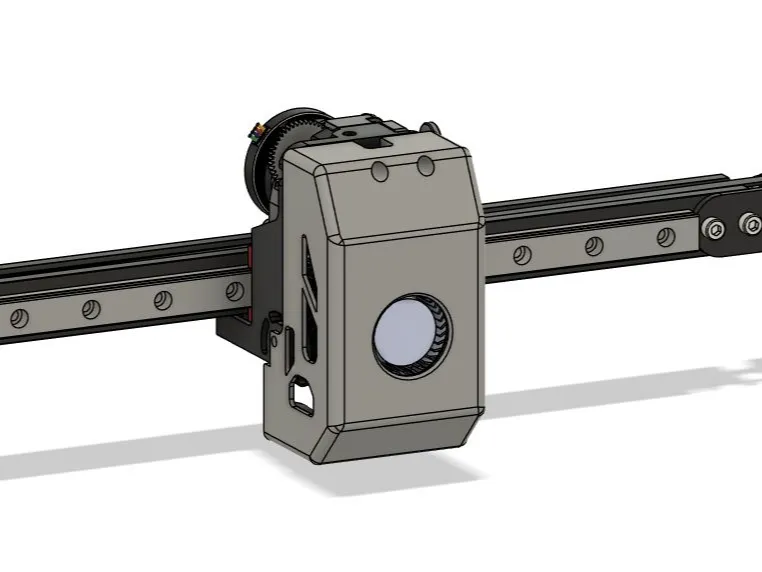

3D printer toolhead designed for compatibility with Cartesian printers like the Ender 3
The parts must be printed in ABS or ASA

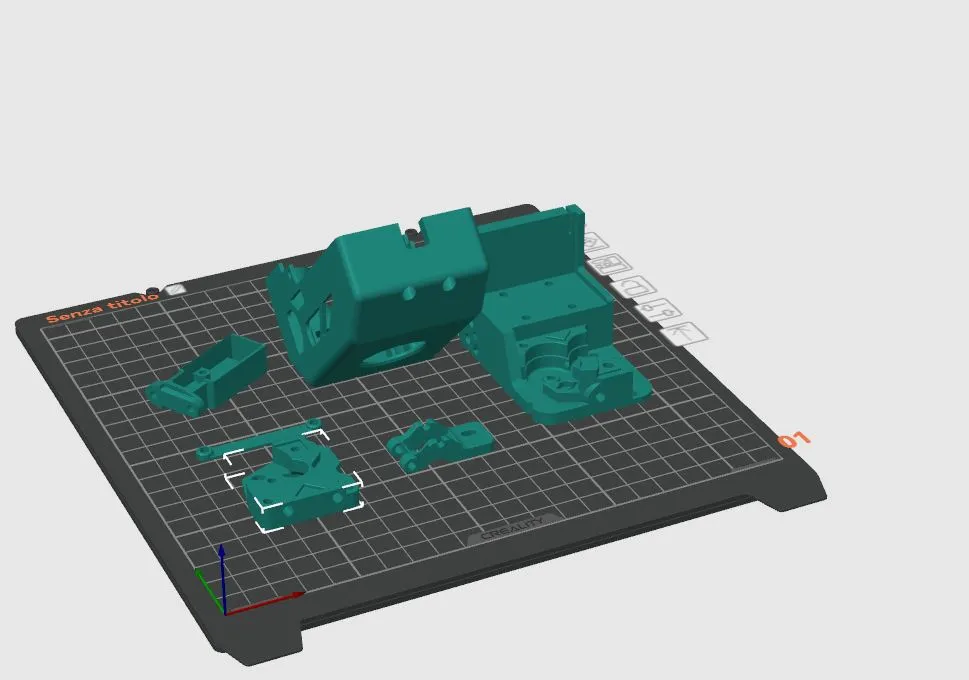

Printing settings
4 loops
40% gyroid infill
Tree supports enabled
Klipper firmware Settings
[extruder] rotation_distance: 53.49 #calibration advised gear_ratio: 44:10, 37:17
Bill of materials
| QT | Description | Purchase link |
|---|---|---|
| 1x | HGX Lite gear set | Link |
| 1x | Nema 14 stepper motor | Link |
| 1x | X1C compatible hotend | Link |
| 1x | 4020 24V fan | Link |
| 1x | 2510 24V fan | Link |
| 8x | M3xL4xOD4.5 Heat inserts | Link |
| 1x | MGN12H (HIWIN) | Link |
| 4x | M3x6mm | Link |
| 2x | M3x4mm | Link |
| 4x | M3x10mm | Link |
| 3x | M3x16mm | Link |
| 2x | M2.5x12mm | Link |
optional
| QT | Description | Purchase link |
|---|---|---|
| 1x | EBB36 | Link |
| 1x | 4mm ball (608RS) | Link |
| 1x | Limit switch (Handle 11.5mm) | Link |
| 1x | Eddy DUO | Link |
| OR | ||
| 1x | BLTouch | Link |
